Hartmann Codier GmbH- Slide DIP Switches

Hartmann Codier GmbH is a German manufacturer specializing in high-quality electromechanical switches and encoders. Founded in 1946 and headquartered in Pforzheim, Germany, the company has a long history of precision engineering. Its core product portfolio includes DIP switches, rotary coding switches, slide switches, and custom switching solutions. The Hartmann Codier brand is widely recognized in the industrial automation, medical equipment, and telecommunications sectors. The company's products are known for their reliability, durability, and compact design, meeting stringent industrial standards. Hartmann Codier also offers a range of human-machine interface (HMI) components, such as keypads and membrane switches. With a strong focus on innovation, the company provides tailored solutions for complex switching requirements. It maintains a global distribution network, ensuring its components are available to customers worldwide. The company is part of the ELOBAU Group, which further strengthens its market position in sensor and switch technology. Hartmann Codier continues to invest in research and development to stay at the forefront of switch technology.

Slide DIP Switches - 型号列表

28 parts in total

Mfr Part #	Quantity Available	Price	Number of Positions	Contact Rating (Current)	Mounting Type	Contact Material	Mechanical Life	Operating Temperature	Actuator Type	Package / Case	Contact Layout, Typical	RoHS	Tariff No	Current - Max/Contact	Weight	Actuator Style/Size	1st Connector Mounting Type	Switch Type
P36S106 DIP Switch PCB Rotary Flush, 100 (Dynamic), 400 (Static) mA, 16-Way, -30 to +90°C Hartmann	24	1: $40.74	16	100 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Stainless Steel	10000Operations	+90°C	Rotary Flush	DIP	-	-	-	-	-	-	-	-
PT65501 DIP Switch PCB Wheel, 0.4 A, 10-Way, -20 to +70°C Hartmann	60	1: $28.50	10	0.4 A	PCB	Gold Over Nickel Plated Phosphor Bronze	10000Operations	+70°C	Wheel	DIP	-	-	-	-	-	-	-	-
PT65703L508 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 16-Way, -20 to +70°C Hartmann	3520	10: $26.4384	16	150 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Bronze	10000Operations	+70°C	Rotary Flush	DIP	-	-	-	-	-	-	-	-
PT65121 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 4-Way, -20 to +70°C Hartmann	228	1: $30.36	4	150 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Phosphor Bronze	10000Operations	+70°C	Rotary Flush	DIP	-	-	-	-	-	-	-	-
PT65102 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 10-Way, -20 to +70°C Hartmann	2890	10: $19.4534	10	150 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Bronze	10000Operations	+70°C	Rotary Flush	DIP	-	-	-	-	-	-	-	-
P60A701 DIP Switch PCB, 150 (Dynamic), 400 (Static) mA, 10-Way, -20 to +85°C 4+1 footprint-horizontal BCD switch Hartmann	293	1: $24.98	10	150 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Stainless Steel	10000Operations	+85°C	-	-	-	Compliant	-	-	-	-	-	-
PT65503 DIP Switch PCB Wheel, 0.4 A, 16-Way, -20 to +70°C Hartmann	116	1: $48.84	16	0.4 A	PCB	Gold Over Nickel Plated Phosphor Bronze	10000Operations	+70°C	Wheel	DIP	-	-	-	-	-	-	-	-
P60A703L508 DIP Switch PCB, 150 (Dynamic), 400 (Static) mA, 16-Way, -20 to +85°C 4+1 footprint-r/a HEX rotary switch Hartmann	287	1: $39.35	16	150 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Stainless Steel	10000Operations	+85°C	-	-	-	Compliant	-	-	-	-	-	-
P36101 DIP Switch 10P PCB Rotary Flush, 100 (Dynamic), 400 (Static) mA, 10-Way, -30 to +90°C Hartmann	117	1: $40.54	10	100 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Stainless Steel	10000Operations	+90°C	Rotary Flush	DIP	10P	-	-	-	-	-	-	-
PT65103 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 16-Way, -20 to +70°C Hartmann	14580	10: $19.4534	16	150 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Bronze	10000Operations	+70°C	Rotary Flush	DIP	-	-	-	-	-	-	-	-
PT65303 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 16-Way, -20 to +70°C Hartmann	11606	7: $11.4376	16	150 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Phosphor Bronze	10000Operations	+70°C	Rotary Flush	DIP	-	-	-	-	-	-	-	-
PT65701 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 10-Way, -20 to +70°C Hartmann	6759	9: $38.711	10	150 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Bronze	10000Operations	+70°C	Rotary Flush	DIP	-	-	-	-	-	-	-	-
P36S103 DIP Switch PCB Rotary Flush, 100 (Dynamic), 400 (Static) mA, 16-Way, -30 to +90°C Hartmann	358	1: $23.70	16	100 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Stainless Steel	10000Operations	+90°C	Rotary Flush	DIP	-	-	-	-	-	-	-	-

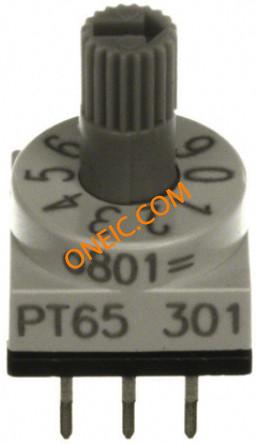

PT65301 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 10-Way, -20 to +70°C Hartmann	1100	4: $17.1646	10	150 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Phosphor Bronze	10000Operations	+70°C	Rotary Flush	DIP	-	-	-	-	-	-	-	-
PT65101 DIP Switch PCB Rotary Flush, 150 (Dynamic), 400 (Static) mA, 10-Way, -20 to +70°C Hartmann	251	1: $51.1931	10	150 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Bronze	10000Operations	+70°C	Rotary Flush	DIP	-	-	-	-	-	-	-	-
P36S101 DIP Switch PCB Rotary Flush, 100 (Dynamic), 400 (Static) mA, 10-Way, -30 to +90°C Hartmann	206	1: $31.24	10	100 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Stainless Steel	10000Operations	+90°C	Rotary Flush	DIP	-	-	-	-	-	-	-	-
2 P60A703 4+1 footprint-horizontal HEX switch DIP Switch PCB, 150 (Dynamic), 400 (Static) mA, 16-Way, -20 to +85°C Hartmann	234	1: $34.95	16	150 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Stainless Steel	10000Operations	+85°C	-	-	-	Compliant	-	-	-	-	-	-
P36103 DIP Switch 16P PCB Rotary Flush, 100 (Dynamic), 400 (Static) mA, 16-Way, -30 to +90°C Hartmann	276	1: $24.47	16	100 (Dynamic), 400 (Static) mA	PCB	Gold Over Nickel Plated Stainless Steel	10000Operations	+90°C	Rotary Flush	DIP	16P	-	-	-	-	-	-	-
2 P65SMT101 SWITCH, ROTARY, 10 POS, BCD, SMD PCB coding switch BCD 3+3, P65SMT101, Hartmann HARTMANN CONCO	10	1: $16.524	:10	-	-	-	-	-	-	-	:-	-	85365019	:200mA	0.007	:Arrow Shaped	:SMD	:DIP
2 P65SMT103 SWITCH, ROTARY, 16 POS, HEX, SMD PCB coding switch HEX 3+3, P65SMT103, Hartmann HARTMANN CONCO	10	1: $17.00	:16	-	-	-	-	-	-	-	:-	-	85365019	:200mA	0.007	:Arrow Shaped	:SMD	:DIP

Page 1 / 2
