Knitter-Switch GmbH & Co. KG- Miniature Slide Switches

Knitter-Switch GmbH & Co. KG is a leading German manufacturer of high-quality electromechanical switches and custom input systems, founded in 1966 and headquartered in Germany. The company has maintained its position at the forefront of switch technology for decades, serving diverse industries worldwide. Its extensive product portfolio includes toggle switches, pushbutton switches, tactile switches, slide switches, DIP switches, rotary coded switches, rotary switches, encoders, micro switches, as well as membrane keyboards, rubber keypads, and stainless steel keypads. With a stock of over 7.5 million switches, Knitter-Switch ensures rapid availability and short delivery times. The company emphasizes quality and service, with its Asian headquarters in Hong Kong holding ISO 9001 certification to guarantee high-quality standards and control. Knitter-Switch supports customers locally through a specialized team that assists with design processes and provides individually customized switching solutions. By continuously adopting the latest technologies and materials, the company innovates new switch solutions to meet evolving market demands. It maintains strategic alliances with top global distributors, enabling a worldwide distribution network and ensuring local contacts for customers everywhere. Knitter-Switch is recognized as a specialty switch expert, offering reliable and durable components for industrial, automotive, medical, and consumer applications.

Miniature Slide Switches - 型号列表

58 parts in total

Mfr Part #	Quantity Available	Price	Mounting Type	Terminal Type	Contact Material	Mechanical Life	Operating Temperature	Contact Resistance	Contact Rating (Current)	Actuator Type	Switch Function/Rating	Contact Layout, Typical	Contact Finish	Voltage Rating	Actuator Material	RoHS	Current Rating (Max)	Type	Part Status	Circuit	Switch Function	Current Rating (Amps)	Packaging	Switch Travel	Contact Timing	Actuator Length	Operating Force	Termination Style	Series	Features	Manufacturer	Electrical Life	Voltage - DC Spark Over (Nom)	Depth	Height	Mounting Style	Length - Overall	Actuator Style/Size	Operating Temperature - Junction	Switch Actuation Level	Voltage - Rated AC
KNIMFP461N Switch Slide ON ON Top Slide 0.35A 30VDC 10000Cycle PC Pins Thru-Hole knitter switch	-		Through Hole	PC Pins	Copper Alloy	10000 Cycles	-20 to 85 °C	-	-	-	ON ON	-	Silver/Nickel	30 V	-	-	0.35@30VDC A	Miniature	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
KNIMFP263PRA Switch Slide ON ON ON Side Slide 0.35A 30VDC 10000Cycle PC Pins Thru-Hole knitter switch	10	180: ¥8.1811	Through Hole	PC Pins	Copper Alloy	10000	-20 to 85 °C	-	-	-	ON ON ON	-	Silver/Nickel	30 V	-	-	0.35@30VDC A	Miniature	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MFP1320 PCB Slide Switch 0.35 A @ 30 V dc Slide Switch Slide Top Slide 0.35A 30VDC 10000Cycles PC Pins Thru-Hole KNITTER-SWITCH	700	700: ¥4.5166	PCB	Through Hole	Silver Over Nickel Plated Copper Alloy	10000Operations	+85°C	20mΩ	0.35 A @ 30 V dc	Slide	-	-	Silver/Nickel	-	-	-	0.35 A	Miniature	-	-	-	-	-	-	-	-	-	-	-	-	-	-	30V VDC	6 mm	9.2 mm	Through Hole	15.5 mm	Top Slide	85C	-	-
MFP113D-RA PCB Slide Switch SPDT On-On 0.1 A @ 12 V dc Slide SW,SLDE,NON-SHORT,R/AN,1P KNITTER-SWITCH	1075	5: ¥5.802	PCB	Through Hole	Silver Over Nickel Plated Copper Alloy	10000Operations	+85°C	20mΩ	0.1 A @ 12 V dc	Slide	On-On	SPDT	-	-	-	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MFP120-R PCB Slide Switch SP 0.35 A @ 30 V dc Slide SW,SLIDE,R/A,2POSOPS KNITTER-SWITCH	2350	5: ¥7.732	PCB	Through Hole	Silver Over Nickel Plated Copper Alloy	10000Operations	+85°C	20mΩ	0.35 A @ 30 V dc	Slide	-	SP	-	-	-	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

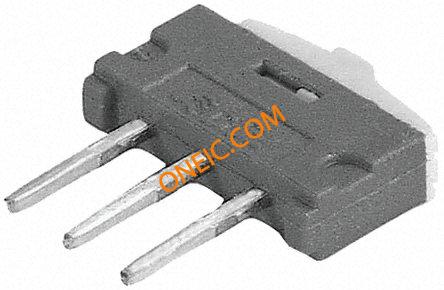

MMP1010D PCB Slide Switch On-On 0.5 A @ 12 V dc KNITTER-SWITCH	131	100: ¥4.335	PCB	Solder	Gold Plated Phosphor Bronze	10000Operations	+85°C	30mΩ	0.5 A @ 12 V dc	Standard	On-On	-	Gold	12 V	Polyamide (PA46), Nylon 4/6, Glass Filled	-	-	-	Active	SPDT	On-On	500mA (DC)	Tube	-	Not Specified	-	800gf	PC Pin	MMP	-	Knitter-Switch	-	-	-	-	-	-	-	-	-	-
MFP113D PCB Slide Switch SPDT On-On 0.1 A @ 12 V dc Slide KNITTER-SWITCH	5242	51: ¥3.3816	PCB	Through Hole	Silver Over Nickel Plated Copper Alloy	10000Operations	+85°C	20mΩ	0.1 A @ 12 V dc	Slide	On-On	SPDT	Silver	12 V	Polyamide (PA46), Nylon 4/6	-	-	-	Active	SPDT	On-On	100mA (DC)	Bag	2.00mm	Non-Shorting (BBM)	4.00mm	200gf	PC Pin	MFP	-	Knitter-Switch	-	-	-	-	-	-	-	-	-	-

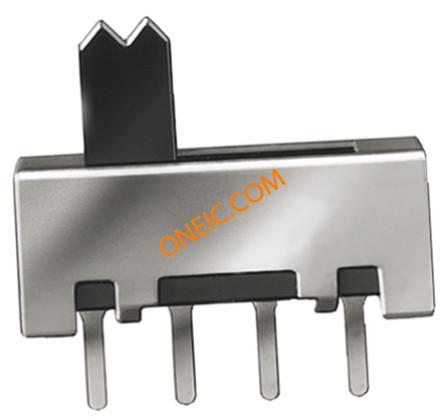

2 MFP220 PCB Slide Switch DP 0.35 A @ 30 V dc Slide Switch Slide DPDT Top Slide 0.35A 30VDC 10000Cycles PC Pins Thru-Hole SW,SLIDE,2POS,2POLE KNITTER-SWITCH	500	31: ¥5.6352	PCB	Through Hole	Silver Over Nickel Plated Copper Alloy	10000Operations	+85°C	20mΩ	0.35 A @ 30 V dc	Slide	-	DP	Silver/Nickel	30 V	Polyoxymethylene (Acetal) (POM)	RoHS Compliant Part	0.35 A	Miniature	Active	DPDT	On-On	350mA (DC)	Bag	3.20mm	Non-Shorting (BBM)	5.00mm	150gf	PC Pin	MFP	-	Knitter-Switch	-	30V VDC	10.2 mm	12 mm	Through Hole	13.6 mm	Top Slide	85C	DPDT	-

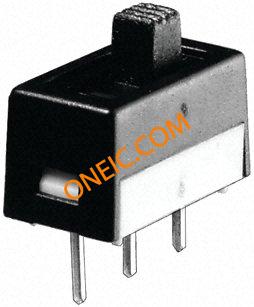

MSS3112D PCB Slide Switch SP On-On 3 A @ 28 V dc Slide KNITTER-SWITCH	143	1: ¥30.83	PCB	Solder	Silver Plated Copper Alloy	20000Operations	+85°C	100mΩ	3 A @ 28 V dc	Slide	On-On	SP	-	-	Nylon	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

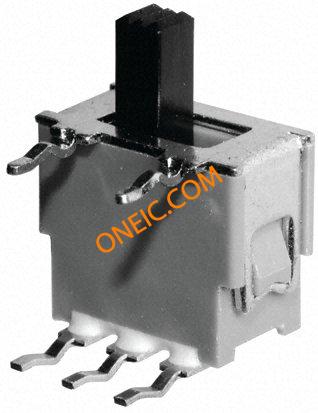

ASL 1D-RA PCB Slide Switch SPDT On-On 0.05 A @ 48 V ac/dc Slide KNITTER-SWITCH	21	1: ¥36.23	PCB	Through Hole	Gold Over Nickel Plated Phosphor Bronze	60000Operations	+80°C	50mΩ	0.05 A @ 48 V ac/dc	Slide	On-On	SPDT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

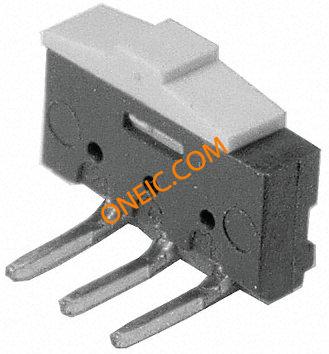

MMP1010D-RA PCB Slide Switch On-On 0.5 A @ 12 V dc KNITTER-SWITCH	106	13: ¥8.7564	PCB	Solder	Gold Plated Phosphor Bronze	10000Operations	+85°C	30mΩ	0.5 A @ 12 V dc	-	On-On	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

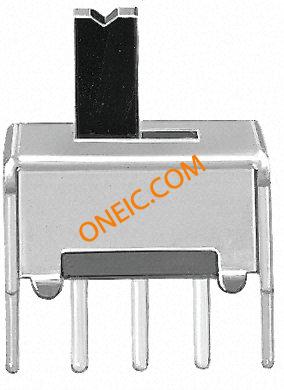

MFP213N PCB Slide Switch DPDT On-On 0.1 A @ 12 V dc Slide KNITTER-SWITCH	816	4: ¥5.8222	PCB	Through Hole	Silver Over Nickel Plated Copper Alloy	10000Operations	+85°C	20mΩ	0.1 A @ 12 V dc	Slide	On-On	DPDT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ASL 1E PCB Slide Switch SPDT On-Off-On 0.05 A @ 48 V ac/dc Slide KNITTER-SWITCH	1700	1: ¥34.51	PCB	Through Hole	Gold Over Nickel Plated Phosphor Bronze	60000Operations	+80°C	50mΩ	0.05 A @ 48 V ac/dc	Slide	On-Off-On	SPDT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MFP230 PCB Slide Switch DP 0.35 A @ 30 V dc Slide KNITTER-SWITCH	10	1: ¥7.8254	PCB	Through Hole	Silver Over Nickel Plated Copper Alloy	10000Operations	+85°C	20mΩ	0.35 A @ 30 V dc	Slide	-	DP	Silver	30 V	Polyoxymethylene (Acetal) (POM)	-	-	-	Active	DP3T	On-On-On	350mA (DC)	Bag	3.20mm	Non-Shorting (BBM)	5.00mm	180 ~ 250gf	PC Pin	MFP	-	Knitter-Switch	-	-	-	-	-	-	-	-	-	-

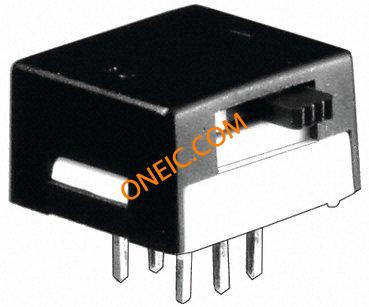

MSS3121N-R PCB Slide Switch DP On-On 3 A @ 28 V dc Slide SLIDESWITCH,ON-ON,R/A KNITTER-SWITCH	112	1: ¥24.90	PCB	Solder	Silver Plated Copper Alloy	20000Operations	+85°C	100mΩ	3 A @ 28 V dc	Slide	On-On	DP	-	-	Nylon	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ASL 2D PCB Slide Switch DPDT On-On 0.05 A @ 48 V ac/dc Slide Switch Slide ON ON DPDT Top Slide 0.05A 48VAC 48VDC 0.4VA 60000Cycles PC Pins Thru-Hole KNITTER-SWITCH	17	1: ¥49.76	PCB	Through Hole	Gold Over Nickel Plated Phosphor Bronze	60000Operations	+80°C	50mΩ	0.05 A @ 48 V ac/dc	Slide	On-On	DPDT	Gold/Nickel	-	-	-	0.05 A	Sub-Miniature	-	-	-	-	-	-	-	-	-	-	-	-	-	-	48V	5 mm	12.3 mm	Through Hole	9.5 mm	Top Slide	80C	DPDT	48V

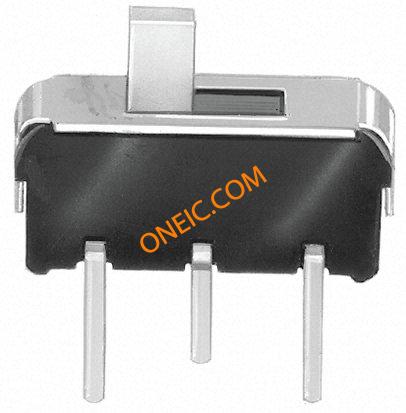

MMP121 PCB Slide Switch SPDT On-On 0.2 A @ 12 V dc Slide SW,SLIDE,MICROMIN,ON-ON KNITTER-SWITCH	1070	17: ¥9.7104	PCB	Through Hole	Silver Plated Phosphor Bronze	5000Operations	+60°C	50mΩ	0.2 A @ 12 V dc	Slide	On-On	SPDT	-	-	-	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MFP1320-R PCB Slide Switch 0.35 A @ 30 V dc Slide SW,SLIDE,R/A,3OPPOS KNITTER-SWITCH	50	5: ¥8.592	PCB	Through Hole	Silver Over Nickel Plated Copper Alloy	10000Operations	+85°C	20mΩ	0.35 A @ 30 V dc	Slide	-	-	-	-	-	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MFP130 PCB Slide Switch SP 0.35 A @ 30 V dc Slide KNITTER-SWITCH	900	35: ¥5.0633	PCB	Through Hole	Silver Over Nickel Plated Copper Alloy	10000Operations	+85°C	20mΩ	0.35 A @ 30 V dc	Slide	-	SP	Silver	30 V	Polyamide (PA66), Nylon 6/6	-	-	-	Active	SP3T	On-On-On	350mA (DC)	Bag	3.20mm	Non-Shorting (BBM)	5.00mm	300gf	PC Pin	MFP	-	Knitter-Switch	-	-	-	-	-	-	-	-	-	-
ASE 1E-RA PCB Slide Switch SPDT On-Off-On 0.05 A Slide KNITTER-SWITCH	130	1: ¥24.12	PCB	Through Hole	Gold Over Nickel Plated Phosphor Bronze	60000Operations	+80°C	50mΩ	0.05 A	Slide	On-Off-On	SPDT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
