Legrand S.A.

Legrand S.A.- Terminal Blocks and Connectors

Legrand S.A. is a French industrial group founded in 1904 and headquartered in Limoges, France. It specializes in electrical and digital building infrastructures, serving residential, commercial, and industrial markets worldwide. The company focuses on a single core business with a dual vision: to extend its leadership in electrical and building intelligent systems, and to become the standard for smart electrical solutions through innovation and high energy efficiency. Legrand's product portfolio includes wiring devices, switches and sockets, circuit breakers, power distribution units, cable management systems, and home automation solutions. Under the Eliot program, Legrand offers connected products such as smart lighting controls, energy management devices, and IoT-enabled sensors for building intelligence. Its key product brands include Céliane, Mosaic, and Arteor for wiring devices, DPX³ and DX³ for circuit breakers, and Classe 300X and Classe 100X for video door entry systems. Legrand also provides power and data center solutions including server racks, PDUs, and structured cabling through its Legrand Data Center Solutions division. The company holds a leading global position in wiring devices and building automation, with a strong presence in over 90 countries and a comprehensive portfolio of more than 300,000 catalog items. Through strategic acquisitions and sustained R&D investment, Legrand continues to drive digital transformation in buildings, emphasizing energy efficiency, connectivity, and user comfort.

03

Terminal Blocks and Connectors - 型号列表

29 parts in total

Current Rating (Max)

Wire Gauge

Length

Size / Dimension

Depth

Width

Wire Gauge or Range - mm2

Voltage Rating

Operating Temperature

Accessory Type

Material

RoHS

Color

Series

Mfr Part #Quantity AvailablePriceWire GaugeCurrent Rating (Max)MaterialOperating TemperatureVoltage RatingDepthWidthLengthMounting TypeNumber of RowsSize / DimensionNumber of ContactsNumber of Positions/Bay/RowRoHSColorOrientationWire Gauge or Range - mm2TerminationSeriesAccessory TypeFor Use With/Related ProductsPitch
0 342 53
0 342 53

Non-Fused Terminal Block 12 Way, Screw Down, 50V

Legrand

-6 mm15APVC+80°C50 V-------12----Screw Down----
0 340 01
0 340 01

Non-Fused Terminal Block 12 Way, Screw Down

Legrand

-10 mm-----------12----Screw Down---19.5mm
0 342 15
2
0 342 15

HEADER OF CONNECTION Legrand 端子束夹 直向, 12 路, 2 行, 57A, 400 V, 135.1mm长, 黑色

Legrand

-10 mm57APP+55°C400 V17.4mm20.8mm135.1mmStraight2135.1 x 20.8 x 17.4mm12-Not Applicable黑色10 mm²-----
0 342 17
2
0 342 17

HEADER OF CONNECTION Legrand 端子束夹 直向, 12 路, 2 行, 76A, 400 V, 156.8mm长, 黑色

Legrand

-16 mm76APP+55°C400 V22.5mm24.2mm156.8mmStraight2156.8 x 24.2 x 22.5mm12-Compliant黑色16 mm²-----
0 342 19
2
0 342 19

HEADER OF CONNECTION Legrand 端子束夹 直向, 12 路, 2 行, 101A, 400 V, 214mm长, 黑色

Legrand

-25 mm101APP+55°C400 V27.5mm33mm214mmStraight2214 x 33 x 27.5mm12-Compliant黑色25 mm²-----
0 375 01
0 375 01

TERMINALS JUMPER BAR 10 BLOCKS P5

Legrand

-------------------0375BusbarTerminal Block-
0 342 21
2
0 342 21

HEADER OF CONNECTION Legrand 端子束夹 直向, 12 路, 2 行, 24A, 400 V, 94mm长, 白色

Legrand

-2.5 mm24APP+55°C400 V12.3mm15.6mm94mmStraight294 x 15.6 x 12.3mm12-Compliant白色2.5 mm²-----
0 342 27
0 342 27

HEADER OF CONNECTION

Legrand

-16 mm76APP+55°C400 V22.5mm24.2mm156.8mmStraight2156.8 x 24.2 x 22.5mm12----------
0 375 13
0 375 13

TERMINAL END COVER P12

Legrand

-------------------0375End CoverTerminal Block-
0 342 25
2
0 342 25

HEADER OF CONNECTION Legrand 端子束夹 直向, 12 路, 2 行, 57A, 400 V, 135mm长, 白色

Legrand

-10 mm57APP+55°C400 V17.4mm20.8mm135mmStraight2135 x 20.8 x 17.4mm12-Compliant白色10 mm²-----
0 048 10
0 048 10

TERMINAL BLOCK HOLDER FOR DIN RAIL MTG

Legrand

-------------------048Terminal block supportTerminal Block-
0 342 11
2
0 342 11

HEADER OF CONNECTION Legrand 端子束夹 直向, 12 路, 2 行, 24A, 400 V, 94mm长, 黑色

Legrand

-2.5 mm24APP+55°C400 V12.3mm15.6mm94mmStraight294 x 15.6 x 12.3mm12-Compliant黑色2.5 mm²-----

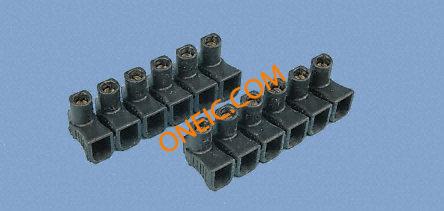

0 342 65
0 342 65

Non-Fused Terminal Block 12 Way, Screw Down

Legrand

-10 mm32APP+100°C--------12----Screw Down----
0 342 63
0 342 63

Non-Fused Terminal Block 12 Way, Screw Down

Legrand

-4 mm17.5APP+100°C--------12----Screw Down----

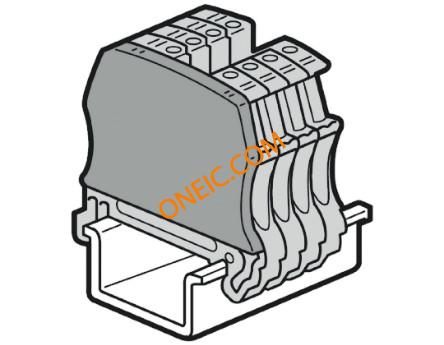

0 375 51
0 375 51

Terminal Blocks End Cap for 12 and 15 mm

Legrand

-------------------0375End CoverTerminal Block-
0 342 54
0 342 54

Non-Fused Terminal Block 12 Way, Screw Down, 50V

Legrand

-10 mm25APVC+80°C50 V-------12----Screw Down----
0 342 13
2
0 342 13

HEADER OF CONNECTION Legrand 端子束夹 直向, 12 路, 2 行, 41A, 400 V, 107mm长, 黑色

Legrand

-6 mm41APP+55°C400 V14.4mm18mm107mmStraight2107 x 18 x 14.4mm12-Compliant黑色6 mm²-----
0 342 33
0 342 33

Non-Fused Terminal Block 12 Way, 380V

Legrand

-16 mm76APP+80°C380 V-------12---------
0 342 66
0 342 66

Non-Fused Terminal Block 12 Way, Screw Down

Legrand

-16 mm41APP+100°C--------12----Screw Down----

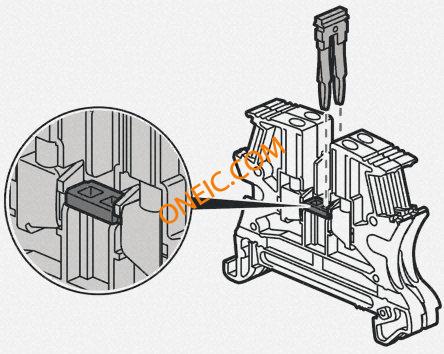

0 375 07
0 375 07

TERMINALS JUMPER BAR 3 BLOCKS P8

Legrand

-------------------0375BusbarTerminal Block-
Page 1 / 2
