Legrand S.A.- Disconnect Switch Components

Legrand S.A. is a French industrial group founded in 1904 and headquartered in Limoges, France. It specializes in electrical and digital building infrastructures, serving residential, commercial, and industrial markets worldwide. The company focuses on a single core business with a dual vision: to extend its leadership in electrical and building intelligent systems, and to become the standard for smart electrical solutions through innovation and high energy efficiency. Legrand's product portfolio includes wiring devices, switches and sockets, circuit breakers, power distribution units, cable management systems, and home automation solutions. Under the Eliot program, Legrand offers connected products such as smart lighting controls, energy management devices, and IoT-enabled sensors for building intelligence. Its key product brands include Céliane, Mosaic, and Arteor for wiring devices, DPX³ and DX³ for circuit breakers, and Classe 300X and Classe 100X for video door entry systems. Legrand also provides power and data center solutions including server racks, PDUs, and structured cabling through its Legrand Data Center Solutions division. The company holds a leading global position in wiring devices and building automation, with a strong presence in over 90 countries and a comprehensive portfolio of more than 300,000 catalog items. Through strategic acquisitions and sustained R&D investment, Legrand continues to drive digital transformation in buildings, emphasizing energy efficiency, connectivity, and user comfort.

Disconnect Switch Components - 型号列表

44 parts in total

Mfr Part #	Quantity Available	Number of Poles	Current Rating (Max)	Mounting Type	Phase Difference	Terminal Type	Voltage Rating	Depth	Width	Length	Normal State Configuration	Switch Function/Rating	Other Specifications	Color	Fits Terminal Size	Seal Rating	Phase Noise Typ (dBc/Hz)	Connector Type	Ingress Protection	Fuse Size	Operating Temperature	Auxiliary Outputs and Type	Number of Positions/Contacts

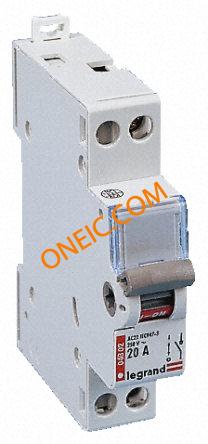

2 0 043 02 SP Non-Fused Switch Disconnector, NO, 20A Legrand 1极 DIN 导轨安装非熔断隔离开关, 常开, 20 A Legrand	-	SP	20 A	DIN Rail	-	-	250 V ac	74mm	17.7mm	94mm	NO	1.5 kA	Single Throw	-	-	-	-	-	-	-	-	是	Yes

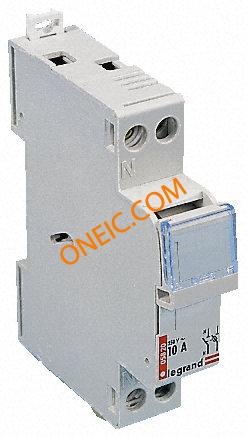

0 058 24 FUSE SWITCH DISCONNECTOR 10,3X38 Legrand	-	SP + N	32 A	DIN rail	1	Cage	-	-	-	-	-	-	-	-	-	-	-	-	-	10.3 x 38 mm	+40°C	-	-

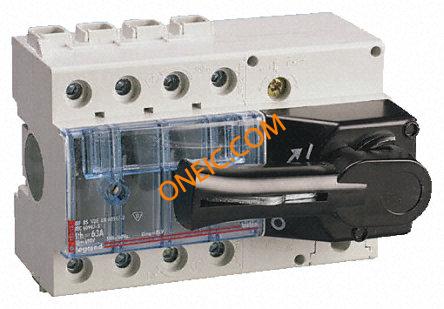

2 0 225 27 SWITCH DISCONNECTOR 100A 4 POLES VISTOP Legrand 4极 DIN 导轨安装非熔断隔离开关, 常开/常闭, 100 A, IP55 Legrand	-	4P	100 A	DIN Rail	3	Cage Clamp	800 V ac	60mm	91mm	160mm	NO/NC	12 kA	是	Black	Yes	IP55	3	笼式弹簧夹	IP55	-	-	-	-

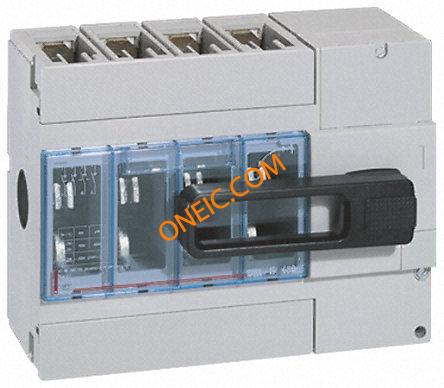

0 266 16 SWITCH DISCONNECT VISITOP 160A Legrand	-	4P	160 A	DIN Rail	3	Cage Clamp	250 V dc, 690 V ac	74mm	138mm	195mm	-	-	-	Black	Yes	IP20	-	-	-	-	-	-	-
2 0 043 05 SP Non-Fused Switch Disconnector, NO, 32A Legrand 1极 DIN 导轨安装非熔断隔离开关, 常开, 32 A Legrand	-	SP	32 A	DIN Rail	-	-	250 V ac	74mm	17.7mm	94mm	NO	1.5 kA	Single Throw	-	-	-	-	-	-	-	-	是	Yes
0 058 23 FUSE SWITCH DISCONNECTOR 10,3X31,5 Legrand	-	SP + N	25 A	DIN rail	1	Cage	-	-	-	-	-	-	-	-	-	-	-	-	-	10.3 x 31.5 mm	+40°C	-	-
0 225 25 SWITCH DISCONNECTOR 100A 3 POLES VISTOP Legrand	-	3P	100 A	DIN Rail	3	Cage Clamp	800 V ac	60mm	91mm	133mm	NO/NC	-	-	Black	Yes	IP55	-	-	-	-	-	-	-
0 266 17 SWITCH DISCONNECT VISITOP 250A Legrand	-	4P	250 A	DIN Rail	3	Cage Clamp	250 V dc, 690 V ac	74mm	138mm	195mm	-	-	-	Black	Yes	IP20	-	-	-	-	-	-	-
2 0 043 01 SWITCH DISCONNECTOR 1P 16A Legrand 1极 DIN 导轨安装非熔断隔离开关, 常开, 16 A Legrand	-	Single pole	16 A	DIN rail	1	-	250 Vac	70mm	-	-	常开	22 A	Single Throw	-	-	-	1	-	-	-	-	-	-
2 0 225 56 SWITCH DISCONNECTOR 160A 4 POLES VISTOP Legrand 4极 DIN 导轨安装非熔断隔离开关, 常开/常闭, 160 A, IP55 Legrand	-	4P	160 A	DIN Rail	3	Cage Clamp	800 V ac	60mm	91mm	160mm	NO/NC	12 kA	是	Black	Yes	IP55	3	笼式弹簧夹	IP55	-	-	-	-
0 058 22 FUSE SWITCH DISCONNECTOR 8,5X31,5 Legrand	-	SP + N	20 A	DIN rail	1	Cage	-	-	-	-	-	-	-	-	-	-	-	-	-	8.5 x 31.5 mm	+40°C	-	-
2 0 225 18 SWITCH DISCONNECTOR 63A 4 POLES VISTOP Legrand 4极 DIN 导轨安装非熔断隔离开关, 常开/常闭, 63 A, IP55 Legrand	-	4P	63 A	DIN Rail	3	Screw	690 V ac	60mm	90mm	125mm	NO/NC	7 kA	是	Black	Yes	IP55	3	螺钉	IP55	-	-	-	-
2 0 225 54 SWITCH DISCONNECTOR 160A 3 POLES VISTOP Legrand 3极 DIN 导轨安装非熔断隔离开关, 常开/常闭, 160 A, IP55 Legrand	-	3P	160 A	DIN Rail	3	Cage Clamp	800 V ac	60mm	91mm	133mm	NO/NC	12 kA	是	Black	Yes	IP55	3	笼式弹簧夹	IP55	-	-	-	-
0 058 21 FUSE SWITCH DISCONNECTOR 10,3X25,8 Legrand	-	SP + N	16 A	DIN rail	1	Cage	-	-	-	-	-	-	-	-	-	-	-	-	-	10.3 x 25.8 mm	+40°C	-	-
2 0 225 16 SWITCH DISCONNECTOR 63A 3 POLES VISTOP Legrand 3极 DIN 导轨安装非熔断隔离开关, 常开/常闭, 63 A, IP55 Legrand	-	3P	63 A	DIN Rail	3	Screw	690 V ac	60mm	90mm	125mm	NO/NC	7 kA	是	Black	Yes	IP55	3	螺钉	IP55	-	-	-	-
2 0 225 46 SWITCH DISCONNECTOR 125A 4 POLES VISTOP Legrand 4极 DIN 导轨安装非熔断隔离开关, 常开/常闭, 125 A, IP55 Legrand	-	4P	125 A	DIN Rail	3	Cage Clamp	800 V ac	60mm	91mm	160mm	NO/NC	12 kA	是	Black	Yes	IP55	3	笼式弹簧夹	IP55	-	-	-	-
0 058 20 FUSE SWITCH DISCONNECTOR 8,5X23 Legrand	-	SP + N	10 A	DIN rail	1	Cage	-	-	-	-	-	-	-	-	-	-	-	-	-	8.5 x 23 mm	+40°C	-	-
2 0 225 44 SWITCH DISCONNECTOR 125A 3 POLES VISTOP Legrand 3极 DIN 导轨安装非熔断隔离开关, 常开/常闭, 125 A, IP55 Legrand	-	3P	125 A	DIN Rail	3	Cage Clamp	800 V ac	60mm	91mm	133mm	NO/NC	12 kA	是	Black	Yes	IP55	3	笼式弹簧夹	IP55	-	-	-	-
TLG1-32/3 罗格朗(TCL-LEGRAND) 隔离开关罗格朗	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
004354 罗格朗(LEGRAND) 隔离开关罗格朗	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
