mader - Pneumatic Adaptors, Fittings & Couplings Parts

Mfr Part #	Quantity Available	Price	Tariff No	Weight	Fits Terminal Size	Width	Height	Core Diameter	Mounting Panel Thickness	Thread/Screw/Hole Size	Material	Outer Diameter	Diameter - Outside	Operating Pressure	Operating Temperature	Thread Size	Depth	Boreholes	Pressure (PSI)	Width - Overall	Size	Length	Inner Diameter	Length - Overall
L053.1532 PUSH FITTING, RC1/4I/6MM MADER	10	1: ¥13.532	74122000	0	:Push-in	-	-	-	-	:-	:Brass	:6mm	:6mm	:-0.95bar	:60°C	-	-	:6mm	:10bar	:30mm	-	-	-	-
L053.2372 Y-FITTING, 6MM/6MM/6MM MADER	95	1: ¥81.54	74122000	0	:Y Adaptor	-	-	-	-	:-	:Polybutylene Terephthalate	:6mm	:17mm	:-0.95bar	:60°C	-	-	:6mm	:10bar	:17.5mm	:3.2mm	:12.4mm	:12mm	:39.7mm
L053.2838 T-FITTING, R1/8A/6MM MADER	10	1: ¥4.352	74122000	0	:Tee	-	-	-	-	-	:Polybutylene Terephthalate, Brass	:6mm	:11.8mm	:-0.95bar	:60°C	-	-	:6mm	:10bar	:12.4mm	:25mm	:8mm	:12mm	:20.6mm
LV42.2069 ADAPTOR, G1/8I X G1/4A MADER	10	1: ¥4.148	74122000	0.5	:-	-	-	-	-	:-	:brass, nickel-blated	-	-	-	-	-	-	-	-	-	-	-	-	-
LV42.2078 ADAPTOR, G1/4I X G3/8A MADER	10	1: ¥4.284	74122000	0.5	:-	-	-	-	-	:-	:brass, nickel-blated	-	-	-	-	-	-	-	-	-	-	-	-	-
LV42.2004 ADAPTOR, M5A X G1/8I MADER	10	1: ¥7.14	74122000	0	-	:17mm	:8mm	:2.5mm	:4.5mm	-	-	-	-	-	-	-	:14mm	-	-	-	-	-	-	-
LV42.2007 ADAPTOR, G1/8A X M5I MADER	10	1: ¥7.072	74122000	0	-	:17mm	:7mm	:2.5mm	:6.5mm	-	-	-	-	-	-	-	:14mm	-	-	-	-	-	-	-
LV42.2012 ADAPTOR, G1/8A X G1/4I MADER	10	1: ¥8.092	74122000	0	-	:26mm	:12mm	:5.0mm	:6.5mm	-	-	-	-	-	-	-	:17mm	-	-	-	-	-	-	-
LV42.2020 ADAPTOR, G1/4A X G3/8I MADER	10	1: ¥7.412	74122000	0	-	:29mm	:13mm	:7.0mm	:8.5mm	-	-	-	-	-	-	-	:19mm	-	-	-	-	-	-	-
LV42.2023 ADAPTOR, G3/8A X G1/4I MADER	10	1: ¥10.472	74122000	0	-	:29mm	:12mm	:10.0mm	:10.5mm	-	-	-	-	-	-	-	:19mm	-	-	-	-	-	-	-

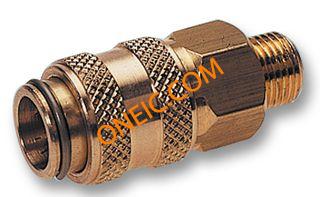

L022.0001 COUPLER, ONE HAND, G1/8A MADER	10	1: ¥24.548	84812090	0	:-	:14mm	:36mm	:7mm	:16mm	:-	-	:16mm	:16mm	:35bar	:100°C	:G 1/8	-	-	-	-	-	-	-	-
L022.0002 COUPLER, ONE HAND, G1/4A MADER	10	1: ¥26.248	84812090	0	:-	:17mm	:38mm	:9mm	:16mm	:-	:-000 mm	:16mm	:16mm	:35bar	:100°C	:G 1/8	-	-	-	-	-	-	-	-
L022.0003 COUPLER, ONE HAND, G3/8A MADER	10	1: ¥26.316	84812090	0	:-	:19mm	:38mm	:9mm	:16mm	:-	:Brass	:16mm	:16mm	:35bar	:100°C	:G3/8	-	-	-	-	-	-	-	-

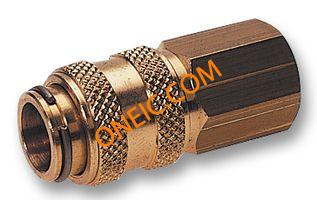

L022.0006 COUPLER, ONE HAND, G1/4I MADER	10	1: ¥27.54	84812090	0	:-	:17mm	:38mm	:9mm	:16mm	:-	:-000 mm	:16mm	:16mm	:35bar	:100°C	:G1/4	-	-	-	-	-	-	-	-
L022.0010 COUPLER, ONE HAND, 4MM MADER	10	1: ¥28.56	84812090	0	:-	:14mm	:46mm	:17mm	:16mm	:-	:-000 mm	:16mm	:16mm	:35bar	:100°C	:4mm	-	-	-	-	-	-	-	-
L022.0011 COUPLER, ONE HAND, 6MM MADER	10	1: ¥29.988	84812090	0	:-	:14mm	:46mm	:17mm	:16mm	:-	:-000 mm	:16mm	:16mm	:35bar	:100°C	:6mm	-	-	-	-	-	-	-	-
L023.0001 HOSE TAIL, 4MM MADER	10	1: ¥4.692	74122000	0	:-	:17mm	:32mm	:12mm	:9mm	:-	-	:9mm	:9mm	:35bar	:100°C	:4mm	-	-	-	-	-	-	-	-
L023.0002 HOSE TAIL, 6MM MADER	10	1: ¥3.808	74122000	0	:-	:17mm	:32mm	:14mm	:9mm	:-	:-000 mm	:9mm	:9mm	:35bar	:100°C	:6mm	-	-	-	-	-	-	-	-
L023.0009 HOSE TAIL, 4/6MM MADER	10	1: ¥7.276	74122000	0	:-	:12mm	:31.5mm	:14.1mm	:10mm	:-	:-000 mm	:10mm	:10mm	:35bar	:100°C	-	-	-	-	-	-	-	-	-
L023.0012 HOSE TAIL, 6/8MM MADER	10	1: ¥7.616	74122000	0	:-	:12mm	:31.5mm	:14mm	:12mm	:-	:-000 mm	:12mm	:12mm	:35bar	:100°C	-	-	-	-	-	-	-	-	-
