MEC A/S- Pushbutton Switches

MEC A/S is a Danish electromechanical component manufacturer founded in 1938 and currently headquartered in Ballerup, Denmark. The company specializes in high-quality push button switches for PCB mounting, serving industries such as industrial controls, medical equipment, and professional audio. Since 1998, MEC has been a member of the APEM Group, a global leader in human-machine interface solutions. Its core product line includes the Multimec, Unimec, and Navimec switch series, known for their reliability and long lifecycle. MEC also offers custom switch solutions including caps, LED illumination, and panel mounting accessories. The company maintains a strong focus on innovation in materials and manufacturing processes to uphold sustainable quality. MEC holds a leading position in the high-end PCB mount tactical switch segment worldwide. With a wealth of know-how accumulated over decades, it provides both standard and tailor-made components for demanding applications. Its products are distributed globally through a network of partners and the APEM sales organization. MEC’s engineering excellence and design flexibility reinforce its reputation as a top-tier switch manufacturer.

Pushbutton Switches - 型号列表

16 parts in total

Mfr Part #	Quantity Available	Price	RoHS	Voltage Rating	Switch Function	Current Rating (Max)	Shape	Contact Form	Actuator Type	Mounting Style	Termination Style	Seal Rating	Standard Package	Circuit	Contact Rating @ Voltage	Outline	Packaging	Mounting Type	Switch Travel	Operating Force	Actuator Material	Actuator Orientation	Features	Illumination	Mechanical Life	Ingress Protection	Operating Temperature	Actuator Height off PCB, Vertical	Other Names	Actuation Force	Series	Circuit Type	Output Configuration	Color

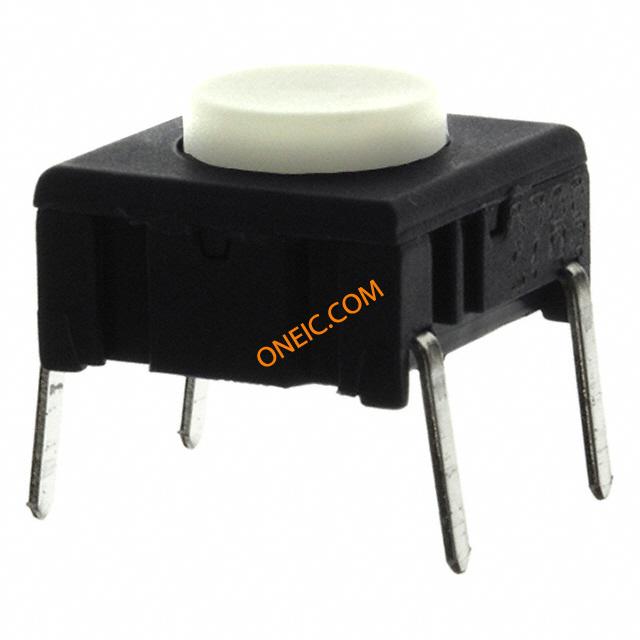

3CTL6 SWITCH TACTILE SPST-NO 0.05A 24V Pushbutton Switches Switch Th Au/High Temp. RoHS C MEC Switches	919	1: ¥17.272	RoHS Compliant	24 V	Off-Mom	50 mA	Square	SPST	Standard	Through Hole	PC Pin	IP 67	50	SPST-NO	0.05A @ 24VDC	10.10mm x 10.10mm	Tube	Through Hole	1.00mm	300gf	Polybutylene Terephthalate (PBT)	Top Actuated	Sealed - Flux Protection	Non-Illuminated	10,000,000 Cycles	IP67 - Dust Tight, Waterproof	-40°C ~ 115°C	6.40mm	679-2213	300gf	Multimec®	SPST-NO	Through Hole	White

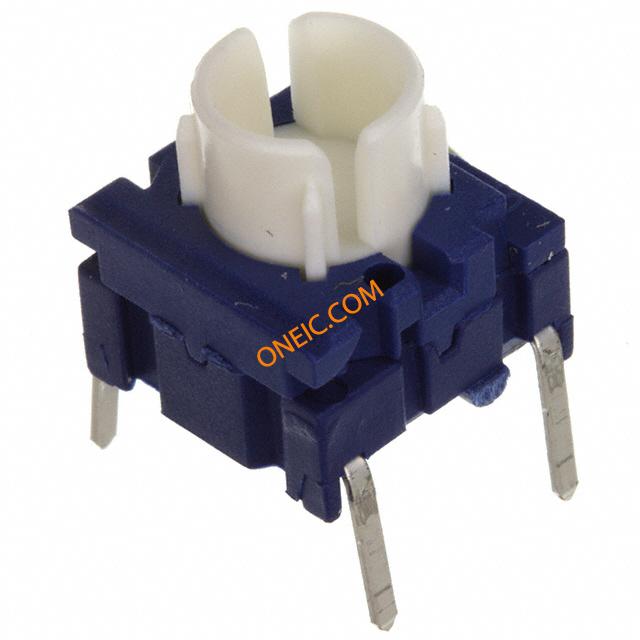

3FTL6 SWITCH TACTILE SPST-NO 0.05A 24V Pushbutton Switches Switch Th H.Temp Red/Yellow MEC Switches	10	1: ¥15.436	RoHS Compliant	24 V	Off-Mom	50 mA	Square	SPST	Plunger for Cap	Through Hole	PC Pin	IP 67	50	SPST-NO	0.05A @ 24VDC	10.10mm x 10.10mm	Tube	Through Hole	1.00mm	300gf	Polybutylene Terephthalate (PBT)	Top Actuated	Sealed - Flux Protection	Non-Illuminated	10,000,000 Cycles	IP67 - Dust Tight, Waterproof	-40°C ~ 115°C	10.40mm	679-2227	300gf	Multimec®	SPST-NO	Through Hole	-
3FSH9 SWITCH TACTILE SPST-NO 0.05A 24V Pushbutton Switches 3E Right Angle Assembled MEC Switches	20506	1: ¥19.38	RoHS Compliant	24 V	Off-Mom	50 mA	Square	SPST	Plunger for Cap	SMD/SMT	Gull Wing	IP 67	50	SPST-NO	0.05A @ 24VDC	10.10mm x 10.10mm	Tube	Surface Mount	1.00mm	300gf	Polyphenylene Sulfide (PPS)	Top Actuated	Sealed - Flux Protection	Non-Illuminated	10,000,000 Cycles	IP67 - Dust Tight, Waterproof	-40°C ~ 160°C	10.40mm	679-2226	300gf	Multimec®	SPST-NO	Surface Mount	-
2 3ETL9-12.0 SWITCH TACTILE SPST-NO 0.05A 24V Pushbutton Switches 11.0 Switch Th Ag/ Low Temp.RoHS MEC Switches	10	1: ¥17.612	RoHS Compliant	24 V	Off-Mom	50 mA	Square	SPST	Standard	Through Hole	PC Pin	IP 67	50	SPST-NO	0.05A @ 24VDC	10.10mm x 10.10mm	Tube	Through Hole	1.00mm	300gf	Polybutylene Terephthalate (PBT)	Top Actuated	Sealed - Flux Protection	Non-Illuminated	10,000,000 Cycles	IP67 - Dust Tight, Waterproof	-40°C ~ 115°C	12.00mm	-	-	-	-	-	-
2 3ETL9-08.0 SWITCH TACTILE SPST-NO 0.05A 24V Pushbutton Switches Switch Th Ag/LowTemp .RoHS Com MEC Switches	3230	1: ¥17.612	RoHS Compliant	24 V	Off-Mom	50 mA	Square	SPST	Standard	Through Hole	PC Pin	IP 67	50	SPST-NO	0.05A @ 24VDC	10.10mm x 10.10mm	Tube	Through Hole	1.00mm	300gf	Polybutylene Terephthalate (PBT)	Top Actuated	Sealed - Flux Protection	Non-Illuminated	10,000,000 Cycles	IP67 - Dust Tight, Waterproof	-40°C ~ 115°C	8.00mm	-	-	-	-	-	-

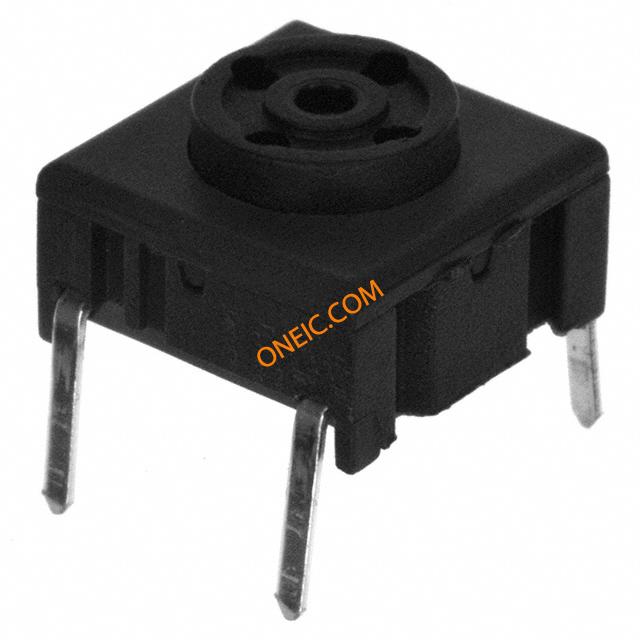

3ETL9 SWITCH TACTILE SPST-NO 0.05A 24V Pushbutton Switches 15.0 Switch Th Ag/ High Temp.RoHS C MEC Switches	10	1: ¥15.028	RoHS Compliant	24 V	Off-Mom	50 mA	Square	SPST	Plunger for Cap	Through Hole	PC Pin	IP 67	50	SPST-NO	0.05A @ 24VDC	10.10mm x 10.10mm	Tube	Through Hole	1.00mm	300gf	Polybutylene Terephthalate (PBT)	Top Actuated	Sealed - Flux Protection	Non-Illuminated	10,000,000 Cycles	IP67 - Dust Tight, Waterproof	-40°C ~ 115°C	-	679-2220	300gf	Multimec®	SPST-NO	Through Hole	-

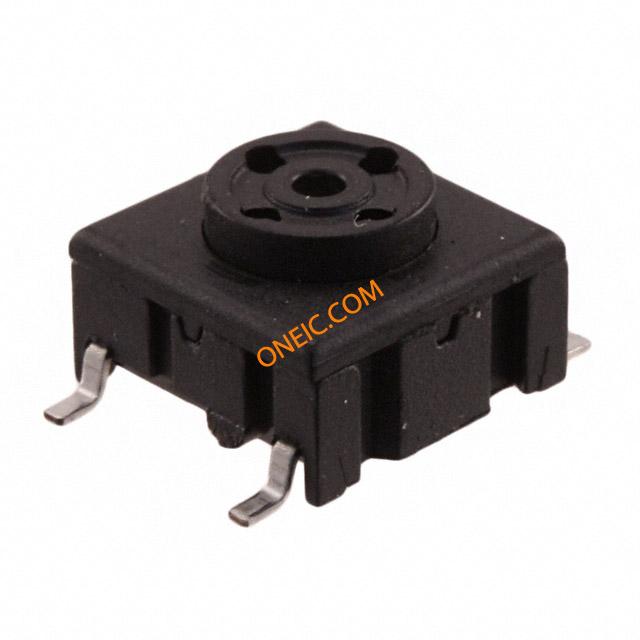

3ESH9 SWITCH TACTILE SPST-NO 0.05A 24V Pushbutton Switches Varimec cap 11.6R/Blue/12.0/4 MEC Switches	337	1: ¥18.428	RoHS Compliant	24 V	Off-Mom	50 mA	Square	SPST	Plunger for Cap	SMD/SMT	Gull Wing	IP 67	50	SPST-NO	0.05A @ 24VDC	10.10mm x 10.10mm	Tube	Surface Mount	1.00mm	300gf	Polyphenylene Sulfide (PPS)	Top Actuated	Sealed - Flux Protection	Non-Illuminated	10,000,000 Cycles	IP67 - Dust Tight, Waterproof	-40°C ~ 160°C	-	679-2214	300gf	Multimec®	SPST-NO	Surface Mount	-
2 3ESH9-12.0 SWITCH TACTILE SPST-NO 0.05A 24V Pushbutton Switches 11.0 Switch Surface High Temp. MEC Switches	1407	1: ¥21.828	RoHS Compliant	24 V	Off-Mom	50 mA	Square	SPST	Standard	SMD/SMT	Gull Wing	IP 67	50	SPST-NO	0.05A @ 24VDC	10.10mm x 10.10mm	Tube	Surface Mount	1.00mm	300gf	Polyphenylene Sulfide (PPS)	Top Actuated	Sealed - Flux Protection	Non-Illuminated	10,000,000 Cycles	IP67 - Dust Tight, Waterproof	-40°C ~ 160°C	12.00mm	-	-	-	-	-	-
2 3ETL9-15.0 SWITCH TACTILE SPST-NO 0.05A 24V Pushbutton Switches 12.0 Switch Th Ag/ Low Temp.RoHS MEC Switches	459	1: ¥17.612	RoHS Compliant	24 V	Off-Mom	50 mA	Square	SPST	Standard	Through Hole	PC Pin	IP 67	50	SPST-NO	0.05A @ 24VDC	10.10mm x 10.10mm	Tube	Through Hole	1.00mm	300gf	Polybutylene Terephthalate (PBT)	Top Actuated	Sealed - Flux Protection	Non-Illuminated	10,000,000 Cycles	IP67 - Dust Tight, Waterproof	-40°C ~ 115°C	15.00mm	-	-	-	-	-	-
2 3ETL9-10.4 SWITCH TACTILE SPST-NO 0.05A 24V Pushbutton Switches 9.5 Switch Th Ag/ Low Temp.RoHS MEC Switches	2280	1: ¥17.612	RoHS Compliant	24 V	Off-Mom	50 mA	Square	SPST	Standard	Through Hole	PC Pin	IP 67	50	SPST-NO	0.05A @ 24VDC	10.10mm x 10.10mm	Tube	Through Hole	1.00mm	300gf	Polybutylene Terephthalate (PBT)	Top Actuated	Sealed - Flux Protection	Non-Illuminated	10,000,000 Cycles	IP67 - Dust Tight, Waterproof	-40°C ~ 115°C	10.40mm	-	-	-	-	-	-
2 3ESH9-09.5 SWITCH TACTILE SPST-NO 0.05A 24V Pushbutton Switches 8.0 Switch Ag/ High Temp.RoHS C MEC Switches	4860	1: ¥21.828	RoHS Compliant	24 V	Off-Mom	50 mA	Square	SPST	Standard	SMD/SMT	Gull Wing	IP 67	50	SPST-NO	0.05A @ 24VDC	10.10mm x 10.10mm	Tube	Surface Mount	1.00mm	300gf	Polyphenylene Sulfide (PPS)	Top Actuated	Sealed - Flux Protection	Non-Illuminated	10,000,000 Cycles	IP67 - Dust Tight, Waterproof	-40°C ~ 160°C	9.50mm	-	-	-	-	-	-
3CTL9 Pushbutton Switches Right Angle Switch Low Temp.Ro MEC Switches	10	1: ¥25.092	RoHS Compliant	24 V	OFF - (ON)	50 mA	Square	SPST	Round	Through Hole	Solder Pin	IP 67	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Black
3FTH9 Pushbutton Switches Switch Surf. Ag/ High Temp.Tape MEC Switches	14992	1: ¥18.564	RoHS Compliant	24 V	OFF - (ON)	50 mA	Square	SPST	Round	Through Hole	Solder Pin	IP 67	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1632708 Pushbutton Switches Mec Lens Red MEC Switches	189	1: ¥1.36	RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3ETH9-12.0 Pushbutton Switches 11.0 Switch Th Ag/ High Temp.RoHS C MEC Switches	5739	1: ¥21.964	RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3ETH9-10.4 Pushbutton Switches 9.5 Switch Th Ag/ High Temp.RoHS C MEC Switches	9915	1: ¥18.36	RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
