Norgren- Pneumatic Actuators

Norgren is a world-renowned manufacturer and supplier of pneumatic and fluid control products. The company originated as a specialist in compressed air technology and is now part of the IMI Precision Engineering division of IMI plc, a FTSE 100 company. Headquartered in Birmingham, United Kingdom, Norgren operates in over 26 countries, delivering global reach combined with local expertise. Its core business encompasses the design, manufacture, and supply of pneumatic control and automation solutions for industries including life sciences, commercial vehicles, rail, energy, and industrial automation. The product portfolio features pneumatic actuators, valves, air preparation units (FRLs), fittings, tubing, and precision fluid control components, all certified to ISO 9001 quality standards. Norgren is distinguished by its extensive custom engineering capabilities, designing and producing thousands of specialized products annually to meet unique customer requirements. Technical services range from system design and application guidance to on-site support and local manufacturing, providing tailored solutions at every level. With decades of experience and a strong commitment to innovation, Norgren holds a leading position in the global fluid and motion control market, trusted for reliability and performance. The brand enjoys particular strength in Europe and the Americas and continues to expand its footprint in emerging markets.

Pneumatic Actuators - 型号列表

150 parts in total

Mfr Part #	Quantity Available	Price	Boreholes	Cushioning	Size / Dimension	Function	Port Style	Length	Shaft Size	Stroke Length	Maximum Pressure (PSI)	Operating Temperature	Adapter Series	Diameter	Height	Weight	Width	Other Specifications	Actuator Type	Connector Type	Series	ISO	CAD Drawing	Industry Recognized Mating Diameter	Pin Diameter	Body Material	Shell Plating	Stroke Per Jaw	Diameter - Outside	Thread/Screw/Hole Size	Number of Units	Operating Pressure
PRA/182063/M/160 Norgren Double Action Pneumatic Profile Cylinder, PRA/182063/M/160 Norgren 双作用气动薄型气缸, Norgren	10	1: ¥1,149.63	63mm	Air	281 x 75 x 75mm	Double	G 3/8	281mm	Single	160mm	16 bar	+80°C	-	63mm	75mm	-	75mm	空气	双	G 3/8	PRA	15552	3D CAD 模型	24562	-	-	-	-	-	-	-	-
RT/57220/M/25 Norgren Double Action Pneumatic Roundline Cylinder, RT/57220/M/25 Norgren 双作用气动细圆筒形气缸 Norgren	10	1: ¥273.49	20mm	Buffer	22 Dia. x 100.5mm	Double	Rc 1/8	100.5mm	Single	25mm	10 bar	+80°C	RT/57210/M/25	22mm	-	-	-	缓冲器	双	Rc 1/8	RT/57210/M/25	-	-	-	-	-	-	-	-	-	-	-
PRA/182032/M/250 Norgren Double Action Pneumatic Profile Cylinder, PRA/182032/M/250 Norgren 双作用气动薄型气缸, Norgren	10	1: ¥1,128.12	32mm	Air	344 x 47 x 47mm	Double	G 1/8	344mm	Single	250mm	16 bar	+80°C	-	32mm	47mm	-	47mm	空气	双	G 1/8	PRA	15552	3D CAD 模型	24562	-	-	-	-	-	-	-	-
RM/8012/M/80 Norgren Double Action Pneumatic Roundline Cylinder, RM/8012/M/80 Norgren	148	1: ¥395.0936	12mm	Buffer	21 Dia. x 155mm	Double	M5	155mm	Single	80mm	10 bar	+80°C	RM/8000/M	21mm	-	0.093kg	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
RT/57240/M/160 Norgren Double Action Pneumatic Roundline Cylinder, RT/57240/M/160 Norgren 双作用气动细圆筒形气缸 Norgren	10	1: ¥742.24	40mm	Buffer	41.5 Dia. x 256mm	Double	Rc 1/8	256mm	Single	160mm	10 bar	+80°C	RT/57210/M/25	41.5mm	-	-	-	缓冲器	双	Rc 1/8	RT/57210/M/25	-	-	-	-	-	-	-	-	-	-	-
PRA/182080/M/160 Norgren Double Action Pneumatic Profile Cylinder, PRA/182080/M/160 Norgren	37	1: ¥1,576.3148	80mm	Air	288 x 95 x 95mm	Double	G 3/8	-	Single	-	-	-	-	-	95mm	-	-	-	-	-	-	15552	-	-	-	-	-	-	-	-	-	-
A44040AABAA/800 Norgren Rodless Actuator A44040AABAA/800 Norgren	17	1: ¥3,329.4296	40mm	Buffer	1035 x 60 x 81.5mm	Double	G 1/4	1035mm	-	800mm	8 bar	-	A44000	-	81.5mm	4.065kg	60mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

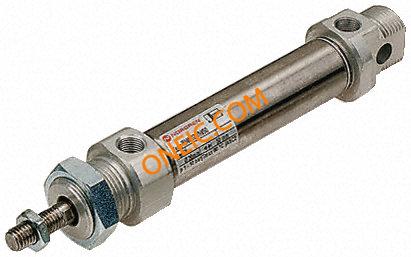

RM/8012/M/15 Norgren Double Action Pneumatic Roundline Cylinder, RM/8012/M/15 Norgren	152	1: ¥384.3428	12mm	Buffer	21 Dia. x 90mm	Double	M5	90mm	Single	15mm	10 bar	+80°C	RM/8000/M	21mm	-	0.065kg	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
RM/92032/M/80 Norgren Double Action Pneumatic Compact Cylinder, RM/92032/M/80 Norgren	63	1: ¥927.2344	32mm	Not Cushioned	125.5 x 45 x 45mm	Double	G 1/8	125.5mm	Single	80mm	10 bar	+80°C	RM/92000/M	-	45mm	2.17kg	45mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
RT/57212/M/50 Norgren Double Action Pneumatic Roundline Cylinder, RT/57212/M/50 Cylinder; 1÷10bar; Thread: M5; Mat: stainless steel; A:9mm; D:15mm Norgren	10	1: ¥201.212	12mm	Buffer	15 Dia. x 104mm	Double	M5	104mm	Single	50mm	10 bar	+80°C	RT/57210/M/25	15mm	-	0.04 kg	-	cylinder	-	-	-	-	-	-	12mm	stainless steel	nitril rubber	50mm	15mm	M5	1	1...10bar
PRA/182040/M/250 Norgren Double Action Pneumatic Profile Cylinder, PRA/182040/M/250 Norgren 双作用气动薄型气缸, Norgren	10	1: ¥948.16	40mm	Air	355 x 53 x 53mm	Double	G 1/4	355mm	Single	250mm	16 bar	+80°C	-	40mm	53mm	-	53mm	空气	双	G 1/4	PRA	15552	3D CAD 模型	24562	-	-	-	-	-	-	-	-
RT/57263/M/160 Norgren Double Action Pneumatic Roundline Cylinder, RT/57263/M/160 Norgren	48	1: ¥1,205.878	63mm	Buffer	65.5 Dia. x 259mm	Double	Rc 1/4	259mm	Single	160mm	10 bar	+80°C	RT/57210/M/25	65.5mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PRA/182100/M/160 Norgren Double Action Pneumatic Profile Cylinder, PRA/182100/M/160 Norgren	27	1: ¥2,129.9572	100mm	Air	298 x 115 x 115mm	Double	G 1/2	-	Single	-	-	-	-	-	115mm	-	-	-	-	-	-	15552	-	-	-	-	-	-	-	-	-	-
A44040AABAA/1000 Norgren Rodless Actuator A44040AABAA/1000 Norgren	16	1: ¥3,556.40	40mm	Buffer	1235 x 60 x 81.5mm	Double	G 1/4	1235mm	-	1000mm	8 bar	-	A44000	-	81.5mm	4.765kg	60mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
RT/57250/M/80 Norgren Double Action Pneumatic Roundline Cylinder, RT/57250/M/80 Norgren 双作用气动细圆筒形气缸 Norgren	10	1: ¥910.77	50mm	Buffer	52.5 Dia. x 177mm	Double	Rc 1/4	177mm	Single	80mm	10 bar	+80°C	RT/57210/M/25	52.5mm	-	-	-	缓冲器	双	Rc 1/4	RT/57210/M/25	-	-	-	-	-	-	-	-	-	-	-
RM/92025/M/20 Norgren Double Action Pneumatic Compact Cylinder, RM/92025/M/20 Norgren 双作用气动紧凑型气缸, Norgren	10	1: ¥640.60	25mm	Not Cushioned	55 x 37 x 37mm	Double	M5	55mm	Single	20mm	10 bar	+80°C	RM/92000/M	25mm	37mm	0.43kg	37mm	没有缓冲	双	M5	RM/92000/M	-	3D CAD 模型	-	-	-	-	-	-	-	-	-
RM/92040/M/80 Norgren Double Action Pneumatic Compact Cylinder, RM/92040/M/80 Norgren	49	1: ¥1,183.4924	40mm	Not Cushioned	128 x 55 x 55mm	Double	G 1/8	128mm	Single	80mm	10 bar	+80°C	RM/92000/M	-	55mm	2.78kg	55mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
RM/8010/M/10 Norgren Double Action Pneumatic Roundline Cylinder, RM/8010/M/10 Norgren 双作用气动细圆筒形气缸 Norgren	10	1: ¥390.87	10mm	Buffer	16.5 Dia. x 74mm	Double	M5	74mm	Single	10mm	10 bar	+80°C	RM/8000/M	16.5mm	-	0.037kg	-	缓冲器	双	M5	RM/8000/M	-	-	-	-	-	-	-	-	-	-	-
RM/92050/M/50 Norgren Double Action Pneumatic Compact Cylinder, RM/92050/M/50 Norgren 双作用气动紧凑型气缸, Norgren	10	1: ¥1,348.87	50mm	Not Cushioned	93 x 63 x 63mm	Double	G 1/8	93mm	Single	50mm	10 bar	+80°C	RM/92000/M	50mm	63mm	2.25kg	63mm	没有缓冲	双	G 1/8	RM/92000/M	-	3D CAD 模型	-	-	-	-	-	-	-	-	-
RM/92080/M/40 Norgren Double Action Pneumatic Compact Cylinder, RM/92080/M/40 Norgren	33	1: ¥1,740.5892	80mm	Not Cushioned	96 x 94 x 94mm	Double	G 1/4	96mm	Single	40mm	10 bar	+80°C	RM/92000/M	-	94mm	3.84kg	94mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
