Pfannenberg GmbH- Blowers

Pfannenberg GmbH is a German manufacturer specializing in thermal management and signaling solutions for industrial electronics. Founded in 1954 by Otto Pfannenberg in Hamburg, Germany, the company has become a global protector of critical electronic components. Headquartered in Hamburg, it operates subsidiaries and production sites across the Americas, Europe, and Asia-Pacific. Its core business covers climate control products such as cooling units, air/water heat exchangers, filter fans, and enclosure heaters. In signaling technology, it offers visual and audible warning devices including LED beacons, electronic sounders, PA systems, and explosion-proof strobes. Key thermal management series include DTT top-mounted cooling units, DTI integrated cooling units, and PF filter fans. Signaling product lines feature the PYRA® beacon series, PATROL® sounder series, and BR 50 Ex-certified strobe lights. Pfannenberg maintains strict quality standards with certifications such as UL, CE, EAC, and ATEX for hazardous areas. The company holds a leading position in the industrial enclosure climate control niche, alongside competitors like Rittal and Hoffman. Its solutions serve automation, telecommunications, renewable energy, and process industries, ensuring reliability of sensitive electronics worldwide.

Blowers - 型号列表

73 parts in total

Mfr Part #	Quantity Available	Price	Noise Figure	Voltage - Supply	Voltage - Supply (Min)	Current - Input Bias (Max)	Width	Depth - Overall	Height (Inches)	Dimensions - Overall	Air Flow - Medium	Power - Average Forward	Noise	Power - Input	Voltage - Supply, Dual (V+/-)	Flow Rate	Width - Overall	Height - Seated (Max)	Ingress Protection	Air Flow	Current Rating (Max)

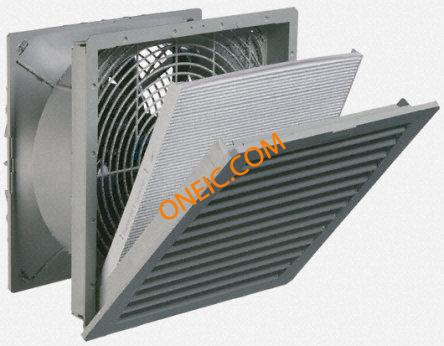

PF67000 11667022055 Filter Fan, 845cu.m/h 400Vac IP54 Pfannenberg	29	1: ¥2,022.7756	69dB	400 V ac	AC	171mA	320mm	150mm	320mm	320 x 320mm	845m³/h	140 W, 170 W	-	-	-	-	-	-	-	2125m³/h	-

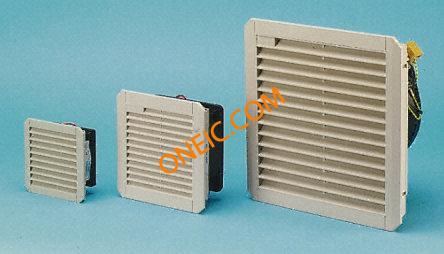

2 PF5000 11040152000 Snap fit filter fan,461cu.m/h 115Vac Pfannenberg IP54 过滤器风扇 , 325 x 325mm, 461m³/h, 115 V 交流 Pfannenberg	16	1: ¥1,332.45	69dB	115 V ac	AC	490mA	325mm	163mm	325mm	325 x 325mm	461m³/h	56W	69dB	56W	交流	461m³/h	325 x 325mm	163mm	IP54	-	-
PF67000 11667103055 Filter Fan, 925cu.m/h 230Vac IP55 Pfannenberg	37	1: ¥1,545.3544	69dB	230 V ac	AC	170mA	320mm	150mm	320mm	320 x 320mm	945m³/h	135 W, 200 W	-	-	-	-	-	-	-	2125m³/h	-

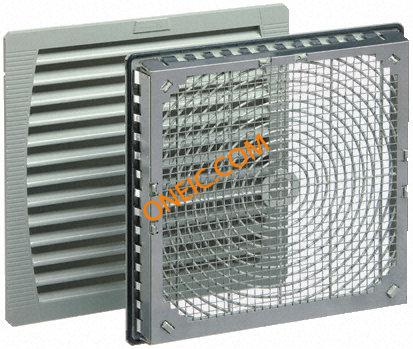

PF66000 11666103055 Filter fan, snap fit 640cu m/h 230VAC Pfannenberg	10	1: ¥8,976.00	63dB	230 V ac	AC	660mA	320mm	150mm	320mm	320 x 320mm	770m³/h	150W	-	-	-	-	-	-	-	1741m³/h	-
2 PF2000 11025802000 Snap fit filter fan,56cu.m/h 24Vdc Pfannenberg IP54 过滤器风扇 , 150 x 150mm, 56m³/h, 24 V 直流 Pfannenberg	27	1: ¥912.11	49dB	24 V dc	DC	187mA	150mm	67mm	150mm	150 x 150mm	56m³/h	4.5W	49dB	4.5W	直流	56m³/h	150 x 150mm	67mm	IP54	-	-
2 PF5000 11040102000 Snap fit filter fan,461cu.m/h 230Vac Pfannenberg IP54 过滤器风扇 , 325 x 325mm, 461m³/h, 230 V 交流 Pfannenberg	10	1: ¥1,494.23	69dB	230 V ac	AC	240mA	325mm	163mm	325mm	325 x 325mm	461m³/h	56W	69dB	56W	交流	461m³/h	325 x 325mm	163mm	IP54	-	-
PF67000 11667152055 Filter Fan, 845cu.m/h 115Vac IP54 Pfannenberg	39	1: ¥1,487.5816	69dB	115 V ac	AC	880mA	320mm	150mm	320mm	320 x 320mm	845m³/h	140 W, 195 W	-	-	-	-	-	-	-	2125m³/h	-
2 PF42500 11642151055 Filter fan, snap fit 156cu m/h 115VAC Pfannenberg IP54 过滤器风扇 , 252 x 252mm, 156m³/h, 115 V 交流 Pfannenberg	10	1: ¥821.63	40dB	115 V ac	AC	250mA	252mm	97mm	252mm	252 x 252mm	156m³/h	18W	40dB	18W	交流	156m³/h	252 x 252mm	97mm	IP54	205.7m³/h	205.7m³/h
2 PF2000 11025152000 Snap fit filter fan,56cu.m/h 115Vac Pfannenberg IP54 过滤器风扇 , 150 x 150mm, 56m³/h, 115 V 交流 Pfannenberg	10	1: ¥604.58	49dB	115 V ac	AC	174mA	150mm	73mm	150mm	150 x 150mm	56m³/h	20W	49dB	20W	交流	56m³/h	150 x 150mm	73mm	IP54	-	-
2 PF2000 11026109000 IP55 snap fit filter fan,36cu.m/h 230Vac Pfannenberg IP55 过滤器风扇 , 150 x 150mm, 36m³/h, 230 V 交流 Pfannenberg	242	1: ¥950.87	43dB	230 V ac	AC	720mA	150mm	73mm	150mm	150 x 150mm	36m³/h	19W	43dB	19W	交流	36m³/h	150 x 150mm	73mm	IP55	-	-
2 PF1000 11020852000 Snap fit filter fan,24cu.m/h 12Vdc Pfannenberg IP43 过滤器风扇 , 105 x 105mm, 15m³/h, 12 V 直流 Pfannenberg	10	1: ¥600.65	39dB	12 V dc	DC	200mA	105mm	48mm	105mm	105 x 105mm	15m³/h	2.4W	39dB	2.4W	直流	15m³/h	105 x 105mm	48mm	IP43	-	-
2 PF11000 11611101055 Filter fan, snap fit 25cu m/h 230VAC Pfannenberg IP54 过滤器风扇 , 109 x 109mm, 18m³/h, 230 V 交流 Pfannenberg	56	1: ¥460.72	33dB	230 V ac	AC	70mA	109mm	62mm	109mm	109 x 109mm	18m³/h	11 W, 12 W	33dB	11 W, 12 W	交流	18m³/h	109 x 109mm	62mm	IP54	29m³/h	29m³/h

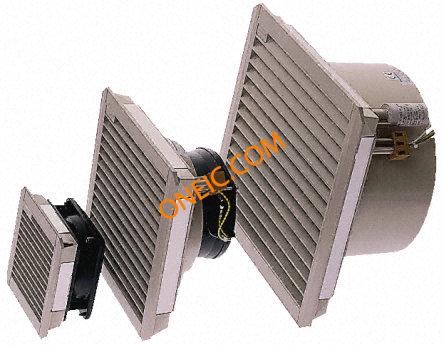

PF2000 11270152000 Snap fit filter fan,56cu.m/h 115Vac Pfannenberg	53	1: ¥1,094.2628	48dB	115 V ac	AC	250mA	150mm	69mm	150mm	150 x 150mm	56m³/h	-	-	-	-	-	-	-	-	-	-
PF65000 11665103055 Filter fan, snap fit 505cu m/h 230VAC Pfannenberg	47	1: ¥1,237.43	54dB	230 V ac	AC	360mA	320mm	150mm	320mm	320 x 320mm	505m³/h	80W	-	-	-	-	-	-	-	831m³/h	-
2 PF22000 11622103055 Filter fan, snap fit 56cu m/h 230VAC Pfannenberg IP55 过滤器风扇 , 145 x 145mm, 56m³/h, 230 V 交流 Pfannenberg	17	1: ¥679.44	44dB	230 V ac	AC	180mA	145mm	70mm	145mm	145 x 145mm	56m³/h	19W	44dB	19W	交流	56m³/h	145 x 145mm	70mm	IP55	178.5m³/h	178.5m³/h
2 PF42500 11842101055 EMC filter fan Snap fit 156cu m/h 230VAC Pfannenberg IP54 过滤器风扇 , 252 x 252mm, 156m³/h, 230 V 交流 Pfannenberg	10	1: ¥1,489.13	40dB	230 V ac	AC	120mA	252mm	97mm	252mm	252 x 252mm	156m³/h	18W	40dB	18W	交流	156m³/h	252 x 252mm	97mm	IP54	205.7m³/h	205.7m³/h
2 PF22000 11622801055 Filter fan, snap fit 61cu m/h 24VDC Pfannenberg IP54 过滤器风扇 , 145 x 145mm, 61m³/h, 24 V 直流 Pfannenberg	17	1: ¥858.26	44dB	24 V dc	DC	210mA	145mm	64mm	145mm	145 x 145mm	61m³/h	5W	44dB	5W	直流	61m³/h	145 x 145mm	64mm	IP54	178.5m³/h	178.5m³/h
2 PF2000 11025102000 Snap fit filter fan,56cu.m/h 230Vac Pfannenberg IP54 过滤器风扇 , 150 x 150mm, 56m³/h, 230 V 交流 Pfannenberg	74	1: ¥669.71	49dB	230 V ac	AC	78mA	150mm	73mm	150mm	150 x 150mm	56m³/h	18W	49dB	18W	交流	56m³/h	150 x 150mm	73mm	IP54	-	-
2 PF2500 11028109000 IP55 snap fit filter fan,88cu.m/h 230Vac Pfannenberg IP55 过滤器风扇 , 250 x 250mm, 70m³/h, 230 V 交流 Pfannenberg	20	1: ¥1,003.00	55dB	230 V ac	AC	620mA	250mm	117mm	250mm	250 x 250mm	70m³/h	18W	55dB	18W	交流	70m³/h	250 x 250mm	117mm	IP55	-	-
2 PF1000 11020802000 Snap fit filter fan,24cu.m/h 24Vdc Pfannenberg IP43 过滤器风扇 , 105 x 105mm, 15m³/h, 24 V 直流 Pfannenberg	45	1: ¥600.65	39dB	24 V dc	DC	100mA	105mm	48mm	105mm	105 x 105mm	15m³/h	2.4W	39dB	2.4W	直流	15m³/h	105 x 105mm	48mm	IP43	-	-
