Pilz GmbH & Co. KG

Pilz GmbH & Co. KG- Safety and Restrictive Switches

Pilz GmbH & Co. KG is an innovative, family-owned company with a history spanning over 60 years, headquartered in Ostfildern, Germany. It pioneered the world's first emergency stop relay, PNOZ, in 1968, establishing the product as the global synonym for safety relays. The company's core business is automation technology, with a primary focus on safety-related components and systems that protect humans, machines, and the environment. Its extensive product portfolio includes the iconic PNOZ safety relays, the PSS programmable safety systems, and the PNOZsigma compact safety relays. Pilz further expanded into networked safety through SafetyBUS p, the first open safety bus system, and later the PSSuniversal platform that integrates both safety and standard control functions. Advanced sensing solutions include PSENvip for press brake protection and the SafetyEYE 3D safety camera system, the world's first of its kind for three-dimensional area monitoring. The company also provides engineering services such as risk assessments, safety design, safety verification, and CE certification consulting. Globally, Pilz operates 24 subsidiaries and a network of partners, supporting industries ranging from automotive and food processing to airports, theaters, and amusement parks. With its deep expertise and comprehensive portfolio, Pilz is recognized as a technology leader in the industrial safety components market, setting standards in safety automation worldwide.

03

Safety and Restrictive Switches - 型号列表

18 parts in total

Length

Size / Dimension

Width

Depth

Voltage - Supply

Housing Material

Seal Rating

Exterior Housing Color

Power - Average Forward

Power - Peak Pulse

Mfr Part #Quantity AvailablePriceVoltage - SupplyWidthLengthHousing MaterialSeal RatingDepthSize / DimensionExterior Housing ColorBuilt in SwitchPower - Average ForwardSafety Outputs and TypeNumber of PolesMaximum AC VoltsStroke LengthConduit Hub SizeNormal State ConfigurationConnection TypePower - Peak PulseVoltage RatingActuator Type

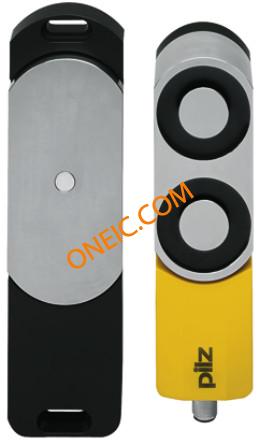

PSEN sl-1.0p 2.2 / PSEN sl-1.0
PSEN sl-1.0p 2.2 / PSEN sl-1.0

PSENslock Coded Safety Gate System

Pilz

151: ¥3,671.272424 V dc45mm172mmPBTIP6744mm172 x 45 x 44 mm-Yes-------8 Pin, M12---

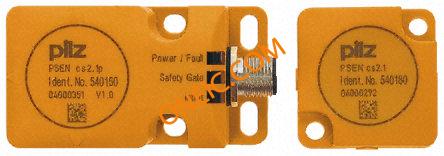

PSEN cs2.1p / PSEN cs2.1
PSEN cs2.1p / PSEN cs2.1

Non-contact coded sw. & actuator

Pilz

371: ¥1,581.346824 V dc40mm75mmPBTIP6740mm75 x 40 x 40 mmWhite------------
PSEN me1.2S / 1AR
PSEN me1.2S / 1AR

Slim Interlock Switch, Radius Actuator

Pilz

371: ¥1,563.4016110 V ac42.5mm184.0mmGlass Fibre Reinforced ThermoplasticIP6751.0mm--Yes8 VA2NODP240V600/hour3 (M20x1.5)2NC/2NO----
PSENsg-2/1
PSENsg-2/1

PSENsgate Safety Gate Monitoring System

Pilz

171: ¥3,292.15224 V dc50mm46mmPlasticIP54, IP65445mm--Yes1.5 W-------Solenoid Energised to Lock24VPSEN sg1
PSEN 1.2p-20 / PSEN 1.2-20
PSEN 1.2p-20 / PSEN 1.2-20

Non-cont round safety sw.,8mm sw/dist

Pilz

1521: ¥384.342824 V dc28 (Dia.)mm42.7mmPBTIP65, IP67-28 Dia. x 42.7 L mmBlack, White------------
PSEN cs2.2p / PSEN cs2.1
PSEN cs2.2p / PSEN cs2.1

Non contact unique coded sw. & actuator

Pilz

351: ¥1,669.393224 V dc40mm75mmPBTIP6740mm75 x 40 x 40 mmWhite------------
PSEN 2.1p-11/PSEN2.1-10/LED/3mm
PSEN 2.1p-11/PSEN2.1-10/LED/3mm

Non Contact Safety Switch, 3mm, with LED

Pilz

1871: ¥313.54824 V dc26mm45mmPBTIP65, IP6713mm45 x 26 x 13 mmYellow------------

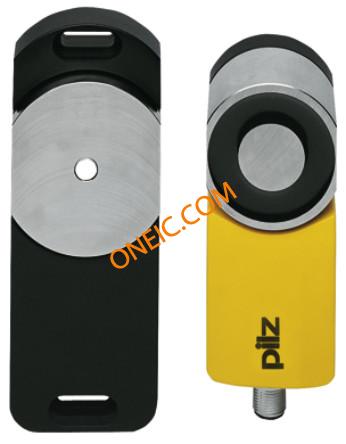

PSEN sl-0.5p 2.2 / PSEN sl-0.5
PSEN sl-0.5p 2.2 / PSEN sl-0.5

PSENslock Coded Safety Gate System

Pilz

201: ¥2,923.585224 V dc45mm122mmPBTIP6744mm122 x 45 x 44 mm-Yes-------8 Pin, M12---
PSEN me1.2S / 1AS
PSEN me1.2S / 1AS

Slim Interlock Switch, Standard Actuator

Pilz

431: ¥1,361.9584110 V ac42.5mm184.0mmGlass Fibre Reinforced ThermoplasticIP6751.0mm--Yes8 VA2NODP240V600/hour3 (M20x1.5)2NC/2NO----
PSEN 1.1p-23 / PSEN 1.1-20
PSEN 1.1p-23 / PSEN 1.1-20

Non-cont sq. safety sw.,8mm sw/dist ATEX

Pilz

1161: ¥502.268424 V dc26mm42.8mmPBTIP65, IP6713mm42.8 x 26 x 13 mmWhite------------
PSEN 2.1P-10
PSEN 2.1P-10

1NO/1NC non-contact switch, 3mm sw/dist.

Pilz

2101: ¥278.249224 V dc26mm42.8mmPBTIP65, IP6713mm42.8 x 26 x 13 mmWhite------------
PSENme 1S / 1AR
PSENme 1S / 1AR

Slim Interlock Switch, Radius Actuator

Pilz

481: ¥1,218.988424 V ac/dc42.5mm184.0mmGlass Fibre Reinforced ThermoplasticIP6751.0mm--Yes4.4 VA (AC), 4.4 W (DC)2NODP240V600/hour3 (M20x1.5)2NC/2NO-Solenoid Energised to Unlock--
PSEN 1.1p-20 / PSEN 1.1-20
PSEN 1.1p-20 / PSEN 1.1-20

Non-cont square safety sw.,8mm sw/dist

Pilz

101: ¥252.89224 V dc26mm42.8mmPBTIP65, IP6713mm42.8 x 26 x 13 mmWhite------------
PSEN 1.2p-23 / PSEN 1.2-20
PSEN 1.2p-23 / PSEN 1.2-20

Non-cont rnd safety sw.,8mm sw/dist ATEX

Pilz

1101: ¥529.284824 V dc28 (Dia.)mm42.7mmPBTIP65, IP67-28 Dia. x 42.7 L mmBlack, White------------
PSEN sl-1.0p 1.1 VA/PSEN sl-1.0
PSEN sl-1.0p 1.1 VA/PSEN sl-1.0

PSENslock Coded Safety Gate System

Pilz

131: ¥4,405.44824 V dc45mm172mmPBTIP6744mm172 x 45 x 44 mm-Yes-------8 Pin, M12---
PSENme 1S / 1AS
PSENme 1S / 1AS

Slim Interlock Switch, Standard Actuator

Pilz

611: ¥954.053624 V ac/dc42.5mm184.0mmGlass Fibre Reinforced ThermoplasticIP6751.0mm--Yes4.4 VA (AC), 4.4 W (DC)2NODP240V600/hour3 (M20x1.5)2NC/2NO-Solenoid Energised to Unlock--
PSEN 1.1p-10 / PSEN 1.1-10
PSEN 1.1p-10 / PSEN 1.1-10

Non-cont square safety sw.,3mm sw/dist

Pilz

101: ¥240.58424 V dc26mm43mmPBTIP65, IP6713mm43 x 26 x 13 mmWhite------------
PSEN cs2.13p / PSEN cs2.1
PSEN cs2.13p / PSEN cs2.1

Non-contact coded sw. & act. ATEX

Pilz

251: ¥2,287.812424 V dc40mm75mmPBTIP6740mm75 x 40 x 40 mmWhite------------
Page 1 / 1
