Pilz GmbH & Co. KG is an innovative, family-owned company with a history spanning over 60 years, headquartered in Ostfildern, Germany. It pioneered the world's first emergency stop relay, PNOZ, in 1968, establishing the product as the global synonym for safety relays. The company's core business is automation technology, with a primary focus on safety-related components and systems that protect humans, machines, and the environment. Its extensive product portfolio includes the iconic PNOZ safety relays, the PSS programmable safety systems, and the PNOZsigma compact safety relays. Pilz further expanded into networked safety through SafetyBUS p, the first open safety bus system, and later the PSSuniversal platform that integrates both safety and standard control functions. Advanced sensing solutions include PSENvip for press brake protection and the SafetyEYE 3D safety camera system, the world's first of its kind for three-dimensional area monitoring. The company also provides engineering services such as risk assessments, safety design, safety verification, and CE certification consulting. Globally, Pilz operates 24 subsidiaries and a network of partners, supporting industries ranging from automotive and food processing to airports, theaters, and amusement parks. With its deep expertise and comprehensive portfolio, Pilz is recognized as a technology leader in the industrial safety components market, setting standards in safety automation worldwide.

Specialty Relays - 型号列表

107 parts in total

Mfr Part #	Quantity Available	Price	Contact Rating @ Voltage	Depth	Width	Length	Size / Dimension	Contact Rating (Current)	Safety Category	Voltage - Supply	Terminal Type	Safety Outputs and Type	Power - Rated	Number of Poles	Number of Channels	Mounting Style	Control/Display Type	Number of Safety Outputs	Normal State Configuration	Operating Temperature	Number of Positions/Contacts	Reset	Seal Rating	Accessory Type	For Use With/Related Products	Configuration
PNOZ S6 48-240VAC/DC SIGMA TWO HAND RELAY TYPE IIIC 48-240V Pilz	23	1: ¥2,513.314	24 V dc, 240 V ac	120mm	22.5mm	98mm	98 x 22.5 x 120 mm	6 A	Category 3 PLe EN ISO 13849-1, Category 4 EN 954-1, CCC, cULus, EN 60947-5-1, EN 61000-6-2, EN IEC 62061 PFH 2.62E-09, EN IEC 62061 SIL CL 3, EN ISO 13849-1:2006 20, IEC 61511 PFD 3.32E-05, IEC 61511 SIL 3, TUV, Type 3 A EN 574	48 → 240 V ac/dc	Screw	3NO	3.5 W, 7 VA	3P (Safety), SP (Auxiliary)	2	DIN Rail Mount	24 V	1	3NO (Safety), NC (Auxiliary)	+55°C	NC	-	-	-	-	-
PNOZ S6.1 48-240VAC/DC SIGMA TWO HAND RELAY TYPE IIIA 48-240V Pilz	38	1: ¥1,524.356	24 V dc, 240 V ac	120mm	22.5mm	98mm	98 x 22.5 x 120 mm	6 A	Category 3 PLe EN ISO 13849-1, Category 4 EN 954-1, CCC, cULus, EN 60947-5-1, EN 61000-6-2, EN IEC 62061 PFH 5.99E-08, EN IEC 62061 SIL CL 3, EN ISO 13849-1:2006 20, IEC 61511 PFD 5.10E-06, IEC 61511 SIL 3, TUV, Type 3 A EN 574	48 → 240 V ac/dc	Spring	3NO	3.5 W, 7 VA	3P (Safety), SP (Auxiliary)	2	DIN Rail Mount	24 V	1	3NO (Safety), NC (Auxiliary)	+55°C	NC	-	-	-	-	-
PNOZ S8 24VDC SIGMA EXPANSION MODULE, 24VDC, 2NO 1SC Pilz	71	1: ¥823.9968	24 V dc, 240 V ac	120mm	12.5mm	98mm	98 x 12.5 x 120 mm	3 A	Category 3 EN 954-1, Category 3 PLe EN ISO 13849-1, CCC, cULus, EN 60947-5-1, EN 61000-6-2, EN IEC 62061 PFH 2.00E-07, EN IEC 62061 SIL CL 2, IEC 61511 PFD 6.35E-03, IEC 61511 SIL 2, TUV, Type 3 A EN 574	24 V dc	Spring	2NO	2 W	2P (Safety)	1	DIN Rail Mount	24 V dc	0	2NO (Safety)	+55°C	-	-	-	-	-	-
PNOZ S9 24VDC SIGMA EXPANSION MODULE, TIMED & PULSE Pilz	45	1: ¥1,277.1692	24 V dc, 240 V ac	120mm	17.5mm	96mm	96 x 17.5 x 120 mm	6 A	Category 3 PLe EN ISO 13849-1, Category 4 EN 954-1, CCC, cULus, EN 60947-5-1, EN 61000-6-2, EN IEC 62061 PFH 2.34E-09, EN IEC 62061 SIL CL 3, IEC 61511 PFD 2.75E-05, IEC 61511 SIL 3, TUV, Type 3 A EN 574	24 V	Screw	3NO	2 W	3P (Safety), SP (Auxiliary)	2	DIN Rail Mount	24 V	1	3NO (Safety), NC (Auxiliary)	+55°C	NC	-	-	-	-	-

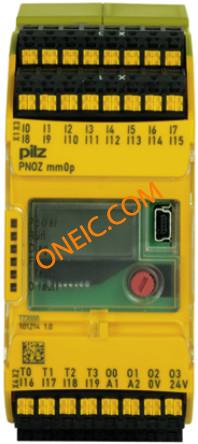

PNOZ mm0p PNOZ Multi Mini Safety Controller Pilz	55	1: ¥33,728.00	250 V ac	120mm	45mm	100mm	100 x 45 x 120 mm	2 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PNOZ X7 24VACDC PNOZ X7 emergency stop 24Vac/dc 2NO Pilz	62	1: ¥936.1084	24 V dc, 240 V ac	121mm	22.5mm	87mm	87 x 22.5 x 121 mm	6 (ac) A, 6 (dc) A	CCC, cULus, EN 60204-1, EN 60947-5-1, EN 61000-6-2, IEC 60204-1, TUV	24 V ac/dc	Screw	2NO	1.5 W	2P (Safety)	1	DIN Rail Mount	24 V	0	2NO (Safety)	+55°C	-	-	-	-	-	-

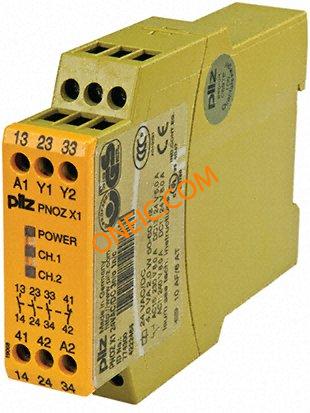

PNOZ X1 24VAC/DC PNOZ/X1 safety relay,24Vac/dc 3NO 1NC PNOZ/X1 safety relay, 24Vac/dc 3NO 1NC Pilz	52	1: ¥1,114.4724	24 V dc, 240 V ac	121mm	22.5mm	87mm	87 x 22.5 x 121 mm	6 A	Category 4 EN 954-1, Category 4 PLe EN ISO 13849-1, EN 60947-5-1, EN 61000-6-2 (EMC), EN IEC 62061 PFH 2.31E-09, EN IEC 62061 SIL CL 3, IEC 61511 SIL 3, IEC61511 PFD 2.03E-06	24 V ac/dc	Screw	3NO	2 W, 4 VA	3P (Safety), SP (Auxiliary)	2	DIN Rail Mount	24 V ac/dc	1	3NO/NC	+55°C	NC	Automatic, Manual	-	-	-	-
PNOZ mm0.1p PNOZ Multi Mini Safety Controller Pilz	13	1: ¥4,295.90	250 V ac	120mm	45mm	100mm	100 x 45 x 120 mm	2 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

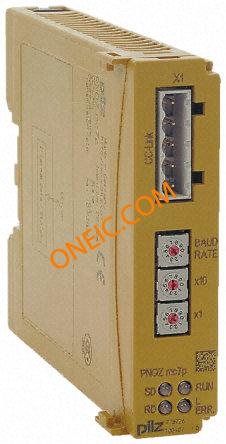

PNOZ MC7P CC-Link fieldbus module Pilz	22	1: ¥2,600.082	24 V dc	122mm	22.5mm	94mm	94 x 22.5 x 122 mm	-	EN 60204-1, VDE 0113	24 V dc	Screw	-	-	-	-	-	-	-	-	-	-	-	IP20, IP54	-	-	-

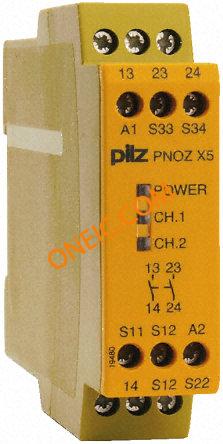

PNOZ X5 24VACDC PNOZX5 emergency stop relay,24Vac/dc 2NO Pilz	49	1: ¥1,176.8896	24 V dc, 240 V ac	121mm	22.5mm	87mm	87 x 22.5 x 121 mm	4 (dc) A, 6 (ac) A	Category 3 PLe EN ISO 13849-1, Category 4 EN 954-1, CCC, cULus, EN 60947-5-1, EN 61000-6-2, EN IEC 62061 PFH 2.34E-09, EN IEC 62061 SIL CL 3, IEC 61511 PFD 2.03E-06, IEC 61511 SIL 3, TUV, Type 3 A EN 574	24 V ac/dc	Screw	2NO	2 W, 4 VA	2P (Safety)	1, 2	DIN Rail Mount	24 V ac/dc	0	2NO (Safety)	+55°C	-	-	-	-	-	-

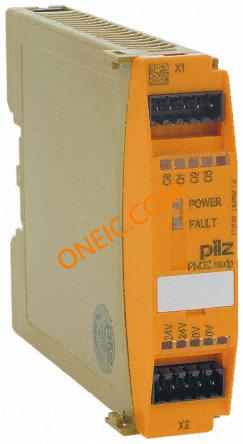

PNOZ MO3P Safe semiconductor output mod, dual pole Pilz	30	1: ¥1,917.0764	24 V dc	121mm	22.5mm	94mm	94 x 22.5 x 121 mm	2 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	IP20, IP54	-	-	-

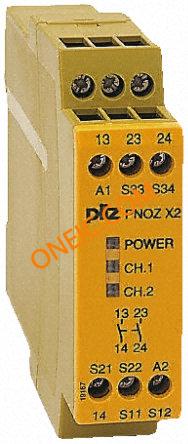

PNOZ X2 24VAC/DC PNOZ/X2 safety relay w/LED,24Vac/dc 2NO PNOZ/X2 safety relay w/LED, 24Vac/dc 2NO Pilz	52	1: ¥1,123.2512	24 V dc, 240 V ac	121mm	22.5mm	87mm	87 x 22.5 x 121 mm	6 A	Category 4 EN 954-1, Category 4 PLe EN ISO 13849-1, EN 60947-5-1, EN 61000-6-2 (EMC), EN IEC 62061 PFH 2.31E-09, EN IEC 62061 SIL CL 3, IEC 61511 SIL 3, IEC61511 PFD 2.03E-06	24 V ac/dc	Screw	2NO	4.5 VA	2P (Safety)	2	DIN Rail Mount	24 V ac/dc	0	2NO	+55°C	-	Manual	-	-	-	-

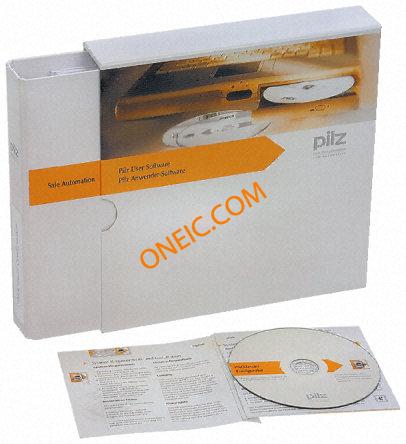

PNOZ MULTI CONFIGURATOR & LICENCE Configuration s/ware and licence Pilz	18	1: ¥3,239.7988	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Configuration Software	PNOZmulti	-

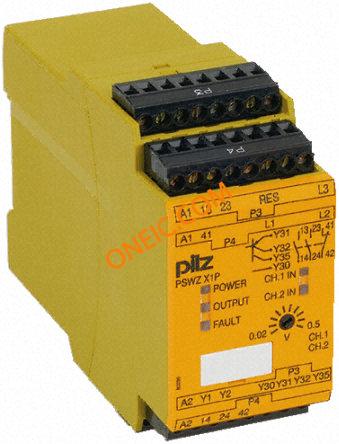

PSWZ X1P 24-240VAC/DC PSWZ Motor Standstill Monitor Pilz	17	1: ¥3,343.424	24 V dc, 240 V ac	121mm	45mm	94mm	94 x 45 x 121 mm	6 A	Category 3 PLe EN ISO 13849-1, Category 4 EN 954-1, CCC, cULus, EN 60947-5-1, EN 61000-6-2, EN IEC 62061 PFH 6.23E-09, EN IEC 62061 SIL CL 3, EN ISO 13849-1:2006 20, IEC 61511 PFD 6.47E-05, IEC 61511 SIL 3, TUV, Type 3 A EN 574	24 → 240 V ac/dc	Screw	2NO	3 W, 5 VA	2P (Safety), SP (Auxiliary)	1, 2	DIN Rail Mount	24 V	1	2NO (Safety), NC (Auxiliary)	+55°C	NC	-	-	-	-	-

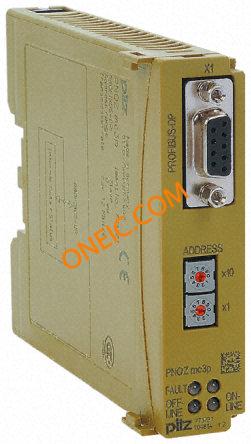

PNOZ MC3P Profibus-dp fieldbus module Pilz	20	1: ¥2,797.4792	24 V dc	122mm	22.5mm	94mm	94 x 22.5 x 122 mm	-	EN 60204-1, VDE 0113	24 V dc	Screw	-	-	-	-	-	-	-	-	-	-	-	IP20, IP54	-	-	-

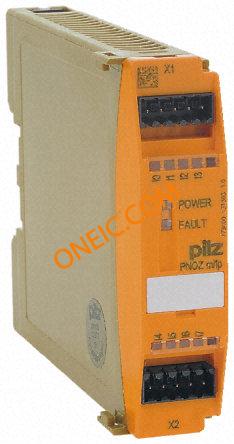

PNOZ MI1P Safe input module Pilz	43	1: ¥1,349.3376	24 V dc	121mm	22.5mm	94mm	94 x 22.5 x 121 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	IP20, IP54	-	-	-
PNOZ X2.1 24VAC/DC PNOZ/X2.1 safety relay,24Vac/dc 2NO PNOZ/X2.1 safety relay, 24Vac/dc 2NO Pilz	52	1: ¥1,123.2512	24 V dc, 240 V ac	121mm	22.5mm	87mm	87 x 22.5 x 121 mm	6 A	Category 4 EN 954-1, Category 4 PLe EN ISO 13849-1, EN 60947-5-1, EN 61000-6-2 (EMC), EN IEC 62061 PFH 2.31E-09, EN IEC 62061 SIL CL 3, IEC 61511 SIL 3, IEC61511 PFD 2.03E-06	24 V ac/dc	Screw	2NO	4.5 VA	2P (Safety)	2	DIN Rail Mount	24 V ac/dc	0	2NO	+55°C	-	Automatic, Manual	-	-	-	-

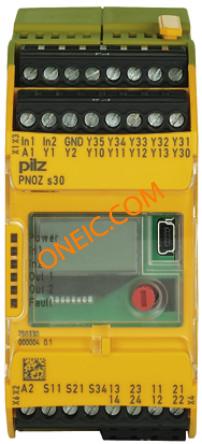

PNOZ S30 24-240AC/DC Speed Monitor with 2NO/2NC Contacts Pilz	10	1: ¥6,091.7052	24 V dc, 240 V ac	98mm	45mm	120mm	120 x 45 x 98 mm	4 A	Category 2 EN 954-1, PLe Category 2 EN ISO 13849-1, SIL CL2 EN IEC 62061	24 → 240 V ac/dc	Screw	2NO	5.5 W, 9 VA	2P (Auxiliary), 2P (Safety)	1	DIN Rail Mount	24 V	2	2NC (Auxiliary), 2NO (Safety)	-	2NC	-	-	-	-	Yes

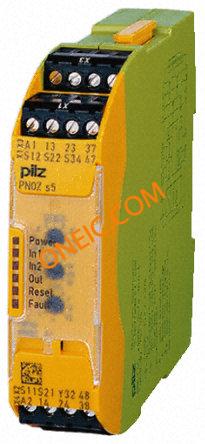

PNOZ S5 48-240VAC/DC 0-300S SIGMA SAFETY RELAY, 48-240VAC/DC, 0-300S Pilz	26	1: ¥2,183.5956	24 V dc, 240 V ac	120mm	22.5mm	102mm	102 x 22.5 x 120 mm	6 A	Category 4 EN 954-1, Category 4 PLe EN ISO 13849-1, EN 60947-5-1, EN 61000-6-2, EN 61000-6-4 (EMC), EN IEC 62061 PFH 2.31E-09, EN IEC 62061 PFH 2.34E-09, EN IEC 62061 SIL CL 3, IEC 61511 PFD 2.03E-06, IEC 61511 PFD 2.75E-05, IEC 61511 SIL 3	48 → 240 V ac/dc	Screw	2NO	4 W, 8 VA	2P (Safety)	2	DIN Rail Mount	48 → 240 V ac/dc	0	2NO	+55°C	-	Automatic, Manual, Monitored	-	-	-	-
PNOZ X2.8P 24-240VAC/DC Relay safety 24-240V 3N/O 1N/C PNOZ Pilz	42	1: ¥1,367.582	24 V dc, 240 V ac	121mm	22.5mm	94mm	94 x 22.5 x 121 mm	6 A	Category 3 PLe EN ISO 13849-1, Category 4 EN 954-1, CCC, cULus, EN 60947-5-1, EN 61000-6-2, EN IEC 62061 PFH 2.31E-09, EN IEC 62061 SIL CL 3, EN ISO 13849-1:2006 20, IEC 61511 PFD 2.03E-06, IEC 61511 SIL 3, TUV, Type 3 A EN 574	24 → 240 V ac/dc	Screw	3NO	4.5 W	3P (Safety), SP (Auxiliary)	1, 2	DIN Rail Mount	24 V	1	3NO (Safety), NC (Auxiliary)	+55°C	NC	-	-	-	-	-
