Polymer Optics Ltd.- Optics

Polymer Optics Ltd. is a leading designer and manufacturer of precision polymer optics, headquartered in the United Kingdom. The company was founded with a vision to advance optical technology through innovative polymer-based solutions. Its core business focuses on the design, prototyping, and volume production of custom optical components, including lenses, light guides, reflectors, and complex free-form optics. Polymer Optics offers a broad product range that covers illumination optics, imaging lenses, and specialized components for LED lighting, automotive lighting, medical devices, and consumer electronics. The company’s expertise lies in leveraging advanced injection molding and diamond turning techniques to produce high-precision optics with excellent surface quality and repeatability. Polymer Optics is recognized for its ability to deliver compact, lightweight, and cost-effective optical solutions that outperform traditional glass optics in many applications. With in-house design, tooling, and manufacturing capabilities, the company provides end-to-end support from concept to mass production. Its technical team works closely with clients to develop custom optics that meet strict performance and regulatory requirements. In the global market, Polymer Optics is regarded as a specialist niche player, known for its rapid prototyping and flexible production services. The company continues to invest in next-generation optical materials and manufacturing processes to maintain its competitive edge in the polymer optics industry.

Optics - 型号列表

45 parts in total

Mfr Part #	Quantity Available	Price	Height	Size / Dimension	Kit Contents	Length	Lens Style/Size	Viewing Angle	Width	Number of Legs	Lead Spacing	LED	Spectral Range	For Use With/Related Products	Output	Diameter	Number of LEDs	Other Specifications	RoHS	Series	Part Status

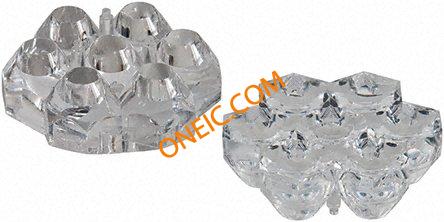

2 262 7 Cell Cluster Optic +/-25deg Polymer Optics 7-LED 50 ° LED 透镜 , 39.15mm直径, 使用于Lumileds LUXEON Rebel Polymer Optics Ltd.	17	1: ¥75.22	13.85mm	39.15 Dia. x 13.85mm	透镜	38.5mm	50 °	50 °	-	-	-	7	透明	Cree XP Series LEDs	准直仪	39.15mm	7	-	-	-	-
2 201/180 Luxeon Rebel 15deg LED Optic & Holder Polymer Optics 15 ° 透镜组件, 包含：透镜、透镜支架 Polymer Optics	163	2: ¥12.71	10.6 mm, 13.8 mm	14.9 x 12.9 x 13.8 mm, 17.55 x 15.2 x 10.6 mm	Lens, Lens Holder	14.9 mm, 17.55 mm	15 °	15 °	12.9 mm, 15.2 mm	6	6	-	-	-	-	-	-	-	-	-	-
2 264 7 Cell Cluster Optic +/-6deg Diffused Polymer Optics 7-LED 12 ° 散射 LED 透镜 , 39.15mm直径, 使用于Lumileds LUXEON Rebel Polymer Optics Ltd.	85	1: ¥63.22	13.85mm	39.15 Dia. x 13.85mm	透镜	38.5mm	Diffused	12 °	-	-	-	7	散射	Cree XP Series LEDs	准直仪	39.15mm	7	Diffused	-	-	-
140 Luxeon1 & 3 Conc Cluster LED Optic Polymer Optics	195	200: ¥57.403	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

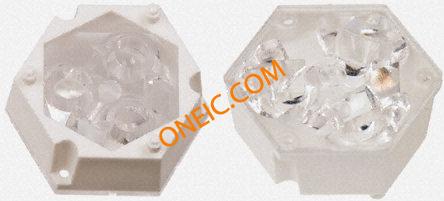

2 181 Colour Mix LED Optic Rebel Polymer Optics Colour Mixer 系列 3-LED 宽角度 LED 透镜 1,5, 使用于Lumileds LUXEON Rebel Polymer Optics	273	1: ¥51.46	14.45mm	35.8 x 31 x 14.45mm	透镜、光学镜片	35.8mm	-	-	31mm	-	-	3	透明	LUXEON Rebel LED	宽角度	-	-	Narrow Angle	-	Colour Mixer	-
2 170/223 Cree XPE 6deg LED Optic & Holder Polymer Optics 6 ° 透镜组件, 包含：透镜、透镜支架 Polymer Optics	80	2: ¥12.85	10.6 mm, 12.45 mm	14.9 x 12.9 x 12.45 mm, 17.55 x 15.2 x 10.6 mm	Lens, Lens Holder	14.9 mm, 17.55 mm	6 °	6 °	12.9 mm, 15.2 mm	6	6	-	-	-	-	-	-	-	-	-	-

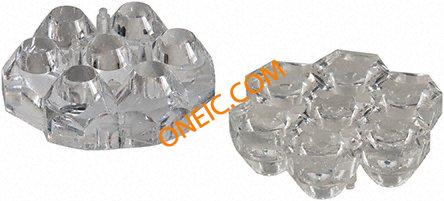

2 261 7 Cell Cluster Optic +/-6deg Clear Polymer Optics 7-LED 12 ° LED 透镜 , 39.15mm直径, 使用于Lumileds LUXEON Rebel Polymer Optics Ltd.	274	1: ¥75.22	13.85mm	39.15 Dia. x 13.85mm	透镜	38.5mm	Clear	12 °	-	-	-	7	透明	Cree XP Series LEDs	准直仪	39.15mm	7	-	-	-	-
141/180 Luxeon Rebel Conc. LED Optic & Holder Polymer Optics	70	10: ¥14.144	10.6 mm, 14.4 mm	14.9 x 12.9 x 14.4 mm, 17.55 x 15.2 x 10.6 mm	Lens, Lens Holder	14.9 mm, 17.55 mm	-	-	12.9 mm, 15.2 mm	6	-	-	-	-	-	-	-	-	-	-	-

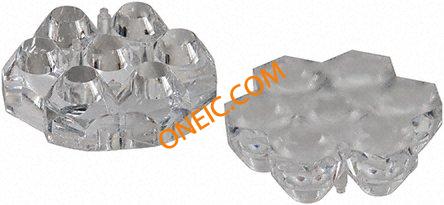

2 263 7 Cell Cluster Concentrator Optic Polymer Optics 7-LED LED 透镜 , 39.2mm直径, 使用于Lumileds LUXEON Rebel Polymer Optics Ltd.	151	1: ¥62.71	20.2mm	39.2 x 38.5 x 20.2mm	透镜	39.2mm	-	-	38.5mm	-	-	7	透明	Cree XP Series LEDs	-	39.2mm	7	-	-	-	Active
157 Colour Mix LED Optic Luxeon 1,3,K2 Polymer Optics	10	1: ¥37.196	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Narrow Angle	-	-	-
208 2.5deg SSC,P'Dragon,D'Dragon H'Reflector Polymer Optics	596	1: ¥47.40	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 124/147 Cree XR 25deg LED Optic & Holder Polymer Optics 25 ° 透镜组件, 包含：透镜、透镜支架 Polymer Optics	50	2: ¥117.096	11.3 mm, 11.35 mm	14.9 x 12.9 x 11.35 mm, 17.55 x 15.2 x 11.3 mm	Lens, Lens Holder	14.9 mm, 17.55 mm	25 °	25 °	12.9 mm, 15.2 mm	6	6	-	-	-	-	-	-	-	-	-	-
186/182 Moonstone 6deg Diffuse LED Optic/Holder Polymer Optics	4442	2: ¥13.2124	11.7 mm, 12.45 mm	14.9 x 12.9 x 12.45 mm, 17.55 x 15.2 x 11.7 mm	Lens, Lens Holder	14.9 mm, 17.55 mm	Diffused	6 °	12.9 mm, 15.2 mm	6	-	-	-	-	-	-	-	-	-	-	-
2 125 Luxeon1 & 3 25deg Cluster LED Optic Decelect Forgos 7-LED 50 ° LED 透镜 , 39.15mm直径 Polymer Optics	39	1: ¥72.86	16.5mm	39.15 Dia. x 16.5mm	透镜	-	50 °	-	-	-	-	7	透明	LUXEON I LED、LUXEON II LED、LUXEON K2 LED	准直仪	39.15mm	-	-	-	-	-
2 124/180 Luxeon Rebel 25deg LED Optic & Holder LEDOPTIC/HOLDER,124/180 Polymer Optics 25 ° 透镜组件, 包含：透镜、透镜支架 Polymer Optics	100	10: ¥14.144	10.6 mm, 11.35 mm	14.9 x 12.9 x 11.35 mm, 17.55 x 15.2 x 10.6 mm	Lens, Lens Holder	14.9 mm, 17.55 mm	25 °	25 °	12.9 mm, 15.2 mm	6	6	-	-	-	-	-	-	-	RoHS Compliant Part	-	-
207 2.5deg XR,XRC,XRE Hybrid Reflector Polymer Optics	10	1: ¥337.28	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 204 2.5deg K2 Hybrid Reflector Polymer Optics LED 反光罩 Polymer Optics	10	1: ¥31.144	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 170/147 Cree XRE 6deg LED Optic & Holder Polymer Optics 6 ° 透镜组件, 包含：透镜、透镜支架 Polymer Optics	96	2: ¥12.85	11.3 mm, 12.45 mm	14.9 x 12.9 x 12.45 mm, 17.55 x 15.2 x 11.3 mm	Lens, Lens Holder	14.9 mm, 17.55 mm	6 °	6 °	12.9 mm, 15.2 mm	6	6	-	-	-	-	-	-	-	-	-	-
2 120/127 Golden Dragon 6deg LED Optic & Holder Polymer Optics 6 ° 透镜组件, 包含：透镜、透镜支架 Polymer Optics	1627	2: ¥12.85	11.35 mm, 11.37 mm	14.9 x 12.9 x 11.35 mm, 17.55 x 15.2 x 11.37 mm	Lens, Lens Holder	14.9 mm, 17.55 mm	6 °	6 °	12.9 mm, 15.2 mm	6	6	-	-	-	-	-	-	-	-	-	-
2 124/127 Golden Dragon 25deg LED Optic& Holder LEDOPTIC/HOLDER,124/127 Polymer Optics 25 ° 透镜组件, 包含：透镜、透镜支架 Polymer Optics	706	2: ¥12.85	11.35 mm, 11.37 mm	14.9 x 12.9 x 11.35 mm, 17.55 x 15.2 x 11.37 mm	Lens, Lens Holder	14.9 mm, 17.55 mm	25 °	25 °	12.9 mm, 15.2 mm	6	6	-	-	-	-	-	-	-	RoHS Compliant Part	-	-
