Power-One, Inc.
DC-DC Converters - Power Hybrid

Power-One, Inc.- DC-DC Converters - Power Hybrid

Power-One, Inc. was founded in 1973 and headquartered in Camarillo, California, USA. It is one of the world's ten largest providers of power conversion and power management solutions. The company focuses on converting utility-grade AC power into various DC voltages required by high-availability infrastructure. Its core product lines include AC/DC power supplies, DC/DC converters, and renewable energy inverters. Specific series such as the 'Novum' digital point-of-load converters, high-efficiency rectifiers like the 'SCP' series, and solar inverters including the 'Trio' and 'Uno' families showcase its technological breadth. Power-One served telecom, datacom, industrial, and renewable energy markets. The company was recognized for its industry-leading efficiency levels, often exceeding 95% in its rectifier products. In 2013, it was acquired by ABB for approximately $1 billion, becoming part of ABB's Power Conversion division. Before the acquisition, Power-One held a strong market position, particularly in high-efficiency power systems for critical infrastructure.

DC-DC Converters - Power Hybrid - 型号列表

240 parts in total

Mfr Part #	Quantity Available	Price	Standard Package	RoHS	Power - Max	Current - Output	Number of Outputs	Power (Watts) - Max	Voltage - Isolation	Voltage - Input (Min)	Packaging	Mounting Type	Package / Case	Size / Dimension	Type	Operating Temperature	Efficiency	Voltage Rating	Number of Positions	Isolation	Other Names	Standard Package Name	Package Quantity	Output Power	Length - Overall	Rad Hardened	Depth	Height	Lead Style	Mounting Style	Common Mode Transient Immunity (Min)	Operating Temperature - Junction	Features	Width	Printed Circuit Board	EU RoHS	Shell Size - Insert	Switching Regulator	Product	Product Category	Output Type	Voltage - Input	Current - Output / Channel	Series	Voltage - Output 3

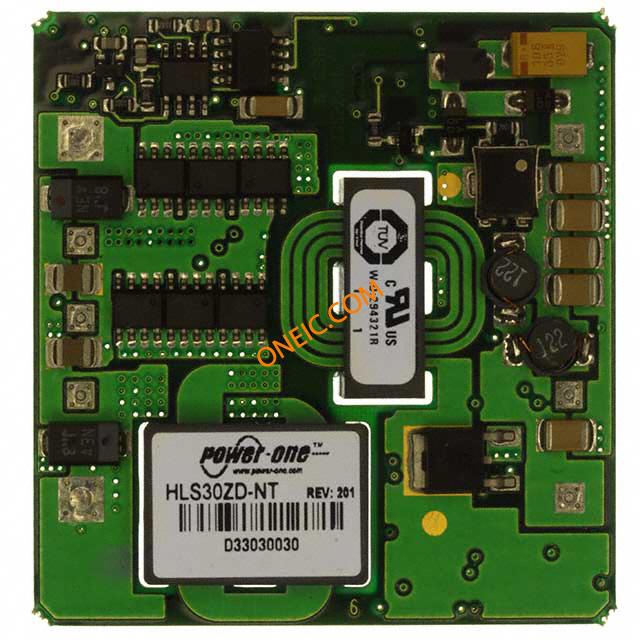

HLS30ZD-NT Module DC-DC 1-OUT 2.5V 30A 9-Pin Half-Brick CONV DC-DC 48V IN 2.5V OUT 75W power-one	16	1: ¥5,601.4796	Bulk	Contains lead / RoHS non-compliant	75W	30 A	1	75W	1.5kV (1500V)	2.5V	Tray	Through Hole	9Half-Brick	2.40" L x 2.28" W x 0.43" H (61.0mm x 57.9mm x 10.9mm)	Step Down	-40°C ~ 100°C	88%	2.5 V	9	Isolated	179-2246	Half-Brick	Half-Brick	-	61 mm	No	57.9 mm	9.5 mm	Through Hole	Through Hole	Industrial	100C	-	-	-	-	-	-	-	-	-	-	-	-	-
HLS30ZE-NT8 Module DC-DC 1-OUT 3.3V 30A 9-Pin Half-Brick DC/DC CONVERT 3.3V 30A DC/DCHalfBrick; power-one	10	288: ¥939.012	Bulk	Contains lead / RoHS non-compliant	99W	30 A	1	99W	1.5kV (1500V)	3.3V	Bulk	Through Hole	9Half-Brick	2.40" L x 2.28" W x 0.43" H (61.0mm x 57.9mm x 10.9mm)	Step Down	-40°C ~ 100°C	89%	3.3 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Remote On/Off, OCP, OTP, OVP	-	-	-	-	-	-	-	-	-	-	-	-
SSQE48T25015-NAB0G Module DC-DC 1-OUT 1.5V 25A 8-Pin 1/16-Brick CONVERTER DC-DC 1.5V 25A DC/DCSixteenthBrick; power-one	10	1: ¥247.248	Bulk	Lead free / RoHS Compliant	37W	25 A	1	37.5W	2.25kV (2250V)	1.5V	Tray	Through Hole	81/16-Brick	1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.4mm)	Step Down	-40°C ~ 85°C	87%	1.5 V	-	-	179-2364	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HLS30ZG-NT Module DC-DC 1-OUT 5V 30A 9-Pin Half-Brick CONV DC-DC 48V IN 5.0V OUT 150W power-one	-		Bulk	Contains lead / RoHS non-compliant	150W	30 A	1	150W	1.5kV (1500V)	5V	Tray	Through Hole	9Half-Brick	2.40" L x 2.28" W x 0.43" H (61.0mm x 57.9mm x 10.9mm)	Step Down	-40°C ~ 100°C	91%	5 V	9	Isolated	179-2248	Half-Brick	Half-Brick	-	-	-	-	-	Through Hole	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SSQE48T13050-NAB0G Module DC-DC 1-OUT 5V 13A 8-Pin 1/16-Brick CONVERTER DC-DC 5.0V 13A DC/DCSixteenthBrick; power-one	10	294: ¥165.4413	Bulk	Lead free / RoHS Compliant	65W	13 A	1	65W	2.25kV (2250V)	5V	Tray	Through Hole	81/16-Brick	1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.4mm)	Step Down	-40°C ~ 85°C	90.7%	5 V	8	Isolated	179-2362	1/16-Brick	1/16-Brick	-	-	-	-	-	Through Hole	-	-	-	-	-	-	Compliant	-	Yes	-	-	-	-	-	-	-

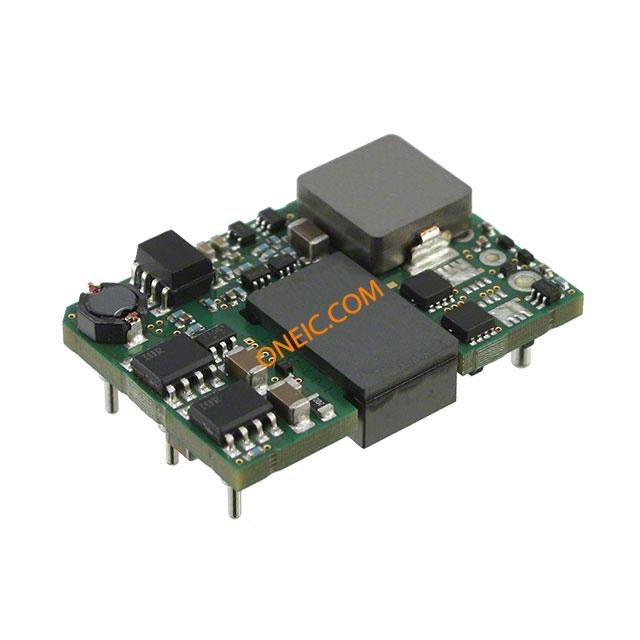

SSQE48T10033-NAB0G Module DC-DC 1-OUT 3.3V 10A 8-Pin 1/16-Brick CONVERTER DC-DC 3.3V 10A DC/DC Converters 65W 3.3Vout 10A 36-75Vin DC/DCSixteenthBrick; power-one	10	1: ¥183.6408	Bulk	Lead free / RoHS Compliant	33W	10 A	1	33W	2.25kV (2250V)	3.3V	Tray	Through Hole	81/16-Brick	1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.4mm)	Step Down	-40°C ~ 85°C	90%	3.3 V	8	Isolated	-	1/16-Brick	1/16-Brick	33 W	22.86 mm	No	33.02 mm	8.39 mm	Through Hole	Through Hole	Industrial	85C	-	33.02	8	Compliant	-	-	Isolated	DC/DC Converters	Isolated	48 V	10 A	SSQE	-
HLS30ZG-NT9 DC/DC CONVERT 5V 30A DC/DCHalfBrick; power-one	10	216: ¥974.1476	12	RoHS Compliant Part	150W	30A	1	150W	1.5kV (1500V)	5V	Bulk	Through Hole	9-DIP Module, 1/2 Brick	2.40" L x 2.28" W x 0.43" H (61.0mm x 57.9mm x 10.9mm)	Isolated Module	-40°C ~ 100°C	91%	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Remote On/Off, OCP, OTP, OVP	-	-	-	-	-	-	-	-	-	-	-	-

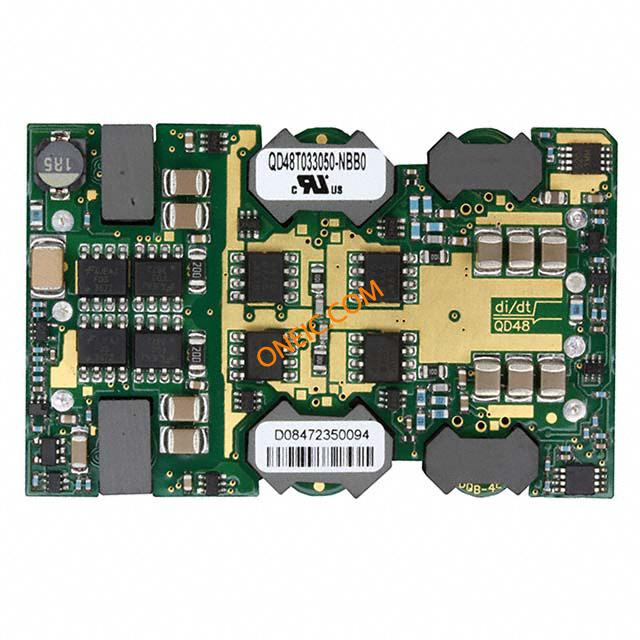

2 QD48T033050-NBB0 Module DC-DC 2-OUT 3.3V/5V 15A/10A 7-Pin Quarter-Brick CONV DC-DC 75W 5V/3.3V DUAL DC/DCQuarterBrick; power-one	15	1: ¥3,466.0756	Bulk	Contains lead / RoHS non-compliant	75W	15\|10 A	2	75W	2kV (2000V)	3.3V	Tray	Through Hole	7Quarter-Brick	2.30" L x 1.45" W x 0.34" H (58.4mm x 36.8mm x 8.6mm)	Step Down	-40°C ~ 85°C	89%	3.3\|5 V	7	-	-	Quarter-Brick	Quarter-Brick	-	36.83 mm	No	58.42 mm	6.52 mm	Through Hole	Through Hole	-	-	-	58.42	7	-	6.52(Max)	-	-	-	-	-	-	-	-
DFC25E24T5/15 Module DC-DC 3-OUT 5V/15V/-15V 5A/0.8A/-0.8A 25W 9-Pin TRIPLE OUTPUT DC/DC CONVERTER Power-One	10	250: ¥627.164	10	Contains lead / RoHS non-compliant	25W	5A, 800mA, 800mA	3	25W	700V	5V	Bulk	Through Hole	9-DIP Module (8 Leads)	3.00" L x 2.50" W x 0.43" H (76.2mm x 63.5mm x 11.0mm)	Step Down	-40°C ~ 105°C	80%	5\|15\|-15	9	Isolated	-	-	-	25	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-15V

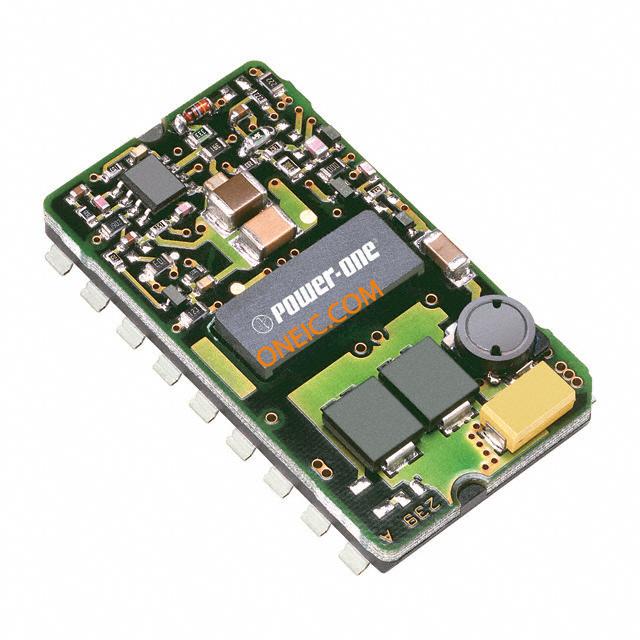

RNS01EE-M6 Module DC-DC 1-OUT 3.3V 1.5A 10W 18-Pin SMT CONV DC-DC 18-72V IN 3.3V OUT 5W Power-One	10	60: ¥392.836	15	Contains lead / RoHS non-compliant	10W	1.5A	1	5W	1.5kV (1500V)	3.3V	Tray	Surface Mount	18-SMD Module	1.87" L x 1.00" W x 0.34" H (47.5mm x 25.4mm x 8.6mm)	Step Down	-45°C ~ 110°C	78%	3.3	18	Isolated	179-2209	SMD	SMT	10	47.4	-	-	-	-	-	-	-	Remote On/Off, OCP	25.4	18	-	8.5	-	-	-	-	-	-	-	-
SQE48T20120-NGABG DC/DC PS SGL-OUT 1.2V 30A 8PIN QUARTER-BRICK power-one	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DFC10E48S15 Module DC-DC 1-OUT 15V 0.7A 10W 4-Pin CONVERTER DC-DC 10W 48V/15V SGL Power-One	10	100: ¥522.444	20	Contains lead / RoHS non-compliant	10W	700mA	1	10W	1.544kV (1544V)	15V	Bulk	Through Hole	5-DIP Module (4 Leads)	2.02" L x 1.02" W x 0.42" H (51.3mm x 25.9mm x 10.7mm)	Step Down	-50°C ~ 100°C	84%	15	4	Isolated	179-1020	-	-	10	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TQD085ZED-AN Module DC-DC 2-OUT 3.3V/2.5V 20A/25A 100W 14-Pin CONV DC-DC 48V IN 3.3/2.5V OUT Power-One	-		24	Contains lead / RoHS non-compliant	100W	20A, 25A	2	100W	1.5kV (1500V)	3.3V	Bulk	Through Hole	14-DIP Module	3.45" L x 2.40" W x 0.50" H (87.6mm x 61.0mm x 12.7mm)	Step Down	-40°C ~ 100°C	82%	3.3\|2.5	14	Isolated	179-2175	-	-	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

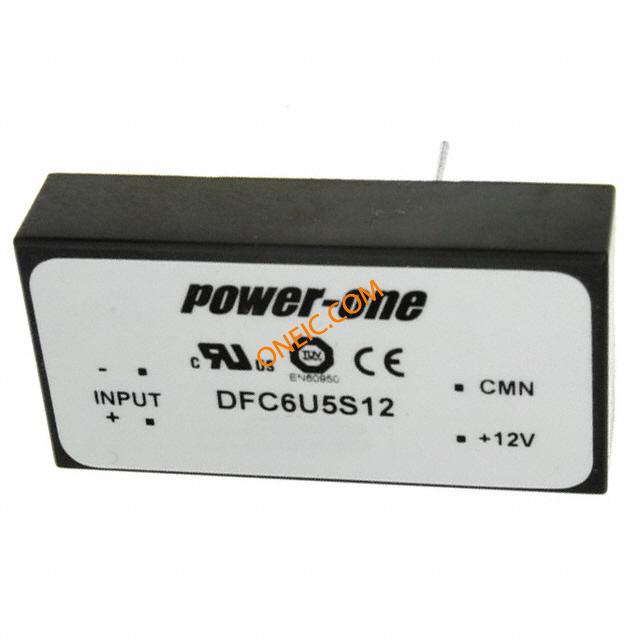

DFC6U5S12 Module DC-DC 1-OUT 12V 0.5A 4-Pin CONVERTER DC-DC 6W 12V SGL Power-One	39	1: ¥691.9272	20	Contains lead / RoHS non-compliant	6W	500mA	1	6W	700V	12V	Bulk	Through Hole	4-DIP Module	2.00" L x 1.00" W x 0.45" H (50.8mm x 25.4mm x 11.4mm)	Non-Inverting\|Inverting\|Step Up\|S...	-50°C ~ 100°C	-	12 V	4	Isolated	179-1003	-	-	6 W	50.8 mm	No	25.4 mm	11.43 mm	-	Through Hole	Industrial	85C	-	-	-	-	-	-	-	-	-	-	-	-	-
SQ48S08060-NS00G Module DC-DC 1-OUT 6V 8A 50W 8-Pin 1/8-Brick DC/DC CONVERTER 6V Power-One	10	1: ¥327.964	200	Lead free / RoHS Compliant	48W	8 A	1	48W	2kV (2000V)	6V	Bulk	Surface Mount	1/8-Brick	2.30" L x 0.90" W x 0.26" H (58.4mm x 22.8mm x 6.6mm)	Step Down	-40°C ~ 85°C	89%	48 V	8	Isolated	-	1/8-Brick	1/8-Brick	50 W	36.83 mm	No	58.42 mm	6.55 mm	-	Surface Mount	Industrial	85C	Remote On/Off, OCP, OTP, OVP, SCP, UVLO	58.42	8	Compliant	6.55	-	-	-	-	-	-	-	-
PVI-3.0-OUTD-S-US power-one	5000	1: ¥8,653.816	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PVI-3.0-OUTD-US power-one	5000	1: ¥7,245.40	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PVI-3.6-OUTD-S-US power-one	5000	1: ¥9,564.54	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PVI-3.6-OUTD-US power-one	5000	1: ¥8,173.736	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PVI-4.2-OUTD-S-US power-one	5000	1: ¥10,388.564	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
