Powerex, Inc.- IGBT Modules

Powerex, Inc., headquartered in Youngwood, Pennsylvania, USA, is a leading supplier of high-power semiconductor solutions. Originally founded in 1986 as a joint venture between General Electric and Mitsubishi Electric, the company is now a wholly owned subsidiary of Mitsubishi Electric US, Inc. Powerex specializes in discrete, modular, and integrated power semiconductors for demanding applications. Its core product portfolio features IGBT modules, intelligent power modules (IPMs), press-pack thyristors, rectifier diodes, and custom power assemblies. These products serve diverse markets including AC/DC motor controls, alternative energy (wind and photovoltaic), aircraft, industrial heating, and medical power supplies. The company is recognized for transforming advanced technology into cost-effective, reliable solutions backed by extensive engineering expertise. Leveraging both silicon and silicon carbide technologies, Powerex delivers high-efficiency power management devices. With a robust global distribution network, it maintains a strong presence in North America and international markets. As a key player in industrial power electronics, Powerex continuously innovates in packaging, thermal management, and high-voltage design. Its commitment to quality and customer-focused development has solidified its reputation as a trusted partner in the high-power semiconductor industry.

IGBT Modules - 型号列表

64 parts in total

Mfr Part #	Quantity Available	Price	Standard Package	Input	Power - Max	NTC Thermistor	Voltage - Supply	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max)	Input Capacitance (Cies) @ Vce	Current - Collector Cutoff (Max)	Mounting Type	Package / Case	Supplier Device Package	Configuration	Operating Temperature	Tariff No	Transistor Type	Weight	Power Dissipation (Max)	Rad Hardened	Vgs (Max)	Number of Positions	Channel Type	Operating Temperature - Junction	IGBT Type	Module/Board Type	Number of Pins	Other Names	RoHS
3 CM100DU-24NFH IGBT MOD DUAL 1200V 100A NFH SER Trans IGBT Module N-CH 1.2KV 100A 7-Pin IGBT MODULE, 1.2KV, 100A Powerex Inc	11	1: ¥761.04	10	Standard	560W	No	1200V	6.5V @ 15V, 100A	100A	16nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	Automotive	85412100	:N Channel	0	:560W	No	�20 V	7	N	150C	-	-	-	-	-
2 CM200DY-12NF IGBT MOD DUAL 600V 200A NF SER IGBT MODULE, 600V, 200A Powerex Inc	243	1: ¥969.42	10	Standard	650W	No	600V	2.2V @ 15V, 200A	200A	30nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	:-40°C	85359000	:N Channel	0.308	:650W	-	-	-	-	-	-	-	-	-	-
2 CM300DX-24S IGBT MOD DUAL 1200V 300A NX SER IGBT Module Powerex Inc	14	1: ¥1,159.68	10	Standard	2270W	Yes	1200V	2.15V @ 15V, 300A	300A	30nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	:-40°C	85412900	:Dual N Channel	0	:2.27kW	-	-	-	-	-	-	-	-	835-1124	-
2 CM400HA-24A IGBT MOD SGL 1200V 400A A SERIES Trans IGBT Module N-CH 1.2KV 400A 4-Pin IGBT MODULE, 1200V, 400A, IGBTMOD Powerex Inc	28	1: ¥1,295.58	10	Standard	2350W	No	1200V	3V @ 15V, 400A	400A	70nF @ 10V	1mA	Chassis Mount	Module	Module	Single	:-40°C	85412900	:N Channel	0	:2.35kW	-	-	-	-	-	-	-	-	-	-
2 CM100RX-24S IGBT MOD 7PAC 1200V 100A NX SER IGBT Module Powerex Inc	10	1: ¥1,139.612	10	Standard	750W	Yes	1200V	2.15V @ 15V, 100A	100A	10nF @ 10V	1mA	Chassis Mount	Module	Module	Three Phase Inverter with Brake	:-40°C	85412900	:N Channel	0	:750W	-	-	-	-	-	-	-	-	-	-
2 CM600HA-24A IGBT MOD SGL 1200V 600A A SERIES IGBT MODULE, 1200V, 600A, IGBTMOD Powerex Inc	81	1: ¥1,531.14	10	Standard	3670W	No	1200V	3V @ 15V, 600A	600A	105nF @ 10V	1mA	Chassis Mount	Module	Module	Single	:-40°C	85412900	:N Channel	0	:3.67kW	-	-	-	-	-	-	-	-	-	-
2 CM400DY-12NF IGBT MOD DUAL 600V 400A NF SER Trans IGBT Module N-CH 600V 400A 4-Pin IGBT MODULE, 600V, 400A Powerex Inc	21	1: ¥1,558.32	10	Standard	1130W	No	600V	2.2V @ 15V, 400A	400A	60nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	Automotive	85412900	:N Channel	0.435	:1.13kW	No	�20 V	4	N	150C	-	-	-	-	-
2 CM400DU-12NFH IGBT MOD DUAL 600V 400A NFH SER Trans IGBT Module N-CH 600V 400A 7-Pin Powerex Inc	10	1: ¥1,785.00	10	Standard	960W	No	600V	2.7V @ 15V, 400A	400A	110nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	Automotive	-	-	-	-	No	�20 V	7	N	150C	-	-	-	-	-
2 CM450DX-24S IGBT MOD DUAL 1200V 450A NX SER IGBT Module Powerex Inc	10	10: ¥1,246.1816	10	Standard	3400W	Yes	1200V	2.15V @ 15V, 450A	450A	45nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	:-40°C	85412900	:Dual N Channel	0	:3.4W	-	-	-	-	-	-	:Dual	-	-	-
CM600DY-12NF IGBT MOD DUAL 600V 600A NF SER Trans IGBT Module N-CH 600V 600A 7-Pin Powerex Inc	10	1: ¥1,692.724	10	Standard	1130W	No	600V	2.2V @ 15V, 600A	600A	90nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 CM1400DU-24NF IGBT MOD DUAL 1200V 1400A MEGA Trans IGBT Module N-CH 1.2KV 1.4KA 8-Pin Powerex Inc	10	1: ¥6,704.46	10	Standard	3900W	No	1200V	2.5V @ 15V, 1400A	1400A	220nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 CM100DY-24A IGBT MOD DUAL 1200V 100A A SER Trans IGBT Module N-CH 1.2KV 100A 7-Pin IGBT MODULE, 1.2KV, 100A Powerex Inc	13	1: ¥751.98	10	Standard	672W	No	1200V	3V @ 15V, 100A	100A	17.5nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	Automotive	85412900	:N Channel	0	:672W	No	�20 V	7	N	150C	-	-	-	-	-
CM100DY-24NF IGBT MOD DUAL 1200V 100A NF SER Trans IGBT Module N-CH 1.2KV 100A 7-Pin Powerex Inc	23	1: ¥660.8308	10	Standard	650W	No	1200V	2.5V @ 15V, 100A	100A	23nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	Automotive	-	-	-	-	No	�20 V	7	N	150C	-	-	-	-	-
CM150DUS-12F IGBT MOD DUAL 600V 150A F SER Trans IGBT Module N-CH 600V 150A 7-Pin Powerex Inc	10	10: ¥695.0756	10	Standard	520W	No	600V	2.7V @ 15V, 150A	150A	41nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	-	-	-	-	-	-	-	-	-	-	Trench	-	-	-	-
2 CM200DU-12NFH IGBT MOD DUAL 600V 200A NFH SER Trans IGBT Module N-CH 600V 200A 7-Pin IGBT MODULE, 600V, 200A Powerex Inc	29	1: ¥1,023.78	10	Standard	590W	No	600V	2.7V @ 15V, 200A	200A	55nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	Automotive	85412900	:N Channel	0	:590W	No	�20 V	7	N	150C	-	-	-	-	-

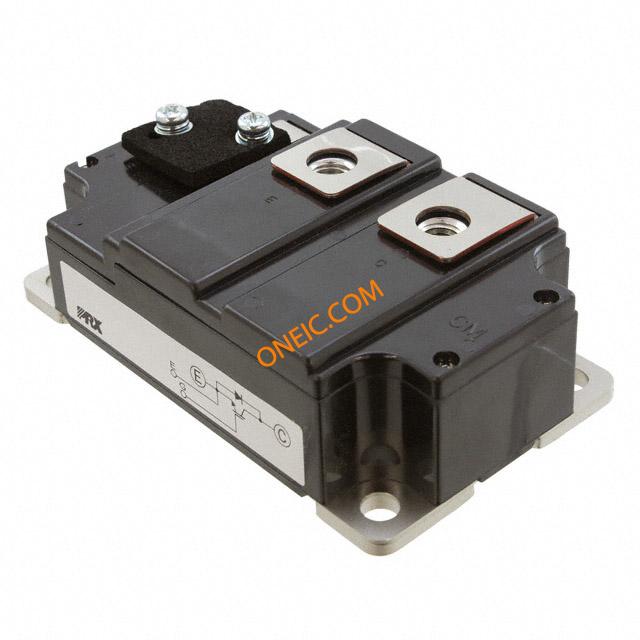

2 CM600HU-12F IGBT MOD SGL 600V 600A F SER IGBT MODULE, 600V, 600A Powerex Inc	83	1: ¥1,147.296	10	Standard	1420W	No	600V	2.2V @ 15V, 600A	600A	160nF @ 10V	1mA	Chassis Mount	Module	Module	Single	:-40°C	00000000	:N Channel	0.494	:1.42kW	-	-	-	-	-	Trench	-	-	-	-

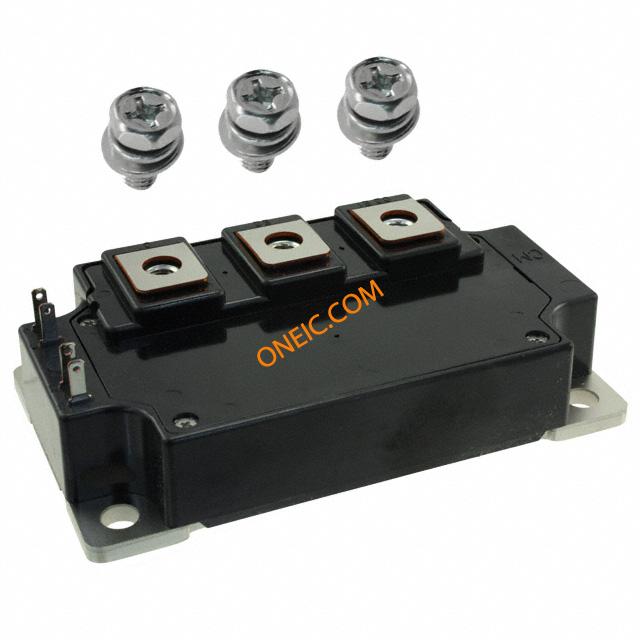

2 CM200DU-24F IGBT MOD DUAL 1200V 200A F SER IGBT MODULE, 1.2KV, 200A Powerex Inc	10	1: ¥813.96	10	Standard	890W	No	1200V	2.4V @ 15V, 200A	200A	78nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	:-40°C	85411000	:N Channel	0.417	-	-	-	-	-	-	Trench	-	-	-	-
CM300DU-24NFH IGBT MOD DUAL 1200V 300A NFH SER Trans IGBT Module N-CH 1.2KV 300A 7-Pin Powerex Inc	14	1: ¥1,708.432	10	Standard	1130W	No	1200V	6.5V @ 15V, 300A	300A	47nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CM75DU-12F IGBT MOD DUAL 600V 75A F SER IGBT MODULE, 600V, 75A Powerex Inc	10	1: ¥285.056	10	Standard	290W	No	600V	2.2V @ 15V, 75A	75A	20nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	:-40°C	85412900	:N Channel	0.29	:290W	-	-	-	-	-	Trench	-	:7	-	-
2 CM150DU-24NFH IGBT MOD DUAL 1200V 150A NFH SER Trans IGBT Module N-CH 1.2KV 150A 7-Pin IGBT MODULE, 1.2KV, 150A Powerex Inc	10	1: ¥848.096	10	Standard	650W	No	1200V	6.5V @ 15V, 150A	150A	24nF @ 10V	1mA	Chassis Mount	Module	Module	Half Bridge	Automotive	85359000	:N Channel	0	:650W	No	�20 V	7	N	150C	-	:Dual	:7	-	Lead free / RoHS Compliant
