RS Components Ltd- Board to Board Connectors

RS Components is a global omni-channel distributor of electronic components, automation, and maintenance products. Headquartered in Corby, Northamptonshire, United Kingdom, the company originated in 1937 as Radiospares, supplying radio parts. It offers over 500,000 products from more than 2,500 leading manufacturers. Key product categories include semiconductors, connectors, passives, electromechanical, sensors, power supplies, and test equipment. The company provides its own RS Pro brand of quality electronic and industrial components. RS serves engineers and businesses in over 30 countries with express delivery and technical support. It is a major player in the global electronics distribution market, competing with Arrow and Avnet. Its digital platform, RS Online, is a primary e-commerce channel for procurement. The company is heavily invested in sustainability, digitalization, and solutions for industrial IoT and automation.

Board to Board Connectors - 型号列表

102 parts in total

Mfr Part #	Quantity Available	Price	Pitch	Number of Rows	Number of Contacts	Type	Contact Material	Termination	Mounting Type	Width	Series	Current Rating (Max)	Contact Resistance	Depth	Length	Orientation	Contact Finish	Color - Connectors	Gender	Material	Flange Diameter	Number of Teeth	Diameter - Inside, Non-Expanded	Module/Board Type	CAD Drawing
M22-2010905 RS M22-20 Series 2mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 1A RS	10	5: ¥3.2368	2mm	1	9	Unshrouded Header	Phosphor Bronze	Solder	Straight	-	M22-20	1A	-	-	-	-	-	-	-	-	-	-	-	-	3D CAD Model
W8010T50RC Black 2 way closed shorting link,2.54mm RS	42130	10: ¥13.60	2.54mm	1	2	Jumper	Phosphor Bronze	-	-	6.47mm	-	-	20mΩ	2.44mm	4.98mm	Straight	Tin over Nickel	Black	Female	-	-	-	-	-	-
W8011T50RC Blue 2 way closed shorting link,2.54mm RS	10	10: ¥1.36	2.54mm	1	2	Jumper	Phosphor Bronze	-	-	6.47mm	-	-	20mΩ	2.44mm	4.98mm	Straight	Tin over Nickel	Blue	Female	-	-	-	-	-	-
W582140SB1RC RS W5821 Series 1.27mm Pitch 40 Way 40 Row Straight PCB Header, Solder Termination, 1A RS	1925	5: ¥30.4844	1.27mm	40	40	Unshrouded Header	Phosphor Bronze	Solder	Straight	-	W5821	1A	-	-	-	-	-	-	-	-	-	-	-	-	-
M22-1900005 Black gold plated jumper link,2mm pitch RS	10	10: ¥2.0332	2mm	1	2	Jumper	Beryllium Copper	-	-	3.5mm	-	-	20mΩ	1.95mm	3.9mm	Straight	Gold	Black	Female	-	-	-	-	-	-
W8012T50RC Yellow 2 way closed shorting link,2.54mm RS	10	10: ¥1.36	2.54mm	1	2	Jumper	Phosphor Bronze	-	-	6.47mm	-	-	20mΩ	2.44mm	4.98mm	Straight	Tin over Nickel	Yellow	Female	-	-	-	-	-	-
W82172T3816RC RS W82172 Series 2.54mm Pitch 72 Way 2 Row Straight PCB Header, Solder Termination RS	10	10: ¥15.7148	2.54mm	2	72	Unshrouded Header	-	Solder	Straight	-	W82172	-	-	-	-	-	-	-	-	-	-	-	-	-	-

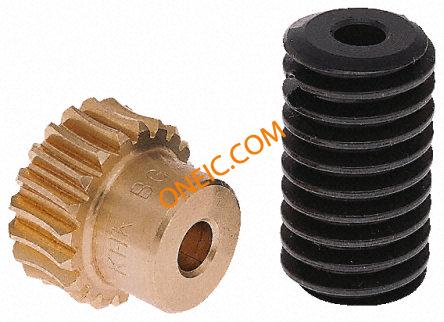

BWW10/30/1R RS Bronze 30 Teeth Worm Wheel Gear, 30mm PitchDiam. , 32.7mm Hub Diam. , 16.5mm Face Width RS	10	1: ¥117.096	-	-	-	-	-	-	-	16.5mm	-	-	-	-	-	-	-	-	-	Bronze	32.7mm	30	30mm	1	-
W3481103TRC RS 2.54mm 3 Way 1 Row Straight PCB Socket Through Hole Socket Strip RS	10	10: ¥2.1352	2.54mm	1	3	Socket Strip	-	Solder	Straight	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
W53482140SARC RS 1.27mm 80 Way 2 Row Straight PCB Socket Through Hole Socket Strip RS	10	5: ¥21.0256	1.27mm	2	80	Socket Strip	Phosphor Bronze	Solder	Straight	-	-	1A	-	-	-	-	-	-	-	-	-	-	-	-	-
M22-1920005 Red gold plated jumper link,2mm pitch RS	10	10: ¥2.6656	2mm	1	2	Jumper	Beryllium Copper	-	-	3.5mm	-	-	20mΩ	1.95mm	3.9mm	Straight	Gold	Red	Female	-	-	-	-	-	-
M22-2021846 RS M22-20 Series 2mm Pitch 36 Way 2 Row Straight PCB Header, Solder Termination, 1A RS	10	5: ¥10.2816	2mm	2	36	Unshrouded Header	Phosphor Bronze	Solder	Straight	-	M22-20	1A	-	-	-	-	-	-	-	-	-	-	-	-	3D CAD Model
W81936T3825RC RS W81136 Series 2.54mm Pitch 36 Way 1 Row Right Angle PCB Header, Solder Termination RS	5723	10: ¥10.2544	2.54mm	1	36	Unshrouded Header	-	Solder	Right Angle	-	W81136	-	-	-	-	-	-	-	-	-	-	-	-	-	-
W8013T50RC Red 2 way closed shorting link,2.54mm RS	10	10: ¥1.36	2.54mm	1	2	Jumper	Phosphor Bronze	-	-	6.47mm	-	-	20mΩ	2.44mm	4.98mm	Straight	Tin over Nickel	Red	Female	-	-	-	-	-	-
BWW08/20/2R RS Bronze 20 Teeth Worm Wheel Gear, 16.11mm PitchDiam. , 17.6mm Hub Diam. , 18mm Face Width RS	10	1: ¥73.78	-	-	-	-	-	-	-	18mm	-	-	-	-	-	-	-	-	-	Bronze	17.6mm	20	16.11mm	0.8	-
W82172T3813RC RS W82172 Series 2.54mm Pitch 72 Way 2 Row Straight PCB Header, Solder Termination RS	10	10: ¥17.3468	2.54mm	2	72	Unshrouded Header	-	Solder	Straight	-	W82172	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BWW10/40/1R RS Bronze 40 Teeth Worm Wheel Gear, 40mm PitchDiam. , 42.7mm Hub Diam. , 16.5mm Face Width RS	10	1: ¥165.308	-	-	-	-	-	-	-	16.5mm	-	-	-	-	-	-	-	-	-	Bronze	42.7mm	40	40mm	1	-
M22-7132542 RS 2mm 25 Way 1 Row Straight PCB Socket Through Hole Socket Strip RS	10	5: ¥17.204	2mm	1	25	Socket Strip	Phosphor Bronze	Solder	Straight	-	-	1A	-	-	-	-	-	-	-	-	-	-	-	-	-
W3481104TRC RS 2.54mm 4 Way 1 Row Straight PCB Socket Through Hole Socket Strip RS	10	10: ¥2.7472	2.54mm	1	4	Socket Strip	-	Solder	Straight	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
W582180SB1RC RS W5821 Series 1.27mm Pitch 60 Way 80 Row Straight PCB Header, Solder Termination, 1A RS	10	5: ¥40.12	1.27mm	80	60	Unshrouded Header	Phosphor Bronze	Solder	Straight	-	W5821	1A	-	-	-	-	-	-	-	-	-	-	-	-	-
