RS Components Ltd

RS Components Ltd- Rocker Switches

RS Components is a global omni-channel distributor of electronic components, automation, and maintenance products. Headquartered in Corby, Northamptonshire, United Kingdom, the company originated in 1937 as Radiospares, supplying radio parts. It offers over 500,000 products from more than 2,500 leading manufacturers. Key product categories include semiconductors, connectors, passives, electromechanical, sensors, power supplies, and test equipment. The company provides its own RS Pro brand of quality electronic and industrial components. RS serves engineers and businesses in over 30 countries with express delivery and technical support. It is a major player in the global electronics distribution market, competing with Arrow and Avnet. Its digital platform, RS Online, is a primary e-commerce channel for procurement. The company is heavily invested in sustainability, digitalization, and solutions for industrial IoT and automation.

03

Rocker Switches - 型号列表

36 parts in total

Panel Cutout Shape

Switch Function/Rating

Contact Rating (Current)

Contact Material

Terminal Type

Contact Layout, Typical

Mechanical Life

Contact Resistance

Mounting Type

Material - Housing & Prism

Legend (Text)

Mfr Part #Quantity AvailablePriceSwitch Function/RatingContact Rating (Current)Terminal TypeActuator ColorContact MaterialContact Layout, TypicalMaterial - Housing & PrismMounting TypeMechanical LifeOperating TemperatureContact ResistancePanel Cutout ShapeSeal RatingLegend (Text)Width

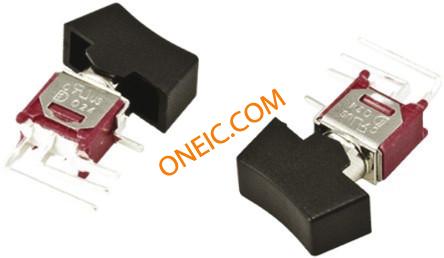

4MS3R2020M7QES
4MS3R2020M7QES

Switch,SP,on-off-on,vertical,right ang

RS

60121: ¥9.758On-Off-On3 AThrough HoleBlackSilver Plated BrassSPDTDiallylphthalatePCB30000Cycles+85°C-7.11 x 15.75mm---
3MD3R0000M1QES
3MD3R0000M1QES

Rocker switch,DP on-off-on solder lug

RS

52671: ¥11.1384On-Off-On5 ASolderBlackSilver Plated BrassDPDTDiallylphthalatePanel Mount40000Cycles+85°C10mΩ----
4UD1R202M6RNS
4UD1R202M6RNS

Rocker switch,DP,on-none-on,RA PCB term

RS

64691: ¥9.0712On-None-On0.4 VAThrough HoleBlackGold Plated Copper AlloyDPDTGlass Fibre Reinforced NylonPCB50000Cycles+85°C100mΩ----

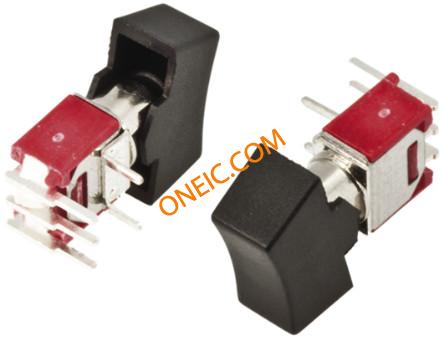

4MS3R1020M1QES
4MS3R1020M1QES

Rocker switch,SP,on-off-on,solder term

RS

70861: ¥8.2824On-Off-On3 ASolderBlackSilver Plated BrassSPDTDiallylphthalatePanel Mount30000Cycles+85°C-8.89 x 15.75mm---

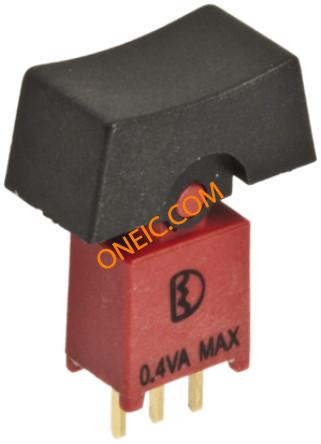

4AS4R1020M2RES
4AS4R1020M2RES

Rocker switch,SP,mom-off-mom,PC,thru-hle

RS

101: ¥8.024Momentary-Off-Momentary0.4 VAThrough HoleBlackGold Plated Copper AlloySPDTGlass Fibre Reinforced NylonPCB30000Cycles+85°C20mΩ8.89mmIP67-15.75mm

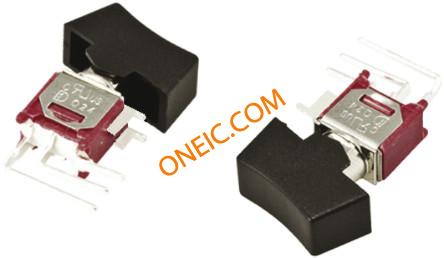

3MS1R6222M1QES
3MS1R6222M1QES

Rocker switch,SP,on-none-on,black frame

RS

64001: ¥9.1732On-None-On5 ASolderBlackSilver Plated BrassSPDTDiallylphthalatePanel Mount40000Cycles+85°C-15.7 x 12.7mm-O I-
3MS1J102AM7QES
3MS1J102AM7QES

Rocker switch,SP,on-none-on,long rocker

RS

45431: ¥12.9132On-None-On5 AThrough HoleBlackSilver Plated BrassSPDTDiallylphthalatePCB40000Cycles+85°C10mΩ----
3MS1R2020M1QES
3MS1R2020M1QES

Rocker switch,SP,on-none-on,solder term

RS

101: ¥7.208On-None-On5 ASolderBlackSilver Plated BrassSPDTDiallylphthalatePanel Mount40000Cycles+85°C-10.62 x 23.8mm---
3MS1J1021V2QES
3MS1J1021V2QES

Rocker switch,SP,on-none-on,v-bracket

RS

47241: ¥12.4236On-None-On5 AThrough HoleBlackSilver Plated BrassSPDTDiallylphthalate-40000Cycles+85°C10mΩ--O --
4MS1R2020M6QES
4MS1R2020M6QES

Rocker switch,SP,on-none-on,RA PCB term

RS

52671: ¥11.1384On-None-On3 AThrough HoleBlackSilver Plated BrassSPDTDiallylphthalatePCB30000Cycles+85°C-7.11 x 15.75mm---

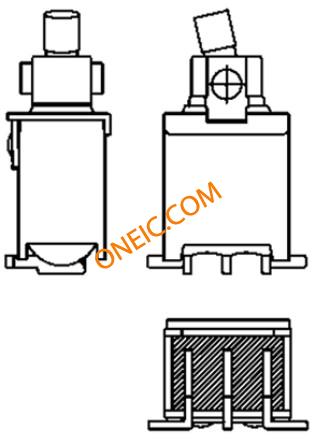

4BS1R0000MTRES
4BS1R0000MTRES

Rocker switch,SP,right angle,SMT

RS

46501: ¥12.6208On-None-On0.4 VASolderBlackGold Plated Copper AlloySPDTGlass Fibre Reinforced NylonPCB50000Cycles+85°C20mΩ-IP67--
4US1R102M2RNS
4US1R102M2RNS

Rocker switch,SP,on-none-on,PCB term

RS

44091: ¥13.3144On-None-On0.4 VAThrough HoleBlackGold Plated Copper AlloySPDTGlass Fibre Reinforced NylonPCB50000Cycles+85°C100mΩ----

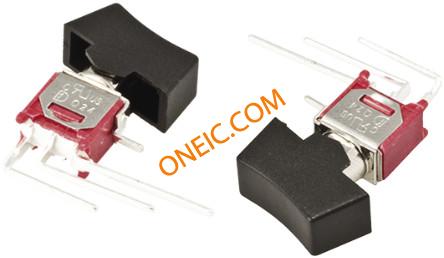

4MS1R2020M7QES
4MS1R2020M7QES

Rocker switch,SP,on-none-on,RA PCB term

RS

52671: ¥11.1384On-None-On3 AThrough HoleBlackSilver Plated BrassSPDTDiallylphthalatePCB30000Cycles+85°C-7.11 x 15.75mm---

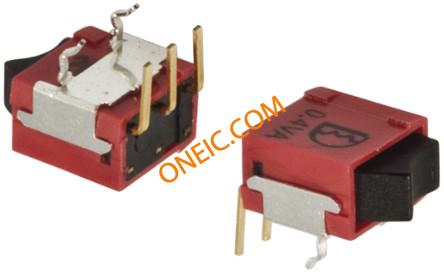

4US1R1020M6RNS
4US1R1020M6RNS

Rocker,switch,SP,black rocker,right ang

RS

47241: ¥12.4236On-None-On0.4 VAThrough HoleBlackGold Plated Copper AlloySPDTGlass Fibre Reinforced NylonPCB50000Cycles+85°C100mΩ----

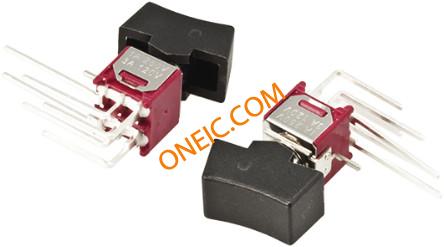

4MD1R1020M7QES
4MD1R1020M7QES

Rocker switch,DP,on-none-on,RA PCB term

RS

44421: ¥13.2124On-None-On3 AThrough HoleBlackSilver Plated BrassDPDTDiallylphthalatePCB30000Cycles+85°C-8.89 x 15.75mm---
4BS1R2020MTGES
4BS1R2020MTGES

Rocker switch,SP,right angle,SMT

RS

36071: ¥16.2656On-None-On0.4 VARight Angle Surface MountBlackGold, TinSPDTGlass Fibre Reinforced NylonPanel Mount50000Cycles+85°C20mΩ7.11 x 15.75mmIP67--
4US1R2290M2RNS
4US1R2290M2RNS

Rocker Switch, 0.4 VA

RS

44091: ¥13.3144On-None-On0.4 VAThrough HoleBlackGold Plated Copper AlloySPDTGlass Fibre Reinforced NylonPCB50000Cycles+85°C100mΩ----
RJ-002
RJ-002

DC power jack with rocker switch

RS

29321: ¥20.0124On-Off2.5 AThrough HoleBlackSilver Plated Copper AlloySPSTGlass Fibre Reinforced NylonPCB--20mΩ--O I-

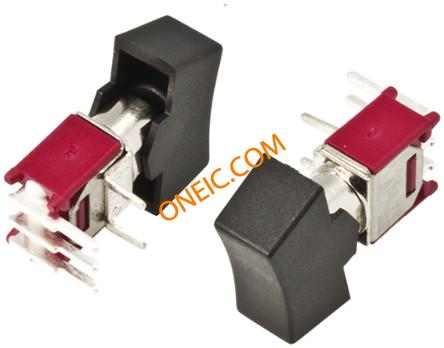

4MS3R2020M6QES
4MS3R2020M6QES

Rocker switch,SP,on-off-on,right angle

RS

40761: ¥14.3956On-Off-On3 AThrough HoleBlackSilver Plated BrassSPDTDiallylphthalatePCB30000Cycles+85°C-7.11 x 15.75mm---

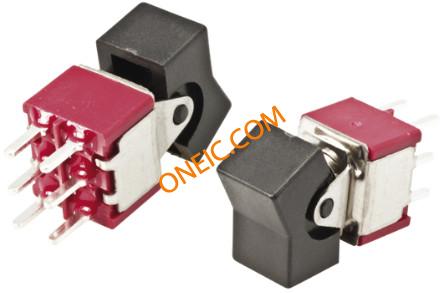

3MD1J1020M2QES
3MD1J1020M2QES

Rocker switch,DP,on-none-on,PCB term

RS

101: ¥9.18On-None-On5 AThrough HoleBlackSilver Plated BrassDPDTDiallylphthalatePCB40000Cycles+85°C10mΩ----
Page 1 / 2
