Johnson Electric Holdings Limited- Rotary Switches

Johnson Electric Holdings Limited is a global leader in electric motors, actuators, and motion subsystems, with its headquarters in Hong Kong. Through its SAIA-Burgess brand, the company provides high-reliability electromechanical components and customized control solutions. Key products include microswitches (e.g., V4 series), rotary switches, solenoid actuators, and compact linear actuators. These devices are widely used in industrial automation, building control, medical equipment, and transportation systems. SAIA-Burgess is recognized for precision engineering, long service life, and compliance with stringent industry standards. The brand also offers integrated electronics for smart switching and motion applications, enhancing system intelligence. Johnson Electric operates a global network of manufacturing and R&D centers, ensuring strong technical support and rapid local service. In the electronic components market, the company holds a leading position in the motors and actuators segment, with SAIA-Burgess being a trusted name for critical switching and actuation functions. Continuous innovation in miniaturization, energy efficiency, and digital integration maintains its competitive edge.

Rotary Switches - 型号列表

9 parts in total

Mfr Part #	Quantity Available	Price	Current Rating (Max)	Contact Rating (Current)	Contact Rating @ Voltage	Depth Behind Panel	Handle Type	Number of Axes	Mechanical Life	Operating Temperature	Contact Layout, Typical	Travel Range	Connector Type	Switch Function/Rating	Terminal Type	Technology	Seal Rating	Ingress Protection	Height	Contact Material	Lead Time	Subcategory	RoHS	AC contacts rating (at resistance load)	Weight	Lead Style	Size - Body	Body Material	Size / Dimension	Number of Positions	Mounting Hole Diameter	Switch Type	Number of Units	Industry Aliases	Contacts Configuration
3 S742001 Joystick Switch, 4 Axes, 6 A Solder 250V ac DP, Maximum of +85°C Joystick; 1-position; Leads: connectors; 6A/250VAC; dcutout: Ø20mm Saia-Burgess 4轴工业操纵杆, DP, 焊接接端, 6 A @ 250 V 交流, 250V ac, Maximum of +85°C Saia-Burgess	92	1: ¥196.46	6 A @ 250 V 交流	6 A	250V ac	24mm	Knob	4	5 x 10^6Operations	+85°C	DP	4 Way Gate at 90°	焊接	-	Solder	-	-	-	-	-	70 Days	Joysticks	Compliant	6 A / 250 VAC	1 g	connectors	41.3 x 41.3 x 81.2mm	polyamide	see	1-position	Ø20mm	joystick	1	S 742001	SPDT x8

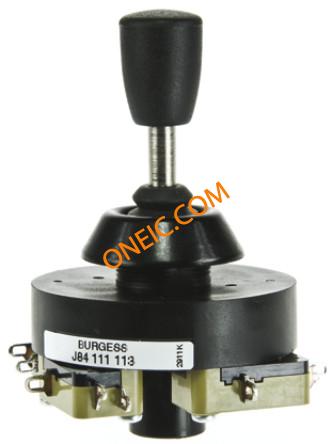

2 J84-111-113 IP67 Joystick Switch, 4 Axes, 16 A 250V ac/dc, -40 to +85°C Saia-Burgess IP67 4轴操纵杆开关, 单刀双掷, 焊料，翼片接端, 16 A @ 250 V 交流, 250V ac/dc, -40 → +85°C Saia-Burgess	97	1: ¥582.61	16 A @ 250 V 交流	16 A	250V ac/dc	37mm	Knob	4	5 x 10^5Operations	+85°C	单刀双掷	15 °	焊料，翼片	瞬时	-	Momentary	IP67	IP67	67mm	银	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

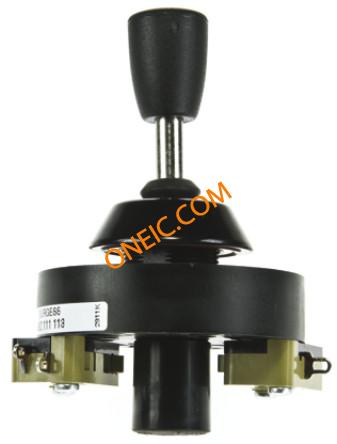

2 J82-111-113 IP67 Joystick Switch, 2 Axes, 16 A 250V ac/dc, -40 to +85°C Saia-Burgess IP67 1轴操纵杆开关, 16 A @ 250 V 交流, 250V ac/dc, -40 → +85°C Saia-Burgess	94	1: ¥2,885.988	16 A @ 250 V 交流	16 A	250V ac/dc	37mm	Knob	2	5 x 10^5Operations	+85°C	-	-	-	瞬时	-	Momentary	IP67	IP67	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

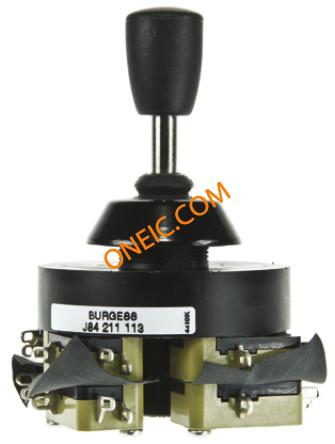

2 J84-211-113 IP67 Joystick Switch, 4 Axes, 16 A 250V ac/dc DP, -40 to +85°C Saia-Burgess IP67 4轴操纵杆开关, DP, 5 A @ 250 V 交流, 250V ac/dc, -40 → +85°C Saia-Burgess	14	1: ¥479.26	5 A @ 250 V 交流	16 A	250V ac/dc	37mm	Knob	4	5 x 10^5Operations	+85°C	DP	-	-	瞬时	-	Momentary	IP67	IP67	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

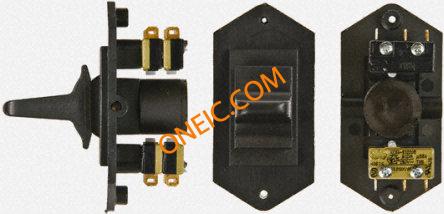

2 H702000 Joystick Switch, 1 Axes, 6 A Solder 250V ac DP, Maximum of +85°C Saia-Burgess 1轴工业操纵杆, DP, 焊接接端, 6 A @ 250 V 交流, 250V ac, Maximum of +85°C Saia-Burgess	117	1: ¥175.09	6 A @ 250 V 交流	6 A	250V ac	24.6mm	Paddle	1	5 x 10^6Operations	+85°C	DP	2 Way Gate at 180°	焊接	-	Solder	-	-	-	-	Gold Plated	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 S722001 Joystick Switch, 2 Axes, 6 A Solder 250V ac DP, Maximum of +85°C Saia-Burgess 2轴工业操纵杆, DP, 焊接接端, 6 A, 250V ac, Maximum of +85°C Saia-Burgess	10	1: ¥164.24	6 A@ 250 V 交流	6 A	250V ac	24mm	Knob	2	5 x 10^6Operations	+85°C	DP	2 Way Gate at 180°	焊接	瞬时	Solder	-	-	-	43mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TH548036000 Switch,Key,2Position,InterchangeableBezel,Off-On Johnson Electric Holdings Limited	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
885504100 Switch,TwistReleaseandKeyReset,2NC,KABA8Cylinder Johnson Electric Holdings Limited	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TH544076000 Switch,Key,MetalBezel,2Position,KABAMicro-E Johnson Electric Holdings Limited	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
