Samsung Electronics Co., Ltd.- Heavy Duty Connectors
03
Heavy Duty Connectors - 型号列表
6 parts in total| Mfr Part # | Quantity Available | Price | Standard Package | RoHS | EU RoHS | Impedance | Tolerance | Filter Type | Test Frequency | DC Resistance (DCR) | Current Rating (Max) | Impedance @ Frequency | Resistance - Initial (Ri) (Min) | Depth | Packaging | Height (Max) | Mounting Type | Package / Case | Length - Overall | Size / Dimension | Type | Operating Temperature | Other Names | Height | Size | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

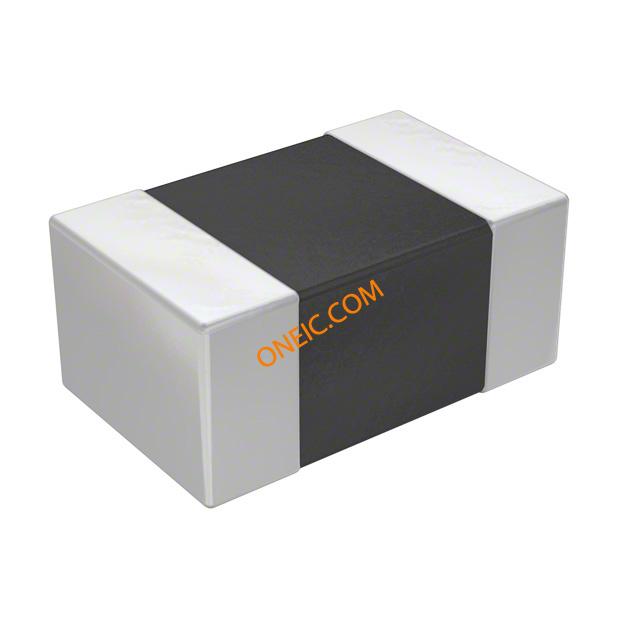

CIS21J121NE Ferrite Beads Multi-Layer High Current 120Ohm 25% 100MHz 5A 20mOhm DCR 0805 Embossed T/R FERRITE CHIP 120 OHM 5000MA 0805 samsung electro-mechanics | 52000 | 4000: ¥0.084 | 4,000 | Lead free / RoHS Compliant | Compliant | 120 | 25% | Differential Mode - Single | 100M | 20 mOhm Max | 5A | 120 Ohm @ 100MHz | 20m | 1.45 | Embossed Tape and Reel | 0.043" (1.10mm) | Surface Mount | 0805 | 2.2 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Multi-Layer High Current Chip Bead | 125 | 1276-6369-2 | 1.1 | 2.0x1.25(0805) | 0.9mm |
CIS21P300NE Ferrite Beads Multi-Layer High Current 30Ohm 25% 100MHz 5A 10mOhm DCR 0805 Embossed T/R FERRITE CHIP 30 OHM 6000MA 0805 samsung electro-mechanics | 42284 | 1: ¥0.68 | 4,000 | Lead free / RoHS Compliant | Compliant | 30 | 25% | Differential Mode - Single | 100M | 10 mOhm Max | 6A | 30 Ohm @ 100MHz | 10m | 1.45 | Embossed Tape and Reel | 0.043" (1.10mm) | Surface Mount | 0805 | 2.2 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Multi-Layer High Current Chip Bead | 125 | 1276-6370-2 | 1.1 | 2.0x1.25(0805) | 0.9mm |

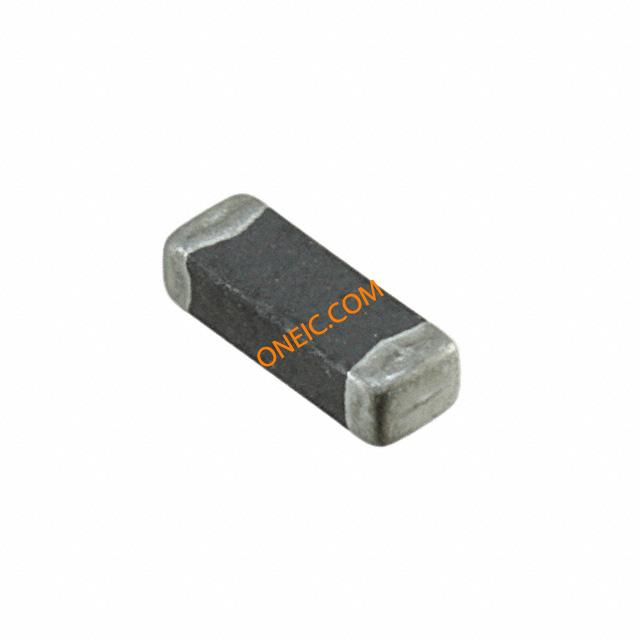

CIS41J600AE Ferrite Beads Multi-Layer High Current 60Ohm 25% 100MHz 6A 10mOhm DCR 1806 Embossed T/R FERRITE CHIP 60 OHM 6000MA 1806 samsung electro-mechanics | 1591 | 1: ¥0.763 | 3,000 | Lead free / RoHS Compliant | Compliant | 60 | 25% | Differential Mode - Single | 100M | 10 mOhm Max | 6A | 60 Ohm @ 100MHz | 10m | 1.8 | Embossed Tape and Reel | 0.071" (1.80mm) | Surface Mount | 1806 | 4.7 | 0.177" L x 0.063" W (4.50mm x 1.60mm) | Multi-Layer High Current Chip Bead | 125 | 1276-6359-2 | - | - | - |
CIS41P600AE Ferrite Beads Multi-Layer High Current 60Ohm 25% 100MHz 6A 10mOhm DCR 1806 Embossed T/R FERRITE CHIP 60 OHM 6000MA 1806 samsung electro-mechanics | 24000 | 3000: ¥0.1233 | 3,000 | Lead free / RoHS Compliant | Compliant | 60 | 25% | Differential Mode - Single | 100M | 10 mOhm Max | 6A | 60 Ohm @ 100MHz | 10m | 1.8 | Embossed Tape and Reel | 0.071" (1.80mm) | Surface Mount | 1806 | 4.7 | 0.177" L x 0.063" W (4.50mm x 1.60mm) | Multi-Layer High Current Chip Bead | 125 | 1276-6360-2 | - | - | - |
CIS41P600NE Ferrite Beads Multi-Layer High Current 60Ohm 25% 100MHz 6A 10mOhm DCR 1806 Embossed T/R FERRITE CHIP 60 OHM 6000MA 1806 samsung electro-mechanics | 10 | 2000: ¥0.1176 | 2,000 | Lead free / RoHS Compliant | Compliant | 60 | 25% | Differential Mode - Single | 100M | 10 mOhm Max | 6A | 60 Ohm @ 100MHz | 10m | 1.8 | Embossed Tape and Reel | 0.071" (1.80mm) | Surface Mount | 1806 | 4.7 | 0.177" L x 0.063" W (4.50mm x 1.60mm) | Multi-Layer High Current Chip Bead | 125 | - | 1.8 | - | - |
| - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Page 1 / 1
