Semikron Elektronik GmbH & Co. KG- Thyristor Modules

Semikron is a globally leading power electronics manufacturer headquartered in Nuremberg, Germany, and founded in 1951 as a family-owned company with over 2,800 employees worldwide. The company specializes in power modules and systems for medium to high power applications, typically ranging from approximately 2 kW to 10 MW. Its products form the core of modern energy-efficient motor drives, industrial automation systems, power supplies, renewable energy (wind and solar), and multipurpose vehicles. The portfolio includes IGBT modules, MOSFET modules, diode/thyristor modules, and intelligent power modules such as SKiiP and MiniSKiiP, along with driver controllers and customized power assemblies. Semikron has pioneered innovations such as pressure contact technology and SKiiP technology, enabling highly reliable and compact designs. With production sites in Germany, Brazil, China, France, India, Italy, South Korea, Slovakia, South Africa, and the United States, and a total of 30 subsidiaries, it ensures rapid local support globally. As a top-tier power semiconductor manufacturer, Semikron holds a significant market share in power modules, particularly in IGBT and diode modules, and is recognized for its energy-saving solutions. In 2009, the company launched an online direct sales platform to complement its distribution channels. In 2022, Semikron merged with Danfoss Silicon Power to form Semikron Danfoss, further strengthening its position in the power semiconductor market.

Thyristor Modules - 型号列表

368 parts in total

Mfr Part #	Quantity Available	Price	Current - Surge	Current Rating (Max)	Vce(on) (Max) @ Vge, Ic	Current - Hold (Ih) (Max)	Current - Off State (Max)	Voltage - Peak Reverse (Max)	Voltage - Forward (Vf) (Max) @ If	Current - Gate Trigger (Igt) (Max)	Voltage - Gate Trigger (Vgt) (Max)	Width	Height	Length	Mounting Type	Package Cooled	Size / Dimension	Number of Positions	Triac Type	Operating Temperature	Package Quantity	Voltage - Supply	Voltage - Breakdown	Current - Average Rectified (Io)	Current - Peak Pulse (10/1000us)	Number of Pins	Voltage - Clamping	Current - On State (It (AV)) (Max)	Mfr	Capacity (Pounds)	Function	RoHS	Transistor Type	Voltage - Off State	Weight	Package / Case	Spg	Number of Units
4 SKKH 92/16 E SKKH 92/16 E, Thyristor Module SCR, 95A 1600V 20mA, 5-Pin A 47 SCR 二极管/闸流晶体管模块 SCR, 95A 1600V 20mA, 5针 Semipack1封装 Semikron	62	1: ¥223.516	2kA	95A	1.65V	250mA	20mA	1600V	1600V	150mA	3V	20mm	30mm	93mm	Screw	A 47	93 x 20 x 30mm	5	SCR Module	+125 °C	SEMIPACK1	1.65V	1600V	95A	20mA	5	1600 V	97 A	斯洛伐克	0.095 千克	-	-	-	-	-	-	-	-
4 SKKT 162/08 E SKKT 162/08 E, Dual Thyristor Module SCR, 156A 800V 40mA, 7-Pin A 21 SCR 双晶闸管模块, 156A 800V 40mA, 7针 Semipack2封装 Semikron	59	1: ¥341.35	5.4kA	156A	1.6V	400mA	40mA	800V	800V	150mA	2V	34mm	29mm	94mm	Screw	A 21	94 x 34 x 29mm	7	SCR Module	+125 °C	SEMIPACK2	1.6V	800V	156A	40mA	7	800 V	156 A	斯洛伐克	0.16 千克	-	-	-	-	-	-	-	-
4 SKKH 106/16 E SKKH 106/16 E, Thyristor Module SCR, 106A 1600V 20mA, 5-Pin A 47 SCR 二极管/闸流晶体管模块 SCR, 106A 1600V 20mA, 5针 Semipack1封装 Semikron	191	1: ¥232.356	2.25kA	106A	1.65V	250mA	20mA	1600V	1600V	150mA	3V	20mm	30mm	93mm	Screw	A 47	93 x 20 x 30mm	5	SCR Module	+130 °C	SEMIPACK1	1.65V	1600V	106A	20mA	5	1600 V	106 A	斯洛伐克	0.09 千克	Y	-	-	-	-	-	-	-
4 SKKT 92B08 E SKKT 92B08 E, Dual Thyristor Module SCR, 95A 800V 20mA, 7-Pin A 48 SCR 双晶闸管模块, 95A 800V 20mA, 7针 Semipack1封装 Semikron	13	1: ¥496.30	2kA	95A	1.65V	250mA	20mA	800V	800V	150mA	3V	20mm	29.4mm	93mm	Screw	A 48	93 x 20 x 29.4mm	7	SCR Module	+125 °C	SEMIPACK1	1.65V	800V	95A	20mA	7	800 V	97 A	斯洛伐克	0.095 千克	-	-	-	-	-	-	-	-
4 SKKT 132/16 E SKKT 132/16 E, Dual Thyristor Module SCR, 137A 1600V 40mA, 7-Pin A 21 SCR 双晶闸管模块, 137A 1600V 40mA, 7针 Semipack2封装 Semikron	33	1: ¥367.948	4.7kA	137A	1.8V	400mA	40mA	1600V	1600V	150mA	2V	34mm	30mm	94mm	Screw	A 21	94 x 34 x 30mm	7	SCR Module	+125 °C	SEMIPACK2	1.8V	1600V	137A	40mA	7	1600 V	137 A	斯洛伐克	0.15 千克	-	-	-	-	-	-	-	-

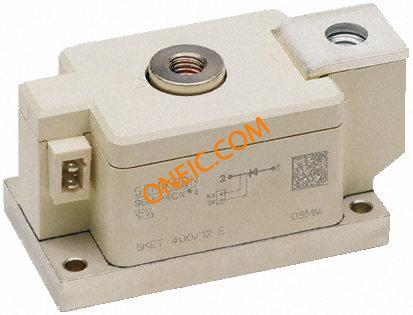

SKET400/12E SKET400/12E, Thyristor Module SCR, 392A 1200V 80mA, 4-Pin A 36 SKET400/12E Thyristor power module; 1.2kV; 392A; SEMIPACK4 Semikron	10	1: ¥20,215.72	14kA	392A	1.7V	500mA	80mA	1200V	1200V	200mA	3V	50mm	52mm	101mm	Screw	A 36	101 x 50 x 52mm	4	SCR Module	+130 °C	1	-	-	-	-	-	-	-	-	-	-	RoHS Compliant Part	thyristor power module	1.2kV	0.43 g	SEMIPACK4	1	1
4 SKKT 106B12 E SKKT 106B12 E, Dual Thyristor Module SCR, 106A 1200V 20mA, 7-Pin A 8, A 48 SCR 双晶闸管模块, 106A 1200V 20mA, 7针 Semipack1封装 Semikron	166	1: ¥375.92	2.25kA	106A	1.65V	250mA	20mA	1200V	1200V	150mA	3V	20mm	29.4mm	93mm	Screw	A 48, A 8	93 x 20 x 29.4mm	7	SCR Module	+130 °C	SEMIPACK1	1.65V	1200V	106A	20mA	7	1200 V	106 A	斯洛伐克	0.095 千克	-	-	-	-	-	-	-	-
2 SKKT 20B16 E SKKT 20B16 E, Dual Thyristor Module SCR, 18A 1600V 10mA, 7-Pin A 48 SCR 双晶闸管模块, 18A 1600V 10mA, 7针 Semipack1封装 Semikron	10	1: ¥270.59	0.32kA	18A	2.3V	200mA	10mA	1600V	1600V	150mA	3V	20mm	29.4mm	93mm	Screw	A 48	93 x 20 x 29.4mm	7	SCR Module	+125 °C	SEMIPACK1	2.3V	1600V	18A	10mA	7	-	-	-	-	-	-	-	-	-	-	-	-
4 SKKT 162/12 E SKKT 162/12 E, Dual Thyristor Module SCR, 156A 1200V 40mA, 7-Pin A 21 SCR 双晶闸管模块, 156A 1200V 40mA, 7针 Semipack2封装 Semikron	10	1: ¥661.38	5.4kA	156A	1.6V	400mA	40mA	1200V	1200V	150mA	2V	34mm	30mm	94mm	Screw	A 21	94 x 34 x 30mm	7	SCR Module	+125 °C	SEMIPACK2	1.6V	1200V	156A	40mA	7	1200 V	156 A	斯洛伐克	0.17 千克	-	-	-	-	-	-	-	-
4 SKKH 42/16 E SKKH 42/16 E, Thyristor Module SCR, 40A 1600V 15mA, 5-Pin A 47 SCR 二极管/闸流晶体管模块 SCR, 40A 1600V 15mA, 5针 Semipack1封装 Semikron	12	1: ¥313.82	1kA	40A	1.95V	250mA	15mA	1600V	1600V	150mA	3V	20mm	29.4mm	93mm	Screw	A 47	93 x 20 x 29.4mm	5	SCR Module	+125 °C	SEMIPACK1	1.95V	1600V	40A	15mA	5	1600 V	40 A	斯洛伐克	0.095 千克	-	-	-	-	-	-	-	-
4 SKKT 72B12 E SKKT 72B12 E, Dual Thyristor Module SCR, 70A 1200V 20mA, 7-Pin A 48 SCR 双晶闸管模块, 70A 1200V 20mA, 7针 Semipack1封装 Semikron	36	1: ¥329.63	1.6kA	70A	1.9V	250mA	20mA	1200V	1200V	150mA	3V	20mm	29.4mm	93mm	Screw	A 48	93 x 20 x 29.4mm	7	SCR Module	+125 °C	SEMIPACK1	1.9V	1200V	70A	20mA	7	1200 V	70 A	斯洛伐克	0.095 千克	-	-	-	-	-	-	-	-
4 SKKT 92B12 E SKKT 92B12 E, Dual Thyristor Module SCR, 95A 1200V 20mA, 7-Pin A 48 SCR 双晶闸管模块, 95A 1200V 20mA, 7针 Semipack1封装 Semikron	35	1: ¥375.92	2kA	95A	1.65V	250mA	20mA	1200V	1200V	150mA	3V	20mm	29.4mm	93mm	Screw	A 48	93 x 20 x 29.4mm	7	SCR Module	+125 °C	SEMIPACK1	1.65V	1200V	95A	20mA	7	1200 V	97 A	斯洛伐克	0.095 千克	-	-	-	-	-	-	-	-
4 SKKT 27B08 E SKKT 27B08 E, Dual Thyristor Module SCR, 25A 800V 10mA, 7-Pin A 48 SCR 双晶闸管模块, 25A 800V 10mA, 7针 Semipack1封装 Semikron	38	1: ¥175.90	0.55kA	25A	1.8V	200mA	10mA	800V	800V	150mA	3V	20mm	29.4mm	93mm	Screw	A 48	93 x 20 x 29.4mm	7	SCR Module	+125 °C	SEMIPACK1	1.8V	800V	25A	10mA	7	800 V	25 A	斯洛伐克	0.095 千克	Y	-	-	-	-	-	-	-
4 SKKT 106B16 E SKKT 106B16 E, Dual Thyristor Module SCR, 106A 1600V 20mA, 7-Pin A 8, A 48 SCR 双晶闸管模块, 106A 1600V 20mA, 7针 Semipack1封装 Semikron	54	1: ¥391.68	2.25kA	106A	1.65V	250mA	20mA	1600V	1600V	150mA	3V	20mm	29.4mm	93mm	Screw	A 48, A 8	93 x 20 x 29.4mm	7	SCR Module	+130 °C	SEMIPACK1	1.65V	1600V	106A	20mA	7	1600 V	106 A	斯洛伐克	0.095 千克	-	-	-	-	-	-	-	-
4 SKKT 42B08 E SKKT 42B08 E, Dual Thyristor Module SCR, 40A 800V 15mA, 7-Pin A 48 SCR 双晶闸管模块, 40A 800V 15mA, 7针 Semipack1封装 Semikron	16	1: ¥335.21	1kA	40A	1.95V	250mA	15mA	800V	800V	150mA	3V	20mm	29.4mm	93mm	Screw	A 48	93 x 20 x 29.4mm	7	SCR Module	+125 °C	SEMIPACK1	1.95V	800V	40A	15mA	7	800 V	40 A	斯洛伐克	0.095 千克	-	-	-	-	-	-	-	-
4 SKKT 27B16 E SKKT 27B16 E, Dual Thyristor Module SCR, 25A 1600V 10mA, 7-Pin A 48 SCR 双晶闸管模块, 25A 1600V 10mA, 7针 Semipack1封装 Semikron	50	1: ¥243.20	0.55kA	25A	1.8V	200mA	10mA	1600V	1600V	150mA	3V	20mm	29.4mm	93mm	Screw	A 48	93 x 20 x 29.4mm	7	SCR Module	+125 °C	SEMIPACK1	1.8V	1600V	25A	10mA	7	1600 V	25 A	斯洛伐克	0.095 千克	-	-	-	-	-	-	-	-
2 SKKH 27/08 E SKKH 27/08 E, Thyristor Module SCR, 25A 800V 10mA, 5-Pin A 47 SCR 二极管/闸流晶体管模块 SCR, 25A 800V 10mA, 5针 Semipack1封装 Semikron	10	1: ¥265.93	0.55kA	25A	1.8V	200mA	10mA	800V	800V	150mA	3V	20mm	29.4mm	93mm	Screw	A 47	93 x 20 x 29.4mm	5	SCR Module	+125 °C	SEMIPACK1	1.8V	800V	25A	10mA	5	-	-	-	-	-	-	-	-	-	-	-	-
4 SKKT 57B16 E SKKT 57B16 E, Dual Thyristor Module SCR, 50A 1600V 15mA, 7-Pin A 46 SCR 双晶闸管模块, 50A 1600V 15mA, 7针 Semipack1封装 Semikron	10	1: ¥353.34	1.5kA	50A	1.65V	250mA	15mA	1600V	1600V	150mA	3V	20mm	30mm	93mm	Screw	A 46	93 x 20 x 30mm	7	SCR Module	+125 °C	SEMIPACK1	1.65V	1600V	50A	15mA	7	1600 V	50 A	斯洛伐克	0.095 千克	-	-	-	-	-	-	-	-
3 SKKH 57/08 E SKKH 57/08 E, Thyristor Module SCR, 50A 800V 15mA, 5-Pin A 47 Semikron	118	1: ¥493.7888	1.5kA	50A	1.65V	250mA	15mA	800V	800V	150mA	3V	20mm	30mm	93mm	Screw	A 47	93 x 20 x 30mm	5	SCR Module	+125 °C	-	-	-	-	-	-	800 V	50 A	斯洛伐克	0.095 千克	-	-	-	-	-	-	-	-

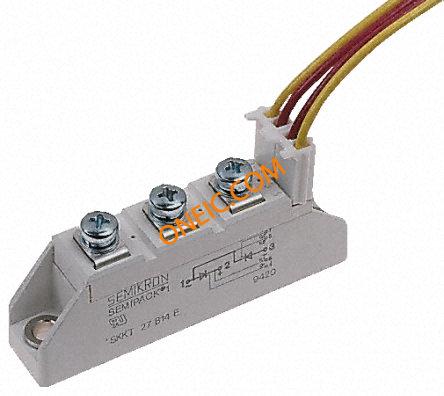

5 SKKH 57/16 E SKKH 57/16 E, Thyristor Module SCR, 50A 1600V 15mA, 5-Pin A 47 SCR 二极管/闸流晶体管模块 SCR, 50A 1600V 15mA, 5针 Semipack1封装 Semikron	53	1: ¥186.728	1.5kA	50A	1.65V	250mA	15mA	1600V	1600V	150mA	3V	20mm	30mm	93mm	Screw	A 47	93 x 20 x 30mm	5	SCR Module	+125 °C	SEMIPACK1	1.65V	1600V	50A	15mA	5	1600 V	50 A	斯洛伐克	0.095 千克	-	-	-	-	-	-	-	-

Page 1 / 19
