Signal Transformer Co.

Signal Transformer Co.- PTC Resettable Fuses

Signal Transformer Co., founded in 1955 and headquartered in Inwood, New York, is a leading manufacturer of standard and custom magnetics including transformers, inductors, and chokes. The company serves a wide range of industries such as industrial automation, power supplies, medical equipment, and lighting. Its comprehensive product line covers low-frequency 50/60 Hz power transformers, high-frequency magnetics, and various inductor types. Specific series include the internationally approved One-4-All™ transformers, chassis-mount series (e.g., the A41, A41-L, DP, and MPI series), and printed circuit board (PCB) mount transformers like the LP, ST, and BV series. Signal Transformer also offers the SC series of high-current chokes and the HCT series of high-current toroidal inductors. As a Bel group company, it leverages extensive manufacturing capabilities and a global distribution network to provide off-the-shelf and rapid custom designs. The company is recognized as a market leader in the 50/60 Hz transformer segment in North America, with one of the largest inventories in the industry. Its technical expertise in magnetics design ensures that it can quickly develop tailored solutions to meet unique voltage, current, and form factor requirements. With a strong commitment to quality and reliability, Signal Transformer remains a preferred choice for engineers seeking robust and cost-effective magnetic components.

03

PTC Resettable Fuses - 型号列表

10 parts in total

Inductance

DC Resistance (DCR)

Current Rating (Max)

Current Saturation - Series

Mfr Part #Quantity AvailablePriceStandard PackageToleranceInductanceTest FrequencyDC Resistance (DCR)Current Rating (Max)Current Saturation - SeriesPackagingShieldingMounting TypePackage / CaseSize / DimensionHeight - Seated (Max)

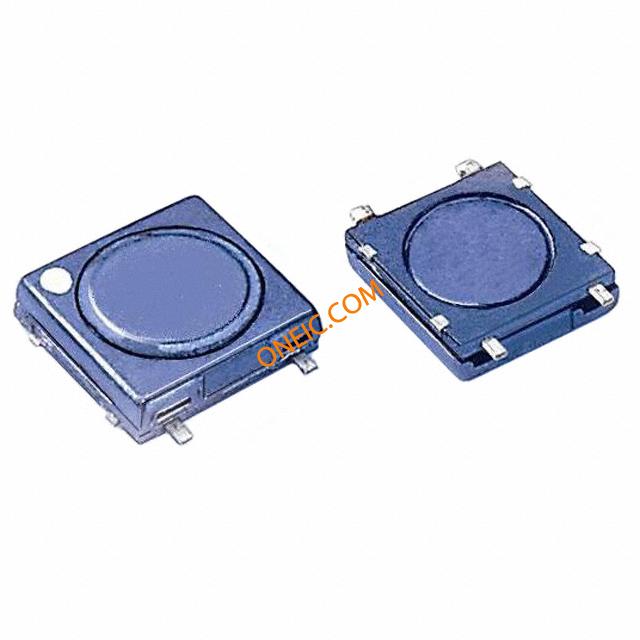

SCMD4D12C-100
SCMD4D12C-100

INDUCTOR SMD 10UH 1.10A 100KHZ

Signal Transformers

104000: ¥2.89684,000±20%10µH100kHz480 mOhm Max780mA1.1ATape & Reel (TR)ShieldedSurface MountNon Standard0.252" L x 0.197" W (6.40mm x 5.00mm)0.057" (1.45mm)
SCMD4D12C-101
SCMD4D12C-101

INDUCTOR SMD 100UH 0.30A 100KHZ

Signal Transformers

104000: ¥2.89684,000±20%100µH100kHz4 Ohm Max240mA300mATape & Reel (TR)ShieldedSurface MountNon Standard0.252" L x 0.197" W (6.40mm x 5.00mm)0.057" (1.45mm)
SCMD4D12C-150
SCMD4D12C-150

INDUCTOR SMD 15UH 0.82A 100KHZ

Signal Transformers

104000: ¥2.89684,000±20%15µH100kHz750 mOhm Max620mA820mATape & Reel (TR)ShieldedSurface MountNon Standard0.252" L x 0.197" W (6.40mm x 5.00mm)0.057" (1.45mm)
SCMD4D12C-220
SCMD4D12C-220

INDUCTOR SMD 22UH 0.67A 100KHZ

Signal Transformers

104000: ¥2.89684,000±20%22µH100kHz1.1 Ohm Max500mA670mATape & Reel (TR)ShieldedSurface MountNon Standard0.252" L x 0.197" W (6.40mm x 5.00mm)0.057" (1.45mm)
SCMD4D12C-330
SCMD4D12C-330

INDUCTOR SMD 33UH 0.55A 100KHZ

Signal Transformers

104000: ¥2.89684,000±20%33µH100kHz1.4 Ohm Max400mA550mATape & Reel (TR)ShieldedSurface MountNon Standard0.252" L x 0.197" W (6.40mm x 5.00mm)0.057" (1.45mm)
SCMD4D12C-3R3
SCMD4D12C-3R3

INDUCTOR SMD 3.3UH 1.55A 100KHZ

Signal Transformers

104000: ¥2.89684,000±20%3.3µH100kHz200 mOhm Max1.38A1.55ATape & Reel (TR)ShieldedSurface MountNon Standard0.252" L x 0.197" W (6.40mm x 5.00mm)0.057" (1.45mm)
SCMD4D12C-470
SCMD4D12C-470

INDUCTOR SMD 47UH 0.45A 100KHZ

Signal Transformers

104000: ¥2.89684,000±20%47µH100kHz2.25 Ohm Max330mA450mATape & Reel (TR)ShieldedSurface MountNon Standard0.252" L x 0.197" W (6.40mm x 5.00mm)0.057" (1.45mm)
SCMD4D12C-4R7
SCMD4D12C-4R7

INDUCTOR SMD 4.7UH 1.37A 100KHZ

Signal Transformers

104000: ¥2.89684,000±20%4.7µH100kHz250 mOhm Max1.15A1.37ATape & Reel (TR)ShieldedSurface MountNon Standard0.252" L x 0.197" W (6.40mm x 5.00mm)0.057" (1.45mm)
SCMD4D12C-680
SCMD4D12C-680

INDUCTOR SMD 68UH 0.37A 100KHZ

Signal Transformers

104000: ¥2.89684,000±20%68µH100kHz3 Ohm Max290mA370mATape & Reel (TR)ShieldedSurface MountNon Standard0.252" L x 0.197" W (6.40mm x 5.00mm)0.057" (1.45mm)
SCMD4D12C-6R8
SCMD4D12C-6R8

INDUCTOR SMD 6.8UH 1.12A 100KHZ

Signal Transformers

104000: ¥2.89684,000±20%6.8µH100kHz350 mOhm Max1A1.12ATape & Reel (TR)ShieldedSurface MountNon Standard0.252" L x 0.197" W (6.40mm x 5.00mm)0.057" (1.45mm)
Page 1 / 1
