Signal Transformer Co., founded in 1955 and headquartered in Inwood, New York, is a leading manufacturer of standard and custom magnetics including transformers, inductors, and chokes. The company serves a wide range of industries such as industrial automation, power supplies, medical equipment, and lighting. Its comprehensive product line covers low-frequency 50/60 Hz power transformers, high-frequency magnetics, and various inductor types. Specific series include the internationally approved One-4-All™ transformers, chassis-mount series (e.g., the A41, A41-L, DP, and MPI series), and printed circuit board (PCB) mount transformers like the LP, ST, and BV series. Signal Transformer also offers the SC series of high-current chokes and the HCT series of high-current toroidal inductors. As a Bel group company, it leverages extensive manufacturing capabilities and a global distribution network to provide off-the-shelf and rapid custom designs. The company is recognized as a market leader in the 50/60 Hz transformer segment in North America, with one of the largest inventories in the industry. Its technical expertise in magnetics design ensures that it can quickly develop tailored solutions to meet unique voltage, current, and form factor requirements. With a strong commitment to quality and reliability, Signal Transformer remains a preferred choice for engineers seeking robust and cost-effective magnetic components.

03

Fixed Inductors - 型号列表

2,504 parts in total

DC Resistance (DCR)

Inductance - Connected In Series

Current

Inductance - Connected In Parallel

Other Names

Height

Size / Dimension

Mfr Part #Quantity AvailablePriceStandard PackageCurrentToleranceNumber of CoilsDC Resistance (DCR)Inductance - Connected In SeriesInductance - Connected In ParallelHeightPackagingMounting TypePackage / CaseSize / DimensionOther NamesRoHSShielding

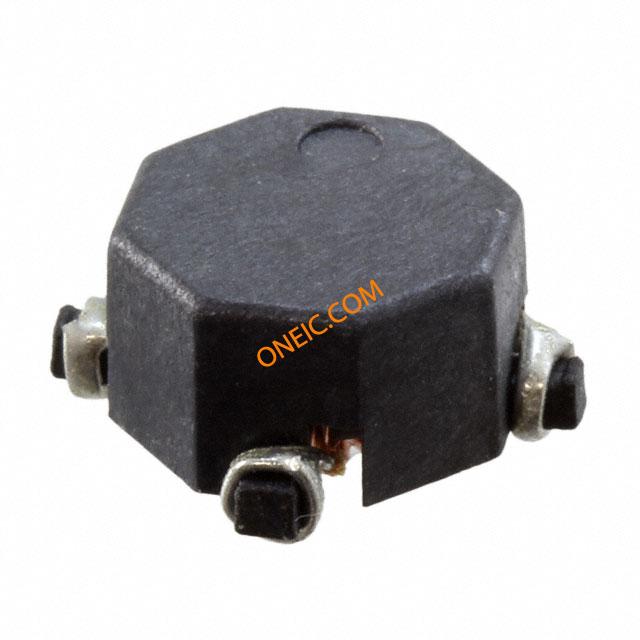

SCX114-101
SCX114-101

INDUCTOR 100/396.06UH 0.54/0.27A

Signal Transformers

501: ¥9.7009500540mA±20%2278.5 mOhm Max396.06µH100µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)595-1608-1Lead free / RoHS CompliantUnshielded
SCX114-150
SCX114-150

INDUCTOR 15.0/60.12UH 1.4/0.70A

Signal Transformers

10500: ¥5.955001.4A±20%243.5 mOhm Max60.12µH15µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)---
SCX114-151
SCX114-151

INDUCTOR 150/602.87UH 0.44/0.22A

Signal Transformers

10500: ¥5.95500440mA±20%2422 mOhm Max602.87µH150µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)---
SCX114-1R2
SCX114-1R2

INDUCTOR 1.20/4.28UH 4.5/2.55A

Signal Transformers

491: ¥9.70095004.5A±20%27 mOhm Max4.28µH1.2µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)595-1609-1Lead free / RoHS CompliantUnshielded
SCX114-200
SCX114-200

INDUCTOR 20.0/81.83UH 1.0/0.50A

Signal Transformers

10500: ¥5.955001A±20%279.5 mOhm Max81.83µH20µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)---
SCX114-201
SCX114-201

INDUCTOR 200/793.65UH 0.36/0.18A

Signal Transformers

10500: ¥5.95500360mA±20%2604 mOhm Max793.65µH200µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)---
SCX114-250
SCX114-250

INDUCTOR 25.0/101.6UH 0.96/0.48A

Signal Transformers

10500: ¥5.95500960mA±20%288.5 mOhm Max101.6µH25µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)---
SCX114-2R2
SCX114-2R2

INDUCTOR 2.20/8.08UH 3.4/1.70A

Signal Transformers

10500: ¥5.955003.4A±20%29 mOhm Max8.08µH2.2µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)---
SCX114-301
SCX114-301

INDUCTOR 300/1199.46UH .32/0.16A

Signal Transformers

10500: ¥5.95500320mA±20%2762.5 mOhm Max1.199mH300µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)---
SCX114-320
SCX114-320

INDUCTOR 32/129.32UH 0.80/0.40A

Signal Transformers

501: ¥9.7009500800mA±20%2125.5 mOhm Max129.32µH32µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)595-1610-1Lead free / RoHS CompliantUnshielded
SCX114-4R7
SCX114-4R7

INDUCTOR 4.70/18.8UH 2.0/1.00A

Signal Transformers

501: ¥9.70095002A±20%220.5 mOhm Max18.8µH4.7µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)595-1611-1Lead free / RoHS CompliantUnshielded
SCX114-500
SCX114-500

INDUCTOR 50/202.07UH 0.70/0.35A

Signal Transformers

10500: ¥5.95500700mA±20%2158 mOhm Max202.07µH50µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)---
SCX114-680
SCX114-680

INDUCTOR 68/273.61UH 0.66/0.33A

Signal Transformers

10500: ¥5.95500660mA±20%2186.5 mOhm Max273.61µH68µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)---
SCX114-8R0
SCX114-8R0

INDUCTOR 8.00/32.33UH 1.8/0.90A

Signal Transformers

10500: ¥5.955001.8A±20%226 mOhm Max32.33µH8µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)---
SCX114-9R6
SCX114-9R6

INDUCTOR 9.60/38.48UH 1.7/0.85A

Signal Transformers

501: ¥9.70095001.7A±20%228.5 mOhm Max38.48µH9.6µH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)595-1612-1Lead free / RoHS CompliantUnshielded
SCX114-R47
SCX114-R47

INDUCTOR 0.47/1.67UH 5.5/2.75A

Signal Transformers

351: ¥9.70095005.5A±20%24.5 mOhm Max1.67µH470nH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)595-1613-1Lead free / RoHS CompliantUnshielded
SCX114-R68
SCX114-R68

INDUCTOR 0.68/2.40UH 5.1/2.55A

Signal Transformers

10500: ¥5.955005.1A±20%25.5 mOhm Max2.4µH680nH0.217" (5.50mm)Tape & Reel (TR)Surface MountNon Standard0.461" L x 0.461" W (11.70mm x 11.70mm)---
SCX147-0R47
SCX147-0R47

INDUCTOR 0.47/1.76UH 7.0/3.50A

Signal Transformers

251: ¥14.11275007A±20%22 mOhm Max1.76µH470nH0.276" (7.00mm)Tape & Reel (TR)Surface MountNon Standard0.567" L x 0.567" W (14.40mm x 14.40mm)595-1614-1Lead free / RoHS CompliantUnshielded
SCX147-0R8
SCX147-0R8

INDUCTOR 0.80/3.14UH 6.0/3.00A

Signal Transformers

10500: ¥8.17365006A±20%22.5 mOhm Max3.14µH800nH0.276" (7.00mm)Tape & Reel (TR)Surface MountNon Standard0.567" L x 0.567" W (14.40mm x 14.40mm)---
SCX147-100
SCX147-100

INDUCTOR 10/38.42UH 3.4/1.70A

Signal Transformers

171: ¥14.11275003.4A±20%210 mOhm Max38.42µH10µH0.276" (7.00mm)Tape & Reel (TR)Surface MountNon Standard0.567" L x 0.567" W (14.40mm x 14.40mm)595-1615-1Lead free / RoHS CompliantUnshielded
