Storm Interface Limited- Matrix Keypads

Storm Interface Limited is a UK-based manufacturer of rugged input devices, founded in 1987 and headquartered in Maldon, Essex. The company specializes in heavy-duty keypads, keyboards, and custom computer interface devices designed for public-access, kiosk, and industrial applications. Core product lines include the 600 Series metal keypads, the GFX Series graphical touch keypads, the 1000 Series vandal-resistant keyboards, and the 2000 Series stainless steel keyboards. Storm Interface also offers sealed optical trackballs, pointing devices, and USB/PS2 interface controllers. All products are built to withstand extreme abuse, moisture, dust, and temperature variations, meeting IP65 and NEMA ratings. The company serves sectors such as transportation, healthcare, vending, access control, and outdoor digital signage. Storm Interface is recognized as a niche leader in durable human-machine interface solutions, with a global distribution network across Europe, North America, and Asia. Its engineering expertise enables custom designs for OEMs needing highly reliable input hardware in unattended environments. The company holds numerous patents for keypad and keyboard durability innovations, reinforcing its technical advantage in the rugged interface market. Storm Interface products are often specified in projects requiring long lifecycle availability and compliance with accessibility standards.

Matrix Keypads - 型号列表

45 parts in total

Mfr Part #	Quantity Available	Price	Number of Keys	Seal Rating	Operating Temperature	Other Specifications	Contact Material	Assembly Configuration	Ingress Protection	RoHS	Depth Behind Panel	Output Function	Housing Material	Material - Housing & Prism	Mechanical Life	Actuator Color	Actuator Material	Illumination	Case Color	Exterior Housing Color	Standard Package	Accessory Type	Output Type	Legend	Key Type	Switch Type	Matrix (Columns x Rows)	For Use With/Related Products	Voltage Rating	Contact Resistance	Insulation Resistance	Size	Height	Material	Housing Color	Mounting Style	Manufacturer	Light Color
4 6000-MK0003 KIT MOUNT FOR 6000 SERIES Keypad; Illuminated 6000 Series Mount Kit Keypad,Illuminated6000SeriesMountKit Storm Interface	42	1: ¥54.40	-	-	-	-	-	-	-	Compliant	-	-	-	-	-	-	-	-	-	-	5	Mounting Kit	-	-	-	-	-	6000 Series	-	-	-	-	-	-	-	-	-	-
5 PLX041203 KEYPAD SEALED 4 KEY ARROWS BLACK Keypad; PLX Series; 4 Key; ; Black Case and Silver Key Keypad,PLXSeries,4Key,,BlackCaseandSilverKey Storm Interface	36	1: ¥294.10	4	IP65	-	-	-	-	-	Non Compliant	-	-	-	-	-	-	-	Non-Illuminated	-	-	5	No	Common Bus	Arrows	Metal, Vandal Resistant	Conductive Rubber	1 x 4	-	-	-	-	-	-	-	-	-	-	-
4 PLX160203 KEYPAD SEALED 16 KEY CALC BLACK Keypad;118.50mmLx11.1mmThickness;PanelMount;118.5mm;24VDC(Max.) Storm Interface	34	1: ¥493.272	16	IP65	-40to+100°C(Dry)	-	-	-	-	RoHS Compliant Part	-	-	-	-	-	-	-	Non-Illuminated	-	-	5	No	Matrix	Calculator Format	Metal, Vandal Resistant	Conductive Rubber	4 x 4	-	24VDC(Max.)	100Megohms(Max.)	50Megohms(Min.)	118.50mmLx11.1mmThickness	118.5mm	HighImpactPolymer	Black	PanelMount	1000PLXSeries	-
3 6000-210023 KEYPAD MATRIX OUTPUT 6000 SERIES Keypads; Matrix Output; Vandal Resistant; Weather Resistant Keypads,MatrixOutput,VandalResistant,WeatherResistant Storm Interface	11	1: ¥726.648	16	IP65	-	-	-	-	-	Compliant	-	-	-	-	-	-	-	Non-Illuminated	-	-	5	No	Matrix	Calculator Format	Polymer	Conductive Rubber	4 x 4	-	-	-	-	-	-	-	-	-	-	-

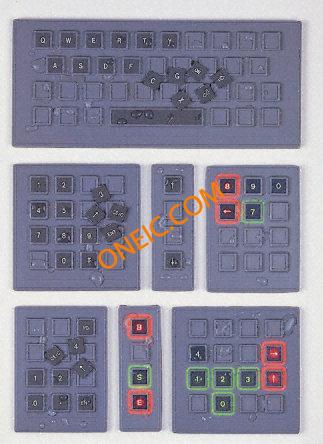

90160102 IP67 16 Key Keypad Illuminated Storm	92	1: ¥631.4344	16	IP67	+85°C	4 x 4	Gold	-	-	-	14mm	-	-	-	-	-	-	Yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 3K12T102 IP54 12 key telephone format keypad 12KEYTEL.GP.K/PAD IP54 12键小型键盘 Storm	12	1: ¥212.81	12	IP54	+85°C	4 x 3	Gold Over Nickel Plated	4 x 3	IP54	RoHS Compliant Part	8mm	Matrix	聚合物	Polymer	2000000Operations	Grey	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 70360102 IP67 qwerty keypad IP67 36键小型键盘 Storm	27	1: ¥914.61	36	IP67	+125°C	Qwerty	Gold	标准的传统键盘	IP67	-	14mm	-	铝	Aluminium	2 x 10^4Operations	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

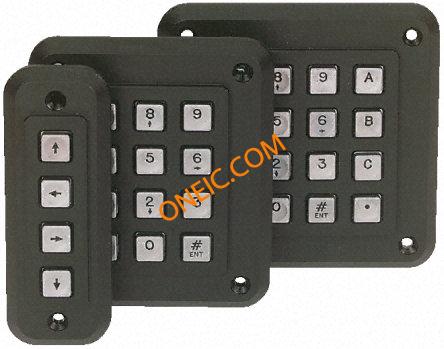

2 PLX120202 IP65 12 key calculator format keypad PLX12KEYCALCULATOR IP65 12键小型键盘 Storm	25	1: ¥429.94	12	IP65	+100°C	3 x 4	Gold Over Nickel Plated	3 x 4	IP65	RoHS Compliant Part	8mm	Matrix	聚合物	Polymer	4000000Operations	Silver	Die Cast Zinc	-	Black	黑色	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

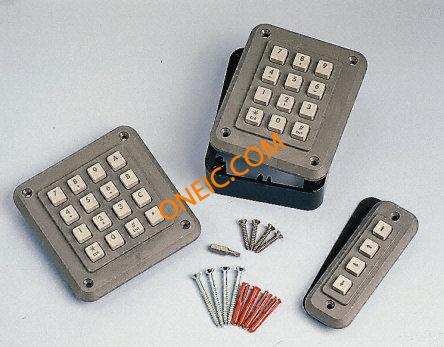

2 3K160102 16 KEY CALC. GP. K/PAD IP54 16键小型键盘 Storm	55	1: ¥235.20	16	IP54	+85°C	4 x 4	Gold Over Nickel Plated	4 x 4	IP54	-	-	Matrix	聚合物	Polymer	2000000Operations	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 6000-210012 DDA compliant matrix IP65 keypad 16WAYMATRIXIP65KEYPAD IP65 16键小型键盘 Storm	10	1: ¥836.74	16	IP65	+60°C	4 x 4	-	4 x 4	IP65	RoHS Compliant Part	-	Matrix	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PLX12T202 IP65 12 key telephone format keypad PLX12KEYTELEPHONE IP65 12键小型键盘 Storm	66	1: ¥429.94	12	IP65	+100°C	4 x 3	Gold Over Nickel Plated	4 x 3	IP65	RoHS Compliant Part	8mm	Matrix	聚合物	Polymer	4000000Operations	Silver	Die Cast Zinc	-	Black	黑色	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 3K16T102 IP54 16 key telephone format keypad 16KEYCALC.GP.K/PAD IP54 16键小型键盘 Storm	10	1: ¥261.97	16	IP54	+85°C	4 x 4	Gold Over Nickel Plated	4 x 4	IP54	RoHS Compliant Part	8mm	Matrix	聚合物	Polymer	2000000Operations	Grey	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 1K12T102 IP65 12 key telephone format keypad IP65 12键小型键盘 Storm	91	1: ¥508.89	12	IP65	+100°C	4 x 3	Gold Over Nickel Plated	4 x 3	IP65	-	8mm	Matrix	压铸锌	Die Cast Zinc	4000000Operations	-	Die Cast Zinc	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 3K041102 IP54 4 key cursor professional keypad 4-KEYCURSORGP.K/PAD IP54 4键小型键盘 Storm	59	1: ¥136.96	4	IP54	+85°C	4 x 1	Gold Over Nickel Plated	4 x 1	IP54	RoHS Compliant Part	8mm	Matrix	聚合物	Polymer	2000000Operations	Grey	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

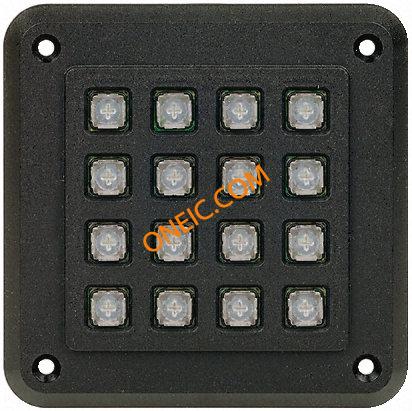

2 GSRG120202 IP54 12 Key Keypad Illuminated GRAPHILLUM12KEYRED/GN IP54 12键照明小型键盘 Storm	10	1: ¥350.61	12	IP54	+75°C	4 x 3	Gold Plated Carbon	4 x 3	IP54	RoHS Compliant Part	8mm	Matrix	聚合物	Polymer	2000000Operations	-	-	Yes	Black	黑色	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	是
2 PLX160202 IP65 16 key calculator format keypad PLX16KEYCALCULATOR IP65 16键小型键盘 Storm	10	1: ¥513.89	16	IP65	+100°C	4 x 4	Gold Over Nickel Plated	4 x 4	IP65	RoHS Compliant Part	8mm	Matrix	聚合物	Polymer	4000000Operations	Silver	Die Cast Zinc	-	Black	黑色	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 1K120102 IP65 12 key calculator format keypad IP65 12键小型键盘 Storm	15	1: ¥507.16	12	IP65	+100°C	3 x 4	Gold Over Nickel Plated	3 x 4	IP65	-	8mm	Matrix	压铸锌	Die Cast Zinc	4000000Operations	-	Die Cast Zinc	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

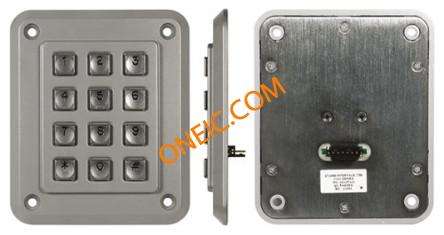

2 1K16T102 IP65 16 key telephone format keypad IP65 16键小型键盘 Storm	20	1: ¥560.00	16	IP65	+100°C	4 x 4	Gold Over Nickel Plated	4 x 4	IP65	-	8mm	Matrix	压铸锌	Die Cast Zinc	4000000Operations	-	Die Cast Zinc	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 3K042102 4-KEY FUNCTION GP. K/PAD 4-KEYFUNCTIONGP.K/PAD IP54 4键小型键盘 Storm	15	1: ¥113.35	4	IP54	+85°C	4 x 1	Gold and nickel plated	4 x 1	IP54	RoHS Compliant Part	8mm	Matrix	聚合物	Polymer	2000000Operations	Grey	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

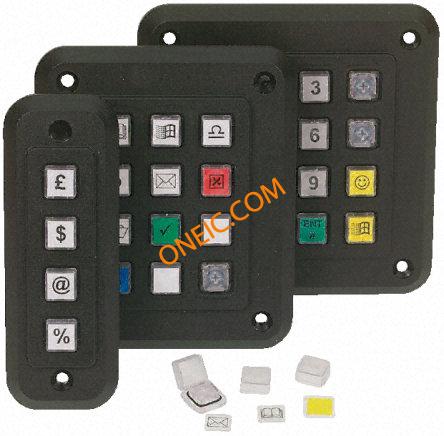

2 GS160202 IP54 16 key user configurable keypad GRAPHICSSERIES16-KEY IP54 16键小型键盘 Storm	10	1: ¥376.54	16	IP54	+60°C	4 x 4	Gold Over Nickel Plated	4 x 4	IP54	RoHS Compliant Part	8mm	Matrix	聚合物	Polymer	2000000Operations	-	-	-	Black	黑色	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
