Telegärtner Karl Gärtner GmbH- Circular Connectors

Telegärtner Karl Gärtner GmbH is a German manufacturer of professional connectivity solutions founded in 1945 by Karl Gärtner. The company is headquartered in Steinenbronn near Stuttgart, Germany. It specializes in the design and production of connectors, cables, and components for telecommunications, data networks, industrial automation, and building management. Its core product lines include coaxial RF connectors such as BNC, N, TNC, and SMA connectors, as well as RJ45 and M12 industrial connectors, fiber optic connectors, surge arrestors, and antenna systems. Telegärtner also offers customized cable assemblies, pre-terminated cabling solutions, and testing adapters for high-reliability applications. The company is a key supplier to transmission tower installations, data centers, and industrial equipment manufacturers worldwide. With a strong emphasis on precision engineering, Telegärtner products comply with international standards like IEC, EN, and EIA. The company operates its own in-house manufacturing and research facilities, ensuring high quality and innovation. It maintains a global sales network through subsidiaries and distribution partners in Europe, Asia, and the Americas. Telegärtner is recognized as one of the leading German connector brands in the professional telecommunications and industrial markets.

Circular Connectors - 型号列表

25 parts in total

Mfr Part #	Quantity Available	Price	Mounting Type	Part Status	Color	Packaging	Series	Features	Connector Type	Base Product Number	Orientation	Shell Size - Insert	Contact Material	Shielding	Mounting Feature	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Termination	Shell Finish	Cable Opening	Fastening Type	Shell Material	Insert Material	Shell Size, MIL	Primary Material	Number of Positions	Contact Finish - Mating	Backshell Material, Plating	Contact Finish Thickness - Mating	Mfr	Applications	Ingress Protection	Operating Temperature	Manufacturer	Length	Connector - Voltage Input	Depth	Width	Shield Type	Contact Finish	Gender	Material	Accessory Type	For Use With/Related Products	Style	Cable Type	Number of Positions/Contacts	Depth - Overall	Width - Overall	Housing Material	Length - Overall	Pair Number	Performance
J00026A0165 RJ45 plug MP8(8) FS Cat.6A Telegartner	479	1: ¥15.05	Cable Mount	-	-	-	-	-	Modular Plug	-	Straight	-	Phosphor Bronze	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	6.6mm	Cat6a	18.5mm	11.68mm	STP	Nickel Gold Alloy	Male	-	-	-	-	-	-	-	-	-	-	-	-

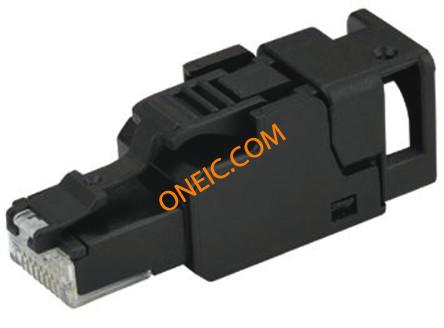

J00026A3001 UFP8 T568B Cat 6A Field Termination Telegartner	631	1: ¥92.9764	Cable Mount	-	-	-	-	-	Modular Plug	-	Straight	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	16.35mm	Cat6a	44.2mm	13.8mm	UTP	Nickel Gold Alloy	Male	-	-	-	-	-	-	-	-	-	-	-	-

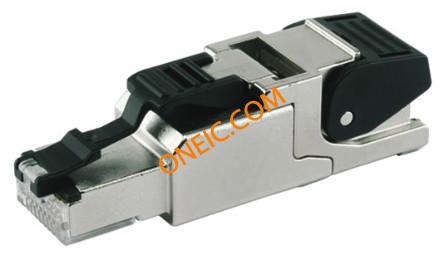

J00026A2001 RJ45 Plug MFP8 T568 B Cat 6A Telegartner	475	1: ¥123.4472	Cable Mount	-	-	-	-	-	Modular Plug	-	Straight	-	Spring Steel	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	49mm	Cat6a	13.8mm	16.2mm	STP	Nickel Gold Alloy	Male	-	-	-	-	-	-	-	-	-	-	-	-
100007428 STX M12x1 BS X-cod. Cat.6A Telegartner Inc	20	20: ¥342.584	Panel Mount, Through Hole	Active	Silver	Bag	-	Board Guide	Plug, Female Sockets	J80020	X	M12-8	Bronze	Unshielded	Bulkhead - Front Side Nut	-	50VAC, 60VDC	0.5A	Solder	Nickel	-	Threaded	Brass and Zinc Die Cast	Polyamide (PA), Nylon	-	Metal	8 (Data)	Gold	-	-	Telegartner Inc	Industrial	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100007433 CU-CN M12D-BS C5 THR 1PC Telegartner Inc	20	20: ¥121.516	Panel Mount, Through Hole	Active	Silver	Bag	-	-	Plug, Female Sockets	J80120	D	M12-4	Bronze	Unshielded	Bulkhead - Rear Side Nut	-	-	-	Solder	Nickel	-	Threaded	Brass and Zinc Die Cast	Polyamide (PA), Nylon	-	Metal	4 (Data)	Gold	-	-	Telegartner Inc	Industrial	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100007499 M12X-CP IDC field C6A D5.5-9 Telegartner Inc	13	10: ¥472.464	Free Hanging (In-Line)	Active	Silver	Bag	-	Backshell	Receptacle, Male Pins	J80026	X	M12-8	Brass	Shielded	-	UL94 V-0	50VAC, 60VDC	0.5A	IDC	Nickel	0.217" ~ 0.354" (5.50mm ~ 9.00mm)	Threaded	Brass and Zinc Die Cast	Polyamide (PA), Nylon	-	Metal	8 (Data)	Gold	Brass and Zinc Die Cast, Nickel	31.5µin (0.80µm)	Telegartner Inc	Industrial	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100007538 M12X-FS/M12X-FS co C6A D5.5-9 Telegartner Inc	10	1: ¥881.62	Free Hanging (In-Line); Panel Mount	Active	Silver	Bag	-	Backshell	Plug, Female Sockets	J80029	X	M12-8	Bronze	Unshielded	Bulkhead - Front Side Nut	UL94 V-0	50VAC, 60VDC	0.5A	-	Nickel	-	Threaded	Brass	Polyamide (PA), Nylon	-	Metal	8 (Data)	Gold	Brass, Nickel	-	Telegartner Inc	Industrial	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100007542 CU-CN M12D-CS SCT field C5 D5-8 Telegartner Inc	24	1: ¥360.264	Free Hanging (In-Line)	Active	Silver	Bag	-	Backshell, Coupling Nut	Plug, Female Sockets	J80029	D	M12-4	Brass	Unshielded	-	UL94 HB	250V	4A	Screw	Nickel	0.197" ~ 0.315" (5.00mm ~ 8.00mm)	Threaded	Brass and Zinc Die Cast	Polyamide (PA), Nylon	-	Metal	4 (Data)	Gold	Brass and Zinc Die Cast, Nickel	-	Telegartner Inc	Industrial	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100007546 M12X-CS IDC field C6A D5.5-9 Telegartner Inc	-		Free Hanging (In-Line)	Active	Silver	Bag	-	Backshell	Plug, Female Sockets	-	X	M12-8	Brass	Shielded	-	UL94 V-0	50VAC, 60VDC	0.5A	IDC	Nickel	0.217" ~ 0.354" (5.50mm ~ 9.00mm)	Threaded	Brass and Zinc Die Cast	Polyamide (PA), Nylon	-	Metal	8 (Data)	Gold	Brass and Zinc Die Cast, Nickel	31.5µin (0.80µm)	Telegartner Inc	Industrial	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100007549 CU-CN M12D-BS C5 THR 2PC Telegartner Inc	10	10: ¥137.836	Panel Mount, Through Hole	Active	Silver	Bag	-	Board Lock	Plug, Female Sockets	J80120	D	M12-4	Bronze	Unshielded	Bulkhead - Front Side Nut	-	-	-	Solder	Nickel	-	Threaded	Brass and Zinc Die Cast	Polyamide (PA), Nylon	-	Metal	4 (Data)	Gold	-	-	Telegartner Inc	Industrial	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100007550 CU-CN M12X-BS C6A THR w/o hous Telegartner Inc	20	20: ¥269.824	Through Hole	Active	Black	Bag	-	Board Guide, Insert Only, Requires Shell	Insert, Female Sockets	J80020	X	M12-8	Bronze	Unshielded	-	-	50VAC, 60VDC	0.5A	Solder	-	-	-	-	Polyamide (PA), Nylon	-	-	8 (Data)	Gold	-	-	Telegartner Inc	Industrial	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100007553 CU-CN M12D-BS C5 THR w/o hous Telegartner Inc	20	20: ¥98.464	Through Hole	Active	Green	Bag	-	Board Lock, Insert Only, Requires Shell	Insert, Female Sockets	J80120	D	M12-4	Bronze	Unshielded	-	-	-	-	Solder	-	-	-	-	Polyamide (PA), Nylon	-	-	4 (Data)	Gold	-	-	Telegartner Inc	Industrial	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100007554 M12X-BS C6A THR 90 1PC Telegartner Inc	10	10: ¥504.492	Panel Mount, Through Hole, Right Angle	Active	Black, Silver	Bag	-	Board Guide	Plug, Female Sockets	J80320	X	M12-8	Bronze	Unshielded	Bulkhead - Front Side Nut	-	50VAC, 60VDC	0.5A	Solder	Nickel	-	Threaded	Brass	Polyamide (PA), Nylon	-	Metal	8 (Data)	Gold	-	-	Telegartner Inc	Industrial	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100007555 M12X-BS C6A THR 90 2PC Telegartner Inc	10	10: ¥518.84	Panel Mount, Through Hole, Right Angle	Active	Black, Silver	Bag	-	Board Guide	Plug, Female Sockets	J80320	X	M12-8	Bronze	Unshielded	Bulkhead - Front Side Nut	-	50VAC, 60VDC	0.5A	Solder	Nickel	-	Threaded	Brass	Polyamide (PA), Nylon	-	Metal	8 (Data)	Gold	-	-	Telegartner Inc	Industrial	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100007556 M12X-BS C6A THR 90 w/o hous Telegartner Inc	10	10: ¥443.70	Panel Mount, Through Hole, Right Angle	Active	Black, Silver	Bag	-	Board Guide	Plug, Female Sockets	J80320	X	M12-8	Bronze	Unshielded	Bulkhead - Front Side Nut	-	50VAC, 60VDC	0.5A	Solder	Nickel	-	Threaded	Brass	Polyamide (PA), Nylon	-	Metal	8 (Data)	Gold	-	-	Telegartner Inc	Industrial	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
100008045 DDCP-Link MP8/STXmo LSZH .2m Telegartner Inc	10	1: ¥1,333.684	Free Hanging (In-Line)	Active	Blue	Bag	-	Molded Plugs	Jack to Plug	L00000A0	-	-	-	Shielded	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Telegartner Inc	0.66' (200.0mm)	-	-	-	-	-	-	-	-	-	Cat6a, Industrial Environments - IP20	Round Cable	8p8c (RJ45, Ethernet)	-	-	-	-	-	-
100022777 CU-Acc dustp M12x1 plg plast Telegartner Inc	10	1: ¥71.196	-	Active	Black	Bag	-	Contains Strap with Ring, Dust Tight, Internal Threads, Waterproof	-	-	-	M12	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Telegartner Inc	-	-	-	-	-	-	-	-	Cap (Cover), Protective	M12 Male Connector	-	-	-	-	-	-	-	-	-
100022778 CU-Acc dustp M12x1 socket plast Telegartner Inc	10	1: ¥16.184	-	Active	Black	Bag	-	Dust Tight, External Threads, Waterproof	-	-	-	M12	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Telegartner Inc	-	-	-	-	-	-	-	-	Cap (Cover), Protective	M12 Female Connector	-	-	-	-	-	-	-	-	-
100022779 Dust prot STX M12x1 socket plast Telegartner Inc	10	1: ¥59.84	-	Active	Black	Bag	-	Contains Strap with Ring, Dust Tight, External Threads, Waterproof	-	-	-	M12	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Telegartner Inc	-	-	-	-	-	-	-	-	Cap (Cover), Protective	M12 Female Connector	-	-	-	-	-	-	-	-	-
100023273 CU-CM VM8-8 C7A AWG26-22 Telegartner Inc	93	1: ¥554.404	-	Active	Black	Bag	-	-	-	J00060A0	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Telegartner Inc	-	-	-	-	-	-	-	-	-	-	-	-	-	1.535" (39.00mm)	1.465" (37.20mm)	Acrylonitrile Butadiene Styrene (ABS)	3.315" (84.20mm)	4	Cat 7a

Page 1 / 2
