Coaxial Connectors (RF) - 型号列表
538 parts in total| Mfr Part # | Quantity Available | Price | Frequency | Impedance | Gender | Impedance (Max) (Zzt) | Mounting Type | Orientation | Connector Type | Contact Material | Contact Finish | Termination | Termination Rows | Cable Type | Length | Adapter Type | 2nd Contact Gender | Interface | Attenuation - Typ | Insertion Loss (Max) | Body Finish | RoHS | Finish | Material | Cable End Type | Label Type | Hose/Cord Included |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

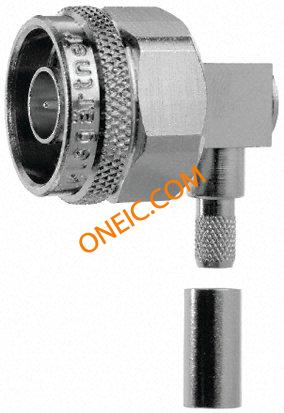

 J01020A0097 N angled plug, crimp, TZC 500 25, LMR240 Telegartner 50Ω 直角 电缆安装 N 型接头, 插头, 焊接端接, 0 → 11GHz, 1.5/3.8, 1.5/3.8 FLEX电缆 Telegartner | 38 | 1: ¥106.15 | 0 → 11GHz | 50Ω | Male | 50Ω | Right Angle | 直角 | 公插 | Beryllium Copper | Silver Alloy | Solder | 焊接 | 1.5/3.8, 1.5/3.8 FLEX | - | - | - | - | - | - | - | - | - | - | - | - | - |

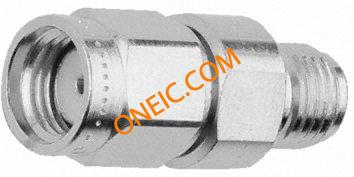

 J01155R0095 Coax adaptor, R-SMA (m) to SMA (f) Telegartner 直 50Ω 射频适配器 , 0 → 6GHz, SMA 插座 到 R-SMA 插头 Telegartner | 10 | 1: ¥158.26 | 0 → 6GHz | 50Ω | Socket | 50Ω | Straight | 直 | - | Beryllium Copper Lead Alloy | Enickel, Gold Alloy | - | - | - | 21mm | SMA | 插头 | - | - | - | - | - | - | - | - | - | - |

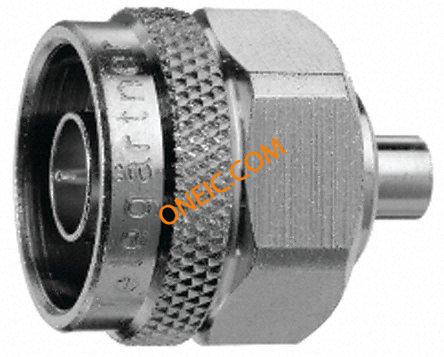

 J01020A0109 N straight plug, solder, UT141 Telegartner 50Ω 直向 电缆安装 N 型接头, 插头, 焊接端接, 0 → 11GHz, UT141电缆 Telegartner | 130 | 1: ¥74.90 | 0 → 11GHz | 50Ω | Male | 50Ω | Straight | 直 | 公插 | Beryllium Copper | Silver Alloy | Solder | 焊接 | UT141 | - | - | - | - | - | - | - | - | - | - | - | - | - |
 J01021A0147 N bulkhead jack, crimp, RG58C/U, LMR195 Telegartner 50Ω 直向 面板安装 N 连接器, 插座, 压接端接, 0 → 11GHz, RG58 C/U电缆 Telegartner | 654 | 1: ¥89.726 | 0 → 11GHz | 50Ω | Female | 50Ω | Straight | 直 | 母座 | Beryllium Copper | Silver Alloy | Crimp | 压接 | RG58 C/U | - | - | - | - | - | - | - | - | - | - | - | - | - |
 J01156A0011 SMA attenuator, m-f, 3dB, 50ohm 2W 10GHz SMAATTENUATOR 50Ω 射频衰减器 SMA 连接器, SMA 插头至插座 3dB, 工作频率 10GHz Telegartner | 10 | 1: ¥625.09 | 10GHz | 50Ω | - | 50Ω | - | - | SMA | - | - | - | - | - | - | - | - | SMA 插头至插座 | 3dB | 3dB | - | RoHS Compliant Part | - | - | - | - | - |
 J01017A0004 TNC surge suppressor, m-f, 25W 150V-250V TNCSURGESUPPRESSOR Telegartner 直 50Ω 射频适配器 , 0 → 11GHz, TNC 插头 到 插座 Telegartner | 54 | 1: ¥1,071.782 | 0 → 11GHz | 50Ω | Plug | 50Ω | Straight | 直 | - | Beryllium Copper | Copper, Gold Alloy, Nickel | - | - | - | 48mm | TNC | 插座 | - | - | - | - | RoHS Compliant Part | - | - | - | - | - |
 | 96 | 1: ¥26.03 | - | - | Plug | - | Straight | 直 | - | - | - | - | - | - | 34mm | BNC | 插座 | - | - | - | - | - | - | - | - | - | - |

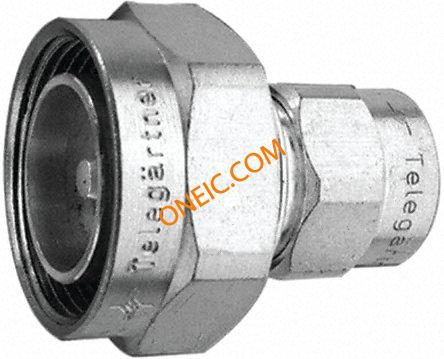

 J01122C0009 Coax adaptor, 7-16 (m) to N (m) Telegartner 直 50Ω R 适配器 , 0 → 6GHz, 7/16 插头 到 N 型 插头 Telegartner | 18 | 1: ¥794.45 | 0 → 6GHz | 50Ω | Plug | 50Ω | Straight | 直 | - | Copper Zinc Lead Alloy | Copper, Silver Alloy | - | - | - | 39.2mm | 7/16 | 插头 | - | - | - | - | - | - | - | - | - | - |

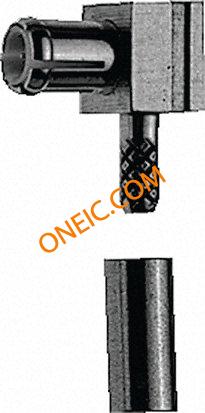

 J01270A0211 MCX angled plug, RG316/U, RG174, RG188 Telegartner 50Ω 直角 电缆安装 MCX 插头, 插头, 带压接端接, RG174/U, RG188 A/U, RG316/U, 0 → 6GHz Telegartner | 25 | 5: ¥24.214 | 0 → 6GHz | 50Ω | Male | 50Ω | Right Angle | 直角 | 公插 | Brass Alloy | Copper, Gold Alloy, Nickel | Crimp | 压接 | RG174/U, RG188 A/U, RG316/U | - | - | - | - | - | - | - | - | - | - | - | - | - |

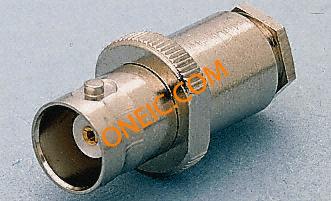

 J01001A0032 BNC straight jack clamp 50ohm (RG316/U) Telegartner 直 50Ω 电缆安装 BNC 连接器, 插口, 钳制 端接, RG316/U电缆, 镀镍本体 Telegartner | 34 | 1: ¥84.44 | 0 → 4GHz | 50Ω | Female | 50Ω | Straight | 直 | 母座 | Beryllium Copper | Gold | - | 钳制 | RG316/U | - | - | - | - | - | - | 镍 | - | - | - | - | - | - |

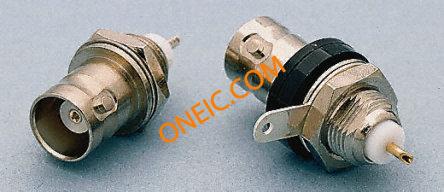

 J01001A1222 BNC bulkhead socket solder 50ohm (black) Telegartner 直 50Ω 面板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 Telegartner | 44 | 1: ¥44.73 | 0 → 4GHz | 50Ω | Female | 50Ω | Straight | 直 | 母座 | Beryllium Copper | Gold | Solder | 焊接 | - | - | - | - | - | - | - | 镍 | - | - | - | - | - | - |
 J01026A0007 N attenuator, m-f, 10dB, 50ohm, 1W, 1GHz 50Ω 射频衰减器 N 连接器, N 插头至 N 插座 10dB, 工作频率 1GHz Telegartner | 10 | 1: ¥773.63 | 1GHz | 50Ω | - | 50Ω | - | - | N | - | - | - | - | - | - | - | - | N 插头至 N 插座 | 10dB | 10dB | - | - | - | - | - | - | - |

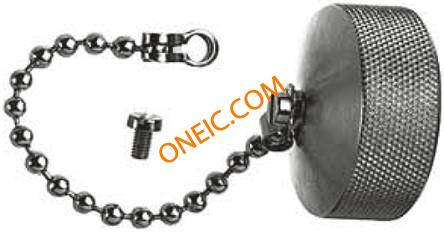

 H00070A0000 7-16 jack metal dust cap with chain,IP68 Telegartner RF 连接器防尘盖 (连盖绳) , 适用于 7-16连接器 插座 Telegartner | 26 | 1: ¥100.18 | - | - | Female | - | - | - | 7-16 | - | - | - | - | - | - | - | - | - | - | - | - | - | Copper-Silver | Brass | 是 | 铜银 | Yes |
 J01021A0151 N bulkhead jack, solder, UT141, IP67 Telegartner 50Ω 直向 面板安装 N 型接头, 插座, 焊接端接, 0 → 11GHz, UT141电缆 Telegartner | 38 | 1: ¥203.43 | 0 → 11GHz | 50Ω | Female | 50Ω | Straight | 直 | 母座 | Beryllium Copper | Silver Alloy | Solder | 焊接 | UT141 | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 131 | 1: ¥106.48 | - | - | 插头 | - | Straight | 直 | - | - | - | - | - | - | 28.3mm | Type N | 插座 | - | - | - | - | - | - | - | - | - | - |
J01156A0031 SMA attenuator, m-f, 10dB,50ohm 2W 10GHz 50Ω 射频衰减器 SMA 连接器, SMA 插头至插座 10dB, 工作频率 10GHz Telegartner | 13 | 1: ¥440.53 | 10GHz | 50Ω | - | 50Ω | - | - | SMA | - | - | - | - | - | - | - | - | SMA 插头至插座 | 10dB | 10dB | - | - | - | - | - | - | - |
 | 787 | 1: ¥74.5416 | 0 → 6GHz | 50Ω | Male | - | Straight | - | - | Beryllium Copper | - | Crimp | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

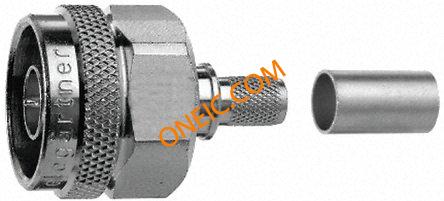

 J01020A0127 N straight plug, crimp, 2.7/7.25 Telegartner 50Ω 直向 电缆安装 N 型接头, 插头, 压接端接, 0 → 11GHz, 2.7/7.25, LMR400电缆 Telegartner | 955 | 1: ¥136.62 | 0 → 11GHz | 50Ω | Male | 50Ω | Straight | 直 | 公插 | Beryllium Copper | Silver Alloy | Crimp | 压接 | LMR400, 2.7/7.25 | - | - | - | - | - | - | - | - | - | - | - | - | - |

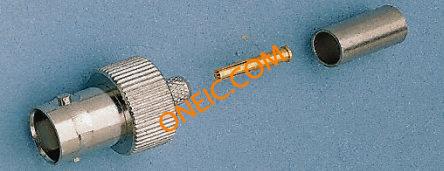

 J01001B0005 BNC straight jack crimp 50ohm (RG316/U) Telegartner 直 50Ω 电缆安装 BNC 连接器, 插口, 压接 端接, RG316/U电缆, 镀镍本体 Telegartner | 145 | 1: ¥50.96 | 0 → 4GHz | 50Ω | Female | 50Ω | Straight | 直 | 母座 | Beryllium Copper | Gold | Crimp | 压接 | RG316/U | - | - | - | - | - | - | 镍 | - | - | - | - | - | - |
 | 165 | 1: ¥59.13 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
