cigen-5073/1C
5073/1C wire & cable Series

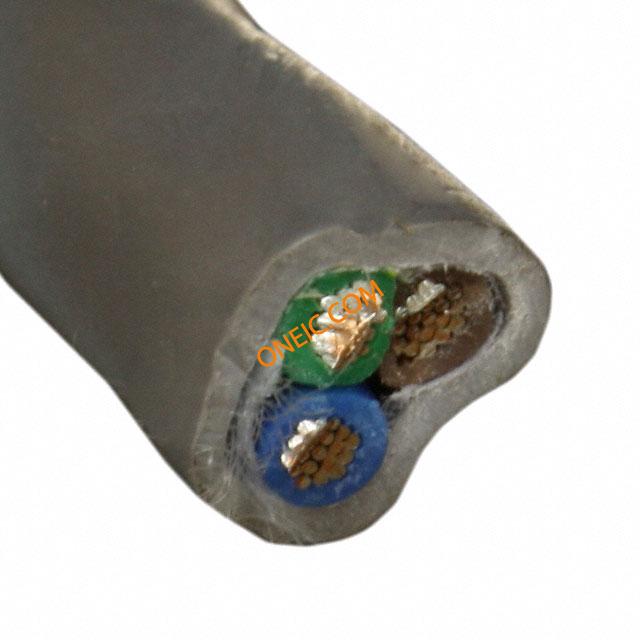

16AWG 3-core unshielded slate cables
The 5073/1C wire and cable series from Alpha Wire Corporation consists of 16AWG 3-core unshielded slate-colored cables. These cables are designed for applications requiring a flexible yet robust solution in environments where color-coding is important. If you're working on projects that involve multiple cores and need to distinguish between them easily, these cables are a good choice. Engineers tend to reach for this type of cable when they need a balance between flexibility and durability, especially in installations where the cables might be subject to movement or flexing.
One thing worth noting is the slate color; it provides a clear visual distinction among other wiring without being too bright or distracting. This can be particularly useful in panel builds or installations where multiple cables run parallel. Another practical aspect is their 16AWG gauge, which offers sufficient current-carrying capacity for many low-to-medium power applications while remaining manageable in terms of size and weight.
These cables are commonly found in control panels, instrumentation setups, and industrial machinery where flexibility and ease of identification are key factors. Their unshielded nature makes them suitable for environments where electromagnetic interference is not a significant concern, but they still offer the necessary flexibility and durability for everyday use.
Series Images (4)
Documents & Media
Frequently Asked Questions
5073/1C wire & cable - Part List
6 parts in total| Mfr Part # | Quantity Available | Price | Category | Packaging | Shielding | Cable Type | Jacket Color | Conductor Insulation | Wire Gauge or Range - AWG | Jacket (Insulation) Diameter | Number of Cores | Operating Temperature | Product Category | Standard Package | RoHS | SVHC | Tariff No | Voltage | Voltage Rating | Conductor Strand | Number of Conductors | Color | Length | Weight | Wire Gauge | Shield Type | Outer Diameter | Length - Overall | Conductor Material | Diameter - Outside | Number of Cable Pairs | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Type | Features | Usage | Other Names | Series | Material Flammability Rating | Voltage - Test | Cord Jacket | Conductor Type | Color - Enhanced | Cross Section Shape | Design | Maximum Temperature Limit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5073/1C SL005 Multi-Conductor Cables 16AWG 3C UNSHLD 100ft SPOOL SLATE CABLE 16 AWG 3 COND 100' UNSHLD CABLE, 16AWG, 3 CORE, SLATE, 30.5M Alpha Wire | 10 | 1: ¥1,503.96 | - | Spool | Unshielded | Multi-Conductor | Gray | Poly-Vinyl Chloride (PVC) | :16AWG | 0.264" (6.71mm) | :3 | -30°C ~ 80°C | Multi-Conductor Cables | 1 | RoHS Compliant | :No SVHC (20-Jun-2013) | 85444995 | 300V | 300 V | 19/0.0117" | 3 | Slate | 100 ft | 48 lbs | 16 | :Unshielded | :7.4mm | :100ft | Copper, Tinned | :7.4mm | 19 x 0.0117 | Polyvinyl Chloride (PVC) | 0.032" (0.81mm) | Xtra-Guard 1 | Rip Cord | Communication, Control | - | - | - | - | - | - | - | - | - | - |
5073/1C SL001 Multi-Conductor Cables 16AWG 3C UNSHLD 1000ft SPOOL SLATE CABLE 16AWG 3 COND 1000' UNSHLD CABLE, 16AWG, 3 CORE, SLATE, 304.8M Xtra-Guard-Performance-Cable, Xtra-Guard-1, 3 Conductor, 16 AWG, Unshielded, 300 V, PVC Jacket, PVC Insulation, 0.264 Jacket Diameter, 0.032 Jacket Thickness, 19/0117 Stranding Alpha Wire | 15 | 1: ¥8,561.70 | - | Spool | Unshielded | Multi-Conductor | Gray | Poly-Vinyl Chloride (PVC) | :16AWG | 0.264" (6.71mm) | :3 | -30°C ~ 80°C | Multi-Conductor Cables | 1 | RoHS Compliant | :No SVHC (20-Jun-2013) | 85444995 | 300V | 300 V | 19/0.0117" | 3 | Slate | 1000 ft | 48 lbs | 16 | :Unshielded | :7.4mm | :1000ft | Copper, Tinned | 0.29 in | 19 x 0.0117 | Polyvinyl Chloride (PVC) | 0.032" (0.81mm) | Xtra-Guard 1 | Unsurpassed Flame and Moisture Resistance | Communication, Control | 5073/1CSL001 | - | - | - | - | - | - | - | - | - |
5073/1C SL002 Multi-Conductor Cables 16AWG 3C UNSHLD 500ft SPOOL SLATE 5073/1C SLATE 500 FT CABLE, 16AWG, 3 CORE, SLATE, 152.4M Alpha Wire | 10 | 1: ¥4,099.04 | - | Spool | Unshielded | Multi-Conductor | Gray | Poly-Vinyl Chloride (PVC) | :16AWG | 0.264" (6.71mm) | :3 | -30°C ~ 105°C | Multi-Conductor Cables | 1 | RoHS Compliant | :No SVHC (20-Jun-2013) | 85444995 | 300V | 300 V | 19/0.0117" | 3 | Slate | 500 ft | 48 lbs | 16 | :Unshielded | :7.4mm | :500ft | Copper, Tinned | 7.37 mm | 19 x 0.0117 | Polyvinyl Chloride (PVC) | 0.032" (0.81mm) | Xtra-Guard 1 | Nylon Rip Cord for Ease of Jacket Stripping | - | - | 5073 | - | - | - | - | - | - | - | - |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
5073/1C Mains cable 3 Cores, 3 x1.31 mm² Copper strand tin-plated unshielded PVC grey, 5073/1C, Alpha Wire Alpha Wire | 0 | - | Sold by meter | unshielded | Mains cable | grey | PVC | 16 AWG | 7.4 | 3 | -30 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | No | 2000 VAC | PVC | Copper strand tin-plated | brown | 1.31 mm² | Oil-Proof | +105 | |
5073/1C SL199 ALPHA WIRE | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
