cigen-610HR
610HR resistor Series
ohmite1W metal film current sense resistors
The 610HR series from Ohmite is a line of 1W metal film current sense resistors designed for precise current measurement in a variety of electronic circuits. These resistors are ideal for applications where accurate current sensing is critical, such as in power supplies, battery management systems, and motor control circuits. If you're working on any project that requires reliable current monitoring, these resistors are a go-to choice.
One thing worth noting is their high stability over temperature and time, which makes them particularly useful in environments where temperature fluctuations might otherwise affect the accuracy of your measurements. Engineers tend to reach for this when they need a resistor that can handle both the thermal and mechanical stresses of a wide operating range without degrading performance. Additionally, their compact size allows for easy integration into tight spaces, which is a significant advantage in board layout and design.
Series Images (9)
Documents & Media
Frequently Asked Questions
610HR resistor - Part List
10 parts in total| Mfr Part # | Quantity Available | Price | Category | Product | Product Category | Standard Package | Factory Pack Quantity | RoHS | Tolerance | Resistance | Power (Watts) | Power - Rated | Resistance (Ohms) | Packaging | Package / Case | Size / Dimension | Termination Style | Number of Terminations | Supplier Device Package | Type | Series | Features | Composition | Operating Temperature | Temperature Coefficient | Power - Peak Pulse | Termination | Material - Core | Lead Time | Subcategory | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

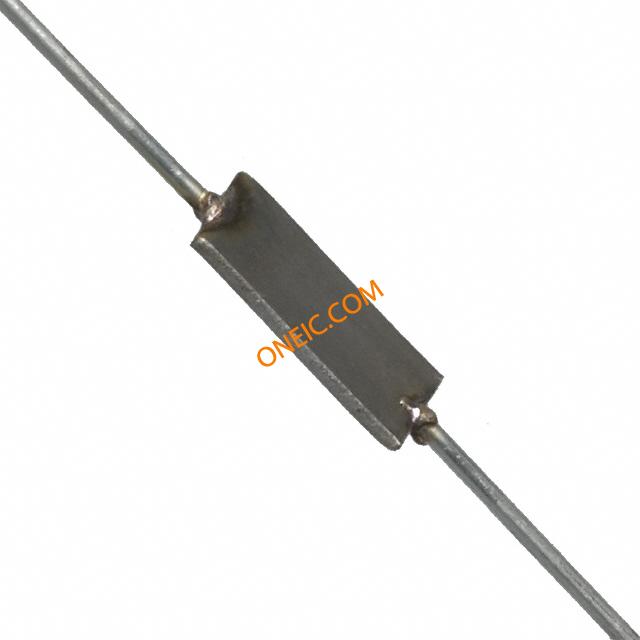

 610HR005E Current Sense Resistors - Through Hole 1watt .005ohm 3% RES 0.005 OHM 1W 3% AXIAL Res Metal Film 0.005 Ohm 3% 1W Conformal AXL Resistor; Metal Film; Res 0.005 Ohms; Pwr-Rtg 1 W; Tol 3%; Axial; Curr-Sense Ohmite | 10 | 250: ¥3.1919 | - | Metal Element Current Sensing Resistors | Current Sense Resistors - Through Hole | 25 | 1 | RoHS Compliant | 3 % | 5 mOhms | 1W | 1 W | 0.005 | Bulk | Axial | 0.65 mm L | Axial | 2 | Axial | Two Terminal Metal Element Current Sense | 60 | Current Sense, Non-Inductive | Metal Element | - | - | 1 W | Axial | Metal Film | - | - | - |
 610HR050 Current Sense Resistors - Through Hole 1watt .05ohm 3% RES 0.05 OHM 1W 3% AXIAL Res Metal Film 0.05 Ohm 3% 1W Conformal AXL Ohmite | 132 | 13: ¥5.44 | - | Metal Element Current Sensing Resistors | Current Sense Resistors - Through Hole | 25 | 1 | No RoHS Version Available | ±3% | 50 mOhms | 1W | 1 W | 0.05 | Bulk | Axial | 0.750" L (19.05mm) | Axial | 2 | Axial | Current Sensing Resistor | 60 | Current Sense, Non-Inductive | Metal Element | - 55 C to + 275 C | 100 PPM / C | - | - | - | - | - | - |
 610HR010 Current Sense Resistors - Through Hole 1watt .01ohm 3% RES 0.01 OHM 1W 3% AXIAL Res Metal Film 0.01 Ohm 3% 1W Conformal AXL Ohmite | 400 | 200: ¥2.9716 | - | Metal Element Current Sensing Resistors | Current Sense Resistors - Through Hole | 25 | 1 | No RoHS Version Available | ±3% | 10 mOhms | 1W | 1 W | 0.01 | Bulk | Axial | 0.630" L (16.00mm) | Axial | 2 | Axial | Current Sensing Resistor | 60 | Current Sense, Non-Inductive | Metal Element | - 55 C to + 275 C | 100 PPM / C | - | - | - | - | - | - |
 | 10 | 200: ¥2.856 | - | Metal Element Current Sensing Resistors | Current Sense Resistors - Through Hole | 25 | 1 | Contains lead / RoHS non-compliant | ±3% | 20 mOhms | 1W | 1 W | 0.02 | Bulk | Axial | 0.630" L (16.00mm) | Axial | 2 | Axial | Current Sensing Resistor | 60 | Current Sense, Non-Inductive | Metal Element | - 55 C to + 275 C | 100 PPM / C | - | - | - | 56 Days | Resistor Fixed Single-Through Hole | 610HR020E |
 | 10 | 200: ¥2.516 | - | Metal Element Current Sensing Resistors | Current Sense Resistors - Through Hole | 25 | 1 | No RoHS Version Available | ±3% | 30 mOhms | 1W | 1 W | 0.03 | Bulk | Axial | 0.650" L (16.51mm) | Axial | 2 | Axial | Current Sensing Resistor | 60 | Current Sense, Non-Inductive | Metal Element | - 55 C to + 275 C | 100 PPM / C | - | - | - | - | - | - |
 610HR005 Current Sense Resistors - Through Hole 1watt .005ohm 3% RES 0.005 OHM 1W 3% AXIAL Res Metal Film 0.005 Ohm 3% 1W Conformal AXL Ohmite | 38 | 13: ¥5.44 | - | Metal Element Current Sensing Resistors | Current Sense Resistors - Through Hole | 25 | 1 | No RoHS Version Available | ±3% | 5 mOhms | 1W | 1 W | 0.005 | Bulk | Axial | 0.650" L (16.51mm) | Axial | 2 | Axial | Current Sensing Resistor | 60 | Current Sense, Non-Inductive | Metal Element | - 55 C to + 275 C | 100 PPM / C | - | - | - | - | - | - |
 610HR020E Current Sense Resistors - Through Hole 1watt .02ohm 3% RES 0.02 OHM 1W 3% AXIAL Res Metal Film 0.02 Ohm 3% 1W Conformal AXL Resistor; Metal Film; Res 0.020 Ohms; Pwr-Rtg 1 W; Tol 3%; Axial; Curr-Sense Ohmite | 250 | 1: ¥12.4074 | - | Metal Element Current Sensing Resistors | Current Sense Resistors - Through Hole | 25 | 1 | RoHS Compliant | ±3% | 20 mOhms | 1W | 1 W | 0.02 | Bulk | Axial | 0.630" L (16.00mm) | Axial | 2 | Axial | Current Sensing Resistor | 60 | Current Sense, Non-Inductive | Metal Element | - 55 C to + 275 C | - | 1 W | Axial | Metal Film | - | - | - |
610HR050E Current Sense Resistors - Through Hole 1watt .05ohm 3% RES 0.05 OHM 1W 3% AXIAL Res Metal Film 0.05 Ohm 3% 1W Conformal AXL Resistor; Metal Film; Res 0.050 Ohms; Pwr-Rtg 1 W; Tol 3%; Axial; Curr-Sense Ohmite | 2605 | 153: ¥2.788 | - | Metal Element Current Sensing Resistors | Current Sense Resistors - Through Hole | 25 | 1 | RoHS Compliant | ±3% | 50 mOhms | 1W | 1 W | 0.05 | Bulk | Axial | 0.750" L (19.05mm) | Axial | 2 | Axial | Current Sensing Resistor | 60 | Current Sense, Non-Inductive | Metal Element | - 55 C to + 275 C | - | 1 W | Axial | Metal Film | - | - | - |

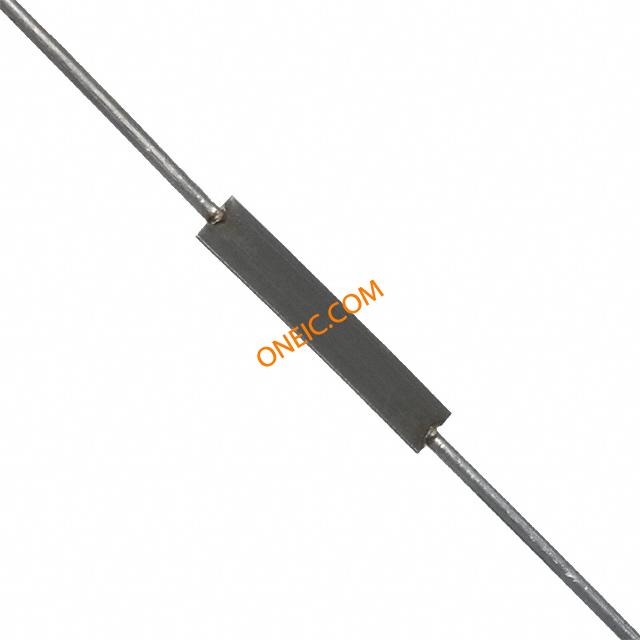

610HR030E Current Sense Resistors - Through Hole 1watt .03ohm 3% RES 0.03 OHM 1W 3% AXIAL Res Metal Film 0.03 Ohm 3% 1W Conformal AXL Ohmite | 550 | 75: ¥8.9862 | - | Metal Element Current Sensing Resistors | Current Sense Resistors - Through Hole | 25 | 1 | RoHS Compliant | ±3% | 30 mOhms | 1W | 1 W | 0.03 | Bulk | Axial | 0.650" L (16.51mm) | Axial | 2 | Axial | Current Sensing Resistor | 60 | Current Sense, Non-Inductive | Metal Element | - 55 C to + 275 C | - | - | - | - | - | - | - |
610HR010E Current Sense Resistors - Through Hole 1watt .01ohm 3% RES 0.01 OHM 1W 3% AXIAL Res Metal Film 0.01 Ohm 3% 1W Conformal AXL Ohmite | 116 | 1: ¥14.0572 | - | Metal Element Current Sensing Resistors | Current Sense Resistors - Through Hole | 25 | 1 | RoHS Compliant | ±3% | 10 mOhms | 1W | 1 W | 0.01 | Bulk | Axial | 0.630" L (16.00mm) | Axial | 2 | Axial | Current Sensing Resistor | 60 | Current Sense, Non-Inductive | Metal Element | - 55 C to + 275 C | - | - | - | - | - | - | - |
