cigen-680S13W
680S13W seal-d 680 Series
norcompD-Sub connectors with various specs for IP67
The NorComp Inc. 680S13W seal-d 680 series D-Sub connectors are designed for applications requiring robust, waterproof connections. With IP67 ratings, these connectors can withstand immersion in water up to 1 meter deep for 30 minutes, making them ideal for industrial settings where environmental conditions are harsh. If you're working on underwater sensor systems, outdoor security cameras, or any project involving wet environments, these connectors are a solid choice.
One thing worth noting is their versatility in pin counts—ranging from 15 to 254 pins, they offer flexibility in signal and power transmission requirements. Engineers tend to reach for this when they need a reliable connection that can handle both high and low voltage signals while maintaining a watertight seal. Another practical aspect is their durability; they are constructed with materials that resist corrosion and wear, ensuring long-term performance even in challenging conditions.
Series Images (10)
Documents & Media
Frequently Asked Questions
680S13W seal-d 680 - Part List
8 parts in total| Mfr Part # | Quantity Available | Price | Category | Tradename | Standard Package | RoHS | Current Rating (Max) | Color | Packaging | Shell Size | Termination | Contact Type | Connector Type | Contact Finish | Mounting Style | Number of Rows | Shell Material | Connector Style | Termination Style | Number of Contacts | Number of Positions | Shell Material, Finish | Contact Layout, Typical | Contact Finish Thickness | Shell Size, Connector Layout | Gender | Ingress Protection | Housing Material | Operating Temperature | SVHC | Tariff No | Weight | Mounting Type | Flange Feature | Insertion Angle | Material - Body | Contact Termination | Series | Other Names | Insulation | Shell Plating | Contact Material | Insulation Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

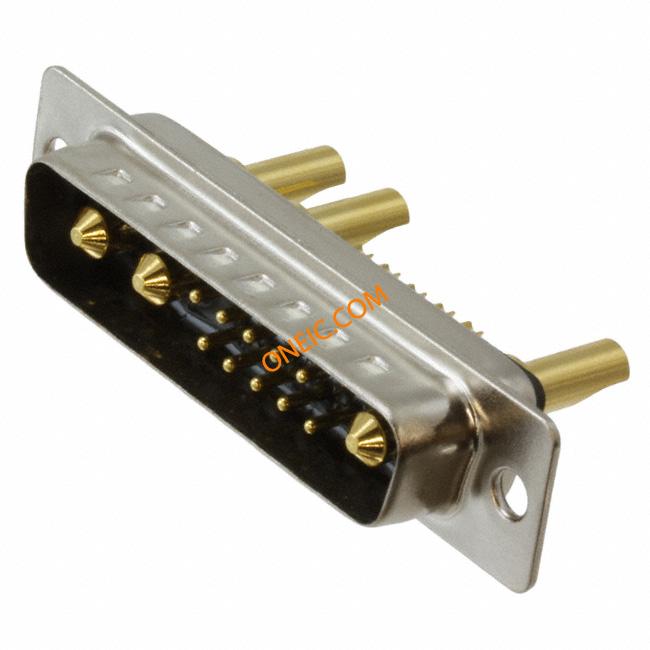

 680S13W3103L201 CONN MALE 3W3 20A PWR IP67 CONN D-SUB PLUG 13W3 SLD CUP D-Sub Mixed Contact Connectors IP67 POWER-D 13w3PWR 20A MALE SOLDER CUP D-SUB, COMBO, PLUG, 20AMP, 13WAY Norcomp Inc. | 37 | 1: ¥86.972 | - | POWER-D | 50 | RoHS Compliant | 20A | Black | Tray | :DB | Solder Cup | Power | Plug, Male Pins | Gold | Panel | 1 | Steel | D-Sub, Combo | Through Hole | 25 | 3 (Power) | Steel, Nickel Plated | 13W3 | Flash | 2 (DA, A) - 3W3 | Male | IP67 - Dust Tight, Waterproof | Polybutylene Terephthalate (PBT) | -55°C ~ 155°C | :No SVHC (20-Jun-2013) | 85369010 | 0.0112 | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | :13W3 | :Steel | :Solder | 680S | - | - | - | - | - | Grounding Indents |

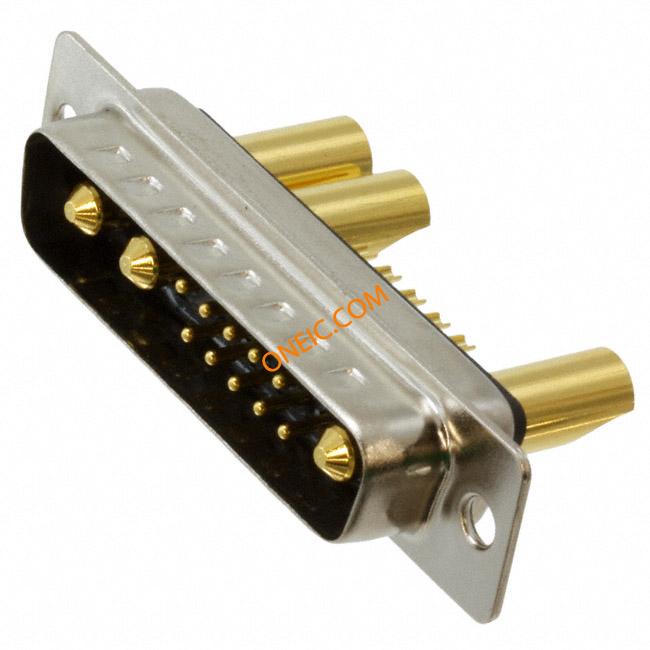

 680S13W3103L401 CONN MALE 13W3 SLD CUP NKL D-Sub Mixed Contact Connectors IP67 POWER-D 13w3PWR 40A MALE SOLDER CUP D-SUB, COMBO, PLUG, 40AMP, 13WAY Norcomp Inc. | 65 | 1: ¥130.5577 | - | POWER-D | 50 | RoHS Compliant | 40A, 5A | Black | Tray | :DB | Solder Cup | Power and Signal | Plug, Male Pins | Gold | Panel | 2 | Steel | D-Sub, Combo | Through Hole | 25 | 13 (10 + 3 Power) | Steel, Nickel Plated | 13W3 | Flash | 3 (DB, B) - 13C3, 13W3 | Male | IP67 - Dust Tight, Waterproof | Polybutylene Terephthalate (PBT) | -55°C ~ 155°C | :No SVHC (20-Jun-2013) | 85369010 | 0.0119 | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | :13W3 | :Steel | :Solder | 680S | - | - | - | - | - | Grounding Indents |

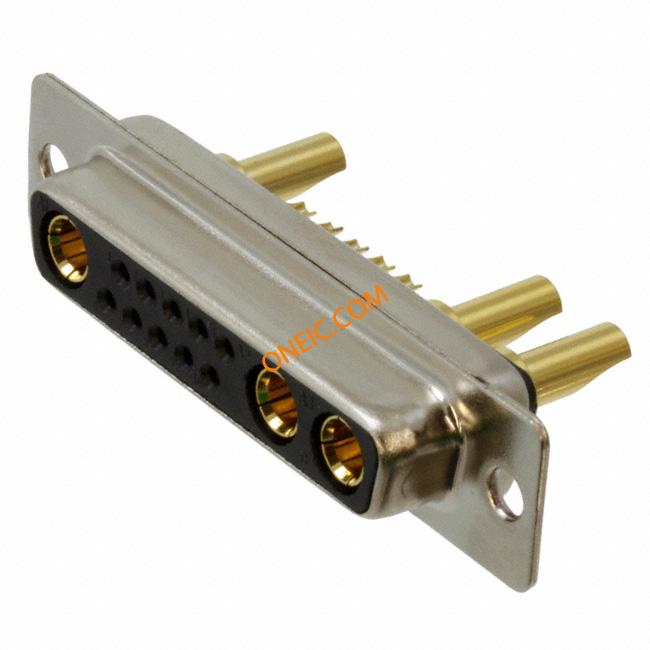

 680S13W3203L201 CONN FEMALE 13W3 SLD CUP IP67 D-Sub Mixed Contact Connectors IP67 POWER-D 13w3PWR 20A FEM SOLDER CUP D-SUB, COMBO, RECEPTACLE, 20AMP, 13WAY Norcomp Inc. | 200 | 1: ¥282.336 | - | POWER-D | 50 | RoHS Compliant | 20A, 5A | Black | Tray | :DB | Solder Cup | Power and Signal | Receptacle, Female Sockets | Gold | Panel | 2 | Steel | D-Sub, Combo | Through Hole | 25 | 13 (10 + 3 Power) | Steel, Nickel Plated | 13W3 | Flash | 3 (DB, B) - 13C3, 13W3 | Female | IP67 - Dust Tight, Waterproof | Polybutylene Terephthalate (PBT) | -55°C ~ 155°C | :No SVHC (20-Jun-2013) | 85369010 | 0.0152 | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | :13W3 | :Steel | :Solder | 680S | - | - | - | - | - | - |
680S13W3203L401 CONN FEM 13W3 SLD CUP IP67 D-Sub Mixed Contact Connectors IP67 POWER-D 13w3PWR 40A FEM SOLDER CUP D-SUB, COMBO, RECEPTACLE, 40AMP, 13WAY Norcomp Inc. | 27 | 1: ¥117.78 | - | POWER-D | 50 | RoHS Compliant | 40A, 5A | Black | Tray | :DB | Solder Cup | Power and Signal | Receptacle, Female Sockets | Gold | Panel | 2 | Steel | D-Sub, Combo | Through Hole | 25 | 13 (10 + 3 Power) | Steel, Nickel Plated | 13W3 | Flash | 3 (DB, B) - 13C3, 13W3 | Female | IP67 - Dust Tight, Waterproof | Polybutylene Terephthalate (PBT) | -55°C ~ 155°C | :No SVHC (20-Jun-2013) | 85369010 | 0.0161 | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | :13W3 | :Steel | :Solder | 680S | - | - | - | - | - | - |

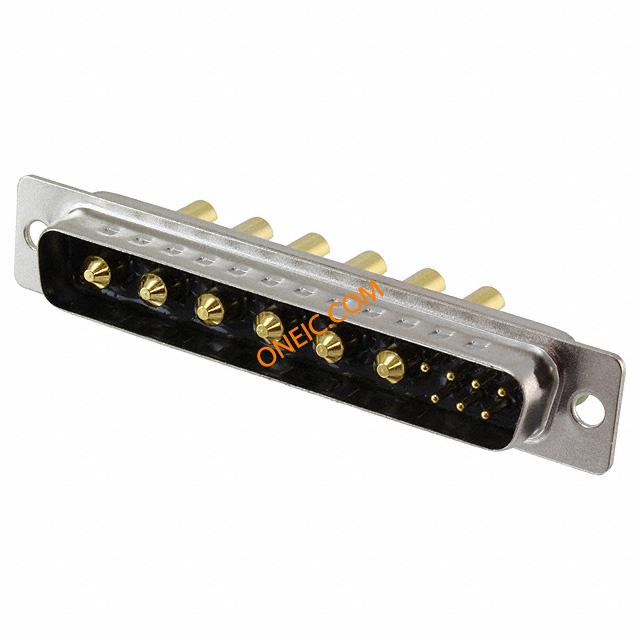

 680S13W6103L201 CONN MALE 13W6 SLD CUP IP67 D-Sub Mixed Contact Connectors IP67 POWER-D 13W6 20A MALE SOLDER Norcomp Inc. | 39 | 1: ¥132.872 | - | POWER-D | 1 | RoHS Compliant | 20A, 5A | Black | Tray | 37P | Solder Cup | Power and Signal | Plug, Male Pins | Gold | Panel | 2 | Steel | D-Sub, Combo | Through Hole | 13 | 13 (7 + 6 Power) | Steel, Nickel Plated | 13W6 | Flash | 4 (DC, C) - 13W6 | Male | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | - | - | - | - | NOR1230 | Insulated | Nickel | Copper Alloy | Polybutylene Terephthalate (PBT) | - |

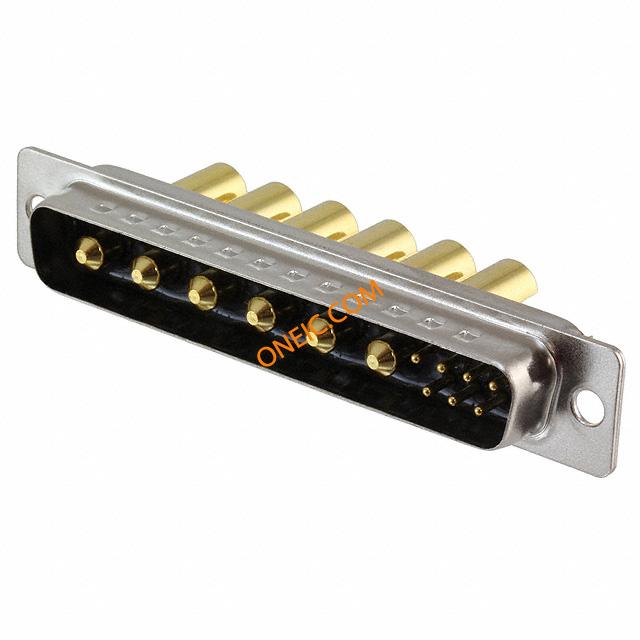

 680S13W6103L401 CONN MALE 13W6 SLD CUP IP67 D-Sub Mixed Contact Connectors IP67 POWER-D 13W6 40A MALE SOLDER Norcomp Inc. | 29 | 1: ¥132.804 | - | POWER-D | 1 | RoHS Compliant | 40A, 5A | Black | Tray | 37P | Solder Cup | Power and Signal | Plug, Male Pins | Gold | Panel | 2 | Steel | D-Sub, Combo | Through Hole | 13 | 13 (7 + 6 Power) | Steel, Nickel Plated | 13W6 | Flash | 4 (DC, C) - 13W6 | Male | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | - | - | - | - | NOR1231 | Insulated | Nickel | Copper Alloy | Polybutylene Terephthalate (PBT) | - |

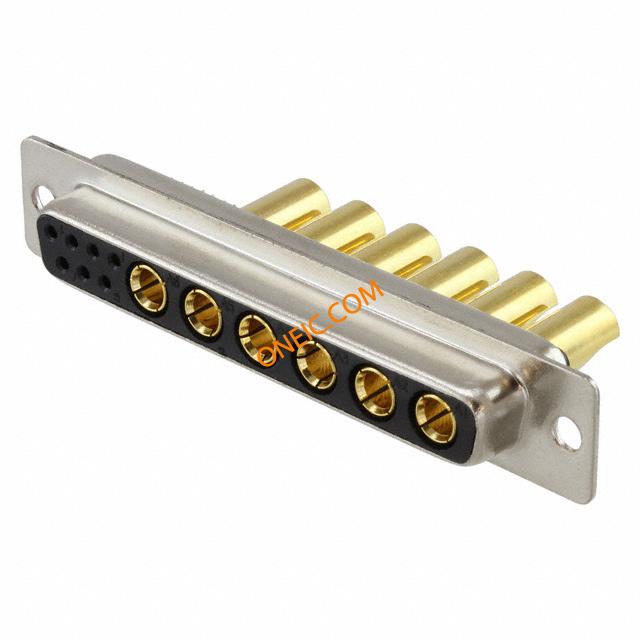

 680S13W6203L401 CONN FEMALE 13W6 SLD CUP IP67 D-Sub Mixed Contact Connectors IP67 POWER-D 13W6 40A FEM SOLDER Norcomp Inc. | 10 | 1: ¥133.076 | - | POWER-D | 1 | RoHS Compliant | 40A, 5A | Black | Tray | 37P | Solder Cup | Power and Signal | Receptacle, Female Sockets | Gold | Panel | 2 | Steel | D-Sub, Combo | Through Hole | 13 | 13 (10 + 3 Power) | Steel, Nickel Plated | 13W6 | Flash | 4 (DC, C) - 13W6 | Female | IP67 - Dust Tight, Waterproof | Polybutylene Terephthalate (PBT) | -55°C ~ 155°C | - | - | - | - | - | - | - | - | - | NOR1233 | Insulated | Nickel | Copper Alloy | Polybutylene Terephthalate (PBT) | - |

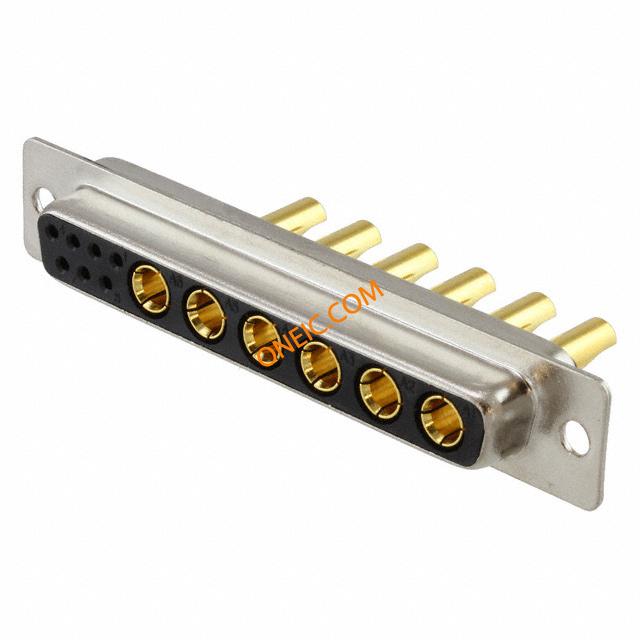

 680S13W6203L201 CONN FEMALE 13W6 SLD CUP IP67 D-Sub Mixed Contact Connectors IP67 POWER-D 13W6 20A FEM SOLDER Norcomp Inc. | 168 | 1: ¥163.20 | - | POWER-D | 1 | RoHS Compliant | 5A, 20A | Black | Tray | 37P | Solder Cup | Power and Signal | Receptacle, Female Sockets | Gold | Panel | 2 | Steel | D-Sub, Combo | Through Hole | 13 | 13 (10 + 3 Power) | Steel, Nickel Plated | 13W6 | Flash | 4 (DC, C) - 13W6 | Female | IP67 - Dust Tight, Waterproof | Polybutylene Terephthalate (PBT) | -55°C ~ 155°C | - | - | - | - | - | - | - | - | - | NOR1232 | Insulated | Nickel | Copper Alloy | Polybutylene Terephthalate (PBT) | - |
