7023-D LED Series

LED drivers with various current outputs

The 7023-D series from LEDdynamics, Inc., is a line of LED drivers designed to power a wide range of lighting fixtures. These drivers come in different current outputs, allowing them to be tailored to specific needs. If you're working on projects involving large arrays of LEDs or need precise control over current, these drivers are a solid choice.

One thing worth noting is their flexibility in handling different types of LED strings. Whether you're dealing with high-power LEDs or arrays that require dimming, the 7023-D series can adapt to fit. Engineers tend to reach for this when they need reliable, high-performance drivers that can handle the demands of commercial or industrial lighting setups without overheating or failing.

Another practical benefit is their compact size, which makes them suitable for installations where space is at a premium. This is particularly useful in retrofits or when integrating new lighting into existing structures. Additionally, the series often includes features like overcurrent protection and thermal management, ensuring longevity and safety in use.

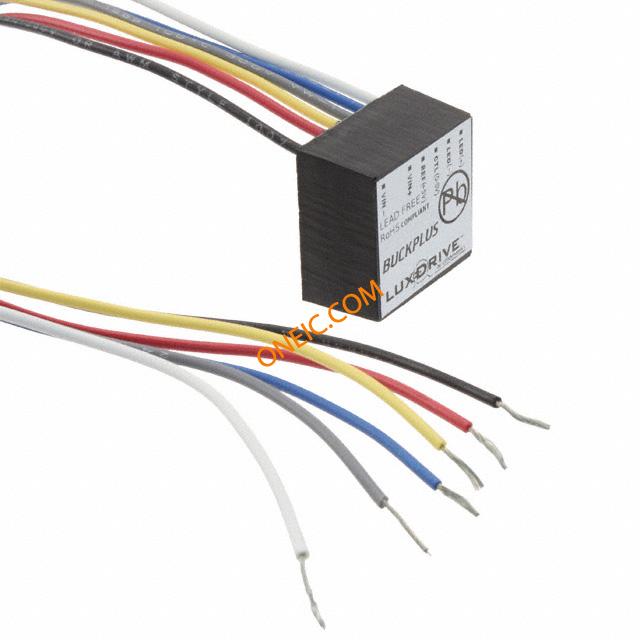

Series Images (1)

Documents & Media

Online Document

Frequently Asked Questions

Content generated by AI, for reference only
Loading...
03

7023-D LED - Part List

12 parts in total

Other Names

Power (Watts)

Current - Output

Standard Package

Mfr Part #Quantity AvailablePriceCategoryOther NamesStandard PackageEfficiencyPower (Watts)Current - OutputNumber of OutputsVoltage - Input (Min)Mounting TypeSize / DimensionTermination StyleTypeFeaturesTopologyOperating TemperatureDimming
7023-D-N-1000
7023-D-N-1000

LED DVR BUCKPLUS 1000MA 4LEAD LED SUPPLY CC BUCK 32V 1A

LEDdynamics Inc

851: ¥108.732-788-10301095%32W1A132V (Max)Chassis Mount0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)Wire LeadsConstant CurrentSCPBuck-40°C ~ 80°C-
7023-D-E-1000
7023-D-E-1000

LED DVR BUCKPLUS 1000MA 6LD DIM LED SUPPLY CC BUCK 32V 1A

LEDdynamics Inc

291: ¥115.532-788-10221095%32W1A132V (Max)Chassis Mount0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)Wire LeadsConstant CurrentSCPBuck-40°C ~ 80°CAnalog
7023-D-E-350
7023-D-E-350

LED DVR BUCKPLUS 350MA 6LD DIM LED SUPPLY CC BUCK 32V 350MA

LEDdynamics Inc

0-788-10231095%11W350mA132V (Max)Chassis Mount0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)Wire LeadsConstant CurrentSCPBuck-40°C ~ 80°CAnalog
7023-D-E-700
7023-D-E-700

LED DVR BUCKPLUS 700MA 6LD DIM LED SUPPLY CC BUCK 32V 700MA

LEDdynamics Inc

0-788-10251095%22W700mA132V (Max)Chassis Mount0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)Wire LeadsConstant CurrentSCPBuck-40°C ~ 80°CAnalog
7023-D-E-500
7023-D-E-500

LED DVR BUCKPLUS 500MA 6LD DIM LED SUPPLY CC BUCK 32V 500MA

LEDdynamics Inc

0-788-10241095%16W500mA132V (Max)Chassis Mount0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)Wire LeadsConstant CurrentSCPBuck-40°C ~ 80°CAnalog
7023-D-I-1000
7023-D-I-1000

LED DVR BUCKPLUS 1000MA DIM/CUR LED SUPPLY CC BUCK 32V 1A

LEDdynamics Inc

0-788-10262595%32W1A132V (Max)Chassis Mount0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)Wire LeadsConstant CurrentSCPBuck-40°C ~ 80°CAnalog
7023-D-I-350
7023-D-I-350

LED DVR BUCKPLUS 350MA DIM/CUR LED SUPPLY CC BUCK 32V 350MA

LEDdynamics Inc

0-788-10272595%11W350mA132V (Max)Chassis Mount0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)Wire LeadsConstant CurrentSCPBuck-40°C ~ 80°CAnalog
7023-D-I-500
7023-D-I-500

LED DVR BUCKPLUS 500MA DIM/CUR LED SUPPLY CC BUCK 32V 500MA

LEDdynamics Inc

0-788-10282595%16W500mA132V (Max)Chassis Mount0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)Wire LeadsConstant CurrentSCPBuck-40°C ~ 80°CAnalog
7023-D-I-700
7023-D-I-700

LED DVR BUCKPLUS 700MA DIM/CUR LED SUPPLY CC BUCK 32V 700MA

LEDdynamics Inc

0-788-10292595%22W700mA132V (Max)Chassis Mount0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)Wire LeadsConstant CurrentSCPBuck-40°C ~ 80°CAnalog
7023-D-N-350
7023-D-N-350

LED DVR BUCKPLUS 350MA 4 LEAD LED SUPPLY CC BUCK 32V 350MA

LEDdynamics Inc

0-788-10311095%11W350mA132V (Max)Chassis Mount0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)Wire LeadsConstant CurrentSCPBuck-40°C ~ 80°C-
7023-D-N-500
7023-D-N-500

LED DVR BUCKPLUS 500MA 4 LEAD LED SUPPLY CC BUCK 32V 500MA

LEDdynamics Inc

0-788-10321095%16W500mA132V (Max)Chassis Mount0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)Wire LeadsConstant CurrentSCPBuck-40°C ~ 80°C-
7023-D-N-700
7023-D-N-700

LED DVR BUCKPLUS 700MA 4 LEAD LED SUPPLY CC BUCK 32V 700MA

LEDdynamics Inc

0-788-10331095%22W700mA132V (Max)Chassis Mount0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm)Wire LeadsConstant CurrentSCPBuck-40°C ~ 80°C-
