cigen-7104-24
7104-24 signal relays, up to 2 amp Series
cotorelayReed relays for PC board applications
The 7104-24 signal relays from Coto Technology are reed relays designed for PCB applications. These relays are particularly useful in systems that require high reliability and low contact resistance, such as in automotive electronics, industrial control panels, and medical devices. If you're working on projects involving sensitive analog signals or high-frequency switching, these relays are a solid choice due to their fast switching times and ability to handle up to 2 amps.
One thing worth noting is how engineers tend to reach for these relays when they need a reliable solution for signal isolation and switching without the need for external components. They are also appreciated for their compact size, which makes them ideal for space-constrained PCB designs. Another practical benefit is their long service life, often exceeding 10 million cycles, making them suitable for long-term, mission-critical applications. The reed switch design ensures minimal contact wear, leading to consistent performance over time.

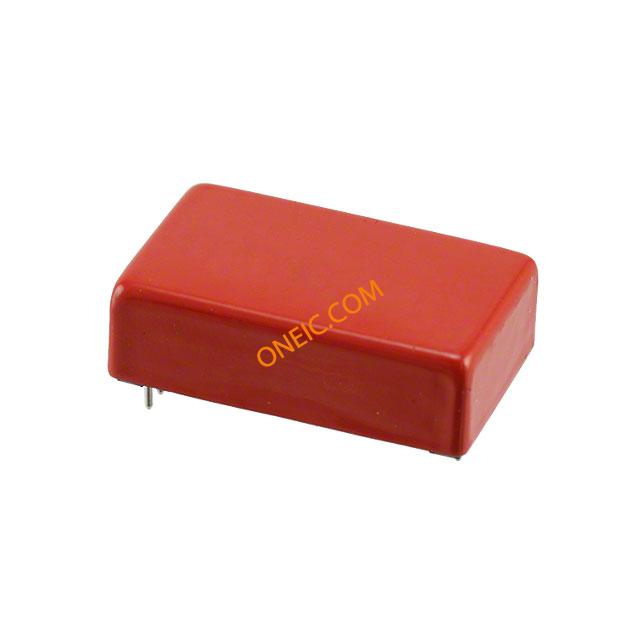

Series Images (4)
Documents & Media
Frequently Asked Questions
7104-24 signal relays, up to 2 amp - Part List
5 parts in total| Mfr Part # | Quantity Available | Price | Category | Standard Package | Coil Type | Coil Current | Release Time | Coil Resistance | Voltage - Supply | Switching Voltage | Vgs(th) (Max) @ Id | Current - Switching | Voltage - Off State | Vce(on) (Max) @ Vge, Ic | Contact Rating (Current) | Contact Rating @ Voltage | Drive Voltage (Max Rds On, Min Rds On) | Packaging | Contact Form | Mounting Type | Termination Style | Contact Layout, Typical | Type | Relay Type | Card Standard | Operate Time | Operating Temperature | Features | Factory Pack Quantity | RoHS | Diode Configuration | Current Rating (Max) | Contact Material | Form | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 7104-24-1100 Reed Relays REED RELAY DIP DPST 24V W/DIODE RELAY REED 4PST 500MA 24V Reed Relays 4PST-NO 0.5A 24VDC 2KOhm Thru-Hole Reed Relays Coil Voltage: 24 VDC Contact Configuration : 4A 4PST-NO Mounting : PC Board Switching Current : 0.5 Amps Switching Voltage: 200 Volts Coto Technology | 153 | 1: ¥184.756 | - | 21 | Non Latching | 12mA | 0.1ms | 2000 Ohms | 24 V | 200VAC, 200VDC - Max | 2 VDC | 0.5 Amps | 2 VDC | 18 VDC | 500mA | 0.5A @ 200 VAC/DC | 18 VDC | Bulk | 4 Form A (4PST-NO) | Through Hole | PC Pin | 4A 4PST-NO | Relays | Reed | Reed Relay | 1ms | -20°C ~ 85°C | - | 22 | RoHS Compliant | No | 0.5 A | Ruthenium | Potted | 7000 |
 7104-24-1101 RELAY REED 4PST 500MA 24V Reed Relays Coil Voltage: 24 VDC Contact Configuration : 4A 4PST-NO Mounting : PC Board Switching Current : 0.5 Amps Switching Voltage: 200 Volts Coto Technology | 10 | 168: ¥97.7976 | - | 21 | Non Latching | 12mA | 0.1ms | 2 kOhms | 24VDC | 200VAC, 200VDC - Max | 2 VDC | 0.5 Amps | 2 VDC | 18 VDC | 500mA | 0.5A @ 200 VAC/DC | 18 VDC | Bulk | 4PST (4 Form A) | Through Hole | PC Pin | 4A 4PST-NO | Relays | Reed | Reed Relay | 1ms | -20°C ~ 85°C | Diode | - | - | - | - | - | - | - |
7104-24-1010 RELAY REED 4PST 500MA 24V Reed Relays Coil Voltage: 24 VDC Contact Configuration : 4A 4PST-NO Mounting : PC Board Switching Current : 0.5 Amps Switching Voltage: 200 Volts Coto Technology | 106 | 1: ¥210.12 | - | 21 | Non Latching | 12mA | 0.1ms | 2 kOhms | 24VDC | 200VAC, 200VDC - Max | 2 VDC | 0.5 Amps | 2 VDC | 18 VDC | 500mA | 0.5A @ 200 VAC/DC | 18 VDC | Bulk | 4PST (4 Form A) | Through Hole | PC Pin | 4A 4PST-NO | Relays | Reed | Reed Relay | 1ms | -20°C ~ 85°C | Electrostatic Shield | - | - | - | - | - | - | - |
7104-24-1011 RELAY REED 4PST 500MA 24V Reed Relays Coil Voltage: 24 VDC Contact Configuration : 4A 4PST-NO Mounting : PC Board Switching Current : 0.5 Amps Switching Voltage: 200 Volts Coto Technology | 10 | 168: ¥114.2128 | - | 21 | Non Latching | 12mA | 0.1ms | 2 kOhms | 24VDC | 200VAC, 200VDC - Max | 2 VDC | 0.5 Amps | 2 VDC | 18 VDC | 500mA | 0.5A @ 200 VAC/DC | 18 VDC | Bulk | 4PST (4 Form A) | Through Hole | PC Pin | 4A 4PST-NO | Relays | Reed | Reed Relay | 1ms | -20°C ~ 85°C | Diode, Electrostatic Shield | - | - | - | - | - | - | - |

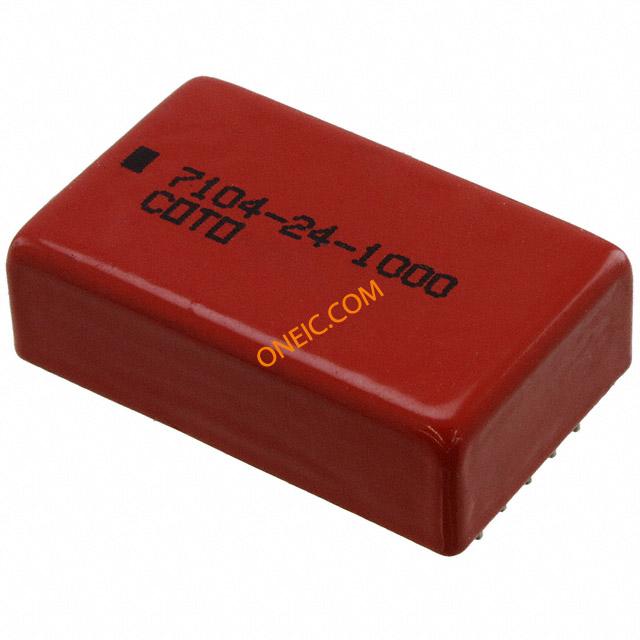

 7104-24-1000 RELAY REED 4PST 500MA 24V Reed Relays 4PST-NO 0.5A 24VDC 2KOhm Thru-Hole Reed Relays Coil Voltage: 24 VDC Contact Configuration : 4A 4PST-NO Mounting : PC Board Switching Current : 0.5 Amps Switching Voltage: 200 Volts Coto Technology | 40 | 1: ¥184.688 | - | 21 | Non Latching | 12mA | 0.1ms | 2 kOhms | 24VDC | 200VAC, 200VDC - Max | 2 VDC | 0.5 Amps | 2 VDC | 18 VDC | 500mA | 0.5A @ 200 VAC/DC | 18 VDC | Bulk | 4PST (4 Form A) | Through Hole | PC Pin | 4A 4PST-NO | Relays | Reed | Reed Relay | 1ms | -20°C ~ 85°C | - | - | - | - | - | - | - | - |
