cigen-773-E25
773-E25 seal-d 773-e Series
D - Sub connectors with IP67 rating
The 773-E25 seal-d series from NorComp Inc. is a line of sub connectors designed for harsh environments, offering an IP67 rating. These connectors are perfect for projects that require reliable electrical connections in wet or dusty conditions, such as outdoor lighting systems, industrial machinery, or automotive applications. The IP67 rating means they can withstand water immersion up to 1 meter deep for 30 minutes without degrading performance. This makes them ideal for marine environments or areas prone to heavy rain.
One thing worth noting is their robust design, which includes a durable sealing mechanism that ensures long-term reliability even under mechanical stress. Engineers tend to reach for these when they need a connector that can handle both water and dust while maintaining consistent electrical performance. Another practical benefit is their ease of installation; the sub connectors are designed to be quick and simple to install, reducing downtime and labor costs during setup or maintenance. Overall, the 773-E25 seal-d series provides a solid solution for any project requiring a high level of environmental protection for its electrical connections.
Series Images (8)
Documents & Media
Frequently Asked Questions
773-E25 seal-d 773-e - Part List
8 parts in total| Mfr Part # | Quantity Available | Price | Category | RoHS | Packaging | Standard Package | Current Rating (Max) | Color | Termination | Contact Type | Mounting Type | Shell Plating | Connector Type | Contact Finish | Flange Feature | Number of Rows | Connector Style | Housing Material | Termination Style | Number of Contacts | Number of Positions | Shell Material, Finish | Contact Finish Thickness | Shell Size, Connector Layout | Gender | Series | Ingress Protection | Operating Temperature | Tradename | Features | Height | Shell Material | Contact Material | Seal Rating | Mounting Style | Mechanical Life | Voltage Rating | Pitch | Insulation | SVHC | Tariff No | Range deg/s | Weight | Shell Size | Material - Body | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
773-E25-113R001 D-Sub Standard Connectors IP67 25P MALE CONN R/A .283 FP CONN DB-25PS MALE R/A .283" IP67 DSUB, PLUG, IP67, THT, 25WAY NorComp | 17 | 1: ¥65.484 | - | RoHS Compliant | Tray | 50 | 5 A | White | Solder | Signal | Right | Nickel | Plug, Male Pins | Gold | Housing/Shell (Unthreaded) | 2 | D-Sub | Polyamide (PA6T), Nylon 6T | Solder | 25 | 25 | Steel, Nickel Plated | Flash | 3 (DB, B) | Male | :773 | IP67 - Dust Tight, Waterproof | -50°C ~ 100°C | SEAL-D | Grounding Indents | - | - | - | - | Panel | New Technology: Cutting edge technology for the newest designs. | - | - | - | :No SVHC (20-Jun-2013) | 85369010 | :NORCOMP - Seal D Series | 0.0119 | :DB | :Steel | :Solder |

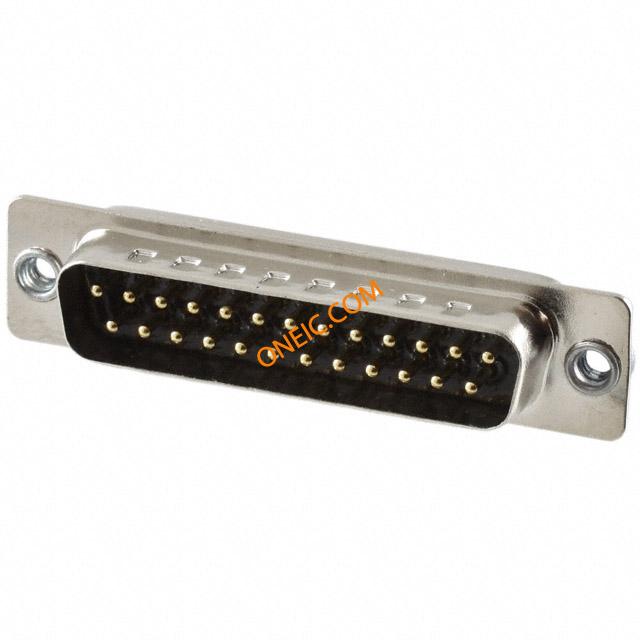

773-E25-113R011 D-Sub Standard Connectors IP67 25P MALE CONN R/A .283 W/CLCH NUT CONN DB-25PS MALE R/A .283" IP67 NorComp | 30 | 1: ¥68.272 | - | RoHS Compliant | Tray | 50 | 5 A | White | Solder | Signal | Right | Nickel | Plug, Male Pins | Gold | Board Side (4-40) | 2 | D-Sub | Polyamide (PA6T), Nylon 6T | Solder | 25 | 25 | Steel, Nickel Plated | Flash | 3 (DB, B) | Male | 773 | IP67 - Dust Tight, Waterproof | - 50 C to + 100 C | - | Grounding Indents | 0.161 in | Steel | Brass | IP 67 | Panel | New Technology: Cutting edge technology for the newest designs. | 500 VAC | - | - | - | - | - | - | - | - | - |

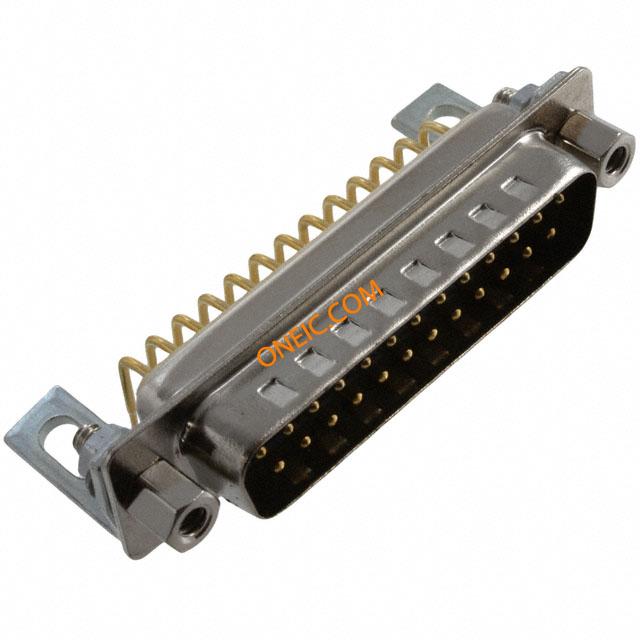

773-E25-113R141 D-Sub Standard Connectors IP67 25P MALE CONN R/A .283 W/4-40HDWR CONN DB-25PS MALE R/A .283" IP67 NorComp | 15 | 1: ¥70.856 | - | RoHS Compliant | Tray | 20 | 5 A | White | Solder | Signal | Right | Nickel | Plug, Male Pins | Gold | Mating Side; Female Screwlock (4-40) | 2 | D-Sub | Polyamide (PA6T), Nylon 6T | Solder | 25 | 25 | Steel, Nickel Plated | Flash | 3 (DB, B) | Male | 773 | IP67 - Dust Tight, Waterproof | - 50 C to + 100 C | SEAL-D | Grounding Indents, Mounting Hardware | 0.161 in | Steel | Brass | IP 67 | Panel | New Technology: Cutting edge technology for the newest designs. | 500 VAC | - | - | - | - | - | - | - | - | - |

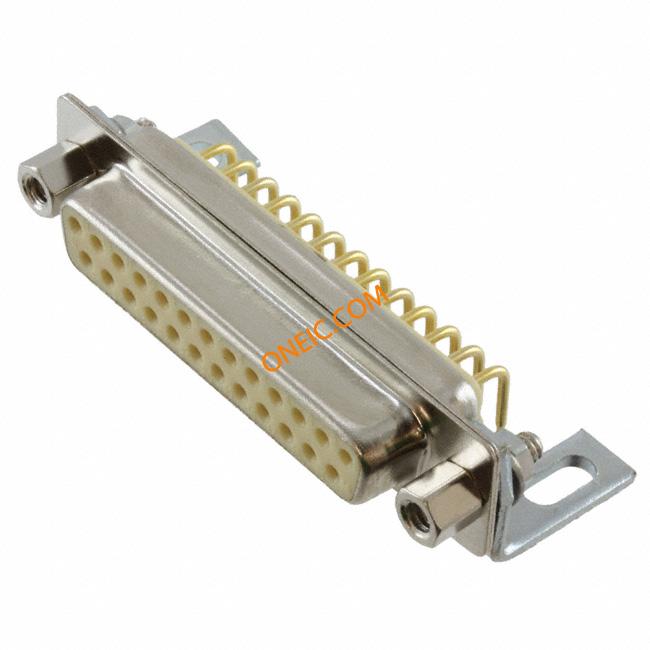

773-E25-213R141 CONN DB-25PS FEMALE R/A IP67 D-Sub Standard Connectors IP67 25P FEMALE CONN R/A .283 FP Norcomp Inc. | 13 | 1: ¥123.216 | - | Lead free / RoHS Compliant | Tray | 20 | 5A | White | Solder | Signal | Through Hole, Right Angle | Nickel | Receptacle, Female Sockets | Gold | Mating Side; Female Screwlock (4-40) | 2 | D-Sub | Polyamide (PA6T), Nylon 6T | Through Hole | 25 | 25 | Steel, Nickel Plated | Flash | 3 (DB, B) | Female | 773-E | IP67 - Dust Tight, Waterproof | -50°C ~ 100°C | SEAL-D | Mounting Hardware | 12.6 mm | Steel | Brass | IP 67 | - | - | - | 2.54 mm | Not Insulated | - | - | - | - | - | - | - |

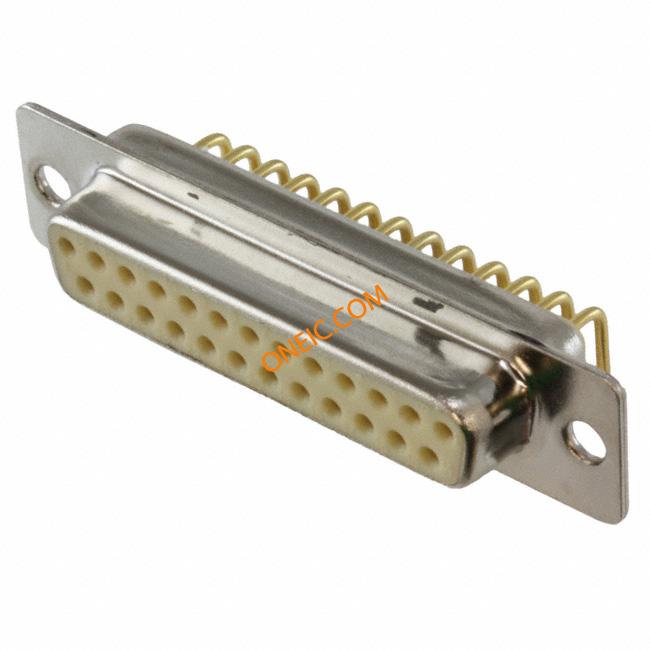

773-E25-213R001 CONN DB-25POS FEMALE R/A IP67 D-Sub Standard Connectors IP67 25P FEMALE CONN R/A .283 W/4-40HDWR Norcomp Inc. | 50 | 1: ¥114.512 | - | RoHS Compliant | Tray | 50 | 5A | White | Solder | Signal | Through Hole, Right Angle | Nickel | Receptacle, Female Sockets | Gold | Housing/Shell (Unthreaded) | 2 | D-Sub | Polyamide (PA6T), Nylon 6T | Through Hole | 25 | 25 | Steel, Nickel Plated | Flash | 3 (DB, B) | Female | 773-E | IP67 - Dust Tight, Waterproof | -50°C ~ 100°C | SEAL-D | - | 12.6 mm | Steel | Brass | IP 67 | - | - | - | 2.54 mm | Not Insulated | - | - | - | - | - | - | - |
| 10 | 26: ¥97.716 | - | RoHS Compliant | Tray | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
773-E25-113R461 NORCOMP | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
773-E25-213R461 NORCOMP | 10 | 1: ¥183.9201 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
