cigen-8185GM
8185GM Dualmat two - layer ESD rubber Series
Dualmat two - layer ESD rubber worktop mats
The 8185GM Dualmat two-layer ESD rubber worktop mats from ACL Staticide, Inc., are designed to provide a static-dissipative surface for sensitive electronic equipment. These mats feature a top layer of conductive rubber and a bottom layer of non-conductive rubber, creating an effective ESD-safe workspace. If you're working on assembly lines, test benches, or clean rooms where static discharge could damage delicate components, these mats are invaluable.
One thing worth noting is their dual-layer construction. The top layer dissipates static charges away from the work surface, while the bottom layer helps prevent the mat from sliding around, providing stability during use. Engineers tend to reach for this when they need a reliable, static-free environment for handling electronics. Another practical benefit is that these mats are easy to clean and maintain, which is crucial in environments where cleanliness and minimal particle generation are paramount.
These mats are commonly found in semiconductor fabrication facilities, electronics manufacturing plants, and research laboratories. They help ensure that operators do not inadvertently generate static charges that could harm sensitive devices. Overall, the 8185GM Dualmat two-layer ESD rubber worktop mats are a solid investment for any workspace requiring high levels of ESD protection.
Series Images (8)
Documents & Media
Frequently Asked Questions
8185GM Dualmat two - layer ESD rubber - Part List
8 parts in total| Mfr Part # | Quantity Available | Price | Category | Standards | Switch Time (Ton, Toff) (Max) | Color | Width | Length | Thickness | Surface Type | Material Finish | Size / Dimension | Color - Actuator/Cap | Includes | Manufacturer | Product Type | Number of Layers | Other Names | Standard Package | Shape | Material | Features | Mat Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8185GM2436 MAT TABLE ESD 24"X36" GREEN Dualmat⢠2-Layer Diss/Cond Rubber Worktop Mat with Two Snaps, Green/Black, 24" x 36" x .080" ACL Staticide Inc | 11 | 1: ¥462.264 | - | ESDA Complaint, RoHS Complaint, ANSI/ESD S4.1, ANSI/ESD STM 11.12 | 0.05s | Green | 2' (0.61m) | 3' (0.91m) | 0.08" (2.03mm) | Embossed | Static Dissipative | 36 x 24 x 0.08in | Green|Black | Ground Snap (2) | ACL Staticide | Work Surface Mat | 2 | ST1051 | 1 | Rectangle | Elastomer | Dissipative | Table, Workbench |
8185GM2448 MAT TABLE ESD 24"X48" GREEN Dualmat⢠2-Layer Diss/Cond Rubber Worktop Mat with Two Snaps, Green/Black, 24" x 48" x .080" ACL Staticide Inc | 15 | 1: ¥604.384 | - | ESDA Complaint, RoHS Complaint, ANSI/ESD S4.1, ANSI/ESD STM 11.12 | 0.05s | Green | 2' (0.61m) | 4' (1.22m) | 0.08" (2.03mm) | Embossed | Static Dissipative | 48 x 24 x 0.08in | Green|Black | Ground Snap (2) | ACL Staticide | Work Surface Mat | 2 | ST1052 | 1 | Rectangle | Elastomer | Dissipative | Table, Workbench |
8185GM3060 MAT TABLE ESD 30"X60" GREEN Dualmat® 2-Layer Dissipative/Conductive Rubber Worktop Mat with Two Snaps, Green/Black, 30 x 60 x .080" ACL Staticide Inc | 10 | 1: ¥944.384 | - | ESDA Complaint, RoHS Complaint, ANSI/ESD S4.1, ANSI/ESD STM 11.12 | 0.05s | Green | 2.5' (0.76m) | 5' (1.52m) | 0.08" (2.03mm) | Embossed | Static Dissipative | 60 x 30 x 0.08in | Green|Black | Ground Snap (2) | ACL Staticide | Work Surface Mat | 2 | ST1055 | 1 | Rectangle | Elastomer | Dissipative | Table, Workbench |
8185GM2472 MAT TABLE ESD 24"X72" GREEN Dualmat® 2-Layer Dissipative/Conductive Rubber Worktop Mat with Two Snaps, Green/Black, 24 x 48 x .080" ACL Staticide Inc | 10 | 1: ¥906.576 | - | ESDA Complaint, RoHS Complaint, ANSI/ESD S4.1, ANSI/ESD STM 11.12 | 0.05s | Green | 2' (0.61m) | 6' (1.83m) | 0.08" (2.03mm) | Embossed | Static Dissipative | 72 x 24 x 0.08in | Green|Black | Ground Snap (2) | ACL Staticide | Work Surface Mat | 2 | ST1054 | 1 | Rectangle | Elastomer | Dissipative | Table, Workbench |
8185GM3072 MAT TABLE ESD 30"X72" GREEN Dualmat⢠2-Layer Diss/Cond Rubber Worktop Mat with Two Snaps, Green/Black, 30" x 72" x .080" ACL Staticide Inc | 10 | 1: ¥1,133.22 | - | ESDA Complaint, RoHS Complaint, ANSI/ESD S4.1, ANSI/ESD STM 11.12 | 0.05s | Green | 2.5' (0.76m) | 6' (1.83m) | 0.08" (2.03mm) | Embossed | Static Dissipative | 72 x 30 x 0.08in | Green|Black | Ground Snap (2) | ACL Staticide | Work Surface Mat | 2 | ST1056 | 1 | Rectangle | Elastomer | Dissipative | Table, Workbench |

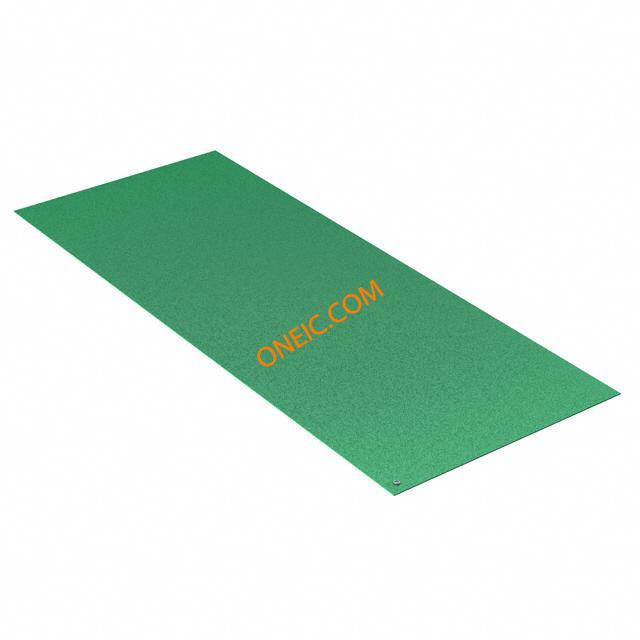

8185GM2460 MAT TABLE ESD 24"X60" GREEN Dualmat® 2-Layer Dissipative/Conductive Rubber Worktop Mat with Two Snaps, Green/Black, 24 x 60 x .080" ACL Staticide Inc | 11 | 1: ¥755.48 | - | ESDA Complaint, RoHS Complaint, ANSI/ESD S4.1, ANSI/ESD STM 11.12 | 0.05s | Green | 2' (0.61m) | 5' (1.52m) | 0.08" (2.03mm) | Embossed | Static Dissipative | 60 x 24 x 0.08in | Green|Black | Ground Snap (2) | ACL Staticide | Work Surface Mat | 2 | ST1053 | 1 | Rectangle | Elastomer | Dissipative | Table, Workbench |
8185GM3660 MAT TABLE ESD 36"X60" GRN Dualmat® 2-Layer Dissipative/Conductive Rubber Worktop Mat with Two Snaps, Green/Black, 36 x 60 x .080" ACL Staticide Inc | 0 | - | ESDA Complaint, RoHS Complaint, ANSI/ESD S4.1, ANSI/ESD STM 11.12 | 0.05s | Green|Black | 36in | 60in | 0.08in | Embossed | Static Dissipative | 60 x 36 x 0.08in | Green|Black | 2 x 10mm Ground Snaps | ACL Staticide | Work Surface Mat | 2 | - | - | - | - | - | - | |
8185GM3672 MAT TABLE ESD 36"X72" GRN Dualmat® 2-Layer Dissipative/Conductive Rubber Worktop Mat with Two Snaps, Green/Black, 36 x 72 x .080" ACL Staticide Inc | 0 | - | ESDA Complaint, RoHS Complaint, ANSI/ESD S4.1, ANSI/ESD STM 11.12 | 0.05s | Green|Black | 36in | 72in | 0.08in | Embossed | Static Dissipative | 72 x 36 x 0.08in | Green|Black | 2 x 10mm Ground Snaps | ACL Staticide | Work Surface Mat | 2 | - | - | - | - | - | - |
