cigen-944U101K
944U101K passive component Series
cornell-dubilier100μF polypropylene film screw capacitors
The 944U101K series from Cornell Dubilier is a lineup of 100μF polypropylene film screw capacitors. These components are designed for a variety of applications, including power supply filtering, coupling, and decoupling circuits. If you're working on designs that require high capacitance values in compact spaces, these screw capacitors are a solid choice. They offer excellent stability and low temperature coefficients, making them reliable in a wide range of operating conditions.
One thing worth noting is their robustness—polypropylene film capacitors are known for their durability and ability to handle high ripple currents without degrading. This makes them particularly useful in switching power supplies and other high-frequency applications where other types of capacitors might struggle. Engineers tend to reach for these when they need a capacitor that can withstand the rigors of modern electronics without compromising on performance. The screw mounting design also provides a secure and easy-to-install solution, fitting well into various circuit board layouts.
Series Images (15)
Documents & Media
Frequently Asked Questions
944U101K passive component - Part List
6 parts in total| Mfr Part # | Quantity Available | Price | Category | Product | Product Category | Standard Package | RoHS | Tolerance | Capacitance | Voltage Rating | ESR (Equivalent Series Resistance) | Diameter | Packaging | Termination | Lead Spacing | Mounting Type | Package / Case | Size / Dimension | Termination Style | Dielectric Material | Height - Seated (Max) | Type | Series | Applications | Product Type | Rated Life | Operating Temperature | Other Names | Material - Blade | Tariff No | Rad Hardened | Voltage | Range deg/s | Capacitance - Input | Size | Depth | Height | Weight | Construction | Height (Max) | Mounting Style | Length - Overall | Diameter - Small Outside | Failure Rate | Temperature Coefficient | メーカ | SVHC | Core Type | Pitch | End - Size | Size - Body | Diameter - Outside, Non-Expanded | Card Standard | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 944U101K102ABM Film Capacitors 100uF 1000Volts M8 Stud CAP FILM 100UF 1KVDC SCREW Capacitor;PolypropyleneFilm;Cap100uF;Vol-Rtg1000V Cornell Dubilier | 10 | 1: ¥648.652 | - | DC Link Film Capacitors | Film Capacitors | 1 | RoHS Compliant | 10 % | 100 uF | 1 kV | 0.8 mOhms | 84.5 mm | Bulk | Screw Terminals | 45 mm | Chassis Mount, Flange | 51 mm | 3.327" Dia (84.50mm) | Screw | Polypropylene (PP) | 2.047" (52.00mm) | Polypropylene Film Capacitors for DC Filtering | 944U | DC Link, DC Filtering | DC Link | 10000 hr | - 40 C to + 85 C | 338-1924 | PolypropyleneMetallized | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

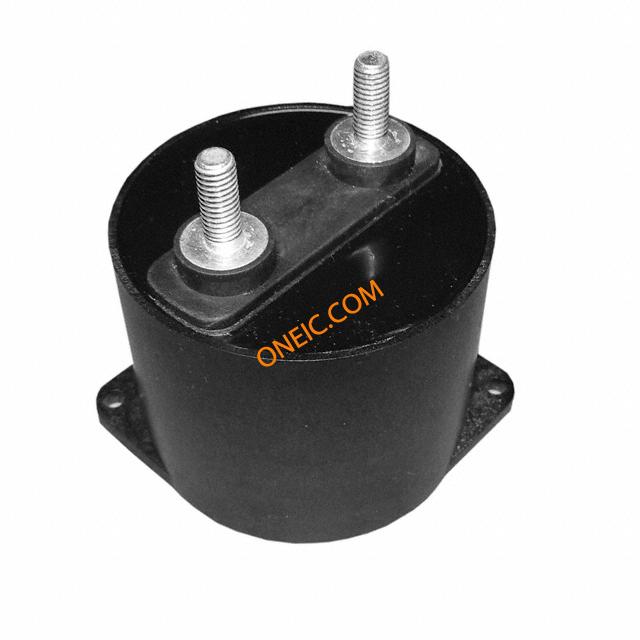

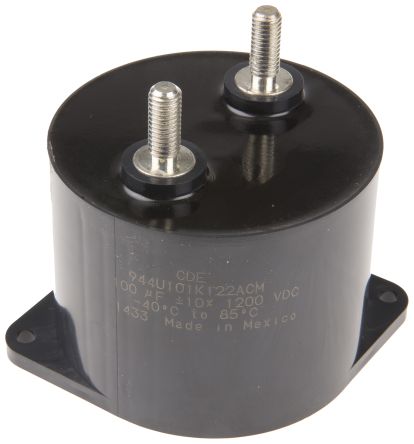

944U101K122ACM Film Capacitors 100uF 1200Volts M8 Stud フィルムコンデンサ 100uF 1200Volts M8 Stud CAP FILM 100UF 1.2KVDC SCREW Cornell-Dubilier 100μF ±10% 1200V dc Stud Mount Polypropylene Film Capacitor 84.5mm Cap Film 100uF 1200V PP 10% (84.5 X 64mm) Screw Mount Plastic Can 85C CAP, FILM, PP, 100UF, 1200V, SCREW Capacitor;PolypropyleneFilm;Cap100uF;Vol-Rtg1200V Cornell-Dubilier 944U 系列 100μF 聚丙烯电容器 (PP), ±10%, 1200 V 直流, 螺柱安装, 84.5mm直径 Cornell Dubilier | 162 | 1: ¥428.808 | - | DC Link Film Capacitors | Film Capacitors | 1 | RoHS Compliant | 10 % | 100 uF | 1.2 kV | 1.3 mOhms | 84.5 mm | Bulk | Screw Terminals | 45 mm | Chassis Mount, Flange | 64 mm | 3.327" Dia (84.50mm) | Screw | Polypropylene (PP) | 2.559" (65.00mm) | Polypropylene Film Capacitors for DC Filtering | 944U | DC Link, DC Filtering | DC Link | 10000 hr | - 40 C to + 85 C | 338-1921 | PolypropyleneMetallized | 85322500 | No | 1200VDC | :CORNELL DUBILIER - 944U Series | :CAN | 84.5 mm Dia. x 64 mm L | Not Required mm | 64 mm | 0.1 | Plastic Can | Not Required mm | Screw | Not Required mm | Not Required mm | Not Required | PP | Cornell Dubilier | :No SVHC (20-Jun-2013) | Polypropylene (PP) | 45 mm | Screw | 64 mm | 84.5 mm | フィルムコンデンサ | - 40 C to + 85 C |

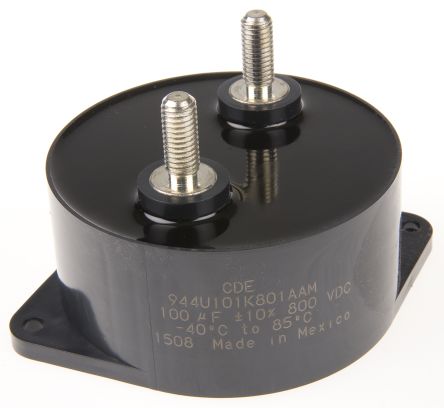

944U101K801AAM Film Capacitors 100uF 800Volts M8 Stud CAP FILM 100UF 800VDC SCREW Cornell-Dubilier 100μF ±10% 800V dc Stud Mount Polypropylene Film Capacitor 84.5mm Cap Film 100uF 800V PP 10% (84.5 X 40mm) Screw Mount Plastic Can 85C CAPACITOR PP FILM, 100UF, 800V 10% Capacitor;PolypropyleneFilm;Cap100uF;Vol-Rtg800V Cornell-Dubilier 944U 系列 100μF 聚丙烯电容器 (PP), ±10%, 800 V 直流, 螺柱安装, 84.5mm直径 Cornell Dubilier | 26 | 1: ¥423.708 | - | DC Link Film Capacitors | Film Capacitors | 1 | RoHS Compliant | 10 % | 100 uF | 800 V | 0.5 mOhms | 84.5 mm | Bulk | Screw Terminals | 45 mm | Chassis Mount, Flange | 40 mm | 3.327" Dia (84.50mm) | Screw | Polypropylene (PP) | 1.614" (41.00mm) | Polypropylene Film Capacitors for DC Filtering | 944U | DC Link, DC Filtering | DC Link | 10000 hr | - 40 C to + 85 C | 338-1918 | PolypropyleneMetallized | 85322500 | No | 800VDC | :CORNELL DUBILIER - 944U Series | :Can | 84.5 X 40 | Not Required mm | 40 mm | 0 | Plastic Can | Not Required mm | Screw | Not Required mm | Not Required mm | Not Required | PP | - | - | - | - | - | - | - | - | - |
| 10 | 1: ¥407.048 | - | Metallized Polypropylene Capacitors | Film Capacitors | 1 | RoHS Compliant | 10 % | 100 uF | 800 V | 0.5 mOhms | 84.5 mm | Bulk | Screw Terminals | 45 mm | Chassis Mount, Flange | 40 mm | 3.327" Dia (84.50mm) | Screw | Polypropylene (PP) | 1.614" (41.00mm) | Polypropylene Film Capacitors for DC Filtering | 944U | DC Link, DC Filtering | DC Link | 10000 hr | - 40 C to + 85 C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

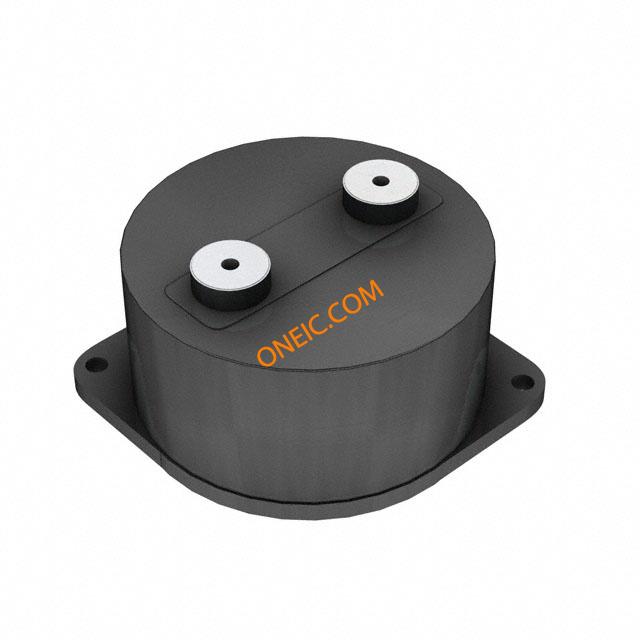

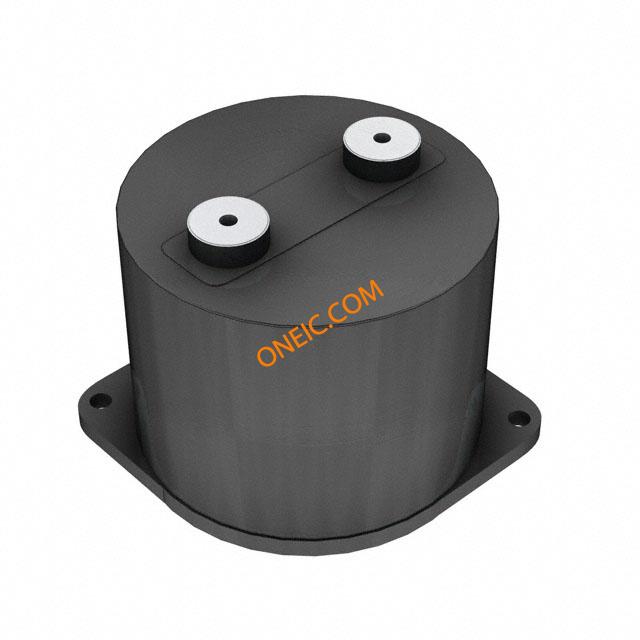

944U101K122ACI Film Capacitors 100uF 1200Volts M5 insert CAP FILM 100UF 1.2KVDC SCREW Cornell Dubilier | 10 | 1: ¥468.52 | - | Metallized Polypropylene Capacitors | Film Capacitors | 1 | RoHS Compliant | 10 % | 100 uF | 1.2 kV | 1.3 mOhms | 84.5 mm | Bulk | Screw Terminals | 45 mm | Chassis Mount, Flange | 64 mm | 3.327" Dia (84.50mm) | Screw | Polypropylene (PP) | 2.559" (65.00mm) | Polypropylene Film Capacitors for DC Filtering | 944U | DC Link, DC Filtering | DC Link | 10000 hr | - 40 C to + 85 C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | 7: ¥501.84 | - | Metallized Polypropylene Capacitors | Film Capacitors | 1 | RoHS Compliant | 10 % | 100 uF | 1 kV | 0.8 mOhms | 84.5 mm | Bulk | Screw Terminals | 45 mm | Chassis Mount, Flange | 51 mm | 3.327" Dia (84.50mm) | Screw | Polypropylene (PP) | 2.047" (52.00mm) | Polypropylene Film Capacitors for DC Filtering | 944U | DC Link, DC Filtering | DC Link | 10000 hr | - 40 C to + 85 C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
