cigen-ACSA04-41

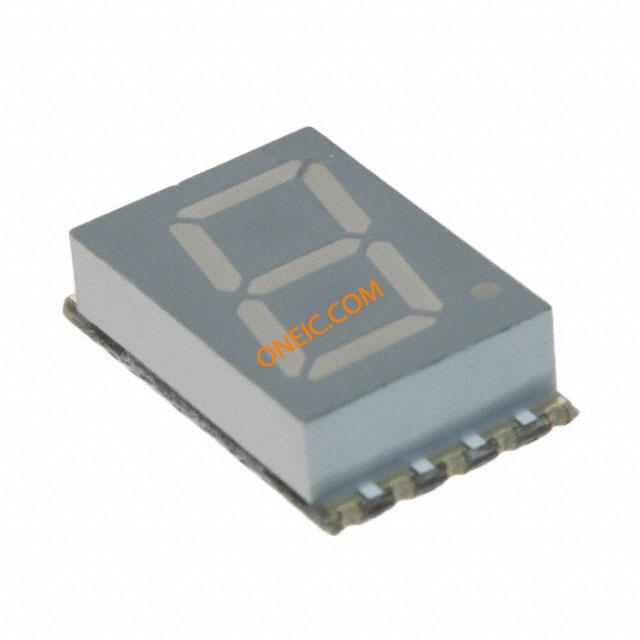

ACSA04-41 optoelectronic Series
kingbright0.4-inch single - digit surface - mount LED displays
The ACSA04-41 optoelectronic series from Kingbright is a compact surface-mount LED display designed for single-digit applications. These displays measure 0.4 inches in diameter, making them ideal for space-constrained environments where a simple numeric readout is needed. If you're working on projects that require small, discrete digital indicators, these displays are a solid choice.
One thing worth noting is their robustness; they are built to withstand harsh conditions, which makes them suitable for industrial settings or outdoor use. Engineers tend to reach for this when they need a reliable, low-profile display option without the complexity of multi-digit modules. Another practical advantage is their low profile, which allows them to fit neatly into tight spaces while still providing clear visibility of the digits. Their surface-mount design simplifies PCB assembly and integration, making them a preferred option for many circuit boards.
Series Images (10)
Documents & Media
Frequently Asked Questions
ACSA04-41 optoelectronic - Part List
9 parts in total| Mfr Part # | Quantity Available | Price | Category | Product Category | Factory Pack Quantity | RoHS | Display Type | Voltage - Supply | Common Pin | Digits or Characters | Luminous Flux @ Current/Temperature | Wavelength | Power - Average Forward | Current - Average Rectified (Io) | Packaging | Illumination Color | Character Size | Operating Temperature | Lead Time | Subcategory | Viewing Area | Standard Package | Luminous Flux | Current - Output | Wavelength - Peak | Millicandela Rating | Wavelength - Dominant | Power Dissipation (Max) | Size | Color | Material | Lens Color | Mounting Type | Package / Case | Size / Dimension | Type | Card Standard | Digit/Alpha Size | Number of Characters | Other Names | Current - Peak Pulse (10/1000us) | LED Color | Mounting Style | Product |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ACSA04-41SRWA-F01 LED Displays & Accessories Single Red 640nm Common Anode DISPLAY 0.4" SGL 660NM RED SMD 0.4INCHSINGLEDIGITREDSMDLEDDISPLAY,SMDDP,T&R Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.4" Color : Red Luminous Intensity (Typ.) : 14000 ucd @10mA Kingbright | 1373 | 1: ¥12.24 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7 Segment | 1.85 V | Common Anode | 1 | 18000 ucd | 640 nm | 75 mW | 20 mA | Reel | Red | 5.6 mm x 10.16 mm | + 85 C | 45 Days | LED Displays Segmented | 5.6 mm x 10.16 mm | 400 | 14000 ucd @10mA | 20mA | 660nm | 14mcd | 640nm | 75mW | 0.4" | Red | GaAlAs | White | Surface Mount | 10-SMD, No Lead | 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) | Displays | Numeric | 0.40" (10.16mm) | 1 | 754-1028-1 | 25mA(perSegment) | Red | SurfaceMount | - |
 ACSA04-41SGWA-F01 LED Displays & Accessories GREEN DIFFUSED 1 DIGIT DISPLAY 0.4" SGL 565NM GRN SMD 0.4INCHSINGLEDIGITGREENSMDLEDDISPLAY,SMDDP,T&R Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.4" Color : Green Luminous Intensity (Typ.) : 4700 ucd @10mA Kingbright | 217 | 1: ¥11.22 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7 Segment | 2.2 V | Common Anode | 1 | 7000 ucd | 568 nm | 62.5 mW | 20 mA | Reel | Green | 5.6 mm x 10.16 mm | + 85 C | 56 Days | LED Displays Segmented | 5.6 mm x 10.16 mm | 400 | 4700 ucd @10mA | 20mA | 565nm | 4.7mcd | 568nm | 62.5mW | 0.4" | Green | GaP | White | Surface Mount | 10-SMD, No Lead | 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) | Displays | Numeric | 0.40" (10.16mm) | 1 | 754-1027-2 | 25mA(perSegment) | Green | SurfaceMount | - |
ACSA04-41SURKWA-F01 LED Displays & Accessories .4 SINGLE DIGIT RED DISPLAY 0.4" SGL 650NM RED SMD Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.4" Color : Red Luminous Intensity (Typ.) : 27000 ucd @10mA Kingbright | 210 | 1: ¥18.836 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7 Segment | 1.95 V | Common Anode | 1 | 26000 ucd | 630 nm | 75 mW | 20 mA | Reel | Red | 5.6 mm x 10.16 mm | + 85 C | 56 Days | LED Displays Segmented | 5.6 mm x 10.16 mm | 400 | 27000 ucd @10mA | 20mA | 650nm | 27mcd | 630nm | 75mW | 0.4" | Red | AlGaInP | White Diffused | Surface Mount | 10-SMD, No Lead | 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) | Displays | Numeric | 0.40" (10.16mm) | 1 | 754-1029-1 | - | - | - | - |
| 1697 | 1: ¥12.444 | - | LED Displays & Accessories | 800 | RoHS Compliant | 7 Segment | 2.1 V | Common Anode | 1 | 2500 ucd | 588 nm | 75 mW | 20 mA | - | Yellow | 5.6 mm x 10.16 mm | + 85 C | - | - | 5.6 mm x 10.16 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 306 | 1: ¥37.876 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7 Segment | 3.2 V | Common Anode | 1 | 4700 ucd | 470 nm | 120 mW | 20 mA | Tape and Reel | Blue | 5.6 mm x 10.16 mm | + 85 C | 56 Days | LED Displays Segmented | 5.6 mm x 10.16 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 97 | 1: ¥12.444 | - | LED Displays & Accessories | 800 | RoHS Compliant | 7 Segment | 2 V | Common Anode | 1 | 5000 ucd | 625 nm | 75 mW | 20 mA | Reel | Red | 5.6 mm x 10.16 mm | + 85 C | - | - | 5.6 mm x 10.16 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

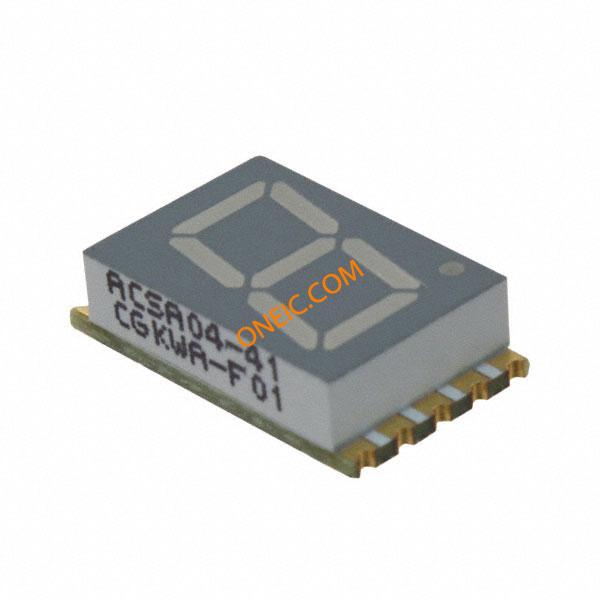

ACSA04-41CGKWA-F01 LED Displays & Accessories Single Green 570nm Common Anode DISPLAY 0.4" SGL 574NM GRN SMD Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.4" Color : Green Luminous Intensity (Typ.) : 11000 ucd @10mA Kingbright | 426 | 1: ¥18.836 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7 Segment | 2.1 V | Common Anode | 1 | 17400 ucd | 570 nm | 75 mW | 30 mA | Tube | Green | 0.4 in | + 85 C | 56 Days | LED Displays Segmented | - | 400 | 11000 ucd @10mA | 20mA | 574nm | 11mcd | 570nm | 75mW | 0.4" | Green | AlGaInP | White Diffused | Surface Mount | 10-SMD, No Lead | 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) | Displays | Numeric | 0.40" (10.16mm) | 1 | 754-1026-1 | - | - | - | - |
ACSA04-41SEKWA-F01 LED Displays & Accessories Single Red 601nm Common Anode DISPLAY 610NM ORN 1DIG 0.4" SMD Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.4" Color : Orange Luminous Intensity (Typ.) : 60000 ucd @10mA Kingbright | 1278 | 1: ¥18.836 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7 Segment | 2.1 V | Common Anode | 1 | 60000 ucd | 601 nm | 75 mW | 20 mA | Tube | Orange | 10.16 mm | + 85 C | 56 Days | LED Displays Segmented | 5.6 mm x 10.16 mm | 400 | 60000 ucd @10mA | 20mA | 610nm | 60mcd | 601nm | 75mW | 0.4" | Orange | AlGaInP | White Diffused | Surface Mount | 10-SMD, No Lead | 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) | Displays | Numeric | 0.40" (10.16mm) | 1 | - | - | - | - | Surface Mount Display |
ACSA04-41SYKWA-F01 LED Displays & Accessories Single Yellow 590nm Common Anode DISPLAY 590NM YLW 1DIG 0.4" SMD Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.4" Color : Yellow Luminous Intensity (Typ.) : 35000 ucd @10mA Kingbright | 374 | 1: ¥18.836 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7-Segment | 2V | Common Anode | 1 | 21000 ucd @10mA | - | - | - | Tube | - | - | - | 56 Days | LED Displays Segmented | - | 400 | 35000 ucd @10mA | 20mA | 590nm | 35mcd | 590nm | 75mW | 0.4" | Yellow | AlGaInP | White Diffused | Surface Mount | 10-SMD, No Lead | 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) | Displays | Numeric | 0.40" (10.16mm) | 1 | - | - | - | - | - |
