cigen-ACSA56-41

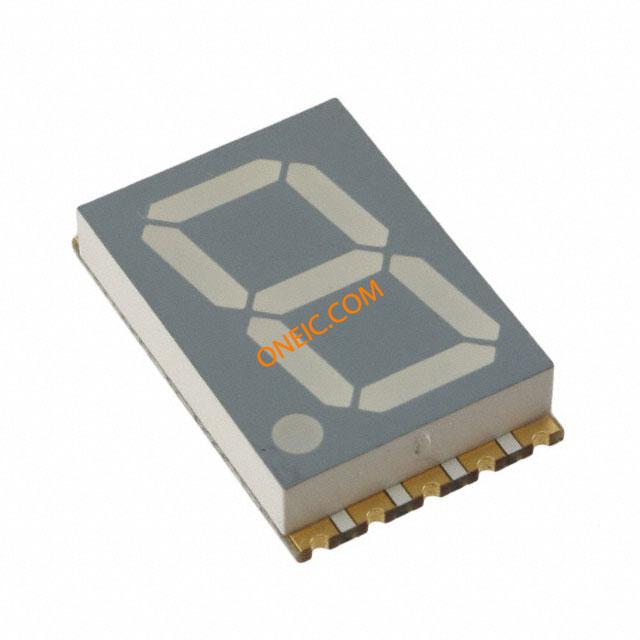

ACSA56-41 optoelectronic Series
kingbright0.56-inch single digit SMD LED displays
The ACSA56-41 series from Kingbright is a lineup of 0.56-inch single-digit Surface Mount Device (SMD) LED displays. These small but powerful LEDs are designed for high-density applications where space is a premium. They are commonly used in portable devices, medical equipment, and industrial control panels due to their compact size and bright output.
One thing worth noting is how these displays handle power consumption. Given their size, they are optimized to be energy-efficient without compromising on visibility. Engineers tend to reach for this when they need a clear, visible display that won’t hog too much power, especially in battery-powered devices.
Another practical use case is in automotive dashboards. Despite their small footprint, these LEDs provide excellent contrast and brightness even under direct sunlight, making them ideal for outdoor displays where readability is crucial. If you're working on any project that requires a small, bright, and efficient LED display, the ACSA56-41 series is definitely worth considering.
Series Images (12)
Documents & Media
Frequently Asked Questions
ACSA56-41 optoelectronic - Part List
11 parts in total| Mfr Part # | Quantity Available | Price | Category | Product Category | Factory Pack Quantity | RoHS | Display Type | Voltage - Supply | Common Pin | Digits or Characters | Luminous Flux @ Current/Temperature | Packaging | Lead Time | Subcategory | Standard Package | Luminous Flux | Current - Output | Wavelength - Peak | Millicandela Rating | Wavelength - Dominant | Power Dissipation (Max) | Size | Color | Material | Lens Color | Mounting Type | Package / Case | Size / Dimension | Type | Card Standard | Digit/Alpha Size | Number of Characters | Wavelength | Current - Average Rectified (Io) | Illumination Color | Operating Temperature | Power - Average Forward | Character Size | Other Names | Viewing Area | Current - Peak Pulse (10/1000us) | LED Color | Mounting Style | Industry Aliases |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ACSA56-41CGKWA-F01 LED Displays & Accessories Single Green 570nm Common Anode DISPLAY 0.56" SGL 574NM GRN SMD Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.56" Color : Green Luminous Intensity (Typ.) : 25000 ucd @10mA Kingbright | 2710 | 1: ¥18.836 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7 Segment | 2.1 V | Common Anode | 1 | 35500 ucd | Tube | 56 Days | LED Displays Segmented | 400 | 25000 ucd @10mA | 20mA | 574nm | 25mcd | 570nm | 75mW | 0.56" | Green | AlGaInP | White Diffused | Surface Mount | 10-SMD, No Lead | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | Displays | Numeric | 0.56" (14.22mm) | 1 | 570 nm | 30 mA | Green | + 85 C | 75 mW | 0.56 in | 754-1033-1 | - | - | - | - | - |

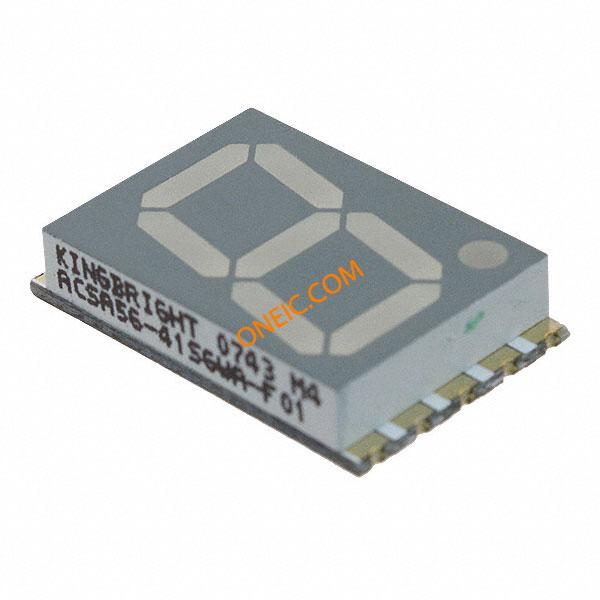

ACSA56-41SGWA-F01 LED Displays & Accessories GREEN DIFFUSED 1 DIGIT DISPLAY 0.56" SGL 565NM GRN SMD 0.56INCHSINGLEDIGITGREENSMDLEDDISPLAY,SMDDP,T&R Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.56" Color : Green Luminous Intensity (Typ.) : 6000 ucd @10mA Kingbright | 370 | 1: ¥13.464 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7 Segment | 2.2 V | Common Anode | 1 | 13200 ucd | Reel | 56 Days | LED Displays Segmented | 400 | 6000 ucd @10mA | 20mA | 565nm | 6mcd | 568nm | 62.5mW | 0.56" | Green | GaP | White | Surface Mount | 10-SMD, No Lead | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | Displays | Numeric | 0.56" (14.22mm) | 1 | 568 nm | 20 mA | Green | + 85 C | 62.5 mW | 8 mm x 14.22 mm | 754-1034-2 | 8 mm x 14.22 mm | 25mA(perSegment) | Green | SurfaceMount | - |
ACSA56-41SRWA-F01 LED Displays & Accessories Single Red 640nm Common Anode DISPLAY 0.56" SGL 660NM RED SMD 0.56INCHSINGLEDIGITREDSMDLEDDISPLAY,SMDDP,T&R Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.56" Color : Red Luminous Intensity (Typ.) : 26000 ucd @10mA Kingbright | 12800 | 400: ¥8.568 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7 Segment | 1.85 V | Common Anode | 1 | 26000 ucd | Tube | 56 Days | LED Displays Segmented | 400 | 26000 ucd @10mA | 20mA | 660nm | 26mcd | 640nm | 75mW | 0.56" | Red | GaAlAs | White | Surface Mount | 10-SMD, No Lead | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | Displays | Numeric | 0.56" (14.22mm) | 1 | 640 nm | 30 mA | Red | + 85 C | - | - | 754-1035-1 | - | 25mA(perSegment) | Red | SurfaceMount | - |
 | 151 | 1: ¥41.004 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7 Segment | 3.2 V | Common Anode | 1 | 9000 ucd | Tape and Reel | 56 Days | LED Displays Segmented | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 470 nm | 20 mA | Blue | + 85 C | 120 mW | 8 mm x 14.22 mm | - | 8 mm x 14.22 mm | - | - | - | - |
| 10 | 1: ¥12.444 | - | LED Displays & Accessories | 800 | RoHS Compliant | 7 Segment | 2.1 V | Common Anode | 1 | 5000 ucd | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 588 nm | 20 mA | Yellow | + 85 C | 75 mW | 8 mm x 14.22 mm | - | 8 mm x 14.22 mm | - | - | - | - |
| 393 | 1: ¥12.444 | - | LED Displays & Accessories | 800 | RoHS Compliant | 7 Segment | 2 V | Common Anode | 1 | 7400 ucd | Reel | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 625 nm | 20 mA | Red | + 85 C | 75 mW | 8 mm x 14.22 mm | - | 8 mm x 14.22 mm | - | - | - | - |

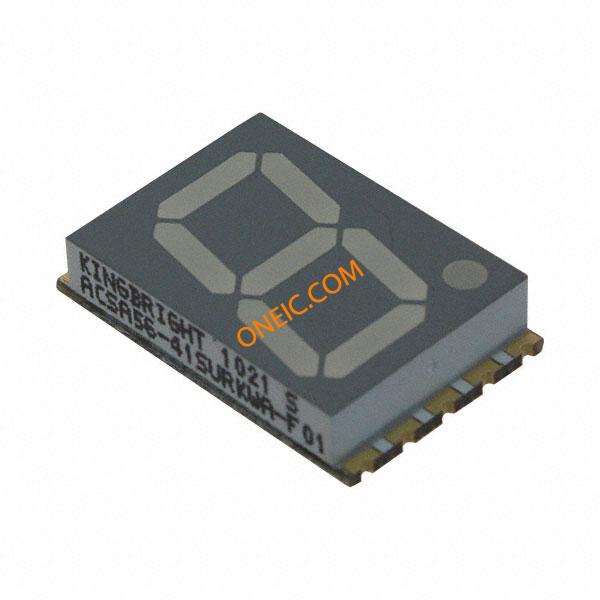

ACSA56-41SURKWA-F01 LED Displays & Accessories Single Red 630nm Common Anode DISPLAY 0.56" SGL 650NM RED SMD Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.56" Color : Red Luminous Intensity (Typ.) : 44000 ucd @10mA Kingbright | 10 | 1: ¥14.70 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7 Segment | 1.95 V | Common Anode | 1 | 44000 ucd | Reel | 56 Days | LED Displays Segmented | 400 | 44000 ucd @10mA | 20mA | 650nm | 44mcd | 630nm | 75mW | 0.56" | Red | AlGaInP | White Diffused | Surface Mount | 10-SMD, No Lead | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | Displays | Numeric | 0.56" (14.22mm) | 1 | 630 nm | 30 mA | Red | + 85 C | 75 mW | 0.56 in | 754-1036-1 | - | - | - | - | - |
 ACSA56-41QBWA/D-F01 LED Displays & Accessories Blue 15000ucd 470nm Com Anode Diffused DISPLAY 468NM BLU 1DIG 0.56" SMD Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.56" Color : Blue Luminous Intensity (Typ.) : 15000 ucd @10mA Kingbright | 10 | 1: ¥21.556 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7-Segment | 3.3V | Common Anode | 1 | 5600 ucd @10mA | Tape and Reel | 56 Days | LED Displays Segmented | 400 | 15000 ucd @10mA | 20mA | 468nm | 15mcd | 470nm | 120mW | 0.56" | Blue | InGaN | White Diffused | Surface Mount | 10-SMD, No Lead | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | Displays | Numeric | 0.56" (14.22mm) | 1 | - | - | - | - | - | - | - | - | - | - | - | ACSA56-41QBWA-D-F01 |
ACSA56-41ZGWA-F01 LED Displays & Accessories Grn 220000ucd 525nm Com Anode Diffused DISPLAY 574NM GRN 1DIG 0.56" SMD Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.56" Color : Green Luminous Intensity (Typ.) : 220000 ucd @10mA Kingbright | 10 | 1: ¥24.684 | - | LED Displays & Accessories | 200 | RoHS Compliant | 7-Segment | 3.3V | Common Anode | 1 | 88000 ucd @10mA | Tape and Reel | 56 Days | LED Displays Segmented | 400 | 220000 ucd @10mA | 20mA | 515nm | 220mcd | 525nm | 102.5mW | 0.56" | Green | InGaN | White Diffused | Surface Mount | 10-SMD, No Lead | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | Displays | Numeric | 0.56" (14.22mm) | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
ACSA56-41SEKWA-F01 LED Displays & Accessories Single Red 601nm Common Anode DISPLAY 610NM ORN 1DIG 0.56" SMD Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.56" Color : Orange Luminous Intensity (Typ.) : 78000 ucd @10mA Kingbright | 10 | 1: ¥14.28 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7-Segment | 2.1V | Common Anode | 1 | 31000 ucd @10mA | Tube | 56 Days | LED Displays Segmented | 400 | 78000 ucd @10mA | 20mA | 610nm | 78mcd | 601nm | 75mW | 0.56" | Orange | AlGaInP | White Diffused | Surface Mount | 10-SMD, No Lead | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | Displays | Numeric | 0.56" (14.22mm) | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
ACSA56-41SYKWA-F01 LED Displays & Accessories Single Yellow 590nm Common Anode DISPLAY 590NM YLW 1DIG 0.56" SMD Numeric Display Mounting : Surface Mount Number of Digits : 1 Size : 0.56" Color : Yellow Luminous Intensity (Typ.) : 76000 ucd @10mA Kingbright | 279 | 1: ¥18.836 | - | LED Displays & Accessories | 400 | RoHS Compliant | 7-Segment | 2V | Common Anode | 1 | 31000 ucd @10mA | Tube | 56 Days | LED Displays Segmented | 400 | 76000 ucd @10mA | 20mA | 590nm | 76mcd | 590nm | 75mW | 0.56" | Yellow | AlGaInP | White Diffused | Surface Mount | 10-SMD, No Lead | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | Displays | Numeric | 0.56" (14.22mm) | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
