cigen-AD8227
AD8227 semiconductor Series
analog-devicesAnalog Devices instrumentation amplifiers in SOIC/MSOP
The AD8227 series from Analog Devices is a lineup of instrumentation amplifiers packaged in either SOIC or MSOP formats. These amplifiers are designed to provide high common-mode rejection ratio (CMRR) and excellent input impedance, making them ideal for precision measurement applications. If you're working on projects that require accurate differential measurements in noisy environments, such as medical equipment, industrial sensing, or laboratory instrumentation, these amplifiers are a go-to choice.
One thing worth noting is their ability to handle a wide range of supply voltages, which is crucial for systems that need flexibility in power sourcing. Engineers tend to reach for this when they need a robust solution that can maintain performance across different operating conditions. Another practical benefit is their low noise and drift characteristics, which are essential for maintaining accuracy over time, especially in long-term monitoring applications.
Series Images (16)
Documents & Media
Frequently Asked Questions
AD8227 semiconductor - Part List
4 parts in total| Mfr Part # | Quantity Available | Price | Category | Standard Package | Factory Pack Quantity | Standard Package Name | RoHS | EU RoHS | Slew Rate | Output Type | CMRR, PSRR (Typ) | Current - Output | Current - Supply | Voltage - Supply | Power Supply Type | Number of Channels | Number of Elements | Resistance - Input | Current - Input Bias | Voltage - Input (Min) | Gain Bandwidth Product | Rail-to-Rail Operation | Current - Input Bias (Max) | Current - Output / Channel | Voltage - Input Offset (Max) | Width | Height | Length | Bandwidth | Packaging | Lead Style | Mounting Type | -3db Bandwidth | Mounting Style | Number of Pins | Package / Case | Package Cooled | Package Quantity | Size / Dimension | Number of Positions | Supplier Device Package | Type | Series | Amplifier Type | Number of Circuits | Operating Temperature | Rad Hardened | Gain | Power - Input | SVHC | Tariff No | Output | Voltage Rating | Number of ADCs / DACs | Weight | Material Finish | Product | Input Impedance | Current Rating (Max) | Input Logic Level - High | Voltage - Supply, Dual (V+/-) | Function | Manufacturer | Development Kit | PSRR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

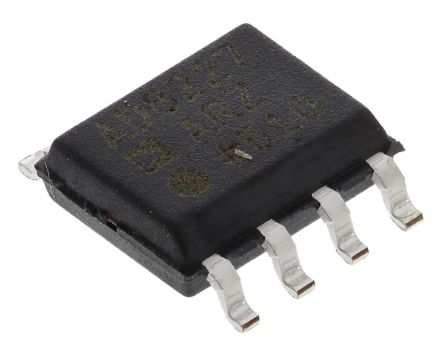

 AD8227ARZ SP Amp INSTR Amp Single R-R O/P ±18V/36V 8-Pin SOIC N Tube IC OPAMP INSTR 250KHZ RRO 8SOIC Instrumentation Amp 2.2-36V RRO SOIC8 Instrumentation Amplifiers Wide Supply Range PREC RRO IC SP Amp INSTR Amp Single R-R O/P �18V/36V 8-Pin SOIC N Tube IC, AMP, INSTR, R-R, 250KHZ, 8SOIC Analog Devices 仪表放大器, 0.2mV偏置, 250kHz, 90dB CMRR, 轨至轨输出, 2.2 → 36 V电源, 8针 SOIC封装 analog devices | 10 | 1: ¥16.7688 | - | Rail / Tube | 98 | SOIC | Lead free / RoHS Compliant | Compliant | 0.8 V/µs | Differential|Rail to Rail | 90dB | 350µA | 0.425 mA | 2.2 V | Single|Dual | 1 | 1 | 0.8GΩ | 20nA | 60 dB | 0.25MHz | Rail to Rail Output | 0.000027@±15V | 13mA | 0.2mV | 4mm | 1.5mm | 5mm | 250 kHz | Tube | Gull-wing | Surface Mount | 250kHz | SMD/SMT | :8 | 8SOIC N | SOIC N | SOIC N | 5 x 4 x 1.5mm | 8 | 8-SOIC N | Instrumentation Amplifier | AD8227 | Instrumentation | 1 | -40 to 125 °C | No | 5 V/V to 1000 V/V | Single/Dual | :No SVHC (20-Jun-2013) | 85423300 | :Rail to Rail | 2.2 V to 36 V | :1 | 0.000175 | :MSL 1 - Unlimited | - | - | - | - | - | - | - | - | - |

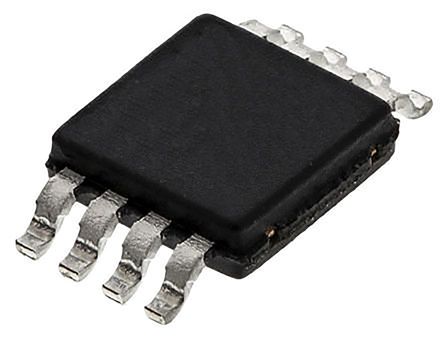

 AD8227BRMZ SP Amp INSTR Amp Single R-R O/P ±18V/36V 8-Pin MSOP Tube IC OPAMP INSTR 250KHZ RRO 8MSOP Instrumentation Amp 2.2-36V RRO MSOP8 Instrumentation Amplifiers Wide Supply Range PREC RRO IC SP Amp INSTR Amp Single R-R O/P �18V/36V 8-Pin MSOP Tube Analog Devices 仪表放大器, 0.1mV偏置, 250kHz, 80dB CMRR, 轨至轨输出, 2.2 → 36 V电源, 8针 MSOP封装 analog devices | 31 | 1: ¥27.18 | - | Rail / Tube | 50 | MSOP | Lead free / RoHS Compliant | Compliant | 0.8 V/µs | Differential|Rail to Rail | 80dB | 350µA | 0.6 mA | 2.2 V | Single|Dual | 1 | 1 | 0.8GΩ | 20nA | 60 dB | 0.25MHz | Rail to Rail Output | 0.000027@±15V | 13mA | 0.1mV | 3.2mm | 0.95mm | 3.2mm | 200 kHz | Tube | Gull-wing | Surface Mount | 250kHz | SMD/SMT | 8 | 8MSOP | MSOP | MSOP | 3.2 x 3.2 x 0.95mm | 8 | 8-MSOP | Instrumentation Amplifier | AD8227 | Instrumentation | 1 | -40 to 125 °C | No | 60 dB | Single/Dual | - | - | - | - | - | - | - | Instrumentation Amplifiers | 0.8GΩ | 0.6 mA | 0.1mV | ±1.5 → ±18V | Y | Analog Devices | EVAL-CN0341-SDPZ | - |
AD8227ARMZ SP Amp INSTR Amp Single R-R O/P ±18V/36V 8-Pin MSOP Tube IC OPAMP INSTR 250KHZ RRO 8MSOP Instrumentation Amp 2.2-36V RRO MSOP8 Instrumentation Amplifiers Wide Supply Range PREC RRO IC IC, AMP, INSTR, R-R, 250KHZ, 8MSOP Analog Devices 仪表放大器, 0.2mV偏置, 250kHz, 90dB CMRR, 轨至轨输出, 2.2 → 36 V电源, 8针 MSOP封装 analog devices | 118 | 1: ¥18.12 | - | Rail / Tube | 50 | MSOP | Lead free / RoHS Compliant | Compliant | 0.8 V/µs | Differential|Rail to Rail | 90dB | 350µA | 0.425 mA | 2.2 V | Single|Dual | 1 | 1 | 0.8GΩ | 20nA | 60 dB | 0.25MHz | Rail to Rail Output | 0.000027@±15V | 13mA | 0.2mV | 3.2mm | 0.95mm | 3.2mm | 200 kHz | Tube | Gull-wing | Surface Mount | 250kHz | SMD/SMT | :8 | 8MSOP | MSOP | MSOP | 3.2 x 3.2 x 0.95mm | 8 | 8-MSOP | Instrumentation Amplifier | AD8227 | Instrumentation | 1 | -40 to 125 °C | - | - | - | :No SVHC (20-Jun-2013) | 85423300 | :Rail to Rail | - | :1 | 0.000175 | :MSL 1 - Unlimited | - | - | - | - | - | - | - | - | - |
AD8227BRZ SP Amp INSTR Amp Single R-R O/P ±18V/36V 8-Pin SOIC N Tube IC OPAMP INSTR 250KHZ RRO 8SOIC Instrumentation Amp 2.2-36V RRO SOIC8 Instrumentation Amplifiers Wide Supply Range PREC RRO IC SP Amp INSTR Amp Single R-R O/P �18V/36V 8-Pin SOIC N Tube Analog Devices 仪表放大器, 0.1mV偏置, 250kHz, 80dB CMRR, 轨至轨输出, 2.2 → 36 V电源, 8针 SOIC封装 analog devices | 70 | 1: ¥36.24 | - | Rail / Tube | 98 | SOIC | Lead free / RoHS Compliant | Compliant | 0.8 V/µs | Differential|Rail to Rail | 80dB | 350µA | 0.6 mA | 2.2 V | Single|Dual | 1 | 1 | 0.8GΩ | 20nA | 60 dB | 0.25MHz | Rail to Rail Output | 0.000027@±15V | 13mA | 0.1mV | 4mm | 1.5mm | 5mm | 250 kHz | Tube | Gull-wing | Surface Mount | 250kHz | SMD/SMT | 8 | 8SOIC N | SOIC N | SOIC N | 5 x 4 x 1.5mm | 8 | 8-SOIC N | Instrumentation Amplifier | AD8227 | Instrumentation | 1 | -40 to 125 °C | No | 5 V/V to 1000 V/V | Single/Dual | - | - | - | 2.2 V to 36 V | - | - | - | Instrumentation Amplifiers | 0.8GΩ | 0.6 mA | 0.1mV | ±1.5 → ±18V | Y | Analog Devices | EVAL-CN0341-SDPZ | 105 dB |
