The ADA4062-2 from Analog Devices is a dual operational amplifier designed for precision analog signal conditioning tasks. These amplifiers come in different package options, including SOIC, MSOP, and LFCSP, making them versatile for a wide range of board layouts and application requirements. If you're working on high-precision measurement systems, such as medical devices, scientific instruments, or industrial control systems, these op amps are a go-to choice due to their excellent stability and low noise performance.

One thing worth noting is their exceptionally low input bias current, which is crucial for maintaining accuracy in high-impedance circuits. Engineers tend to reach for this when they need to amplify very small signals without introducing significant errors. Additionally, the ADA4062-2 offers a wide bandwidth and high slew rate, making them ideal for applications requiring fast transient response, like audio processing or high-speed data acquisition systems. The ability to operate over a broad temperature range also makes them suitable for harsh environments, ensuring reliable performance across different conditions.

Mfr Part #	Quantity Available	Price	Category	Standard Package	RoHS	PSRR	Slew Rate	CMRR, PSRR (Typ)	Current - Output	Current - Supply	Voltage - Supply	Number of Channels	Current - Input Bias	Voltage - Input (Min)	Gain Bandwidth Product	Current - Input Bias (Max)	Current - Output / Channel	Input Noise Current Density	Input Noise Voltage Density	Voltage - Input Offset (Max)	Common Mode Transient Immunity (Min)	Voltage - Output Difference (Typ) @ Distance	Width	Packaging	Mounting Type	Mounting Style	Package / Case	Supplier Device Package	Type	Series	Shutdown	Technology	Manufacturer	Amplifier Type	Number of Circuits	Operating Temperature	Other Names	Standard Package Name	EU RoHS	Power Supply Type	Rail-to-Rail Operation	Input Offset Current (Max)	Lead Style	Package Quantity	Number of Positions	Product	Length - Overall	Shell Size - Insert	Printed Circuit Board	Factory Pack Quantity	Gain	Height	Length	Number of Pins	Package Cooled	Function	Rad Hardened	Frequency	Output Type	Power - Input	Conversion Type	Number of Elements	Typical Voltage Gain	Voltage - Supply Span (Typ)	Voltage - Supply, Dual (V+/-)	Size / Dimension	Current - Supply (Max)	Current - Supply (Main IC)	Voltage - Supply Span (Max)	Conductor Type	Packages Included	Minimum Bend Radius	Product Type	Channels per IC	Assembly Configuration	Impact Velocity	Bandwidth	Design

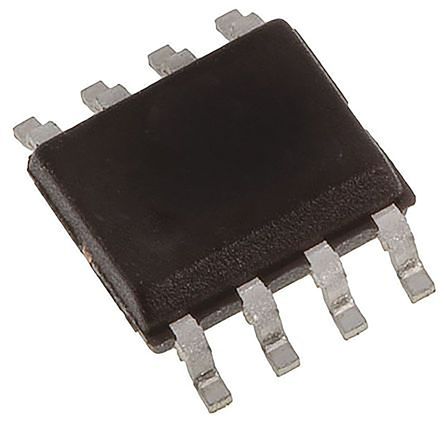

3 ADA4062-2ARZ OP Amp Dual GP ±15V 8-Pin SOIC N IC OPAMP JFET 1.4MHZ 8SOIC ADA4062-2ARZ, Dual Operational Amplifier 1.4MHz, 8-Pin SOIC Operational Amplifiers - Op Amps Low Power JFET Input Dual OP Amp Dual GP �15V 8-Pin SOIC N Analog Devices 双运算放大器, 1.4MHz, 8针 SOIC analog devices	228	1: ¥15.368	-	Rail / Tube	Lead free / RoHS Compliant	74 dB	3.3@±15V V/us	73 dB	165µA	0.44@±15V mA	±5 V	2	2pA	750µV	1.4 MHz	0.00005@±15V uA	20mA	0.005@±15V pA/rtHz	36@±15V nV/rtHz	2.5@±15V mV	Extended Industrial	83 dB	4mm	Tube	Surface Mount	SMD/SMT	8SOIC N	8-SOIC N	General Purpose Amplifier	ADA4062-2	No	BiFET	Low Power Amplifier	J-FET	2	-40 to 125 °C	ADA40622ARZ	SOIC	Compliant	Dual	No	0.000025@±15V	Gull-wing	SOIC N	8	Operational Amplifiers	-	-	-	98	83 dB	1.5mm	5mm	8	SOIC N	Y	No	36nV/√Hz	No	Dual	3.3V/µs	2	83 dB	�9/�12 V	±12 V, ±9 V	5 x 4 x 1.5mm	-	-	-	-	-	-	-	-	-	-	-	-
3 ADA4062-2ARMZ-R7 OP Amp Dual GP ±15V 8-Pin MSOP T/R IC OPAMP JFET 1.4MHZ 8MSOP Operational Amplifiers - Op Amps Low Power JFET Input Dual analog devices	74	1: ¥27.3315	-	Tape & Reel	Lead free / RoHS Compliant	90 dB	3.3@±15V V/us	73 dB	165µA	0.44@±15V mA	±5 V	2	2pA	750µV	1.4 MHz	0.00005@±15V uA	20mA	0.005@±15V pA/rtHz	36@±15V nV/rtHz	2.5@±15V mV	Extended Industrial	83 dB	3	Tape and Reel	Surface Mount	SMD/SMT	8MSOP	8-MSOP	General Purpose Amplifier	ADA4062-2	No	BiFET	Low Power Amplifier	J-FET	2	-40 to 125 °C	ADA4062-2ARMZ-R7CT	MSOP	Compliant	Dual	No	0.000025@±15V	Gull-wing	MSOP	8	Operational Amplifiers	3	0.85	8	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

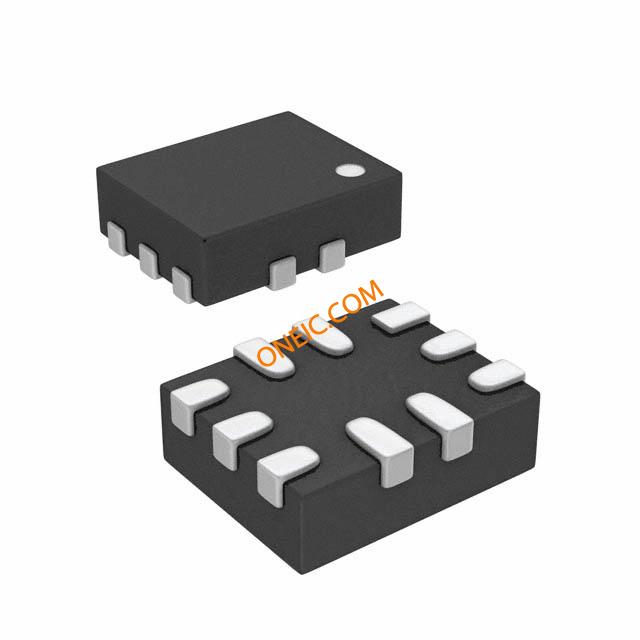

2 ADA4062-2ACPZ-R7 OP Amp Dual GP ±15V 10-Pin LFCSP EP T/R IC OPAMP JFET 1.4MHZ 10-LFCSP Operational Amplifiers - Op Amps Low Power JFET Input Dual analog devices	2345	1: ¥15.164	-	Tape & Reel	Compliant	90 dB	3.3@±15V V/us	73 dB	165µA	0.44@±15V mA	±5 V	2	2pA	750µV	1.4 MHz	0.00005@±15V uA	20mA	0.005@±15V pA/rtHz	36@±15V nV/rtHz	2.5@±15V mV	Extended Industrial	83 dB	1.3	Tape and Reel	Surface Mount	SMD/SMT	10LFCSP EP	10-LFCSP-UQ (1.6x1.3)	General Purpose Amplifier	ADA4062-2	No Shutdown	BiFET	Analog Devices	J-FET	2	-40 to 125 °C	ADA4062-2ACPZ-R7CT	-	-	-	-	-	-	-	-	Operational Amplifiers	1.6	0.53	10	-	-	-	-	10	LFCSP	No	-	-	-	-	-	-	-	-	-	-	0.44@±15V	0.00005@±15V	±15	No Lead	LFCSP EP	73	Low Power Amplifier	2	Surface Mount	3.3@±15V	-	-
2 ADA4062-2ARZ-R7 OP Amp Dual GP ±15V 8-Pin SOIC N T/R IC OPAMP JFET 1.4MHZ 8SOIC Operational Amplifiers - Op Amps Low Power JFET Input Dual analog devices	10	1: ¥18.3456	-	Tape & Reel	Lead free / RoHS Compliant	90 dB	3.3@±15V V/us	73 dB	165µA	0.44@±15V mA	±5 V	2	2pA	750µV	1.4 MHz	0.00005@±15V uA	20mA	0.005@±15V pA/rtHz	36@±15V nV/rtHz	2.5@±15V mV	Extended Industrial	83 dB	4(Max)	Tape and Reel	Surface Mount	SMD/SMT	8SOIC N	8-SOIC N	General Purpose Amplifier	ADA4062-2	No	BiFET	Low Power Amplifier	J-FET	2	-40 to 125 °C	ADA4062-2ARZ-R7CT	SOIC	Compliant	Dual	No	0.000025@±15V	Gull-wing	SOIC N	8	Operational Amplifiers	5(Max)	1.5(Max)	8	1000	83 dB	1.5 mm (Max)	5 mm (Max)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 ADA4062-2ARZ-RL OP Amp Dual GP ±15V 8-Pin SOIC N T/R IC OPAMP JFET 1.4MHZ 8SOIC Operational Amplifiers - Op Amps Low Power JFET Input Dual analog devices	2500	2500: ¥7.0638	-	Tape & Reel	Lead free / RoHS Compliant	90 dB	3.3@±15V V/us	73 dB	165µA	0.44@±15V mA	±5 V	2	2pA	750µV	1.4 MHz	0.00005@±15V uA	20mA	0.005@±15V pA/rtHz	36@±15V nV/rtHz	2.5@±15V mV	Extended Industrial	83 dB	4(Max)	Tape and Reel	Surface Mount	SMD/SMT	8SOIC N	8-SOIC N	General Purpose Amplifier	ADA4062-2	No	BiFET	Low Power Amplifier	J-FET	2	-40 to 125 °C	ADA4062-2ARZ-RLCT	SOIC	Compliant	Dual	No	0.000025@±15V	Gull-wing	SOIC N	8	Operational Amplifiers	5(Max)	1.5(Max)	8	2500	83 dB	1.5 mm (Max)	5 mm (Max)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 ADA4062-2BRZ-R7 OP Amp Dual GP ±15V 8-Pin SOIC N T/R IC OPAMP JFET 1.4MHZ 8SOIC Operational Amplifiers - Op Amps Low Power JFET Input Dual analog devices	2000	1000: ¥12.2094	-	Tape & Reel	Lead free / RoHS Compliant	90 dB	3.3@±15V V/us	80 dB	165µA	0.44@±15V mA	±5 V	2	2pA	500µV	1.4 MHz	0.00005@±15V uA	20mA	0.005@±15V pA/rtHz	36@±15V nV/rtHz	1.5@±15V mV	Extended Industrial	83 dB	4(Max)	Tape and Reel	Surface Mount	SMD/SMT	8SOIC N	8-SOIC N	General Purpose Amplifier	ADA4062-2	No	BiFET	Low Power Amplifier	J-FET	2	-40 to 125 °C	ADA4062-2BRZ-R7CT	SOIC	Compliant	Dual	No	0.000025@±15V	Gull-wing	SOIC N	8	Operational Amplifiers	5(Max)	1.5(Max)	8	1000	83 dB	1.5 mm (Max)	5 mm (Max)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ADA4062-2BRZ OP Amp Dual GP ±15V 8-Pin SOIC N IC OPAMP JFET 1.4MHZ 8SOIC ADA4062-2BRZ, Dual Operational Amplifier 1.4MHz, 8-Pin SOIC Operational Amplifiers - Op Amps Low Power JFET Input Dual OP Amp Dual GP �15V 8-Pin SOIC N Analog Devices 双运算放大器, 1.4MHz, 8针 SOIC analog devices	135	1: ¥23.188	-	Rail / Tube	Lead free / RoHS Compliant	80 dB	3.3@±15V V/us	80 dB	165µA	0.44@±15V mA	±5 V	2	2pA	500µV	1.4 MHz	0.00005@±15V uA	20mA	0.005@±15V pA/rtHz	36@±15V nV/rtHz	1.5@±15V mV	Extended Industrial	83 dB	4mm	Tube	Surface Mount	SMD/SMT	8SOIC N	8-SOIC N	General Purpose Amplifier	ADA4062-2	No	BiFET	Low Power Amplifier	J-FET	2	-40 to 125 °C	ADA40622BRZ	SOIC	Compliant	Dual	No	0.000025@±15V	Gull-wing	SOIC N	8	Operational Amplifiers	-	-	-	98	83 dB	1.5mm	5mm	8	SOIC N	Y	No	36nV/√Hz	No	Dual	3.3V/µs	2	83 dB	�9/�12 V	±12 V, ±9 V	5 x 4 x 1.5mm	-	-	-	-	-	-	-	-	-	-	-	-
5 ADA4062-2ARMZ OP Amp Dual GP ±15V 8-Pin MSOP IC OPAMP JFET 1.4MHZ 8MSOP ADA4062-2ARMZ, Dual Operational Amplifier 1.4MHz, 8-Pin MSOP Operational Amplifiers - Op Amps Low Power JFET Input Dual OP Amp Dual GP �15V 8-Pin MSOP Operational Amplifier Dual 1.4 MHz MSOP-8, ADA4062-2ARMZ, Analog Devices Analog Devices 双运算放大器, 1.4MHz, 8针 MSOP analog devices	480	1: ¥15.368	-	Rail / Tube	Lead free / RoHS Compliant	74 dB	3.3@±15V V/us	73 dB	165µA	0.44@±15V mA	±5 V	2	2pA	750µV	1.4 MHz	0.00005@±15V uA	20mA	0.005@±15V pA/rtHz	36@±15V nV/rtHz	2.5@±15V mV	Extended Industrial	83 dB	3mm	Tube	Surface Mount	SMD/SMT	8MSOP	8-MSOP	General Purpose Amplifier	ADA4062-2	No	BiFET	Low Power Amplifier	J-FET	2	-40 to 125 °C	ADA40622ARMZ	MSOP	Compliant	Dual	No	0.000025@±15V	Gull-wing	MSOP	8	Operational Amplifiers	-	-	-	50	83 dB	0.85mm	3mm	8	MSOP	Y	No	36nV/√Hz	No	Dual	3.3V/µs	2	83 dB	�9/�12 V	±12 V, ±9 V	3 x 3 x 0.85mm	-	-	-	-	-	-	-	-	-	-	1.4	Dual
3 ADA4062-2ARMZ-RL OP Amp Dual GP ±15V 8-Pin MSOP T/R IC OPAMP JFET 1.4MHZ 8MSOP Operational Amplifiers - Op Amps Low Power JFET Input Dual analog devices	2979	1: ¥9.996	-	Tape & Reel	Lead free / RoHS Compliant	90 dB	3.3@±15V V/us	73 dB	165µA	0.44@±15V mA	±5 V	2	2pA	750µV	1.4 MHz	0.00005@±15V uA	20mA	0.005@±15V pA/rtHz	36@±15V nV/rtHz	2.5@±15V mV	Extended Industrial	83 dB	3	Tape and Reel	Surface Mount	SMD/SMT	8MSOP	8-MSOP	General Purpose Amplifier	ADA4062-2	No	BiFET	Low Power Amplifier	J-FET	2	-40 to 125 °C	ADA4062-2ARMZ-RLCT	MSOP	Compliant	Dual	No	0.000025@±15V	Gull-wing	MSOP	8	Operational Amplifiers	3	0.85	8	3000	83 dB	0.85 mm	3 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ADA4062-2BRZ-RL OP Amp Dual GP ±15V 8-Pin SOIC N T/R IC OPAMP JFET 1.4MHZ 8SOIC Operational Amplifiers - Op Amps Low Power JFET Input Dual analog devices	10	1990: ¥11.56	-	Tape & Reel	Lead free / RoHS Compliant	80	3.3@±15V V/us	80 dB	165µA	0.44@±15V mA	±5 V	2	2pA	500µV	1.4 MHz	0.00005@±15V uA	20mA	0.005@±15V pA/rtHz	36@±15V nV/rtHz	1.5@±15V mV	Extended Industrial	83 dB	4(Max)	Tape and Reel	Surface Mount	SMD/SMT	8SOIC N	8-SOIC N	General Purpose Amplifier	ADA4062-2	No	BiFET	Low Power Amplifier	J-FET	2	-40 to 125 °C	ADA4062-2BRZ-RLCT	SOIC	Compliant	Dual	No	0.000025@±15V	Gull-wing	SOIC N	8	-	5(Max)	1.5(Max)	8	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ADA4062-2ACPZ-RL OP Amp Dual GP ±15V 10-Pin LFCSP EP T/R IC OPAMP JFET 1.4MHZ 10-LFCSP Operational Amplifiers - Op Amps Low Power JFET Input Dual analog devices	10	10000: ¥6.528	-	Tape & Reel	Lead free / RoHS Compliant	74	3.3@±15V V/us	73 dB	165µA	0.44@±15V mA	±5 V	2	2pA	750µV	1.4 MHz	0.00005@±15V uA	20mA	0.005@±15V pA/rtHz	36@±15V nV/rtHz	2.5@±15V mV	Extended Industrial	83 dB	1.3	Tape and Reel	Surface Mount	SMD/SMT	10LFCSP EP	10-LFCSP-UQ (1.6x1.3)	General Purpose Amplifier	ADA4062-2	No	BiFET	Low Power Amplifier	J-FET	2	-40 to 125 °C	-	LFCSP	Compliant	Dual	No	0.000025@±15V	No Lead	LFCSP EP	10	-	1.6	0.53	10	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ADA4062-2ACPZ-R2 Tiny, Low Power JFET-Input Op Amp Analog Devices	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
