APSA100 polymer capacitor Series

The APSA100 series from Nippon Chemi-Con is a lineup of polymer aluminum capacitors designed for 10V applications. These capacitors are known for their robust performance and reliability, making them a popular choice in various electronic circuits and systems.

If you're working on power supply filtering or decoupling circuits, these capacitors can be quite handy. They offer excellent ripple current handling and have a low ESR, which helps in maintaining stable voltages and reducing noise. One thing worth noting is that they exhibit minimal temperature drift, which is crucial for maintaining consistent performance across different operating conditions.

Engineers tend to reach for this when they need a reliable capacitor that can handle moderate currents and maintain stability over time. The polymer dielectric used in these capacitors provides high insulation resistance and long-term stability, making them suitable for both industrial and consumer electronics. Additionally, their small footprint and high capacitance make them a space-efficient solution for board layouts.

Mfr Part #	Quantity Available	Price	Category	Product	Tradename	RoHS	Tolerance	Capacitance	Voltage Rating	Dissipation Factor (DF)	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Diameter	Packaging	Lead Spacing	Package / Case	Termination Style	Series	Product Type	Rated Life	Operating Temperature	Product Category	Factory Pack Quantity	Size / Dimension	Tariff No	Weight
APSA100ETD471MJB5S Aluminum Organic Polymer Capacitors 10volts 470uF CAP ALUM 470UF 10V 20% RADIAL United Chemi-Con	10	500: ¥3.8488	-	Organic Polymer Aluminum - Radial Capacitors	NPCAP	RoHS Compliant	20 %	470 uF	10 V	0.08	5650 mA	8 mOhms	10 mm	Reel	5 mm	11.5 mm	Radial	PSA	Can	2000 h	- 55 C to + 105 C	Aluminum Organic Polymer Capacitors	800	10 mm Dia. x 11.5 mm L	-	-

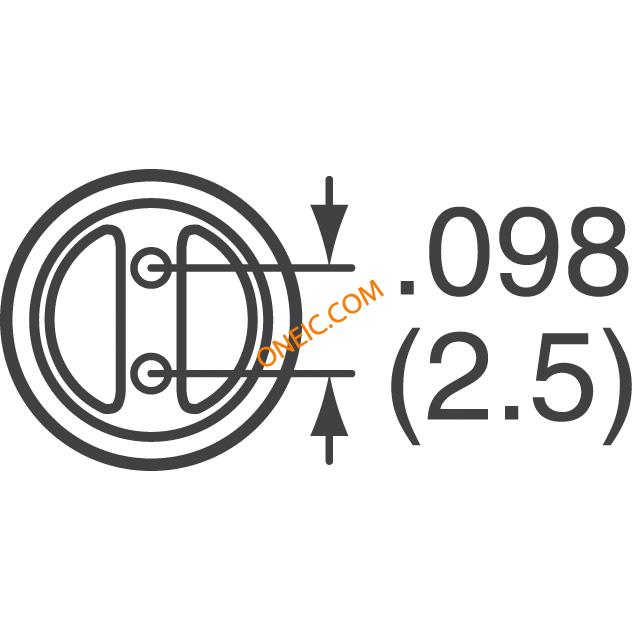

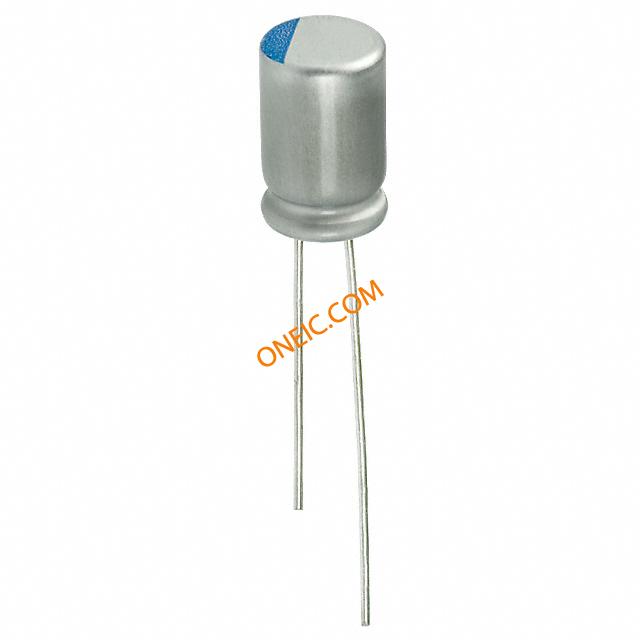

6 APSA100ELL680MFA5G Aluminum Organic Polymer Capacitors 10V 68uF 20% CAP ALUM 68UF 10V 20% RADIAL Cap Aluminum Polymer 68uF 10V 20% (6.3 X 10.5mm) Radial 2.5mm 0.025 Ohm 2820mA 2000h 105°C Bulk United Chemi-Con	39484	1: ¥4.76	-	Organic Polymer Aluminum - Radial Capacitors	NPCAP	RoHS Compliant	20 %	68 uF	10 V	0.12	2820 mA	25 mOhms	6.3 mm	Bulk	2.5 mm	10.5 mm	Radial	PSA	Can	2000 h	- 55 C to + 105 C	Aluminum Organic Polymer Capacitors	2000	6.3 mm Dia. x 10.5 mm L	-	-

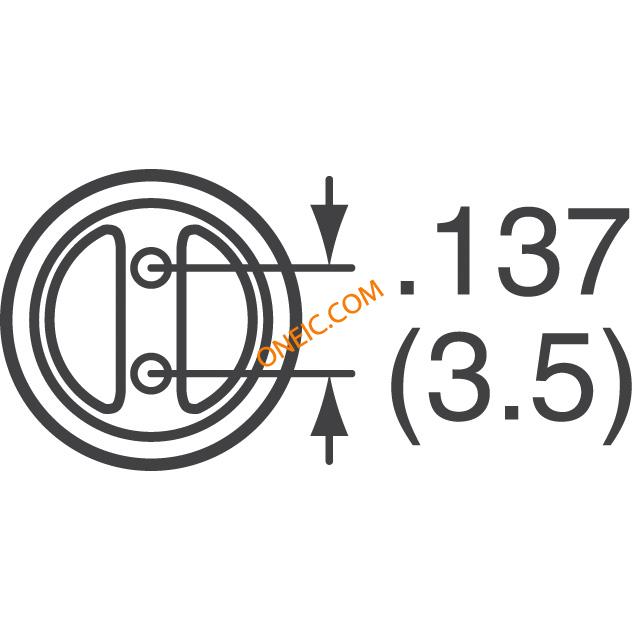

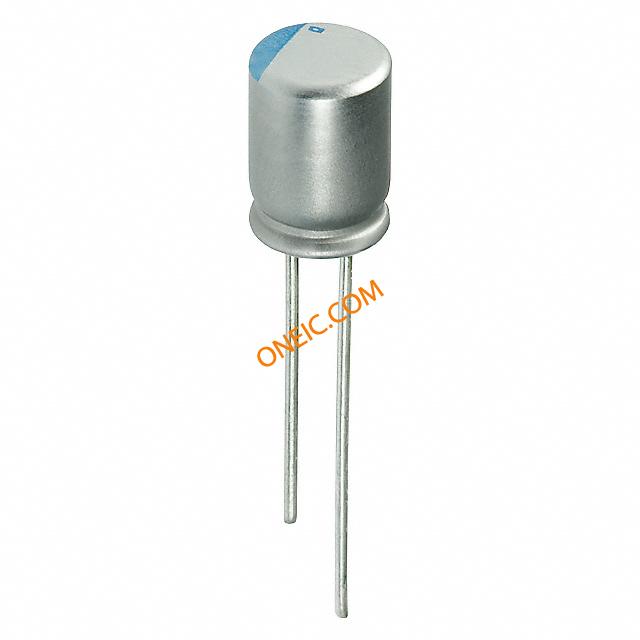

7 APSA100ELL271MHB5S Aluminum Organic Polymer Capacitors 10V 270uF 20% CAP ALUM 270UF 10V 20% RADIAL Cap Aluminum Lytic 270uF 10V 20% (8 X 11.5mm) Radial 3.5mm 0.009 Ohm 4710mA 2000h 105°C Bulk United Chemi-Con	2995	1: ¥5.10	-	Organic Polymer Aluminum - Radial Capacitors	NPCAP	RoHS Compliant	20 %	270 uF	10 V	0.08	4710 mA	9 mOhms	8 mm	Bulk	3.5 mm	11.5 mm	Radial	PSA	Can	2000 h	- 55 C to + 105 C	Aluminum Organic Polymer Capacitors	2000	8 mm Dia. x 11.5 mm L	-	-

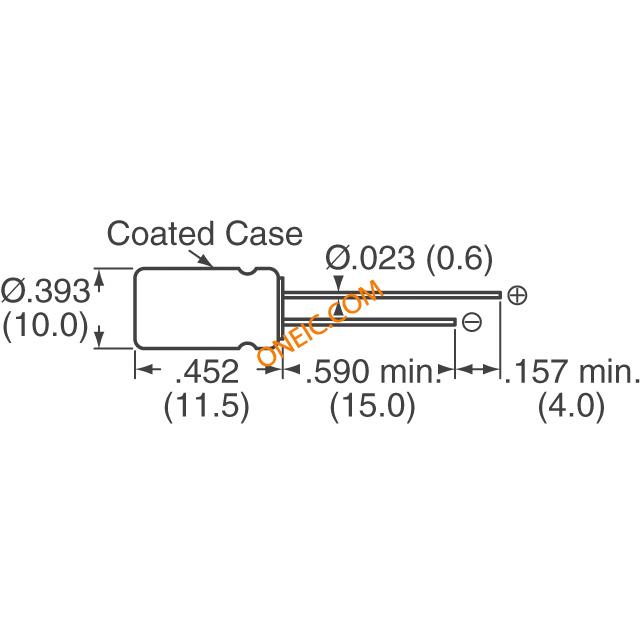

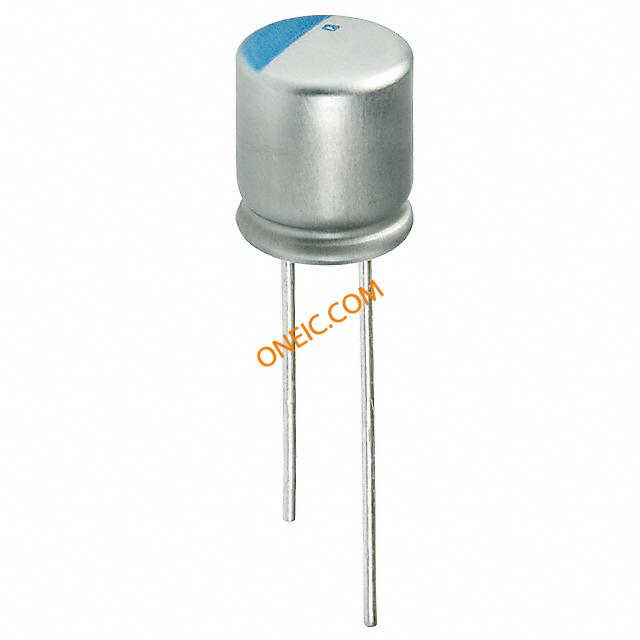

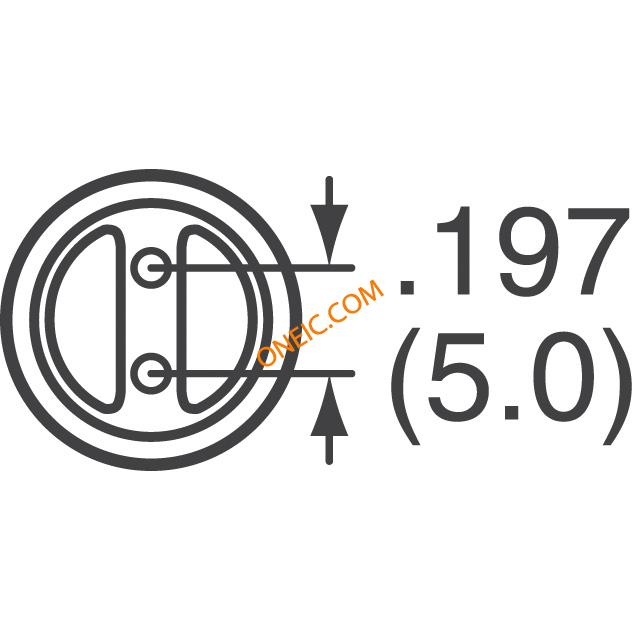

7 APSA100ELL471MJB5S Aluminum Organic Polymer Capacitors 10V 470uF 20% CAP ALUM 470UF 10V 20% RADIAL Cap Aluminum Lytic 470uF 10V 20% (10 X 11.5mm) Radial 5mm 0.008 Ohm 5650mA 2000h 105°C Bulk United Chemi-Con	1610	1: ¥6.324	-	Organic Polymer Aluminum - Radial Capacitors	NPCAP	RoHS Compliant	20 %	470 uF	10 V	0.08	5650 mA	8 mOhms	10 mm	Bulk	5 mm	11.5 mm	Radial	PSA	Can	2000 h	- 55 C to + 105 C	Aluminum Organic Polymer Capacitors	2000	10 mm Dia. x 11.5 mm L	-	-
6 APSA100ELL101MFA5G Aluminum Organic Polymer Capacitors 10V 100uF 20% CAP ALUM 100UF 10V 20% RADIAL Cap Aluminum Polymer 100uF 10V 20% (6.3 X 10.5mm) Radial 2.5mm 0.025 Ohm 2820mA 2000h 105°C Bulk United Chemi-Con	6603	1: ¥5.032	-	Organic Polymer Aluminum - Radial Capacitors	NPCAP	RoHS Compliant	20 %	100 uF	10 V	0.12	2820 mA	25 mOhms	6.3 mm	Bulk	2.5 mm	10.5 mm	Radial	PSA	Can	2000 h	- 55 C to + 105 C	Aluminum Organic Polymer Capacitors	2000	6.3 mm Dia. x 10.5 mm L	-	-
6 APSA100ELL470MFA5G Aluminum Organic Polymer Capacitors 10V 47uF 20% CAP ALUM 47UF 10V 20% RADIAL Cap Aluminum Polymer 47uF 10V 20% (6.3 X 10.5mm) Radial 2.5mm 0.025 Ohm 2820mA 2000h 105°C Bulk United Chemi-Con	1910	1: ¥3.604	-	Organic Polymer Aluminum - Radial Capacitors	NPCAP	RoHS Compliant	20 %	47 uF	10 V	0.12	2820 mA	25 mOhms	6.3 mm	Bulk	2.5 mm	10.5 mm	Radial	PSA	Can	2000 h	- 55 C to + 105 C	Aluminum Organic Polymer Capacitors	2000	6.3 mm Dia. x 10.5 mm L	-	-
7 APSA100ELL151MFA5G Aluminum Organic Polymer Capacitors 10volts 150uF CAP ALUM 150UF 10V 20% RADIAL Cap Aluminum Polymer 150uF 10V 20% (6.3 X 10.5mm) Radial 2.5mm 0.025 Ohm 2820mA 2000h 105°C Bulk CAPACITOR ALUM POLYMER 150UF, 10V, RADIA United Chemi-Con	2060	1: ¥2.0876	-	Organic Polymer Aluminum - Radial Capacitors	NPCAP	RoHS Compliant	20 %	150 uF	10 V	0.12	2820 mA	25 mOhms	6.3 mm	Bulk	2.5 mm	10.5 mm	Radial	PSA	Can	2000 h	- 55 C to + 105 C	Aluminum Organic Polymer Capacitors	2000	6.3 mm Dia. x 10.5 mm L	85322300	0.00001
APSA100ETD470MFA5S CAP ALUM 47UF 10V 20% RADIAL Aluminum Organic Polymer Capacitors 47uF 10 Volt United Chemi-Con	10	2000: ¥1.5232	-	Organic Polymer Aluminum - Radial Capacitors	NPCap	RoHS Compliant	20 %	47 uF	10 V	0.12	2820 mA	25 mOhms	6.3 mm	Reel	2.5 mm	10.5 mm	Radial	PSA	Can	2000 h	- 55 C to + 105 C	-	-	-	-	-
APSA100ETD151MFA5S CAP ALUM 150UF 10V 20% RADIAL Aluminum Organic Polymer Capacitors 150uF 10 Volt United Chemi-Con	10	2000: ¥1.564	-	Organic Polymer Aluminum - Radial Capacitors	NPCap	RoHS Compliant	20 %	150 uF	10 V	0.12	2820 mA	25 mOhms	6.3 mm	Reel	2.5 mm	10.5 mm	Radial	PSA	Can	2000 h	- 55 C to + 105 C	-	-	-	-	-
