cigen-APXE2R5ARA
APXE2R5ARA passive Series
united-chemi-conAluminum capacitors for various applications
The APXE2R5ARA series from Nippon Chemi-Con Corporation is a lineup of aluminum electrolytic capacitors designed for a wide range of applications. These capacitors are known for their high capacitance values and good voltage ratings, making them suitable for power supply filtering, decoupling, and energy storage in various electronic circuits.
If you're working on projects that require reliable energy storage and smoothing out voltage fluctuations, these aluminum capacitors are a solid choice. They are commonly found in industrial control systems, medical equipment, and automotive electronics, where they help maintain stable power supplies and filter out noise.
One thing worth noting is their robust construction, which makes them durable even in harsh environments. Engineers tend to reach for this type of capacitor when they need components that can withstand higher temperatures and mechanical stress without degrading quickly. Another practical benefit is their cost-effectiveness compared to some other types of capacitors, especially for bulk applications where reliability is paramount but budget constraints are a concern.
Series Images (27)
Documents & Media
Frequently Asked Questions
APXE2R5ARA passive - Part List
13 parts in total| Mfr Part # | Quantity Available | Price | Category | Tolerance | Capacitance | Ripple Current @ High Frequency | ESR (Equivalent Series Resistance) | Height | Diameter | Packaging | Operating Temperature | Product | Tradename | RoHS | Rad Hardened | Voltage | Voltage Rating | Current - Leakage | Dissipation Factor (DF) | Size | Depth | Width | Construction | Height (Max) | Lead Spacing | Mounting Style | Package / Case | Length - Overall | Termination Style | Diameter - Small Outside | Type | Series | Failure Rate | Product Type | Electrical Life | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

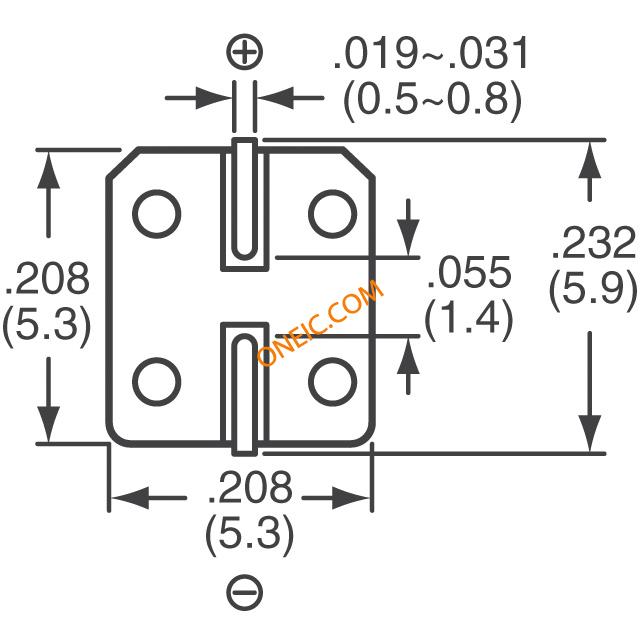

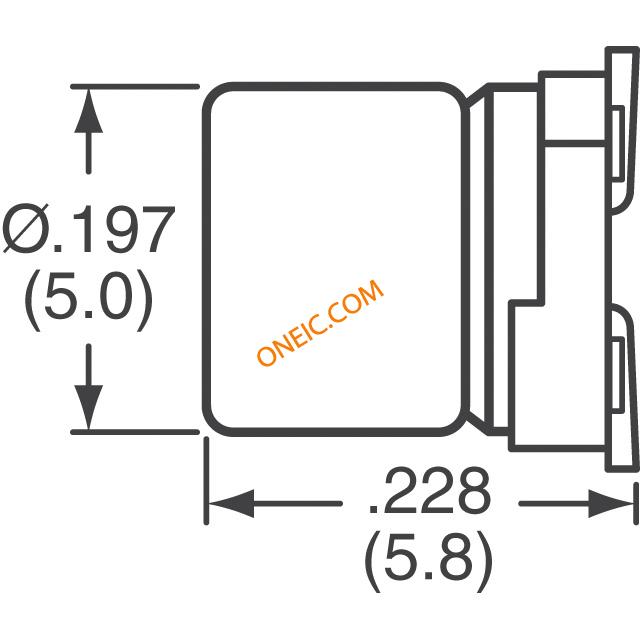

 APXE2R5ARA181ME61G CAP ALUM 180UF 2.5V 20% SMD Aluminum Organic Polymer Capacitors 180uF 2.5 Volt Cap Aluminum 180uF 2.5V 20% (5 X 5.8mm) SMD 0.021 Ohm 2670mA 2000h 105C T/R United Chemi-Con | 1000 | 30: ¥7.0814 | - | 20 % | 180 uF | 2670 mA | 21 mOhms | 5.3 mm | 5 mm | Reel | - 55 C to + 105 C | Organic Polymer Aluminum - SMD Capacitors | NPCap | RoHS Compliant | No | 2.5VDC | 2.5 V | 90 uA | 0.12 | 5 X 5.8 | Not Required mm | 5.3 mm | Cylindrical | Not Required mm | Not Required mm | Surface Mount | 5.8 mm | Not Required mm | SMD/SMT | Not Required mm | Electrolytic | PXE | Not Required | Can | 2000 hr | 90 uA |
 APXE2R5ARA391MF61G CAP ALUM 390UF 2.5V 20% SMD Aluminum Organic Polymer Capacitors 390uF 2.5 Volt Cap Aluminum 390uF 2.5V 20% (6.3 X 5.8mm) SMD 0.015 Ohm 3160mA 2000h 105C T/R United Chemi-Con | 1000 | 104: ¥5.3856 | - | 20 % | 390 uF | 3160 mA | 15 mOhms | 6.6 mm | 6.3 mm | Reel | - 55 C to + 105 C | Organic Polymer Aluminum - SMD Capacitors | NPCap | RoHS Compliant | No | 2.5VDC | 2.5 V | 195 uA | 0.12 | 6.3 X 5.8 | Not Required mm | 6.6 mm | Cylindrical | Not Required mm | Not Required mm | Surface Mount | 5.8 mm | Not Required mm | SMD/SMT | Not Required mm | Electrolytic | PXE | Not Required | Can | 2000 hr | 195 uA |

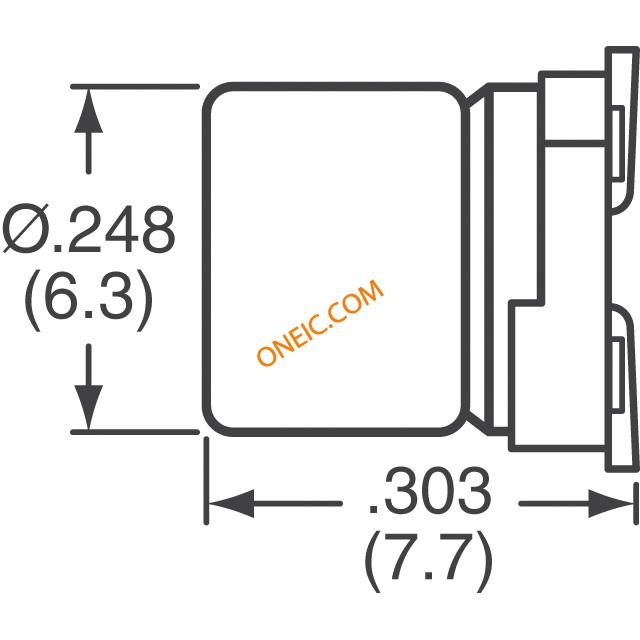

 APXE2R5ARA471MF80G CAP ALUM 470UF 2.5V 20% SMD Aluminum Organic Polymer Capacitors 470uF 2.5 Volt Cap Aluminum 470uF 2.5V 20% (6.3 X 7.7mm) SMD 0.013 Ohm 3600mA 2000h 105C T/R United Chemi-Con | 598 | 100: ¥5.574 | - | 20 % | 470 uF | 3600 mA | 13 mOhms | 6.6 mm | 6.3 mm | Reel | - 55 C to + 105 C | Organic Polymer Aluminum - SMD Capacitors | NPCap | RoHS Compliant | No | 2.5VDC | 2.5 V | 235 uA | 0.12 | 6.3 X 7.7 | Not Required mm | 6.6 mm | Cylindrical | Not Required mm | Not Required mm | Surface Mount | 7.7 mm | Not Required mm | SMD/SMT | Not Required mm | Electrolytic | PXE | Not Required | Can | 2000 hr | 235 uA |

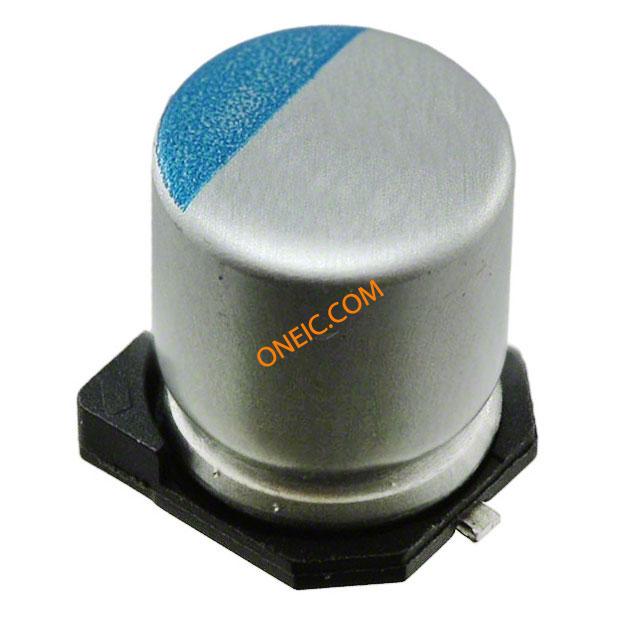

APXE2R5ARA561MF80G CAP ALUM 560UF 2.5V 20% SMD Aluminum Organic Polymer Capacitors 560uF 2.5 Volt Cap Aluminum 560uF 2.5V 20% (6.3 X 7.7mm) SMD 0.013 Ohm 3600mA 2000h 105C T/R United Chemi-Con | 10 | 900: ¥3.842 | - | 20 % | 560 uF | 3600 mA | 13 mOhms | 6.6 mm | 6.3 mm | Reel | - 55 C to + 105 C | Organic Polymer Aluminum - SMD Capacitors | NPCap | RoHS Compliant | No | 2.5VDC | 2.5 V | 280 uA | 0.12 | 6.3 X 7.7 | Not Required mm | 6.6 mm | Cylindrical | Not Required mm | Not Required mm | Surface Mount | 7.7 mm | Not Required mm | SMD/SMT | Not Required mm | Electrolytic | PXE | Not Required | Can | 2000 hr | 280 uA |

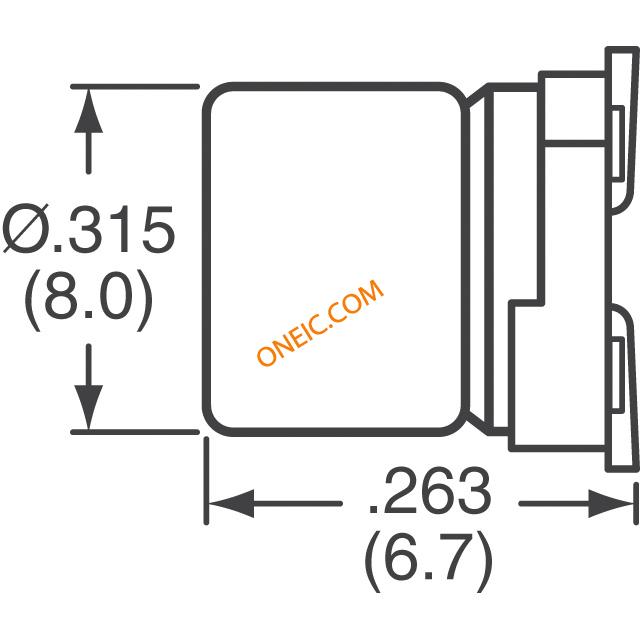

 APXE2R5ARA681MH70G CAP ALUM 680UF 2.5V 20% SMD Aluminum Organic Polymer Capacitors 680uF 2.5 Volt United Chemi-Con | 1000 | 20: ¥8.9404 | - | 20 % | 680 uF | 4100 mA | 13 mOhms | 8.3 mm | 8 mm | Reel | - 55 C to + 105 C | Organic Polymer Aluminum - SMD Capacitors | NPCap | RoHS Compliant | - | - | 2.5 V | 340 uA | 0.12 | - | - | 8.3 mm | - | - | - | - | 6.7 mm | - | SMD/SMT | - | - | PXE | - | Can | - | - |
 APXE2R5ARA102MH80G CAP ALUM 1000UF 2.5V 20% SMD Aluminum Organic Polymer Capacitors 1000uF 2.5 Volt Cap Aluminum 1000uF 2.5V 20% (8 X 7.7mm) SMD 0.012 Ohm 4260mA 2000h 105C T/R United Chemi-Con | 10 | 900: ¥5.0252 | - | 20 % | 1000 uF | 4260 mA | 12 mOhms | 8.3 mm | 8 mm | Reel | - 55 C to + 105 C | Organic Polymer Aluminum - SMD Capacitors | NPCap | RoHS Compliant | No | 2.5VDC | 2.5 V | 500 uA | 0.12 | 8 x 7.7 | Not Required mm | 8.3 mm | Cylindrical | Not Required mm | Not Required mm | Surface Mount | 7.7 mm | Not Required mm | SMD/SMT | Not Required mm | Electrolytic | PXE | Not Required | Can | 2000 hr | 500 uA |

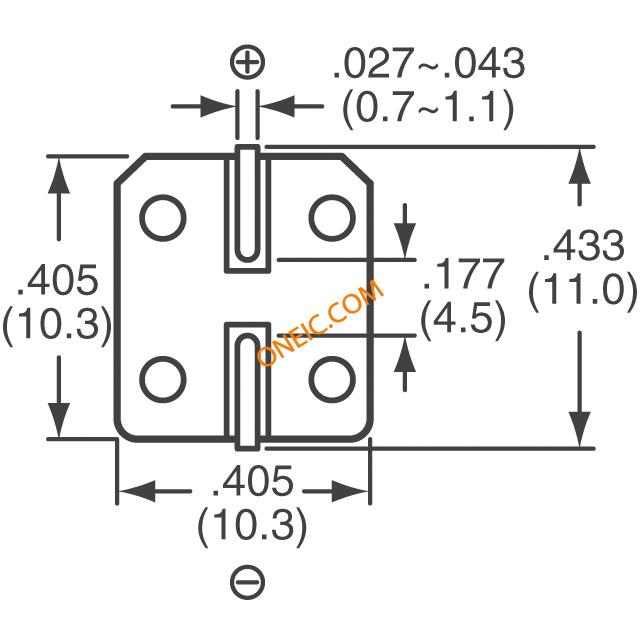

 APXE2R5ARA122MJ80G CAP ALUM 1200UF 2.5V 20% SMD Aluminum Organic Polymer Capacitors 1200uF 2.5 Volt Cap Aluminum 1200uF 2.5V 20% (10 X 7.7mm) SMD 0.013 Ohm 4450mA 2000h 105C T/R United Chemi-Con | 10 | 500: ¥6.0248 | - | 20 % | 1200 uF | 4450 mA | 13 mOhms | 10.3 mm | 10 mm | Reel | - 55 C to + 105 C | Organic Polymer Aluminum - SMD Capacitors | NPCap | RoHS Compliant | No | 2.5VDC | 2.5 V | 600 uA | 0.12 | 10 X 7.7 | Not Required mm | 10.3 mm | Cylindrical | Not Required mm | Not Required mm | Surface Mount | 7.7 mm | Not Required mm | SMD/SMT | Not Required mm | Electrolytic | PXE | Not Required | Can | 2000 hr | 600 uA |

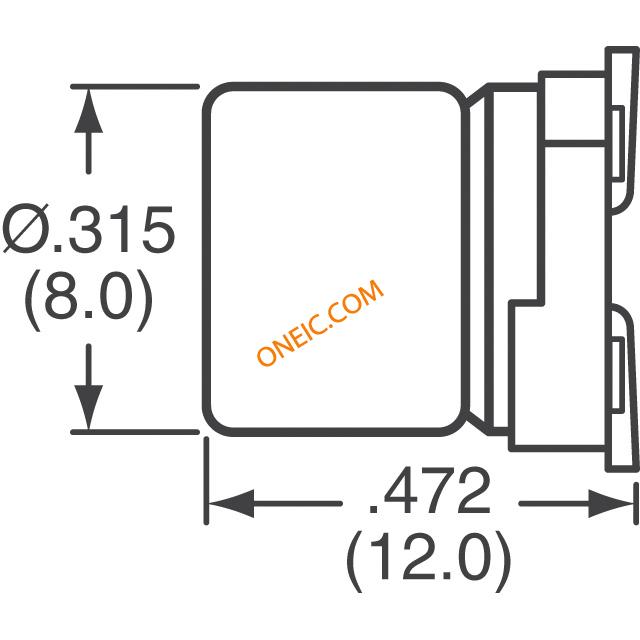

 APXE2R5ARA152MHC0G CAP ALUM 1500UF 2.5V 20% SMD Aluminum Organic Polymer Capacitors 1500uF 2.5 Volt Cap Aluminum 1500uF 2.5V 20% (8 X 12mm) SMD 0.009 Ohm 5400mA 2000h 105C T/R United Chemi-Con | 386 | 20: ¥11.269 | - | 20 % | 1500 uF | 5400 mA | 9 mOhms | 8.3 mm | 8 mm | Reel | - 55 C to + 105 C | Organic Polymer Aluminum - SMD Capacitors | NPCap | RoHS Compliant | No | 2.5VDC | 2.5 V | 750 uA | 0.12 | 8 X 12 | Not Required mm | 8.3 mm | Cylindrical | Not Required mm | Not Required mm | Surface Mount | 12 mm | Not Required mm | SMD/SMT | Not Required mm | Polymer | PXE | Not Required | Can | 2000 hr | - |
APXE2R5ARA821MHC0G CAP ALUM 820UF 2.5V 20% SMD Aluminum Organic Polymer Capacitors 820uF 2.5 Volt Cap Aluminum 820uF 2.5V 20% (8 X 12mm) SMD 0.009 Ohm 5400mA 2000h 105C T/R United Chemi-Con | 10 | 400: ¥8.3504 | - | 20 % | 820 uF | 5400 mA | 9 mOhms | 8.3 mm | 8 mm | Reel | - 55 C to + 105 C | Organic Polymer Aluminum - SMD Capacitors | NPCap | RoHS Compliant | No | 2.5VDC | 2.5 V | 410 uA | 0.12 | 8 X 12 | Not Required mm | 8.3 mm | Cylindrical | Not Required mm | Not Required mm | Surface Mount | 12 mm | Not Required mm | SMD/SMT | Not Required mm | Electrolytic | PXE | Not Required | Can | 2000 hr | 410 uA |

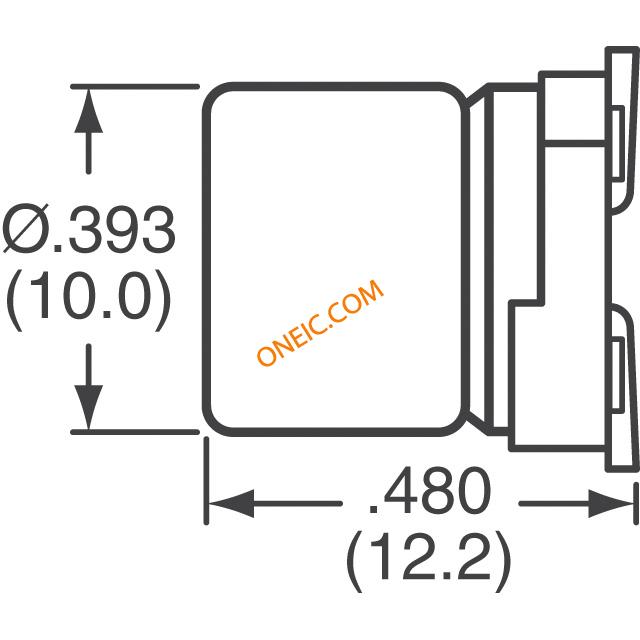

 APXE2R5ARA272MJC0G CAP ALUM 2700UF 2.5V 20% SMD Cap Aluminum 2700uF 2.5V 20% (10 X 12.2mm) SMD 0.009 Ohm 5600mA 2000h 105C T/R United Chemi-Con | 10 | 400: ¥9.0304 | - | 20% | 2700000000 pF | 5600 mA | 0.009 ohm | 12.2 mm | 10 mm | Tape and Reel | -55C to 105C | - | - | - | No | 2.5VDC | - | - | - | 10 X 12.2 | Not Required mm | - | Cylindrical | Not Required mm | Not Required mm | Surface Mount | - | Not Required mm | - | Not Required mm | Polymer | - | Not Required | - | 2000 hr | - |
 APXE2R5ARA821MH80G CAP ALUM 820UF 2.5V 20% SMD Aluminum Organic Polymer Capacitors 820uF 2.5 Volt United Chemi-Con | 900 | 20: ¥10.052 | - | 20 % | 820 uF | 4260 mA | 12 mOhms | 8.3 mm | 8 mm | Reel | - 55 C to + 105 C | Organic Polymer Aluminum - SMD Capacitors | NPCap | RoHS Compliant | - | - | 2.5 V | 410 uA | 0.12 | - | - | 8.3 mm | - | - | - | - | 7.7 mm | - | SMD/SMT | - | - | PXE | - | Can | - | - |
APXE2R5ARA222MJA0G CAP ALUM 2200UF 2.5V 20% SMD Aluminum Organic Polymer Capacitors 2200uF 2.5 Volt Cap Aluminum 2200uF 2.5V 20% (10 X 10mm) SMD 0.01 Ohm 5500mA 2000h 105C T/R United Chemi-Con | 10 | 500: ¥7.6024 | - | 20 % | 2200 uF | 5500 mA | 10 mOhms | 10.3 mm | 10 mm | Reel | - 55 C to + 105 C | Organic Polymer Aluminum - SMD Capacitors | NPCap | RoHS Compliant | No | 2.5VDC | 2.5 V | 1100 uA | 0.12 | 10 X 10 | Not Required mm | 10.3 mm | Cylindrical | Not Required mm | Not Required mm | Surface Mount | 10 mm | Not Required mm | SMD/SMT | Not Required mm | Polymer | PXE | Not Required | Can | 2000 hr | 1100 uA |
APXE2R5ARA152MHA0G Cap Aluminum 1500uF 2.5V 20% (8 X 10mm) SMD 0.01 Ohm 5220mA 2000h 105C T/R United Chemi-Con | 0 | - | 20% | 1500000000 pF | 5220 mA | 0.01 ohm | 10 mm | 8 mm | Tape and Reel | -55C to 105C | - | - | - | No | 2.5VDC | - | - | - | 8 X 10 | Not Required mm | - | Cylindrical | Not Required mm | Not Required mm | Surface Mount | - | Not Required mm | - | Not Required mm | Polymer | - | Not Required | - | 2000 hr | - |
