cigen-ATS-50170
ATS-50170 thermal - heat sink Series
Heat sinks in various sizes for heat dissipation
The ATS-50170 series from Advanced Thermal Solutions, Inc., is a lineup of thermal heat sinks designed for effective heat dissipation in electronic devices. These heat sinks come in various sizes, making them suitable for a wide range of applications where thermal management is critical. If you're working on projects involving power electronics, LED lighting, or any system with high heat generation, these heat sinks could be a valuable addition to your toolkit.
One thing worth noting is their versatility; they can handle both forced and natural convection cooling, which makes them adaptable to different environmental conditions. Engineers tend to reach for this when they need a reliable solution to manage heat without complicating the design too much. Another practical benefit is their ability to reduce hotspots in components, which can help extend the lifespan of electronic devices by preventing overheating issues. Overall, if you're dealing with thermal challenges in your project, the ATS-50170 series is definitely worth considering.
Series Images (11)
Documents & Media
Frequently Asked Questions
ATS-50170 thermal - heat sink - Part List
6 parts in total| Mfr Part # | Quantity Available | Price | Category | Standard Package | Shape | Width | Length | Material | Package Cooled | Material Finish | Length - Overall | Attachment Method | Height - Seated (Max) | Type | Thermal Resistance | Thermal Resistance @ Forced Air Flow | SVHC | Tariff No | Weight | Mounting Type | Width (Inches) | Height (Inches) | Width - Overall | Shell Size - Insert (Convert From) | Heat Protection | Product | RoHS | Rad Hardened | Color | Depth | Height | Diameter | Packaging | Fin Height | Mounting Style | Heat Sink Material | Series | Application | Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

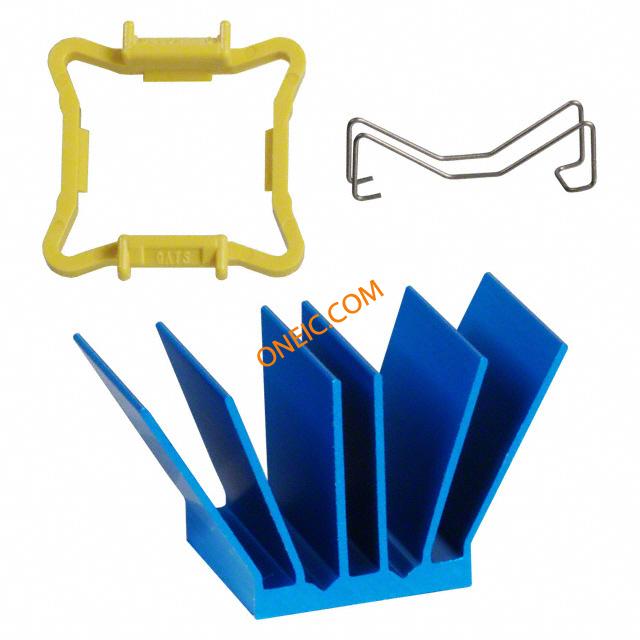

ATS-50170P-C2-R0 HEAT SINK 17MM X 17MM X 17.5MM HEAT SINK, MAXIGRIP Heat sink 17 mm 6.8 K/W blue anodised, ATS-50170P-C2-R0, Advanced Thermal Solutions Advanced Thermal Solutions Inc | 10 | 1: ¥38.284 | - | 10 | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17mm) | Aluminum | BGA | Blue Anodized | :1.26" | Clip, Thermal Material | 0.689" (17.50mm) | Top Mount | :6.8°C/W | 8.3°C/W @ 200 LFM | :No SVHC (20-Jun-2013) | 76042990 | 0.015 | :Clip | :0.67" | :0.69" | :17mm | :17.5mm | :Aluminium | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

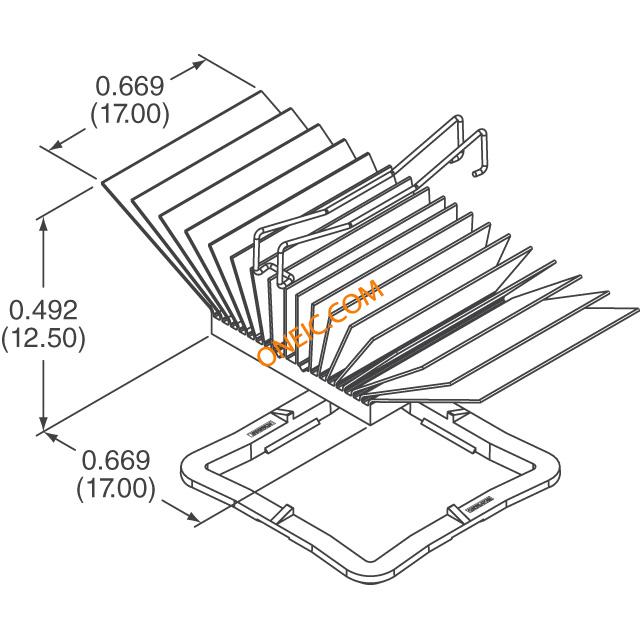

| 100 | 1: ¥82.62 | - | 10 | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17mm) | Aluminum | BGA | Blue Anodized | :1.26" | Clip, Thermal Material | 0.492" (12.50mm) | Top Mount | :9°C/W | 11.1°C/W @ 200 LFM | :No SVHC (20-Jun-2013) | 76042990 | 0.015 | :Clip | :0.67" | :0.49" | :17mm | :12.5mm | :Aluminium | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 188 | 1: ¥85.272 | - | 10 | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17mm) | Aluminum | BGA | Blue Anodized | :1.12" | Clip, Thermal Material | 0.295" (7.50mm) | Top Mount | :13.9°C/W | 18.2°C/W @ 200 LFM | :No SVHC (20-Jun-2013) | 76042990 | 0.015 | :Clip | :0.67" | :0.3" | :17mm | :7.5mm | :Aluminium | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
ATS-50170B-C1-R0 Heat Sinks MAXIGRIP HTSNK 17 X 17 X 7.5 (MM) Heat Sink Passive BGA Spread Clip 18.24C/W Black Anodized HEAT SINK 17MM X 17MM X 7.5MM Advanced Thermal Solutions | 100 | 1: ¥61.268 | - | 10 | Square, Angled Fins | 17 mm | 17 mm | Aluminum | BGA | Blue Anodized | 17 mm | Clip | 0.295" (7.50mm) | Passive | 18.2 C/W | 18.2°C/W @ 200 LFM | - | - | - | - | - | - | - | - | - | Heat Sinks | RoHS Compliant | No | Blue | 17 mm | 7.5 mm | Not Required mm | Bulk | Angled | Clip | Aluminum | maxiGRIP | BGA | Black Anodized |
ATS-50170P-C1-R0 Heat Sinks MAXIGRIP HTSNK 17 X 17 X 17.5 (MM) Heat Sink Passive BGA Spread Clip 8.3C/W Blue Anodized HEAT SINK 17MM X 17MM X 17.5MM Advanced Thermal Solutions | 72 | 1: ¥72.012 | - | 10 | Square, Angled Fins | 17 mm | 17 mm | Aluminum | BGA | Blue Anodized | 17 mm | Clip | 0.689" (17.50mm) | Passive | 8.28 C/W | 8.3°C/W @ 200 LFM | - | - | - | - | - | - | - | - | - | Heat Sinks | RoHS Compliant | No | Blue | 17 mm | 17.5 mm | Not Required mm | Bulk | Angled | Clip | Aluminum | maxiGRIP | BGA | - |
ATS-50170G-C1-R0 Heat Sinks MAXIGRIP HTSNK 17 X 17 X 12.5 (MM) Heat Sink Passive BGA Spread Clip 11.1C/W Blue Anodized HEAT SINK 17MM X 17MM X 12.5MM Advanced Thermal Solutions | 93 | 1: ¥66.30 | - | 10 | Square, Angled Fins | 17 mm | 17 mm | Aluminum | BGA | Blue Anodized | 17 mm | Clip | 0.492" (12.50mm) | Passive | 11.07 C/W | 11.1°C/W @ 200 LFM | - | - | - | - | - | - | - | - | - | Heat Sinks | RoHS Compliant | No | Blue | 17 mm | 12.5 mm | Not Required mm | Bulk | Angled | Clip | Aluminum | maxiGRIP | BGA | - |
