cigen-ATS-50330
ATS-50330 thermal - heat sink Series
33mm heat sinks for thermal management
The ATS-50330 series from Advanced Thermal Solutions, Inc., consists of 33mm heat sinks designed for effective thermal management in various electronic devices. These heat sinks are commonly used in applications where space is limited but heat dissipation needs to be robust. If you're working on small form factor devices like power supplies, mobile electronics, or embedded systems, these heat sinks can be a valuable addition to your thermal management strategy.
One thing worth noting is that these heat sinks are engineered to handle significant thermal loads without compromising performance. Engineers tend to reach for this when they need a reliable solution that doesn't take up too much space but still provides adequate cooling. Another practical benefit is their ease of integration; they come with a variety of mounting options and are compatible with different heat sources, making them versatile for different applications.
The 33mm size is particularly useful in tight spaces where traditional larger heat sinks might not fit. They also offer good surface area to manage heat effectively, which is crucial in dense electronic environments. Overall, the ATS-50330 series is a solid choice for anyone looking to manage heat efficiently in compact designs.
Series Images (11)
Documents & Media
Frequently Asked Questions
ATS-50330 thermal - heat sink - Part List
6 parts in total| Mfr Part # | Quantity Available | Price | Category | Standard Package | Shape | Width | Length | Material | Package Cooled | Material Finish | Attachment Method | Height - Seated (Max) | Type | Thermal Resistance | Thermal Resistance @ Forced Air Flow | Length - Overall | Height | Product | RoHS | Rad Hardened | Color | Depth | Diameter | Packaging | Fin Height | Mounting Style | Heat Sink Material | Series | Application | SVHC | Tariff No | Weight | Mounting Type | Width (Inches) | Height (Inches) | Width - Overall | Shell Size - Insert (Convert From) | Heat Protection | Surface Type | Diameter - Outside | Number of Positions | Description | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

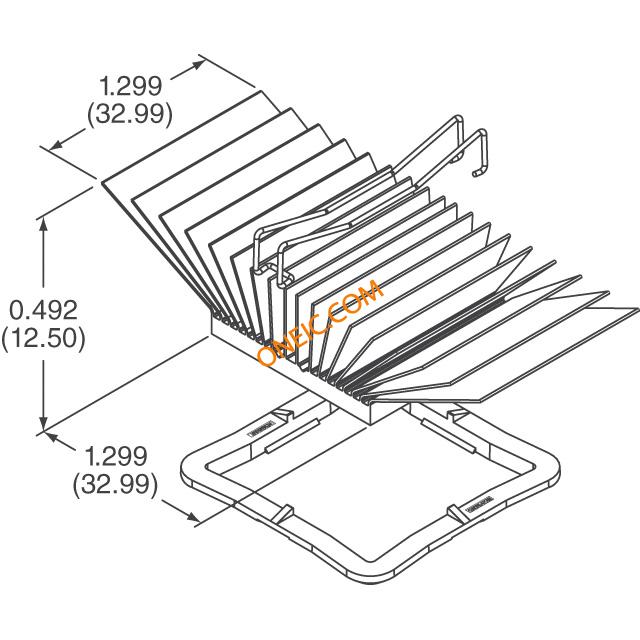

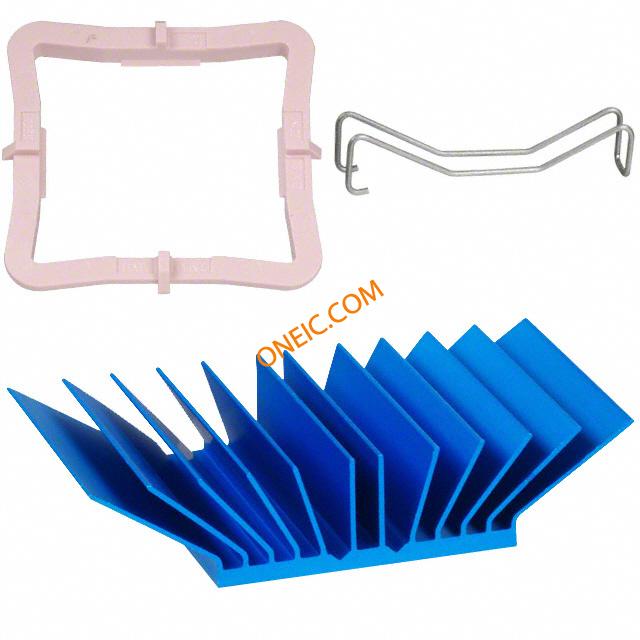

ATS-50330G-C2-R0 HEAT SINK 33MM X 33MM X 12.5MM Heat sink 33 mm 2.7 K/W blue anodised, ATS-50330G-C2-R0, Advanced Thermal Solutions Advanced Thermal Solutions Inc | 220 | 1: ¥90.848 | - | 10 | Square, Angled Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | Aluminum | BGA | Blue Anodized | Clip, Thermal Material | 0.492" (12.50mm) | Top Mount | 2.7 K/W | 3.5°C/W @ 200 LFM | - | 12.5 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | blue anodised | 58.16 | without | 33x33x12.5(D=58.16)mm | BGA |

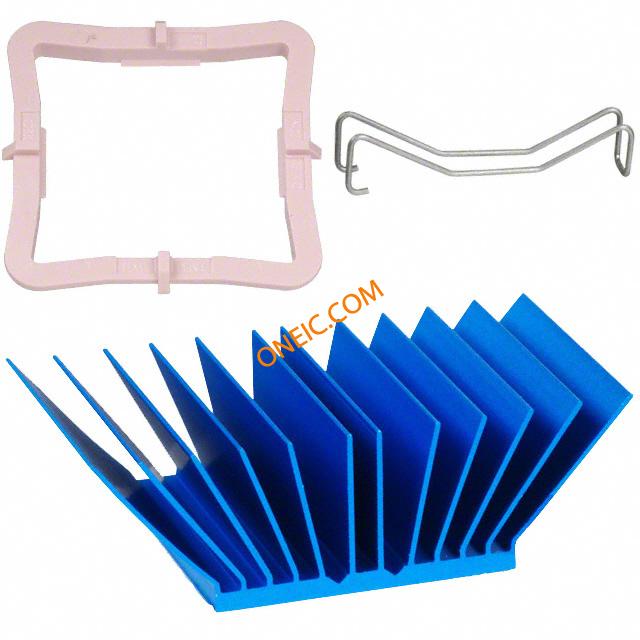

ATS-50330P-C2-R0 HEAT SINK 33MM X 33MM X 17.5MM HEAT SINK, MAXIGRIP Heat sink 33 mm 2.1 K/W blue anodised, ATS-50330P-C2-R0, Advanced Thermal Solutions Advanced Thermal Solutions Inc | 10 | 1: ¥42.092 | - | 10 | Square, Angled Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | Aluminum | BGA | Blue Anodized | Clip, Thermal Material | 0.689" (17.50mm) | Top Mount | :2.1°C/W | 2.7°C/W @ 200 LFM | :2.29" | - | - | - | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 76042990 | 0.02 | :Clip | :1.3" | :0.69" | :33mm | :17.5mm | :Aluminium | - | - | - | - | - |

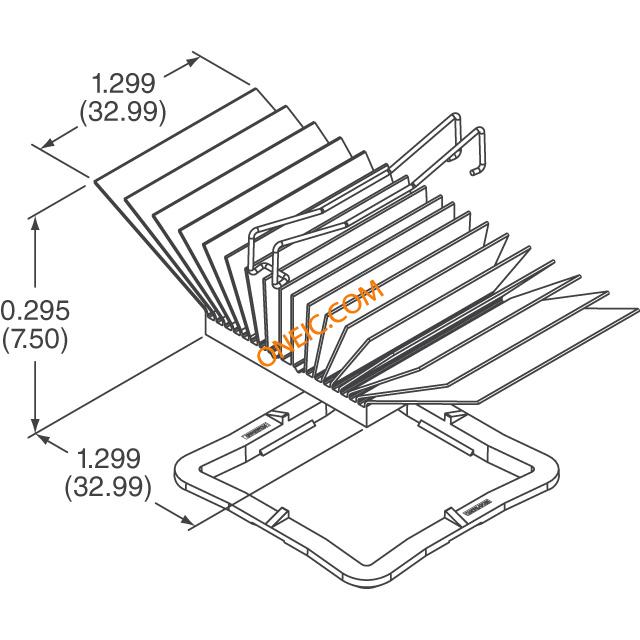

| 40 | 1: ¥81.54 | - | 10 | Square, Angled Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | Aluminum | BGA | Blue Anodized | Clip, Thermal Material | 0.295" (7.50mm) | Top Mount | :4.2°C/W | 5.8°C/W @ 200 LFM | :1.79" | - | - | - | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 76042990 | 0.02 | :Clip | :1.3" | :0.3" | :33mm | :7.5mm | :Aluminium | - | - | - | - | - | |
ATS-50330G-C1-R0 Heat Sinks MAXIGRIP HTSNK 33 X 33 X 12.5 (MM) Heat Sink Passive BGA Spread Clip 3.5C/W Blue Anodized HEAT SINK 33MM X 33MM X 12.5MM Advanced Thermal Solutions | 25 | 5: ¥100.0572 | - | 10 | Square, Angled Fins | 33 mm | 33 mm | Aluminum | BGA | Blue Anodized | Clip | 0.492" (12.50mm) | Passive | 3.46 C/W | 3.5°C/W @ 200 LFM | 33 mm | 12.5 mm | Heat Sinks | RoHS Compliant | No | Blue | 33 mm | Not Required mm | Bulk | Angled | Clip | Aluminum | maxiGRIP | BGA | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
ATS-50330P-C1-R0 Heat Sinks MAXIGRIP HTSNK 33 X 33 X 17.5 (MM) Heat Sink Passive BGA Spread Clip 2.7C/W Blue Anodized HEAT SINK 33MM X 33MM X 17.5MM Advanced Thermal Solutions | 76 | 1: ¥77.044 | - | 10 | Square, Angled Fins | 33 mm | 33 mm | Aluminum | BGA | Blue Anodized | Clip | 0.689" (17.50mm) | Passive | 2.66 C/W | 2.7°C/W @ 200 LFM | 33 mm | 17.5 mm | Heat Sinks | RoHS Compliant | No | Blue | 33 mm | Not Required mm | Bulk | Angled | Clip | Aluminum | maxiGRIP | BGA | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

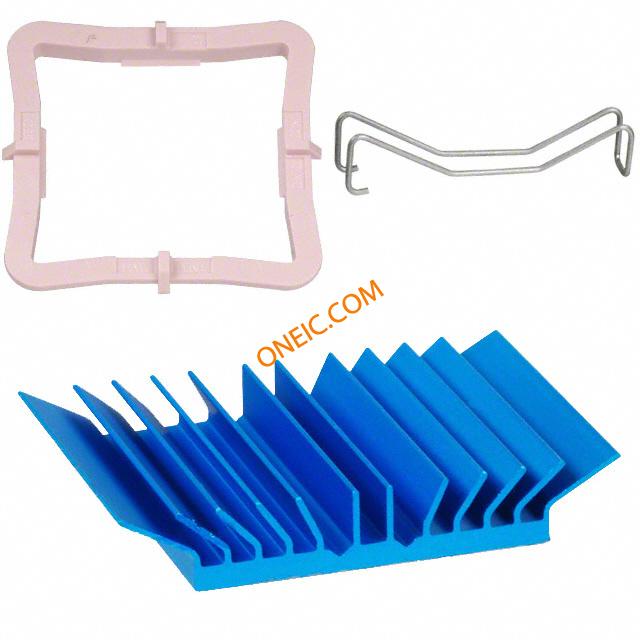

ATS-50330B-C1-R0 Heat Sinks MAXIGRIP HTSNK 33 X 33 X 7.5 (MM) Heat Sink Passive BGA Spread Clip 5.8C/W Blue Anodized HEAT SINK 33MM X 33MM X 7.5MM Advanced Thermal Solutions | 100 | 1: ¥67.32 | - | 10 | Square, Angled Fins | 33 mm | 33 mm | Aluminum | BGA | Blue Anodized | Clip | 0.295" (7.50mm) | Passive | 5.84 C/W | 5.8°C/W @ 200 LFM | 33 mm | 7.5 mm | Heat Sinks | RoHS Compliant | No | Blue | 33 mm | Not Required mm | Bulk | Angled | Clip | Aluminum | maxiGRIP | BGA | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
