ATS-51210 thermal - heat sink Series
Black anodized heat sinks in various sizes
The ATS-51210 series from Advanced Thermal Solutions, Inc., consists of black anodized heat sinks in different sizes, typically ranging from small to medium. These heat sinks are designed to dissipate heat efficiently from electronic components, making them a go-to solution for engineers working on various projects that require effective thermal management.
If you're working on power supplies, LED lighting systems, or any application where heat generation is a concern, these heat sinks can be quite useful. They provide a straightforward way to manage thermal loads without the need for complex cooling solutions. One thing worth noting is their durability; the black anodized finish not only adds a sleek look but also enhances corrosion resistance, which is crucial in many industrial and outdoor applications.
Engineers tend to reach for this when they need a reliable, cost-effective method to keep components cool without adding significant bulk to the design. The variety in size options allows for flexibility in fitting the heat sinks into tight spaces, making them a versatile choice for a wide range of electronics.
Series Images (9)
Documents & Media
Frequently Asked Questions
ATS-51210 thermal - heat sink - Part List
6 parts in total| Mfr Part # | Quantity Available | Price | Category | Standard Package | Shape | Width | Length | Material | Package Cooled | Material Finish | Length - Overall | Attachment Method | Height - Seated (Max) | Type | Thermal Resistance | Thermal Resistance @ Forced Air Flow | SVHC | Tariff No | Weight | Mounting Type | Width (Inches) | Height (Inches) | Width - Overall | Shell Size - Insert (Convert From) | Heat Protection | Product | RoHS | Rad Hardened | Color | Depth | Finish | Height | Diameter | Packaging | Fin Height | Mounting Style | Heat Sink Material | Series | Application |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 56 | 1: ¥80.852 | - | 10 | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | Aluminum | BGA | Black Anodized | :1.36" | Clip, Thermal Material | 0.374" (9.50mm) | Top Mount | :8°C/W | 12.0°C/W @ 200 LFM | :No SVHC (20-Jun-2013) | 76042990 | 0.015 | :Clip | :0.83" | :0.37" | :21mm | :9.5mm | :Aluminium | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 46 | 1: ¥81.54 | - | 10 | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | Aluminum | BGA | Black Anodized | :1.5" | Clip, Thermal Material | 0.571" (14.50mm) | Top Mount | :5.4°C/W | 7.2°C/W @ 200 LFM | :No SVHC (20-Jun-2013) | 76042990 | 0.015 | :Clip | :0.83" | :0.57" | :21mm | :14.5mm | :Aluminium | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 10 | 1: ¥19.108 | - | 10 | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | Aluminum | BGA | Black Anodized | :1.5" | Clip, Thermal Material | 0.768" (19.50mm) | Top Mount | :4.2°C/W | 5.3°C/W @ 200 LFM | :No SVHC (20-Jun-2013) | 76042990 | 0.015 | :Clip | :0.83" | :0.77" | :21mm | :19.5mm | :Aluminium | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |

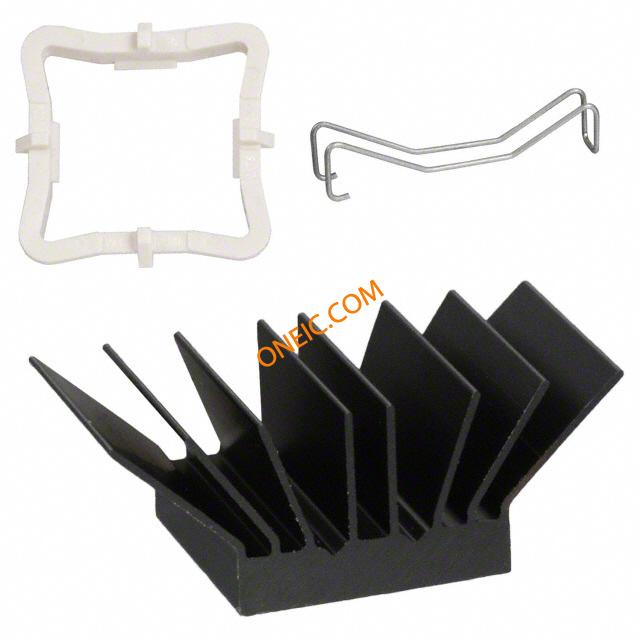

ATS-51210K-C1-R0 Heat Sinks MAXIGRIP HTSNK 21 X 21 X 14.5 (MM) Heat Sink Passive BGA Spread Clip 7.16C/W Black Anodized HEAT SINK 21MM X 21MM X 14.5MM Advanced Thermal Solutions | 2692 | 1: ¥70.244 | - | 10 | Square, Angled Fins | 21 mm | 21 mm | Aluminum | BGA | Black Anodized | 21 mm | Clip | 0.571" (14.50mm) | Passive | 7.16 C/W | 7.2°C/W @ 200 LFM | - | - | - | - | - | - | - | - | - | Heat Sinks | RoHS Compliant | No | Black | 21 mm | Black Anodized | 14.5 mm | Not Required mm | Bulk | Angled | Clip | Aluminum | maxiGRIP | BGA |

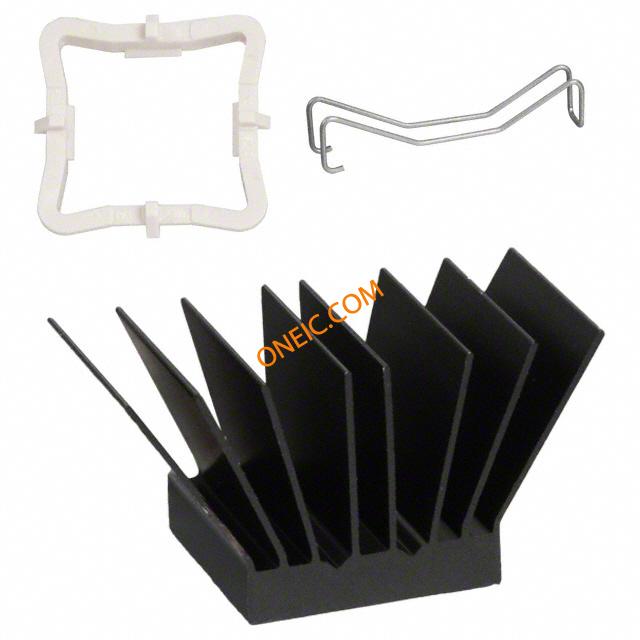

ATS-51210R-C1-R0 Heat Sinks MAXIGRIP HTSNK 21 X 21 X 19.5 (MM) Heat Sink Passive BGA Spread Clip 5.33C/W Black Anodized HEAT SINK 21MM X 21MM X 19.5MM Advanced Thermal Solutions | 589 | 1: ¥74.324 | - | 10 | Square, Angled Fins | 21 mm | 21 mm | Aluminum | BGA | Black Anodized | 21 mm | Clip | 0.768" (19.50mm) | Passive | 5.33 C/W | 5.3°C/W @ 200 LFM | - | - | - | - | - | - | - | - | - | Heat Sinks | RoHS Compliant | No | Black | 21 mm | Black Anodized | 19.5 mm | Not Required mm | Bulk | Angled | Clip | Aluminum | maxiGRIP | BGA |

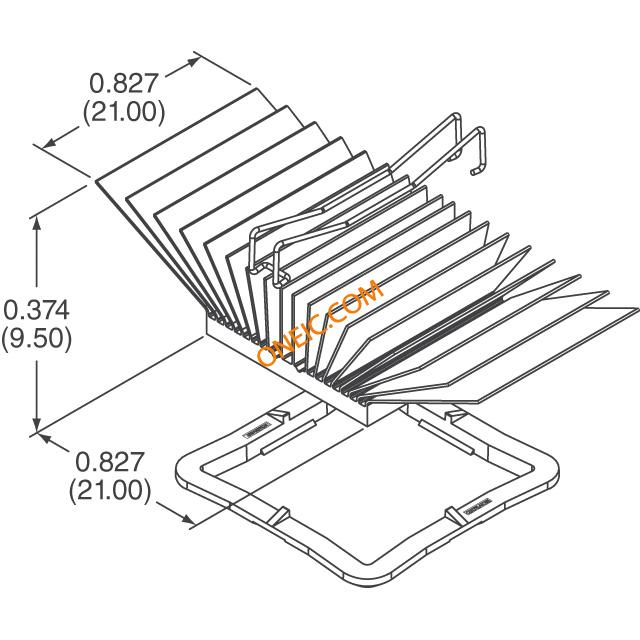

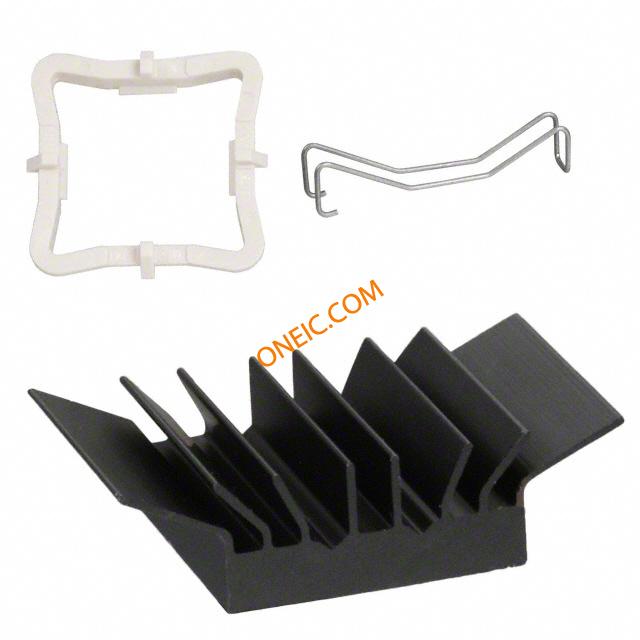

ATS-51210D-C1-R0 Heat Sinks MAXIGRIP HTSNK 21 X 21 X 9.5 (MM) Heat Sink Passive BGA Spread Clip 12.01C/W Black Anodized HEAT SINK 21MM X 21MM X 9.5MM Advanced Thermal Solutions | 33 | 1: ¥64.94 | - | 10 | Square, Angled Fins | 21 mm | 21 mm | Aluminum | BGA | Black Anodized | 21 mm | Clip | 0.374" (9.50mm) | Passive | 12.01 C/W | 12.0°C/W @ 200 LFM | - | - | - | - | - | - | - | - | - | Heat Sinks | RoHS Compliant | No | Black | 21 mm | Black Anodized | 9.5 mm | Not Required mm | Bulk | Angled | Clip | Aluminum | maxiGRIP | BGA |
