ATS-51250 thermal - heat sink Series
Heat sinks in various sizes and thermal properties
The ATS-51250 series from Advanced Thermal Solutions, Inc., is a range of heat sinks designed to manage heat dissipation in electronic devices. These heat sinks come in different sizes and thermal properties, making them versatile for a variety of applications. If you're working on projects involving high-power electronics, such as power supplies, amplifiers, or other components that generate significant heat, these heat sinks can be invaluable. One thing worth noting is their ability to handle a wide range of thermal loads, which makes them suitable for both desktop and industrial environments. Engineers tend to reach for this when they need a reliable solution that can adapt to different thermal management challenges without requiring extensive customization. Another practical observation is that they often integrate well with existing cooling solutions, such as fans or liquid cooling systems, further enhancing their performance in complex thermal management scenarios.
Series Images (11)
Documents & Media
Frequently Asked Questions
ATS-51250 thermal - heat sink - Part List
6 parts in total| Mfr Part # | Quantity Available | Price | Category | Standard Package | Shape | Width | Length | Material | Package Cooled | Material Finish | Length - Overall | Attachment Method | Height - Seated (Max) | Type | Thermal Resistance | Thermal Resistance @ Forced Air Flow | SVHC | Tariff No | Weight | Mounting Type | Width (Inches) | Height (Inches) | Width - Overall | Shell Size - Insert (Convert From) | Heat Protection | Product | RoHS | Rad Hardened | Color | Depth | Finish | Height | Diameter | Packaging | Fin Height | Mounting Style | Heat Sink Material | Series | Application |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

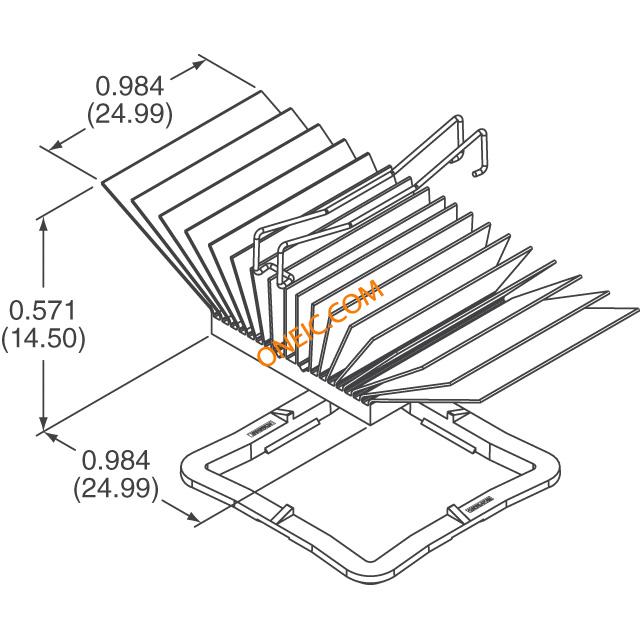

| 10 | 1: ¥39.032 | - | 10 | Square, Angled Fins | 0.984" (24.99mm) | 0.984" (24.99mm) | Aluminum | BGA | Black Anodized | :1.77" | Clip, Thermal Material | 0.571" (14.50mm) | Top Mount | :3.8°C/W | 5.1°C/W @ 200 LFM | :No SVHC (20-Jun-2013) | 76042990 | 0.015 | :Clip | :0.98" | :0.57" | :25mm | :14.5mm | :Aluminium | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
ATS-51250D-C2-R0 HEAT SINK 25MM X 25MM X 9.5MM HEAT SINK, MAXIGRIP Heat sink 25 mm 5.5 K/W black anodised, ATS-51250D-C2-R0, Advanced Thermal Solutions Advanced Thermal Solutions Inc | 10 | 1: ¥24.072 | - | 10 | Square, Angled Fins | 0.984" (24.99mm) | 0.984" (24.99mm) | Aluminum | BGA | Black Anodized | :1.43" | Clip, Thermal Material | 0.374" (9.50mm) | Top Mount | :5.5°C/W | 8.6°C/W @ 200 LFM | :No SVHC (20-Jun-2013) | 76042990 | 0.015 | :Clip | :0.98" | :0.37" | :25mm | :9.5mm | :Aluminium | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

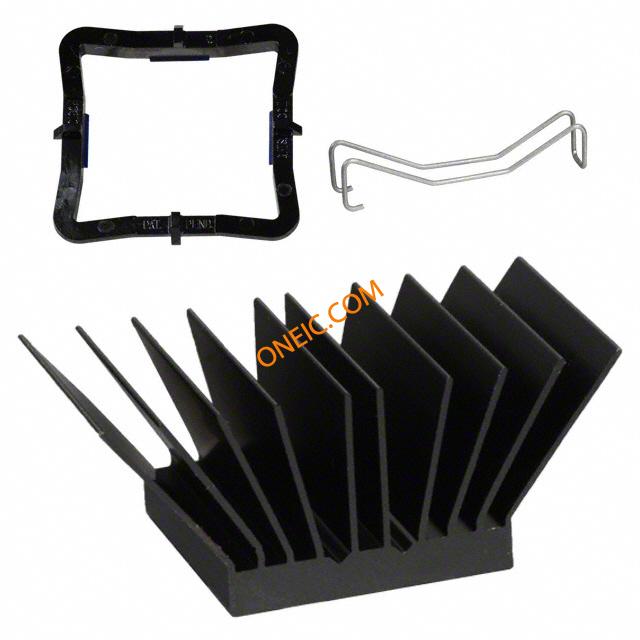

ATS-51250R-C2-R0 HEAT SINK 25MM X 25MM X 19.5MM HEAT SINK, MAXIGRIP Heat sink 25 mm 2.9 K/W black anodised, ATS-51250R-C2-R0, Advanced Thermal Solutions Advanced Thermal Solutions Inc | 10 | 1: ¥25.908 | - | 10 | Square, Angled Fins | 0.984" (24.99mm) | 0.984" (24.99mm) | Aluminum | BGA | Black Anodized | :1.77" | Clip, Thermal Material | 0.768" (19.50mm) | Top Mount | :2.9°C/W | 3.8°C/W @ 200 LFM | :No SVHC (20-Jun-2013) | 76042990 | 0.015 | :Clip | :0.98" | :0.77" | :25mm | :19.5mm | :Aluminium | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
ATS-51250R-C1-R0 Heat Sinks MAXIGRIP HTSNK 25 X 25 X 19.5 (MM) Heat Sink Passive BGA Spread Clip 3.83C/W Black Anodized HEAT SINK 25MM X 25MM X 19.5MM Advanced Thermal Solutions | 807 | 1: ¥76.50 | - | 10 | Square, Angled Fins | 25 mm | 25 mm | Aluminum | BGA | Black Anodized | 25 mm | Clip | 0.768" (19.50mm) | Passive | 3.83 C/W | 3.8°C/W @ 200 LFM | - | - | - | - | - | - | - | - | - | Heat Sinks | RoHS Compliant | No | Black | 25 mm | Black Anodized | 19.5 mm | Not Required mm | Bulk | Angled | Clip | Aluminum | maxiGRIP | BGA |
ATS-51250K-C1-R0 Heat Sinks MAXIGRIP HTSNK 25 X 25 X 14.5 (MM) Heat Sink Passive BGA Spread Clip 8.65C/W Black Anodized HEAT SINK 25MM X 25MM X 14.5MM Advanced Thermal Solutions | 940 | 1: ¥72.42 | - | 10 | Square, Angled Fins | 25 mm | 25 mm | Aluminum | BGA | Black Anodized | 25 mm | Clip | 0.571" (14.50mm) | Passive | 5.12 C/W | 5.1°C/W @ 200 LFM | - | - | - | - | - | - | - | - | - | Heat Sinks | RoHS Compliant | No | Black | 25 mm | Black Anodized | 14.5 mm | Not Required mm | Bulk | Angled | Clip | Aluminum | maxiGRIP | BGA |
ATS-51250D-C1-R0 Heat Sinks MAXIGRIP HTSNK 25 X 25 X 9.5 (MM) Heat Sink Passive BGA Spread Clip 8.65C/W Black Anodized HEAT SINK 25MM X 25MM X 9.5MM Advanced Thermal Solutions | 61 | 1: ¥66.844 | - | 10 | Square, Angled Fins | 25 mm | 25 mm | Aluminum | BGA | Black Anodized | 25 mm | Clip | 0.374" (9.50mm) | Passive | 8.65 C/W | 8.6°C/W @ 200 LFM | - | - | - | - | - | - | - | - | - | Heat Sinks | RoHS Compliant | No | Black | 25 mm | Black Anodized | 9.5 mm | Not Required mm | Bulk | Angled | Clip | Aluminum | maxiGRIP | BGA |
