cigen-CF-LA-2KL

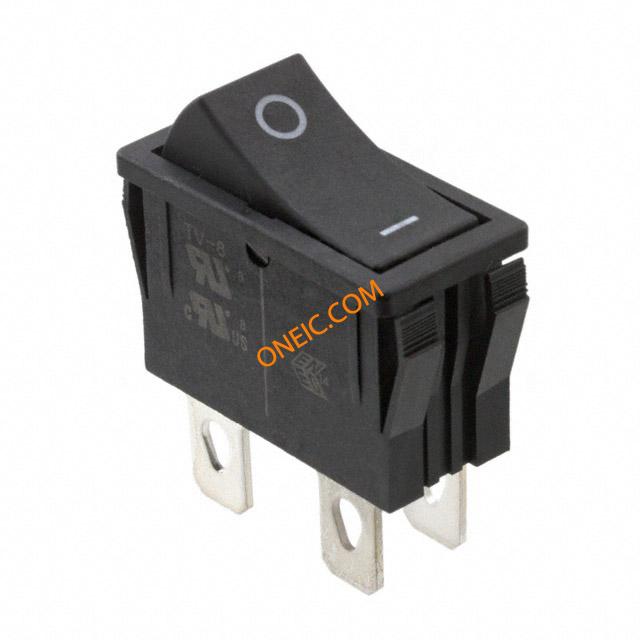

CF-LA-2KL switche Series
Dual-pole rocker switch for high-current applications
The CF-LA-2KL series from Nidec Copal Electronics Corporation is a dual-pole rocker switch designed for high-current applications, typically ranging from 10A to 30A. If you're working on projects that require reliable switching in circuits carrying significant current, this switch is a solid choice. One thing worth noting is its robust construction, which makes it suitable for environments with frequent cycling or harsh conditions. Engineers tend to reach for this when they need a switch that can handle continuous duty cycles without overheating or failing. It's also ideal for systems where space is limited due to its compact design. The switch’s simple yet effective design ensures it remains a go-to component for applications like power distribution panels, industrial machinery, and automotive electronics where high reliability and high current capacity are critical.
Series Images (4)
Documents & Media
Frequently Asked Questions
CF-LA-2KL switche - Part List
7 parts in total| Mfr Part # | Quantity Available | Price | Category | Standard Package | Circuit | Voltage Rating | Switch Function | Current Rating (Max) | Packaging | Mounting Type | Termination Style | Actuator Style/Size | Color - Actuator/Cap | Panel Cutout Dimensions | Features | Electrical Life | Actuator Marking | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 100: ¥33.116 | - | 100 | DPST | 125V | On-Off | 16A (AC) | Tray | Panel Mount, Snap-In | Solder Lug | Concave (Curved) | Black | Rectangular - 28.20mm x 12.90mm | In Rush 160A Max | 20,000 Cycles | Dot | IP40 | -25°C ~ 85°C | |
| 400 | 100: ¥32.793 | - | 100 | DPST | 125V | On-Off | 16A (AC) | Tray | Panel Mount, Snap-In | Solder Lug | Concave (Curved) | Black | Rectangular - 28.20mm x 12.90mm | In Rush 160A Max | 20,000 Cycles | O I | IP40 | -25°C ~ 85°C | |
| 198 | 1: ¥39.168 | - | 100 | DPST | 125V | On-Off | 16A (AC) | Tray | Panel Mount, Snap-In | Solder Lug | Concave (Curved) | Black | Rectangular - 28.20mm x 12.90mm | In Rush 160A Max | 20,000 Cycles | No Marking | IP40 | -25°C ~ 85°C | |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
