CFL4-A7BP oscillator Series

3.3V LVDS oscillators for precision timing applications

The CFL4-A7BP series from Cardinal Components is a line of 3.3V Low Voltage Differential Signaling (LVDS) oscillators designed for high-precision timing applications. These oscillators are particularly well-suited for environments where stability and accuracy are critical, such as in networking equipment, medical imaging devices, and high-speed data communication systems.

One thing worth noting is that these oscillators offer excellent phase noise performance, which is crucial for maintaining signal integrity in high-frequency applications. Engineers tend to reach for this when they need a reliable source of stable clock signals that can handle the demands of low-jitter requirements. If you're working on a project that involves precise synchronization or data transmission, these oscillators could be a solid choice due to their robust design and proven track record in maintaining accurate time references over a wide range of operating conditions.

Series Images (13)

Documents & Media

PDF Document

Frequently Asked Questions

Content generated by AI, for reference only
Loading...
03

CFL4-A7BP oscillator - Part List

5 parts in total

Frequency

Mfr Part #Quantity AvailablePriceCategoryStandard PackageOutputFrequencyCurrent - SupplyVoltage - SupplyFrequency StabilityHeightPackagingMounting TypePackage / CaseSize / DimensionTypeFunctionOperating Temperature

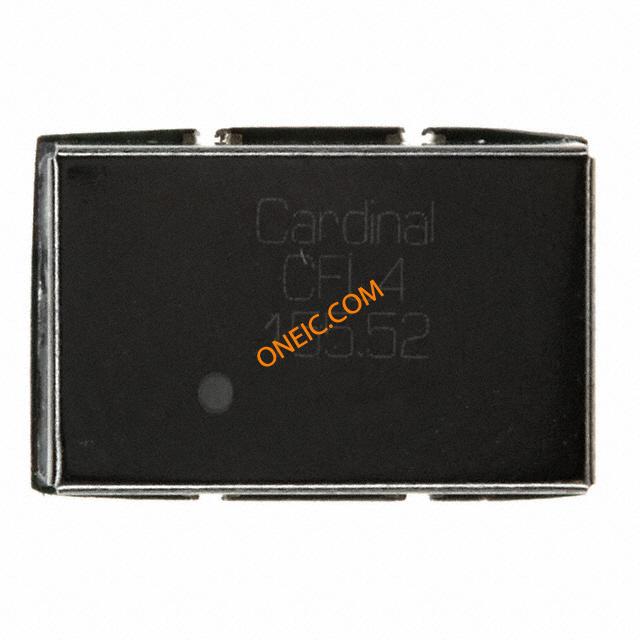

CFL4-A7BP-155.52
5
CFL4-A7BP-155.52

OSC 155.520 MHZ 3.3V LVDS

Cardinal Components Inc.

0-10LVDS155.52MHz100mA3.3V±50ppm0.138" (3.50mm)BulkSurface Mount4-SMD, No Lead (DFN, LCC)0.551" L x 0.354" W (14.00mm x 9.00mm)XO (Standard)Standby (Power Down)-40°C ~ 85°C
CFL4-A7BP-156.25
5
CFL4-A7BP-156.25

OSC 156.250 MHZ 3.3V LVDS

Cardinal Components Inc.

0-10LVDS156.25MHz100mA3.3V±50ppm0.138" (3.50mm)BulkSurface Mount4-SMD, No Lead (DFN, LCC)0.551" L x 0.354" W (14.00mm x 9.00mm)XO (Standard)Standby (Power Down)-40°C ~ 85°C
CFL4-A7BP-212.5
5
CFL4-A7BP-212.5

OSC 212.500 MHZ 3.3V LVDS

Cardinal Components Inc.

0-10LVDS212.5MHz100mA3.3V±50ppm0.138" (3.50mm)BulkSurface Mount4-SMD, No Lead (DFN, LCC)0.551" L x 0.354" W (14.00mm x 9.00mm)XO (Standard)Standby (Power Down)-40°C ~ 85°C

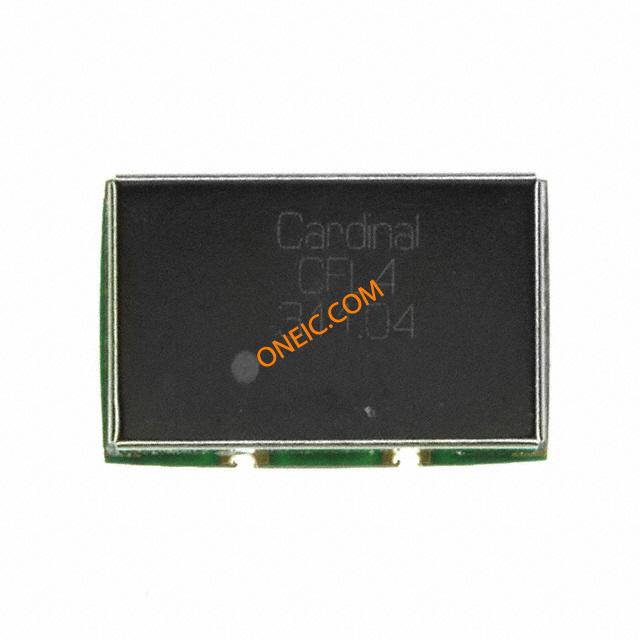

CFL4-A7BP-311.04
5
CFL4-A7BP-311.04

OSC 311.040 MHZ 3.3V LVDS

Cardinal Components Inc.

0-10LVDS311.04MHz100mA3.3V±50ppm0.138" (3.50mm)BulkSurface Mount4-SMD, No Lead (DFN, LCC)0.551" L x 0.354" W (14.00mm x 9.00mm)XO (Standard)Standby (Power Down)-40°C ~ 85°C

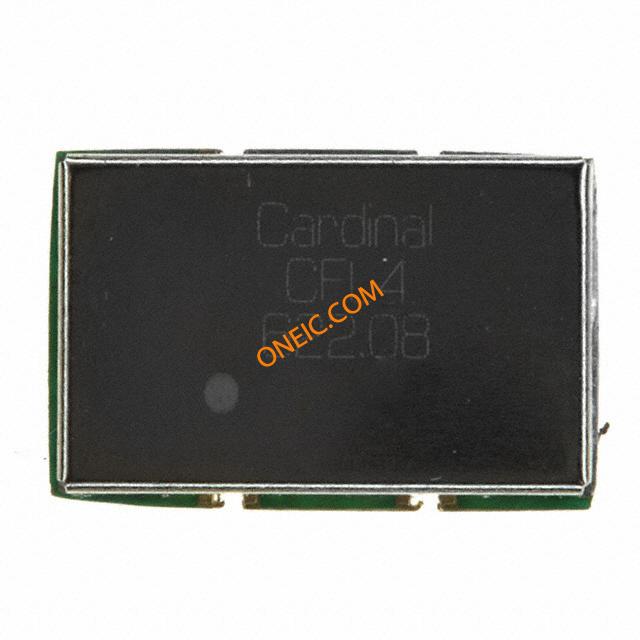

CFL4-A7BP-622.08
5
CFL4-A7BP-622.08

OSC 622.080 MHZ 3.3V LVDS

Cardinal Components Inc.

0-10LVDS622.08MHz100mA3.3V±50ppm0.138" (3.50mm)BulkSurface Mount4-SMD, No Lead (DFN, LCC)0.551" L x 0.354" W (14.00mm x 9.00mm)XO (Standard)Standby (Power Down)-40°C ~ 85°C
