CIH10T1 inductors, coils, choke Series

The CIH10T1 series from Samsung is a line of multilayer ceramic inductors designed for high-frequency applications, typically ranging from a few MHz to several GHz. These components are commonly used in RF circuits, wireless communication systems, and filter designs where precise inductance values and high Q factors are crucial. If you're working on anything that involves tuning circuits or needing to block certain frequencies while passing others, these inductors are a go-to choice.

One thing worth noting is their excellent temperature stability. They maintain consistent performance across a wide range of temperatures, which is critical in many industrial and automotive applications where environmental conditions can vary significantly. Engineers tend to reach for this when they need reliable inductance at higher frequencies without worrying too much about thermal drift. Another practical benefit is their compact size; these inductors are optimized for space-constrained designs, making them ideal for portable devices and boards where real estate is at a premium.

Mfr Part #	Quantity Available	Price	Category	MOQ	Unit Pack	Standard Package	RoHS	Automotive	Qualification	Leadfree Defin	Q @ Freq	Tolerance	Inductance	Test Frequency	Current - Output	Voltage - Supply	DC Resistance (DCR)	Current Rating (Max)	Frequency - Self Resonant	Size	Width	Height	Length	Packaging	Shielding	Mounting Type	Package / Case	Size / Dimension	Height - Seated (Max)	Supplier Device Package	Type	Matchcode	Technology	Standard Leadtime	Temperature - Test	Operating Temperature	EU RoHS	Resistance - Initial (Ri) (Min)	Depth	Core Material	Length - Overall	Other Names	Rad Hardened	Military Standard	Current - DC Forward (If) (Max)	Diameter	Failure Rate
CIH10T1N8SNC Ind High Frequency Chip Multi-Layer 1.8nH 0.3nH 100MHz 8Q-Factor Ceramic 800mA 0603 Paper T/R Inductor High Frequency Chip Multi-Layer 1.8nH 0.3nH 100MHz 8Q-Factor Ceramic 800mA 100mOhm DCR 0603 Paper T/R CIH10T 1,8nH 800mA +-0,3nH MLT INDUCTOR MULTILAYER 1.8NH 0603 samsung electro-mechanics	10	4000: ¥0.0598	-	40000	4000	Tape & Reel	Lead free / RoHS Compliant	NO	8	RoHS-conform	8(Typ)@100MHz	0.3 nH	1.8 nH	100MHz	800mA	6000MHz	0.1Ohm	800 mA	6GHz	0603Inch	0.8mm	0.95 mm	1.6mm	Paper Tape and Reel	Unshielded	SMD	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	*	*	High Frequency Chip	INDC0,0018U0603	Multi-Layer	14 weeks	-55°C	-55°C ~ 125°C	Compliant	100 mOhm	0.95	Ceramic	1.75	-	-	-	-	-	-
CIH10T10NJNC Ind High Frequency Chip Multi-Layer 10nH 5% 100MHz 12Q-Factor Ceramic 600mA 0603 Paper T/R Inductor High Frequency Chip Multi-Layer 10nH 5% 100MHz 12Q-Factor Ceramic 600mA 260mOhm DCR 0603 Paper T/R CIH10T 10nH 600mA 5% MLT INDUCTOR MULTILAYER 10NH 0603 FIXED IND 10NH 600MA 260 MOHM samsung electro-mechanics	6618	94: ¥5.2972	-	4000	4000	Tape & Reel	Lead free / RoHS Compliant	NO	12	RoHS-conform	12(Typ)@100MHz	5 %	10 nH	100MHz	600mA	3400MHz	0.26Ohm	600 mA	3.4GHz	0603Inch	0.8mm	0.95 mm	1.6mm	Paper Tape and Reel	Unshielded	SMD	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	*	*	High Frequency Chip	INDC0,01U0603	Multi-Layer	14 weeks	-55°C	-55°C ~ 125°C	Compliant	260 mOhm	0.95	Ceramic	1.75	1276-6306-2	-	-	-	-	-
2 CIH10T12NJNC Ind High Frequency Chip Multi-Layer 12nH 5% 100MHz 12Q-Factor Ceramic 600mA 0603 Paper T/R Inductor High Frequency Chip Multi-Layer 12nH 5% 100MHz 12Q-Factor Ceramic 600mA 280mOhm DCR 0603 Paper T/R CIH10T 12nH 600mA 5% MLT INDUCTOR MULTILAYER 12NH 0603 Samsung Electro-Mechanics CIH10T 系列 12 nH ±5% 陶瓷多层贴片式电感器, 0603封装, SRF: 2.6GHz Q: 12 600mA dc 280mΩ Rdc samsung electro-mechanics	10602	1: ¥0.68	-	40000	4000	Tape & Reel	Lead free / RoHS Compliant	NO	12	RoHS-conform	12(Typ)@100MHz	5 %	12 nH	100MHz	600mA	2600MHz	0.28Ohm	600 mA	2.6GHz	0603Inch	0.8mm	0.95 mm	1.6mm	Paper Tape and Reel	Unshielded	SMD	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	*	*	High Frequency Chip	INDC0,012U0603	Multi-Layer	14 weeks	-55°C	-55°C ~ 125°C	Compliant	280 mOhm	0.95	Ceramic	1.75	1276-6307-2	-	-	-	-	-
CIH10T15NJNC Ind High Frequency Chip Multi-Layer 15nH 5% 100MHz 12Q-Factor Ceramic 500mA 0603 Paper T/R Inductor High Frequency Chip Multi-Layer 15nH 5% 100MHz 12Q-Factor Ceramic 500mA 320mOhm DCR 0603 Paper T/R CIH10T 15nH 500mA 5% MLT INDUCTOR MULTILAYER 15NH 0603 samsung electro-mechanics	15725	1: ¥0.1958	-	20000	4000	Tape & Reel	Lead free / RoHS Compliant	NO	12	RoHS-conform	12(Typ)@100MHz	5 %	15 nH	100MHz	500mA	2300MHz	0.32Ohm	500 mA	2.3GHz	0603Inch	0.8mm	0.95 mm	1.6mm	Paper Tape and Reel	Unshielded	SMD	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	*	*	High Frequency Chip	INDC0,015U0603	Multi-Layer	14 weeks	-55°C	-55°C ~ 125°C	Compliant	320 mOhm	0.95	Ceramic	1.75	1276-6308-2	-	-	-	-	-
2 CIH10T18NJNC Ind High Frequency Chip Multi-Layer 18nH 5% 100MHz 12Q-Factor Ceramic 500mA 0603 Paper T/R Inductor High Frequency Chip Multi-Layer 18nH 5% 100MHz 12Q-Factor Ceramic 500mA 350mOhm DCR 0603 Paper T/R CIH10T 18nH 500mA 5% MLT INDUCTOR MULTILAYER 18NH 0603 LQG Series 0603 18 nH 350 mA High Frequency Multilayer Inductor Samsung Electro-Mechanics CIH10T 系列 18 nH ±5% 陶瓷多层贴片式电感器, 0603封装, SRF: 2GHz Q: 12 500mA dc 350mΩ Rdc samsung electro-mechanics	15295	1: ¥0.68	-	40000	4000	Tape & Reel	Lead free / RoHS Compliant	NO	12	RoHS-conform	12(Typ)@100MHz	5 %	18 nH	100MHz	500mA	2000MHz	0.35Ohm	500 mA	2GHz	0603Inch	0.8mm	0.95 mm	1.6mm	Paper Tape and Reel	Unshielded	SMD	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	*	*	High Frequency Chip	INDC0,018U0603	Multi-Layer	14 weeks	-55°C	-55°C ~ 125°C	Compliant	350 mOhm	0.95 mm	Ceramic	1.75 mm	1276-6309-2	No	Not Required	300 mA	Not Required mm	Not Required
2 CIH10T1N5SNC Ind High Frequency Chip Multi-Layer 1.5nH 0.3nH 100MHz 8Q-Factor Ceramic 800mA 0603 Paper T/R Inductor High Frequency Chip Multi-Layer 1.5nH 0.3nH 100MHz 8Q-Factor Ceramic 800mA 100mOhm DCR 0603 Paper T/R CIH10T 1,5nH 800mA +-0,3nH MLT INDUCTOR MULTILAYER 1.5NH 0603 Samsung Electro-Mechanics CIH10T 系列 1.5 nH ±0.3nH 陶瓷多层贴片式电感器, 0603封装, SRF: 2GHz Q: 8 800mA dc 100mΩ Rdc samsung electro-mechanics	12000	1852: ¥0.272	-	20000	4000	Tape & Reel	Lead free / RoHS Compliant	NO	8	RoHS-conform	8(Typ)@100MHz	0.3 nH	1.5 nH	100MHz	800mA	6000MHz	0.1Ohm	800 mA	6GHz	0603Inch	0.8mm	0.95 mm	1.6mm	Paper Tape and Reel	Unshielded	SMD	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	*	*	High Frequency Chip	INDC0,0015U0603	Multi-Layer	14 weeks	-55°C	-55°C ~ 125°C	Compliant	100 mOhm	0.95	Ceramic	1.75	1276-6302-2	-	-	-	-	-
CIH10T1N0SNC Inductor High Frequency Chip Multi-Layer 1nH 0.3nH 100MHz 8Q-Factor Ceramic 800mA 50mOhm DCR 0603 Paper T/R CIH10T 1nH 800mA +-0,3nH MLT R INDUCTOR MULTILAYER 1NH 0603 Samsung Electro-Mechanics	4084	1: ¥0.68	-	20000	4000	4,000	Lead free / RoHS Compliant	NO	8	RoHS-conform	8(Typ)@100MHz	0.3nH	1n	100MHz	800mA	10000MHz	0.05Ohm	800mA	10GHz	0603Inch	0.8mm	0.8mm	1.6mm	Paper Tape and Reel	Unshielded	SMD	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	*	*	High Frequency Chip	INDC0,001U0603	Multi-Layer	14 weeks	-55°C	-55°C ~ 125°C	Compliant	50m	0.95 mm	Ceramic	1.75 mm	1276-6301-2	No	Not Required	800 mA	Not Required mm	Not Required
CIH10T1N2SNC CIH10T 1,2nH 800mA +-0,3nH MLT INDUCTOR MULTILAYER 1.2NH 0603 SAMSUNG EM	10	40000: ¥0.075	-	40000	4000	4,000	Lead free / RoHS Compliant	NO	8	RoHS-conform	8 @ 100MHz	+-0,3nH%	0.0012µH	100MHz	800mA	10000MHz	0.05Ohm	800mA	10GHz	0603Inch	0.8mm	0.8mm	1.6mm	REEL	Unshielded	SMD	0603 (1608 Metric)	0.063" L x 0.031" W (1.60mm x 0.80mm)	*	*	Multilayer	INDC0,0012U0603	MULTILAYER	14 weeks	-55°C	-55°C ~ 125°C	-	-	-	-	-	-	-	-	-	-	-

cigen-CIH10T1

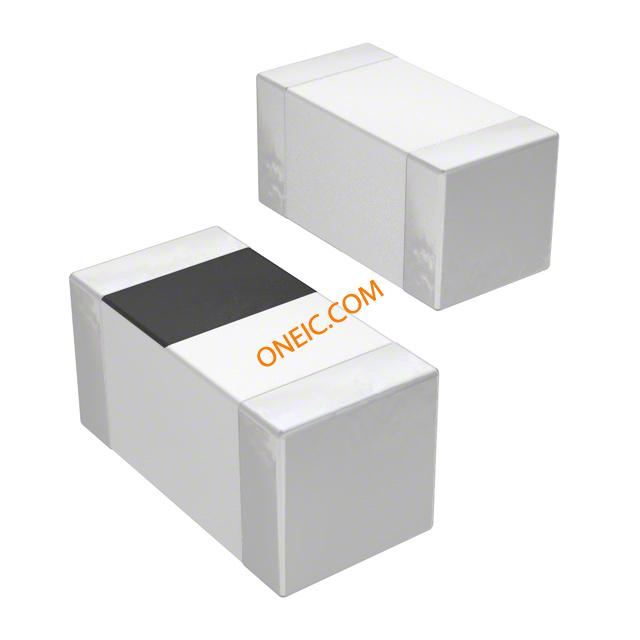

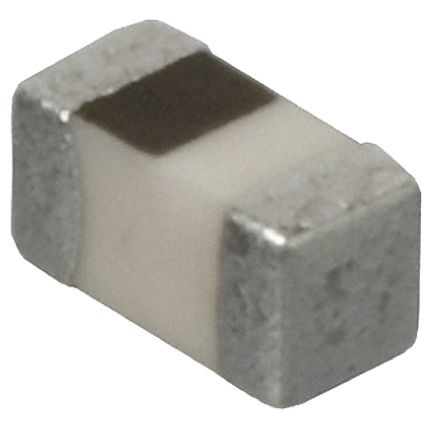

Series Images (2)
