CMR250TB crystals and oscillator Series

Surface-mount crystals with 12.5pF capacitance for timing applications

The CMR250TB series from Citizen Watch Co., Ltd., is a line of surface-mount crystals designed for timing applications that require a 12.5pF capacitance. These crystals are commonly found in various electronic devices where precise timing is crucial, such as in microcontrollers, digital clocks, and other embedded systems. If you're working on a project that needs accurate timekeeping without the bulk of through-hole components, these surface-mount crystals offer a compact solution.

One thing worth noting is their stability under temperature variations. Since they operate in a wide range of temperatures, they maintain consistent performance, which is essential for maintaining accuracy in timing-critical applications. Engineers tend to reach for this type of crystal when space is a premium and precision is key. For instance, in automotive electronics, where every component must be as small and reliable as possible, the CMR250TB crystals can be a go-to choice.

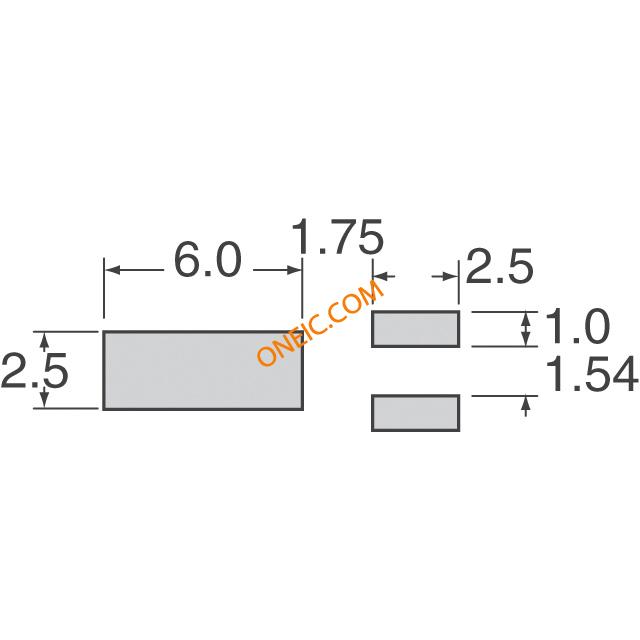

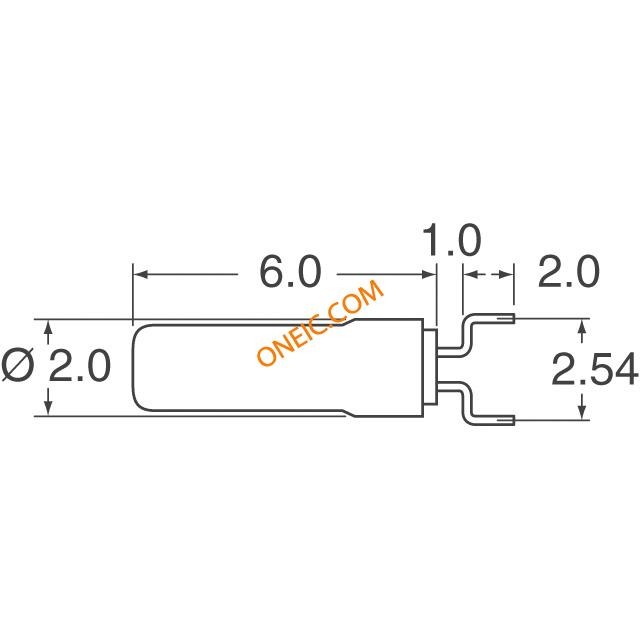

Series Images (3)

Documents & Media

PDF Document
PDF Document

Frequently Asked Questions

Content generated by AI, for reference only
Loading...
03

CMR250TB crystals and oscillator - Part List

8 parts in total

Other Names

Frequency

Mfr Part #Quantity AvailablePriceCategoryOther NamesStandard PackageRoHSFrequencyOperating ModeLoad CapacitanceFrequency ToleranceHeightPackagingMounting TypePackage / CaseSize / DimensionTypeOperating Temperature
CMR250TB75.000KAZFTR
3
CMR250TB75.000KAZFTR

CRYSTAL 75.000 KHZ 12.5PF SMD CRYSTAL 75KHZ 12.5PF SMD

Citizen Finetech Miyota

37171: ¥8.432-300-2061-22,000Contains lead / RoHS non-compliant75kHzFundamental12.5pF±30ppm0.079" (2.00mm)Tape & Reel (TR)Surface MountCylindrical Can, Radial0.079" Dia x 0.236" L (2.00mm x 6.00mm)kHz Crystal (Tuning Fork)-40°C ~ 85°C
CMR250TB96.000KAZFTR
3
CMR250TB96.000KAZFTR

CRYSTAL 96.000 KHZ 12.5PF SMD CRYSTAL 96KHZ 12.5PF SMD

Citizen Finetech Miyota

15761: ¥8.432-300-2063-22,000Contains lead / RoHS non-compliant96kHzFundamental12.5pF±30ppm0.079" (2.00mm)Tape & Reel (TR)Surface MountCylindrical Can, Radial0.079" Dia x 0.236" L (2.00mm x 6.00mm)kHz Crystal (Tuning Fork)-40°C ~ 85°C
CMR250TB40.000KAZFTR
3
CMR250TB40.000KAZFTR

CRYSTAL 40.000 KHZ 12.5PF SMD CRYSTAL 40 KHZ 12.5PF SMD CRYSTAL 40KHZ 12.5PF SMD

Citizen Finetech Miyota

101: ¥10.812-300-2058-22,000Contains lead / RoHS non-compliant40kHzFundamental12.5pF±30ppm0.079" (2.00mm)Tape & Reel (TR)Surface MountCylindrical Can, Radial0.079" Dia x 0.236" L (2.00mm x 6.00mm)kHz Crystal (Tuning Fork)-40°C ~ 85°C
CMR250TB32.000KAZFTR
CMR250TB32.000KAZFTR

CRYSTAL 32.000 KHZ 12.5PF SMD CRYSTAL 32KHZ 12.5PF SMD

Citizen Finetech Miyota

0-300-2057-22,000Contains lead / RoHS non-compliant32kHzFundamental12.5pF±30ppm0.079" (2.00mm)Tape & Reel (TR)Surface MountCylindrical Can, Radial0.079" Dia x 0.236" L (2.00mm x 6.00mm)kHz Crystal (Tuning Fork)-40°C ~ 85°C
CMR250TB60.000KAZFTR
CMR250TB60.000KAZFTR

CRYSTAL 60.000 KHZ 12.5PF SMD CRYSTAL 60.000KHZ 12.5PF SMD

Citizen Finetech Miyota

0-300-2059-22,000Contains lead / RoHS non-compliant60kHzFundamental12.5pF±30ppm0.079" (2.00mm)Tape & Reel (TR)Surface MountCylindrical Can, Radial0.079" Dia x 0.236" L (2.00mm x 6.00mm)kHz Crystal (Tuning Fork)-40°C ~ 85°C
CMR250TB65.535KAZFTR
3
CMR250TB65.535KAZFTR

CRYSTAL 65.535 KHZ 12.5PF SMD CRYSTAL 65.535KHZ 12.5PF SMD

Citizen Finetech Miyota

0-300-2060-22,000Contains lead / RoHS non-compliant65.535kHzFundamental12.5pF±30ppm0.079" (2.00mm)Tape & Reel (TR)Surface MountCylindrical Can, Radial0.079" Dia x 0.236" L (2.00mm x 6.00mm)kHz Crystal (Tuning Fork)-40°C ~ 85°C
CMR250TB76.8KAZFTR
CMR250TB76.8KAZFTR

CRYSTAL 76.8 KHZ 12.5PF SMD CRYSTAL 76.8KHZ 12.5PF SMD

Citizen Finetech Miyota

0-300-2062-22,000Contains lead / RoHS non-compliant76.8kHzFundamental12.5pF±30ppm0.079" (2.00mm)Tape & Reel (TR)Surface MountCylindrical Can, Radial0.079" Dia x 0.236" L (2.00mm x 6.00mm)kHz Crystal (Tuning Fork)-40°C ~ 85°C
CMR250TB100.000KAZFTR
CMR250TB100.000KAZFTR

CRYSTAL 100.000 KHZ 12.5PF SMD CRYSTAL 100KHZ 12.5PF SMD

Citizen Finetech Miyota

0-300-2064-22,000Contains lead / RoHS non-compliant100kHzFundamental12.5pF±30ppm0.079" (2.00mm)Tape & Reel (TR)Surface MountCylindrical Can, Radial0.079" Dia x 0.236" L (2.00mm x 6.00mm)kHz Crystal (Tuning Fork)-40°C ~ 85°C
Page 1 / 1
