cigen-DBEU 102 A
DBEU 102 A Series

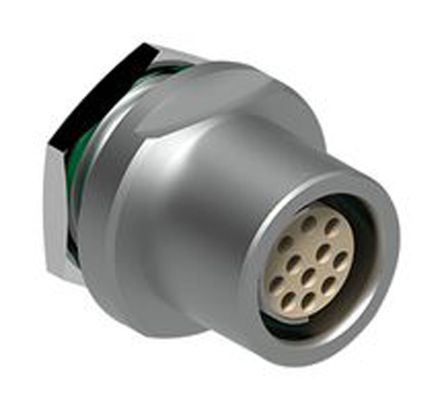

IP68-rated panel-mount circular connectors with push-pull locking
The DBEU 102 A series from Fischer Connectors is a robust line of IP68-rated panel-mount circular connectors designed for harsh environments. These connectors feature a push-pull locking mechanism, which ensures a secure connection even under vibration and shock. If you're working on projects that require reliable electrical connections in water or dust-filled conditions, these connectors are a great choice.
One thing worth noting is their durability; they can withstand repeated mating and unmating cycles without compromising performance. Engineers tend to reach for this when they need connectors that can handle frequent use in industrial settings, such as underwater installations, offshore platforms, or automotive applications where water and dust ingress are significant concerns. The push-pull design also provides an audible click, making it easy to confirm the connection is secure—a handy feature in field conditions.
Another practical benefit is their modular design, allowing for easy customization and integration into various system configurations. This flexibility makes them suitable for a wide range of projects, from marine electronics to industrial machinery. Overall, the DBEU 102 A series offers a solid solution for engineers looking for reliable, high-performance connectors in demanding environments.
Series Images (11)
Documents & Media
Frequently Asked Questions
DBEU 102 A - Part List
9 parts in total| Mfr Part # | Quantity Available | Price | Category | Voltage Rating | Current Rating (Max) | Mounting Type | Connector Type | Contact Finish | Contact Material | Housing Material | Number of Contacts | Series | Operating Temperature | Connector Impedance | Orientation | Contact Type | Termination Rows | Base Product Number | Ingress Protection | SVHC | Tariff No | Connector - Voltage Input | Weight | Shell Size | Termination | Connector Usage | Insertion Angle | Material - Body | Material Finish | 1st Contact Gender | Contact Termination | Shell Size - Insert | 1st Connector Mounting Type | Gender | Seal Rating | Mating Cycles | Outline |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DBEU 102 A056-130 RECEPTACLE, IP68, FRONT-PROJ., 7WAY Fischer Connectors 102 系列 7路 面板安装 直向 连接器 插座 , 母触点, 推挽式接合 Fischer Connectors | 10 | 1: ¥212.432 | - | 160 V ac | 2A | Straight | :Circular Industrial | Gold over Nickel | Bronze | Brass | 7 | 102 | +135°C | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85369010 | Standard | 0.00743 | 14mm | Solder | Push-Pull | :- | :Brass | :- | Female | :Solder | :- | :Panel | Female | IP68 | :10000 | - |

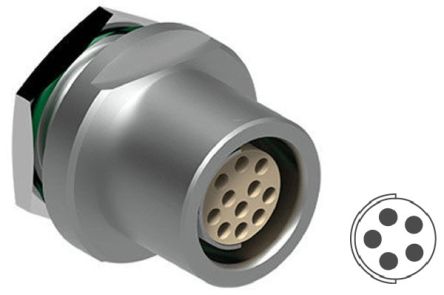

DBEU 102 A054-130 RECEPTACLE, IP68, FRONT-PROJ., 5WAY Fischer Connectors 102 系列 5路 面板安装 直向 连接器 插座 , 母触点, 推挽式接合 Fischer Connectors | 10 | 1: ¥199.988 | - | 160 V ac | 5.2A | Straight | :Circular Industrial | Gold over Nickel | Bronze | Brass | 5 | 102 | +135°C | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85369010 | Standard | 0.00743 | 14mm | Solder | Push-Pull | :- | :Brass | :- | Female | :Solder | :- | :Panel | Female | IP68 | :10000 | - |
DBEU 102 A052-130 RECEPTACLE, IP68, FRONT-PROJ., 3WAY Fischer Connectors 102 系列 3路 面板安装 直向 连接器 插座 , 母触点, 推挽式接合 Fischer Connectors | 10 | 1: ¥139.74 | - | 250 V ac | 8.2A | Straight | :Circular Industrial | Gold over Nickel | Bronze | Brass | 3 | 102 | +135°C | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85369010 | Standard | 0.00743 | 14mm | Solder | Push-Pull | :- | :Brass | :- | Female | :Solder | :- | :Panel | Female | IP68 | :10000 | - |
| 0 | - | 160 V ac | 1.7A | 面板安装 | 插座 | 金镀镍 | 青铜 | 黄铜 | 9 | Core | +200°C | 标准 | 直 | 母座 | 焊接 | S102 | IP68 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 102 | ||
| 0 | - | 200 V ac | 5.5A | 面板安装 | 插座 | 金镀镍 | 青铜 | 黄铜 | 4 | Core | +200°C | 标准 | 直 | 母座 | 焊接 | 102 | IP68 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| 0 | - | 250 V ac | 9.2A | 面板安装 | 插座 | 金镀镍 | 青铜 | 黄铜 | 2 | Core | +200°C | 标准 | 直 | 母座 | 焊接 | 102 | IP68 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
DBEU 102 A059-180EG Fischer Connectors Core 系列 S102 9路 面板安装 直向 圆形连接器 插座 , 母触点, 推挽式接合 Fischer Connectors | 0 | - | 160 V ac | 1.7A | 面板安装 | 插座 | 金镀镍 | 青铜 | 黄铜 | 9 | Core | +200°C | 标准 | 直 | 母座 | 焊接 | S102 | IP68 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 102 | |
| 0 | - | 160 V ac | 5.2A | 面板安装 | 插座 | 金镀镍 | 青铜 | 黄铜 | 5 | Core | +200°C | 标准 | 直 | 母座 | 焊接 | 102 | IP68 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| 0 | - | 250 V ac | 8.2A | 面板安装 | 插座 | 金镀镍 | 青铜 | 黄铜 | 3 | Core | +200°C | 标准 | 直 | 母座 | 焊接 | S102 | IP68 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 102 |
