cigen-DG16L
DG16L electric motors, motor controllers & peripheral Series
Compact DC gear motors in various speeds and voltages for precision applications
The DG16L series from Canon Inc. consists of compact DC gear motors designed for precision applications. These motors come in different speeds and voltages, making them versatile for a range of projects. If you're working on robotics, automation systems, or any application requiring precise motion control, these motors could be a great fit. One thing worth noting is their size; despite being compact, they pack a punch, offering decent torque and speed for their dimensions. Engineers tend to reach for this series when they need a reliable motor that can handle delicate tasks without taking up too much space. Another practical aspect is their integration with motor controllers and peripherals from the same manufacturer, which can simplify setup and ensure compatibility. Overall, the DG16L series strikes a good balance between performance and size, making them a solid choice for precision-driven projects.
Series Images (9)
Frequently Asked Questions
DG16L electric motors, motor controllers & peripheral - Part List
8 parts in total| Mfr Part # | Quantity Available | Price | Category | Speed | Core Type | Speed - Write | Voltage - Supply | Current Rating (Max) | Power - Output Surge | Width | Length | Connector Type | Shaft Diameter | Diameter - Shaft | Torque - Max Momentary (oz-in / mNm) | RoHS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 1: ¥463.82 | - | 40 rpm | Iron Core | 40 rpm | 24 V dc | 90 mA | 147 mNm | 16mm | 55.3mm | Planetary | 4mm | 4mm | 147 mNm | - | |
DG16L-12-0242 DG16 242:1 gear DC motor,40rpm 12V 16MM12VDC40RPMMGB Canon 直流齿轮传动电动机 , 12 V 直流, 147 mNm, 35 rpm Canon | 156 | 1: ¥555.27 | - | 35 rpm | Iron Core | 35 rpm | 12 V dc | 160 mA | 147 mNm | 16mm | 55.3mm | Planetary | 4mm | 4mm | 147 mNm | RoHS Compliant Part |
| 130 | 1: ¥449.0244 | - | 400 rpm | Iron Core | 400 rpm | 12 V dc | 200 mA | 19.6 mNm | 16mm | 47.9mm | Planetary | 4mm | 4mm | 19.6 mNm | - | |
DG16L-24-0410 DG16 410:1 gear DC motor,28rpm 24V 16MM24VDC28RPMMGB Canon 直流齿轮传动电动机 , 24 V 直流, 196 mNm, 26 rpm Canon | 83 | 1: ¥405.93 | - | 26 rpm | Iron Core | 26 rpm | 24 V dc | 70 mA | 196 mNm | 16mm | 55.3mm | Planetary | 4mm | 4mm | 196 mNm | RoHS Compliant Part |

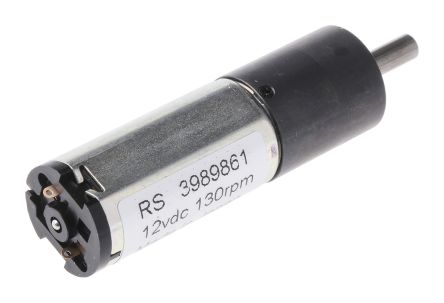

| 130 | 1: ¥449.0244 | - | 130 rpm | Iron Core | 130 rpm | 12 V dc | 185 mA | 49 mNm | 16mm | 51.6mm | Planetary | 4mm | 4mm | 49 mNm | - | |
| 130 | 1: ¥449.0244 | - | 21 rpm | Iron Core | 21 rpm | 12 V dc | 140 mA | 196 mNm | 16mm | 55.3mm | Planetary | 4mm | 4mm | 196 mNm | - | |

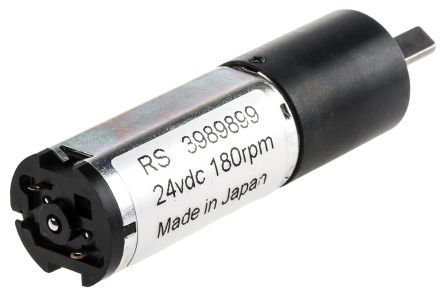

DG16L-24-0062 DG16 62:1 gear DC motor,180rpm 24V 16MM24VDC180RPMMGB Canon 直流齿轮传动电动机 , 24 V 直流, 49 mNm, 155 rpm Canon | 30 | 1: ¥578.63 | - | 155 rpm | Iron Core | 155 rpm | 24 V dc | 110 mA | 49 mNm | 16mm | 51.6mm | Planetary | 4mm | 4mm | 49 mNm | RoHS Compliant Part |

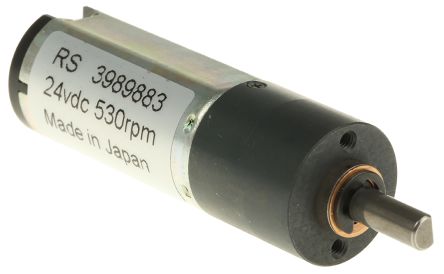

DG16L-24-0020 DG16 20:1 gear DC motor,530rpm 24V 16MM24VDC530RPMMGB Canon 直流齿轮传动电动机 , 24 V 直流, 19.6 mNm, 430 rpm Canon | 10 | 1: ¥595.90 | - | 430 rpm | Iron Core | 430 rpm | 24 V dc | 130 mA | 19.6 mNm | 16mm | 47.9mm | Planetary | 4mm | 4mm | 19.6 mNm | RoHS Compliant Part |
