cigen-DH2CC
DH2CC switche Series
SPDT snap action switches with various actuators for PC mounting
The DH2CC switch series from Cherry AG is a lineup of single-pole double-throw (SPDT) snap-action switches designed for computer applications. These switches come with a variety of actuator types, making them suitable for a wide range of projects involving PC keyboards, mice, and other peripheral devices. If you're working on custom builds or upgrading your own PC setup, these switches can be a great addition.
One thing worth noting is that the snap-action mechanism provides a tactile and audible feedback, which can be particularly beneficial in environments where clear signal transmission is crucial, such as in gaming setups or industrial control panels. Engineers tend to reach for these switches when they need reliable, tactile switches with quick response times and long service life. The various actuator styles—like the clicky or linear options—allow users to customize the feel to their liking, whether they prefer a more mechanical feel or a smoother operation.
Another practical observation is that these switches can handle a high number of operations without degrading performance, making them ideal for frequent use scenarios. Whether you're building a high-end gaming rig or an industrial control panel, the DH2CC series offers a robust solution that can stand up to heavy usage.

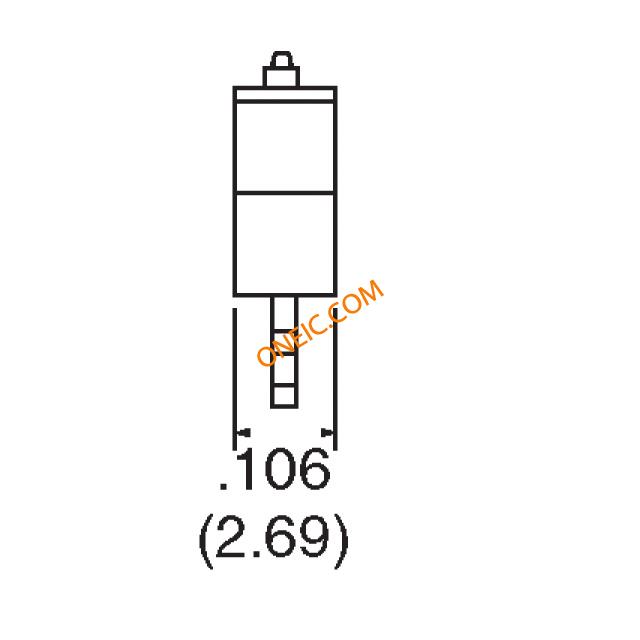

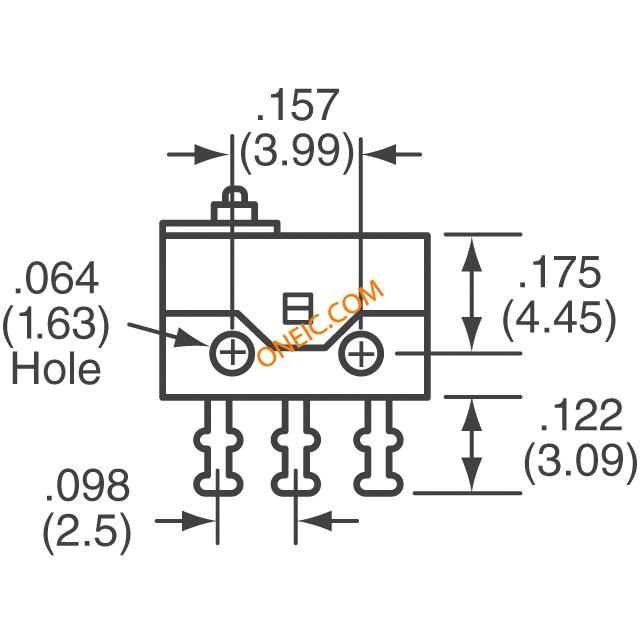

Series Images (4)
Documents & Media
Frequently Asked Questions
DH2CC switche - Part List
6 parts in total| Mfr Part # | Quantity Available | Price | Category | Voltage Rating | Switch Function | Current Rating (Max) | Mounting Type | Operating Force | Electrical Life | Mechanical Life | Operating Temperature | Other Names | Standard Package | EU RoHS | Circuit | Differential Travel | Switch Function/Rating | Depth | Height | Packaging | Pretravel | Overtravel | Actuator Type | Terminal Type | Contact Finish | Contact Material | Length - Overall | Actuator Material | Termination Style | Actuator Style/Size | Switch Actuation Level | Material - Housing & Prism | Operating Position | Ingress Protection | RoHS | Voltage - DC Spark Over (Nom) | Mounting Style | Operating Temperature - Junction | Tariff No | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

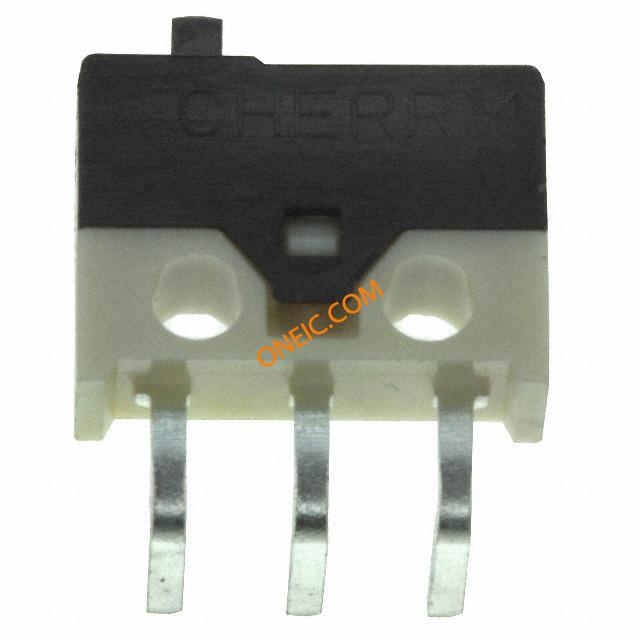

DH2CC5AA Switch Snap Action N.O./N.C. SPDT Button PC Pins 0.5A 30VDC 0.88N Thru-Hole SWITCH SNAP SPDT 500MA PC MNT Cherry | 10 | 5000: ¥20.876 | - | 20V | On-Mom | 500mA (DC) | Through Hole | 90gf | 30,000 Cycles | 50,000 Cycles | -25°C ~ 70°C | CH920 | 500 | Compliant | SPDT | 0.003" (0.075mm) | N.O./N.C. | 10.87 | 2.7 | Bulk | 0.014" (0.35mm) | 0.004" (0.1mm) | Round (Pin Plunger) | PC Pins | Gold | Gold Flash Silver Alloy | 8.2 | Polybutylene Terephthalate | PC Pin | Button | SPDT | Polyphenylene Sulphide/N/A | 0.220" (5.6mm) | IP40 | Lead free / RoHS Compliant | - | - | - | - | - |
DH2CC5PA Switch Snap Action N.O./N.C. SPDT Simulated Roller Lever PC Pins 0.5A 30VDC 0.49N Thru-Hole Cherry | 10 | 5000: ¥22.508 | - | 30 | N.O./N.C. | 0.5 A | Through Hole | 0.49 N | 30000 | 50000 | -25C to 70C | - | - | Compliant | - | - | N.O./N.C. | 12.2 mm | 2.7 mm | - | - | - | - | PC Pins | Gold | Gold Flash Silver Alloy | 8.2 mm | Polybutylene Terephthalate/Polybu... | - | Simulated Roller Lever | SPDT | Polyphenylene Sulphide/N/A | - | - | - | 30V | Through Hole | 70C | - | - |
| 10 | 5000: ¥21.7464 | - | 30V | On-Mom | 500mA (DC) | Through Hole | 90gf | 30,000 Cycles | 50,000 Cycles | -25°C ~ 70°C | Q6373364 | 1 | - | SPDT | 0.003" (0.075mm) | - | - | - | Bulk | 0.014" (0.35mm) | 0.004" (0.1mm) | Round (Pin Plunger) | - | - | - | - | - | PC Pin | - | - | - | 0.220" (5.6mm) | IP40 | - | - | - | - | - | - | |
| 10 | 1: ¥27.20 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 00000000 | 0.002 | |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
