cigen-E23-50
E23-50 switche Series
cherrySPDT snap action switches with quick connect terminals for various applications
The E23-50 series from Cherry AG is a lineup of single-pole double-throw (SPDT) snap-action switches designed for a variety of industrial and commercial applications. These switches feature quick-connect terminals, which simplify installation and reduce the time needed for wiring. If you're working on projects that require reliable switching functionality in environments with frequent on/off cycles, these Cherry switches are a solid choice.
One thing worth noting is their robust design; they’re built to withstand repeated use without degradation in performance. Engineers tend to reach for this type of switch when they need a compact solution that can handle both momentary and continuous use scenarios. They’re particularly useful in control panels, test equipment, and machinery where a quick and tactile response is crucial.
Another practical benefit is the quick-connect terminals, which eliminate the need for manual soldering and provide a secure connection. This feature makes them ideal for field-installation scenarios where quick setup and maintenance are important. Additionally, the snap-action mechanism ensures a positive tactile feedback, making them easy to identify and operate even under challenging conditions.
Series Images (7)
Documents & Media
Frequently Asked Questions
E23-50 switche - Part List
9 parts in total| Mfr Part # | Quantity Available | Price | Category | Part # Aliases | Product Category | RoHS | Voltage Rating | Current Rating (Max) | Contact Form | Actuator Type | Mounting Type | Operating Force | Termination Style | Type | Series | Standard Package | Circuit | Switch Function | Differential Travel | Packaging | Pretravel | Overtravel | Electrical Life | Operating Position | Operating Temperature | Lead Time | Subcategory |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

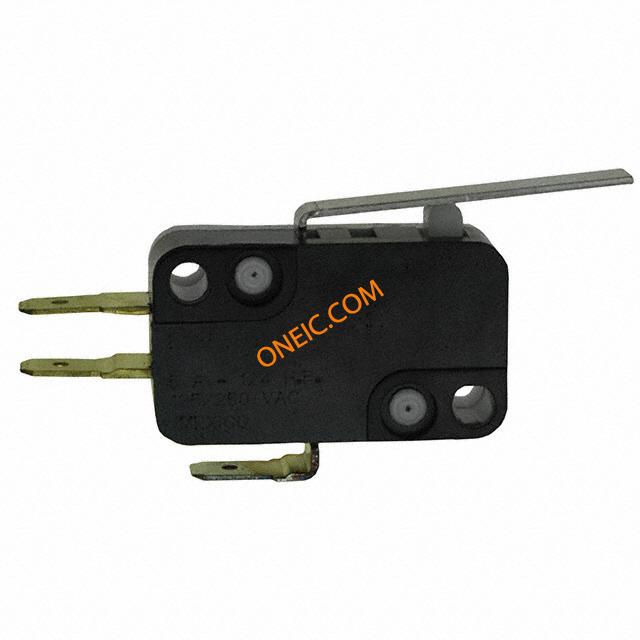

 E23-50H Basic / Snap Action Switches SPDT 5A QC TERM SWITCH LEVER SPDT 5A QC TERM Switch; Auxiliary Actuator; 86 g (Max.); 5 A; 125/250 VAC; SPDT; -40 to 85 degC Switch Snap Action N.O./N.C. SPDT Lever Quick Connect 5A 250VAC 186.42VA 0.84N Screw Mount Cherry Electrical | 547 | 1: ¥19.516 | - | 0E2350H0 | Basic / Snap Action Switches | Compliant | 125V | 5A (AC) | SPDT | Lever, Straight | Chassis Mount | 85gf | Quick Connect - 0.187" (4.7mm) | Miniature | E23 | 160 | SPDT | On-Mom | 0.030" (0.8mm) | Bulk | 0.125" (3.2mm) | 0.085" (2.16mm) | 6,000 Cycles | 0.600" (15.2mm) | -40°C ~ 85°C | - | - |
 E23-50KX Basic / Snap Action Switches SPDT 5A QC TERM Switch Snap Action N.O./N.C. SPDT Roller Lever Quick Connect 5A 250VAC 186.42VA 0.22N Screw Mount Cherry Electrical | 528 | 1: ¥27.54 | - | 0E2350KX | Basic / Snap Action Switches | RoHS Compliant | 250 V | 5 A | SPDT | Lever | Panel | 0.8 N | Screw | Miniature | E23 | - | - | - | - | - | - | - | - | - | - | - | - |

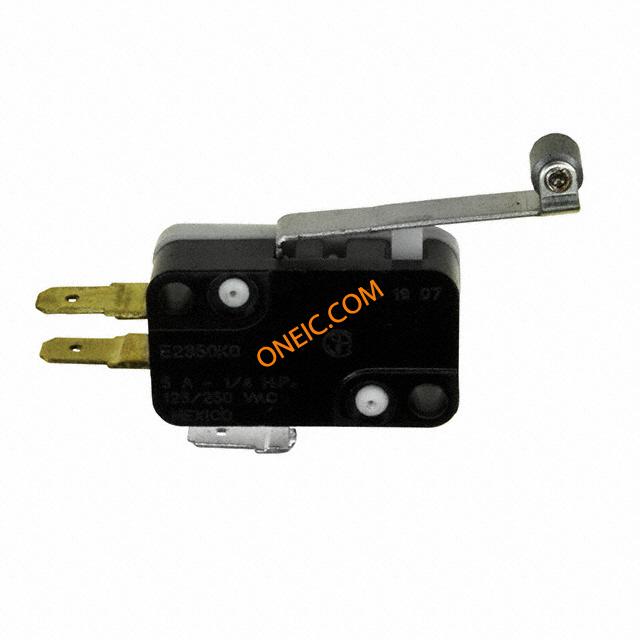

 E23-50K Basic / Snap Action Switches SPDT 5A QC TERM SWITCH ROLLER SPDT 5A QC TERM SWITCH; MINIATURE LIGHT AND STANDARD FORCE; QC TERMINAL Cherry Electrical | 356 | 1: ¥32.164 | - | 0E2350K0 | Basic / Snap Action Switches | Lead free / RoHS Compliant | 125V | 5A (AC) | SPDT | Lever, Roller | Chassis Mount | 86gf | Quick Connect - 0.187" (4.7mm) | Miniature | E23 | 960 | SPDT | On-Mom | 0.030" (0.8mm) | Bulk | 0.125" (3.2mm) | 0.085" (2.16mm) | 6,000 Cycles | 0.806" (20.5mm) | -40°C ~ 85°C | 126 Days | Switch Snap Action |
E23-50N Basic / Snap Action Switches SPDT 5A QC TERM Switch Snap Action N.O./N.C. SPDT Lever Quick Connect 5A 250VAC 186.42VA 0.84N Screw Mount Cherry Electrical | 118 | 1: ¥21.964 | - | 0E2350N0 | Basic / Snap Action Switches | RoHS Compliant | 250 V | 5 A | SPDT | Lever | Panel | 0.8 N | Screw | Miniature | E23 | - | - | - | - | - | - | - | - | - | - | - | - |
 | 67 | 1: ¥18.02 | - | 0E2350HX | Basic / Snap Action Switches | RoHS Compliant | 250 V | 5 A | SPDT | Lever | Panel | 0.8 N | Screw | Miniature | E23 | - | - | - | - | - | - | - | - | - | - | 126 Days | Switch Snap Action |
E23-50HL Switch Snap Action N.O./N.C. SPDT Lever Quick Connect 5A 250VAC 186.42VA 0.5N Screw Mount Cherry Electrical | 10 | 1: ¥23.936 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
E23-50PX Product Highlights: 8 current ratings AC 3 current ratings DC Choice of actuator styles Choice of terminals 3 contact arrangements Long-life coil spring mechanism Agency approved extended life versions High-temperature versions available Cherry Electrical | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
E23-50K0 Cherry Electrical Products | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
E23-50KL Cherry Electrical Products | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
