EA DOGXL160 Series

The EA DOGXL160 series from ELECTRONIC ASSEMBLY GmbH is a line of 160x104 pixel monochrome graphic LCD displays designed for a variety of embedded systems and industrial applications. These displays come equipped with multiple interface options, making them highly versatile for different integration needs. If you're working on projects that require a clear, readable display for status indicators, simple user interfaces, or basic data visualization, these LCDs are a solid choice.

One thing worth noting is their flexibility with interfaces. You can find models with I2C, SPI, and parallel interfaces, which makes them suitable for a wide range of microcontrollers and processors. Engineers tend to reach for this series when they need a straightforward, low-cost display solution without the need for color or high-resolution graphics.

Another practical aspect is their size. At 160x104 pixels, they offer a good balance between resolution and physical footprint, making them ideal for space-constrained applications like control panels, medical devices, or automotive dashboards where a compact display is necessary but complex graphics aren’t required.

Overall, the EA DOGXL160 series provides a reliable and cost-effective way to add graphical information to your projects, especially when you don’t need the complexity of full-color displays. They’re a go-to for any engineer looking to implement a simple yet effective visual feedback system.

Mfr Part #	Quantity Available	Price	Category	Other Names	Product Category	Standard Package	RoHS	Backlight	Interface	Resolution	Display Type	Power - Input	Current - Output	LED Forward Current	Size	Depth	Pitch	Width	Lamp Color	Height (Max)	Mounting Type	Number of Rows	Depth - Overall	Background Color	Height - Overall	Size / Dimension	Width - Outer Edges	Dimensions - Overall	Height - Seated (Max)	Type	Series	Dot Size	Pixel Size	Display Mode	Viewing Area	Display Style	Character Size	Controller Type	Character Format	Number of Columns	Diagonal Screen Size	Matrix (Columns x Rows)	Number of Characters Per Row	Fluid Type	Operating Temperature	Illumination Color

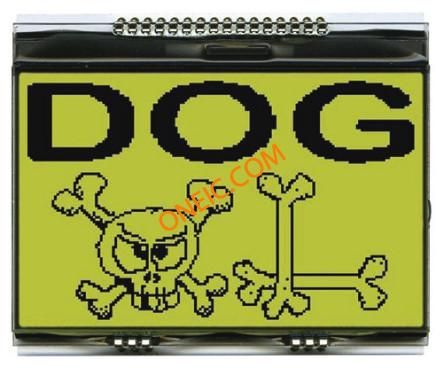

4 EA DOGXL160E-7 LCD Graphic Display Modules & Accessories STN (+) Transmissive Yel/Grn Backround LCD graphic 160x104,SPI, Y/Green mode LCD MOD GRAPH 160X104 Y/G LCD-graphic display 160 x 104 Pixel, EA DOGXL160E-7, Electronic Assembly Electronic Assembly 透射式图形 LCD 单色显示器 , 160 x 104pixels, 8位、9位、I2C 接口 ELECTRONIC ASSEMBLY	10	1: ¥279.004	-	1481-1096	LCD Graphic Display Modules & Accessories	1	RoHS Compliant	Yellow / Green	SPI	160 x 104	Graphic	2.6...3.3 V	700 µA	LED	78 mm x 61 mm x 2.8 mm	2.8mm	2.54	78mm	yellow-green	60.66mm	PCB Mount	6, 13	2.8mm	Yellow / Green	45.6mm	72 x 45.6mm	78mm	60.66 x 78 x 2.8mm	60.66mm	reflective	*	0.40 x 0.42	72mm	Transmissive	72 mm x 45 mm	positive	13, 6	UC1610	13 Rows by 26 Characters, 6 Rows by 20 Characters	20, 26	45.6mm	STN	20, 26	STN	- 20 C to + 70 C	Yellow-Green

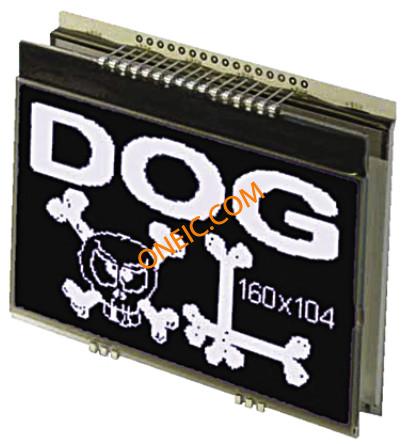

4 EA DOGXL160S-7 LCD Graphic Display Modules & Accessories FSTN (-) Transmiss Black Backround LCD graphic 160x104,SPI, Bl/White neg LCD MOD GRAPH 160X104 BLK/W LCD-graphic display 160 x 104 Pixel, EA DOGXL160S-7, Electronic Assembly Electronic Assembly 透射式图形 LCD 单色显示器 , 160 x 104pixels, 8位、9位、I2C 接口 ELECTRONIC ASSEMBLY	88	1: ¥279.004	-	1481-1098	LCD Graphic Display Modules & Accessories	1	RoHS Compliant	Black	SPI	160 x 104	Graphic	2.6...3.3 V	700 µA	LED	78 mm x 61 mm x 2.8 mm	2.8mm	2.54	78mm	black	60.66mm	PCB Mount	6, 13	2.8mm	Black	45.6mm	72 x 45.6mm	78mm	60.66 x 78 x 2.8mm	60.66mm	transmissive	*	0.40 x 0.42	72mm	Transmissive	72 mm x 45 mm	negative	13, 6	UC1610	13 Rows by 26 Characters, 6 Rows by 20 Characters	20, 26	45.6mm	FSTN	20, 26	FSTN	- 20 C to + 70 C	Blue, Green, Red, White

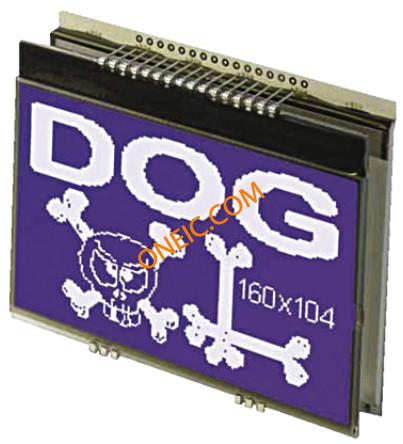

4 EA DOGXL160B-7 LCD Graphic Display Modules & Accessories STN (-) Transmissive Blue Background LCD graphic 160x104,SPI, Blue neg mode LCD MOD GRAPH 160X104 BLUE LCD-graphic display 160 x 104 Pixel, EA DOGXL160B-7, Electronic Assembly Electronic Assembly 透射式图形 LCD 单色显示器 , 160 x 104pixels, 8位、9位、I2C 接口 ELECTRONIC ASSEMBLY	13	1: ¥298.52	-	1481-1095	LCD Graphic Display Modules & Accessories	1	RoHS Compliant	Blue	SPI	160 x 104	Graphic	2.6...3.3 V	700 µA	LED	78 mm x 61 mm x 2.8 mm	2.8mm	2.54	78mm	blue	60.66mm	PCB Mount	6, 13	2.8mm	Blue	45.6mm	72 x 45.6mm	78mm	60.66 x 78 x 2.8mm	60.66mm	transmissive	*	0.40 x 0.42	72mm	Transmissive	72 mm x 45 mm	negative	13, 6	UC1610	13 Rows by 26 Characters, 6 Rows by 20 Characters	20, 26	45.6mm	STN	20, 26	STN	- 20 C to + 70 C	White, Yellow-Green
4 EA DOGXL160L-7 LCD Graphic Display Modules & Accessories STN (+) Reflective Yel/Grn Backround LCD graphic 160x104,SPI, Y/G reflective LCD MOD GRAPH 160X104 Y/G LCD-graphic display 160 x 104 Pixel, EA DOGXL160L-7, Electronic Assembly Electronic Assembly 反射式图形 LCD 单色显示器 , 160 x 104pixels, 8位、9位、I2C 接口 ELECTRONIC ASSEMBLY	10	1: ¥279.004	-	1481-1097	LCD Graphic Display Modules & Accessories	1	RoHS Compliant	Yellow / Green	SPI	160 x 104	Graphic	2.6...3.3 V	700 µA	LED	78 mm x 61 mm x 2.8 mm	2.8mm	2.54	78mm	yellow-green	60.66mm	PCB Mount	6, 13	2.8mm	Yellow / Green	45.6mm	72 x 45.6mm	78mm	60.66 x 78 x 2.8mm	60.66mm	transmissive	*	0.40 x 0.42	72mm	Reflective	72 mm x 45 mm	positive	13, 6	UC1610	13 Rows by 26 Characters, 6 Rows by 20 Characters	20, 26	45.6mm	STN	20, 26	STN	- 20 C to + 70 C	-

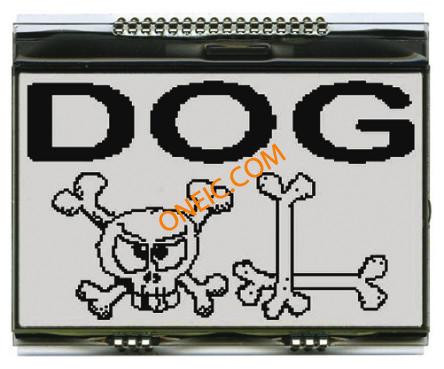

4 EA DOGXL160W-7 LCD Graphic Display Modules & Accessories FSTN (+) Transflect White Background LCD graphic 160x104,SPI, Bl/White pos LCD MOD GRAPH 160X104 BLK/W LCD-graphic display 160 x 104 Pixel, EA DOGXL160W-7, Electronic Assembly Electronic Assembly 半透反射图形 LCD 单色显示器 , 160 x 104pixels, 8位、9位、I2C 接口 ELECTRONIC ASSEMBLY	94	1: ¥285.328	-	1481-1099	LCD Graphic Display Modules & Accessories	1	RoHS Compliant	White	SPI	160 x 104	Graphic	2.6...3.3 V	700 µA	LED	78 mm x 61 mm x 2.8 mm	2.8mm	2.54	78mm	white	60.66mm	PCB Mount	6, 13	2.8mm	White	45.6mm	72 x 45.6mm	78mm	60.66 x 78 x 2.8mm	60.66mm	transmissive	*	0.40 x 0.42	72mm	Transflective	72 mm x 45 mm	positive	13, 6	UC1610	13 Rows by 26 Characters, 6 Rows by 20 Characters	20, 26	45.6mm	FSTN	20, 26	FSTN	- 20 C to + 70 C	White
